Removal And Installation: Notes

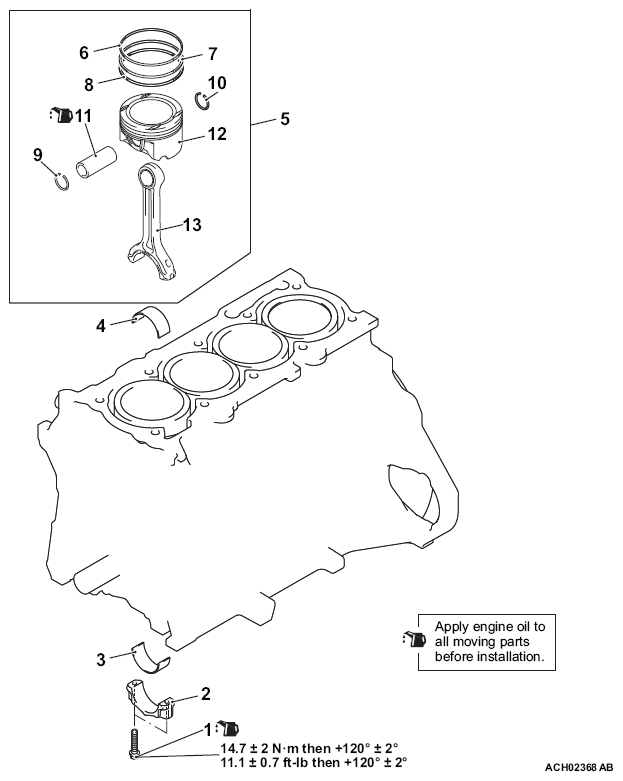

Fig 1: Removing/Installing Piston And Connecting Rod Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
	>>G<<	1.	Connecting rod cap bolt
<<A>>	>>F<<	2.	Connecting rod cap
	>>E<<	3.	Connecting rod bearing
<<B>>	>>D<<	4.	Piston, connecting rod assembly
	>>E<<	5.	Connecting rod bearing
	>>C<<	6.	Piston ring, No. 1
	>>C<<	7.	Piston ring, No. 2
	>>B<<	8.	Oil ring
		9.	Circlip
<<C>>	>>A<<	10.	Piston pin
		11.	Circlip
		12.	Piston
		13.	Connecting rod

Required Special Tools:
