Post-installation Operation: Notes

• Fuel Refilling
• Rear Seat Assembly Installation (Refer to Body Interior - Seat, Removal and Installation, Second Seat Assembly, REMOVAL AND INSTALLATION ).

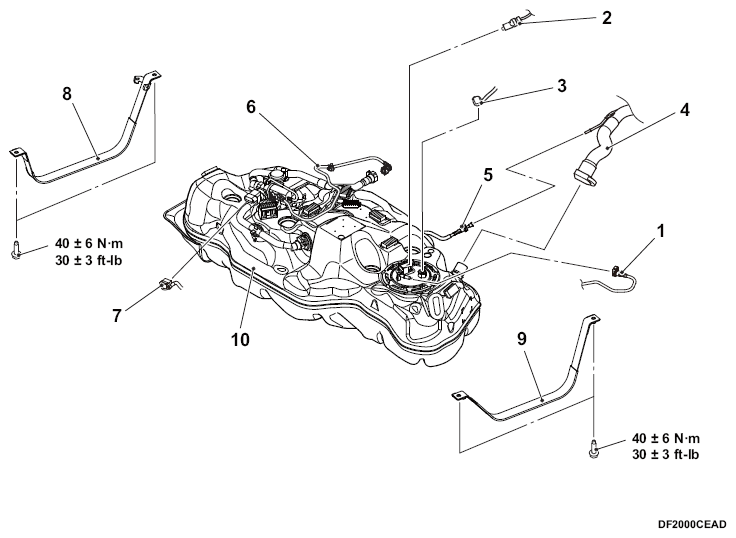

Fig 1: Removing/Installing Fuel Tank Components Location With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

		Removal steps
<<A>>	>>D<<	1. Fuel main pipe connection
		2. Fuel vapor sensor harness
		3. Fuel tank pump and gauge assembly connector
<<B>>	>>C<<	4. Fuel filler tube connection
<<C>>	>>B<<	5. Fuel vapor pipe connection
<<D>>		6. Fuel vapor tube
<<E>>	>>A<<	7. Fuel vapor pressure sensor connector
<<F>>		8. Fuel tank band (RH)
<<F>>		9. Fuel tank band (LH)
<<F>>		10. Fuel tank
