Ignition Timing

Set ignition timing with engine at normal operating temperature, spark plugs correctly gapped and breaker points correctly set. With engine idling at approximately 800 RPM, set ignition timing to 5° BTDC.

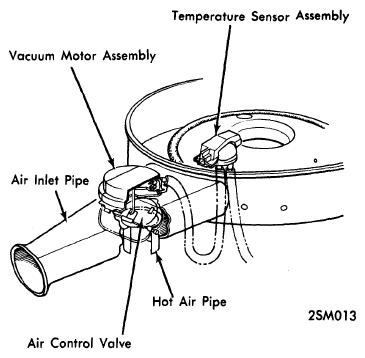

Fig 1: AUTOMATIC TEMPERATURE CONTROL AIR CLEANER

Courtesy of NISSAN NORTH AMERICA, INC.
