Description & Operation: Notes
NOTE:
Air Injection is also used with this system.

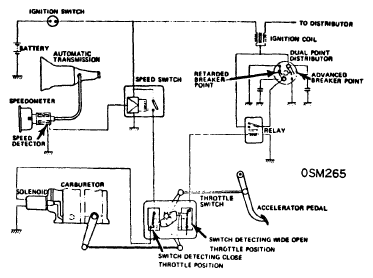

Speed detector (located on speedometer) transmits variation of car speed to RPM switch. The RPM switch is off when car speed is 0 to 13 MPH and on when speed exceeds 13 MPH. Throttle switch is located on bell crank of accelerator linkage.
