Idle COMPENSATOR

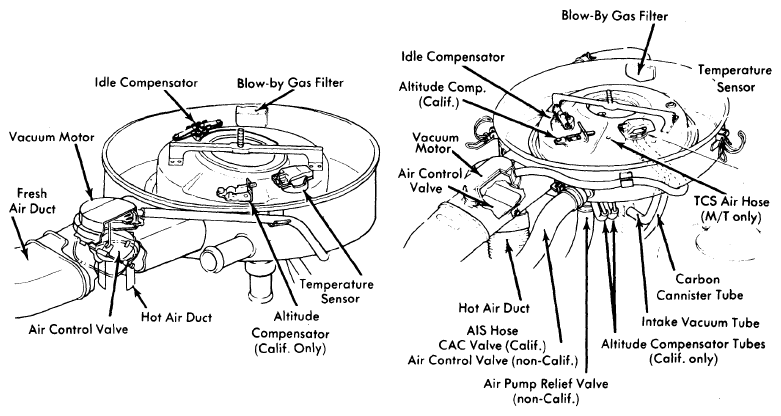

The idle compensator is basically a thermostatic valve which opens to allow the passage of air from the air cleaner assembly directly to the intake manifold to compensate for the overly rich air/fuel ratio present during high idle temperature. Two idle compensators, having different temperature characteristics are installed. One opens at 140-158°F (60-70°C) and the other at 158-176° (70-80°C).
1976 AIR CONTROL VALVE POSITIONING
| Application | Temperature °F (°C) | |
|---|---|---|
| Valve Closed | ||
| B210 | Below 100 (38) | |
| F10 | Below 113 (45) | |
| All Other Models | Below 86 (30) | |
| Valve Partially Open | ||
| B210 | 100-129 (38-54) | |
| F10 | 113-124 (45-51) | |
| All Other Models | 86-129 (30-54) | |
| Valve Full Open | ||
| F10 | 124 (51) | |
| All Other Models | 131 (55) | |
When the engine intake air temperature is above approximately 130°F (55°C), the sensor air bleed valve opens, shutting off vacuum to the vacuum motor. This closes the vacuum motor air control valve, shutting off the hot air duct and allowing cold air induction.
