Control Unit Ground Circuits

Measure resistance between ground and the following control unit connector terminals: 28, 36, 107, 108, 109, 112 and 113. Continuity should be present in all cases. If not, repair harness.

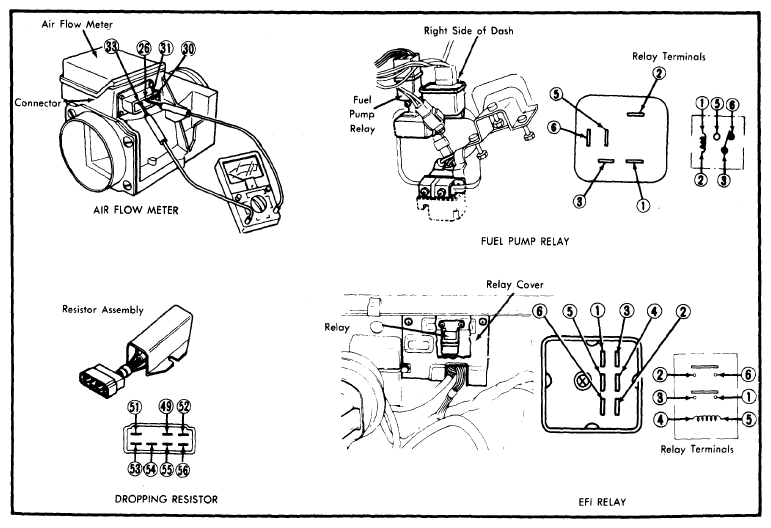

Fig 1: Datsun ECCS Component Testing Locations

Courtesy of NISSAN NORTH AMERICA, INC.
