Intermittent Amplifier: Notes

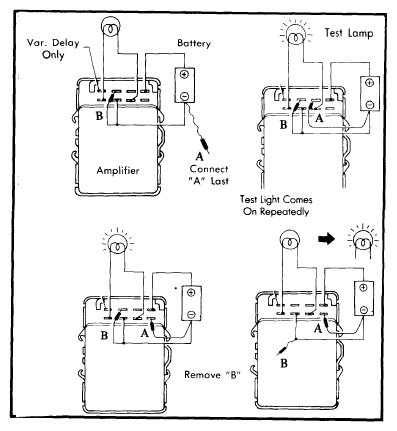

Remove amplifier from vehicle or position so jumper wires can be connected to terminals. Use care to prevent improper connections since amplifier can be ruined. Connect test lamp and battery as shown in Figure , 5, 6 & 7  . Be sure to use correct test procedures for the vehicle being tested.
