Electronic Concentrated Engine Control: Overhaul

Distributor overhaul is limited to removal of the cap, rotor, sealed cover, housing and harness. Crank angle sensor cannot be disassembled. Check cap and rotor for dust, carbon deposits and cracks, before reassembly.

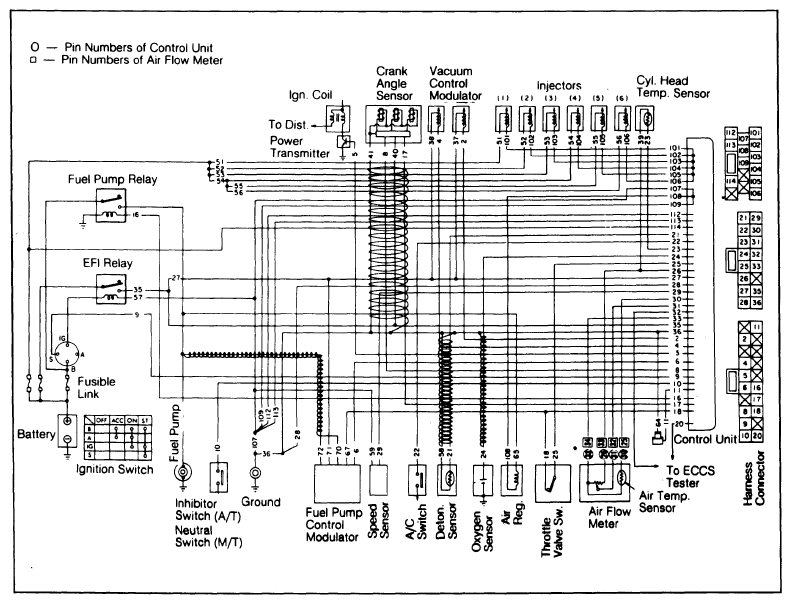

Fig 1: Datsun/Nissan 280ZX Turbo ECCS Wiring Diagram
G09316255Courtesy of NISSAN NORTH AMERICA, INC.
