Fuel Pump Relay

  1. Fuel pump relay is mounted on right side of dashboard. Remove relay and check continuity. It should be present at terminals 1 and 2, and terminals 3 and 5.
  2. With 12 volts applied to terminals 1 and 2, continuity should be present across terminals 3 and 5, but not at 3 and 6. If test is okay, check harness. If not okay, replace relay. See Fig 1.

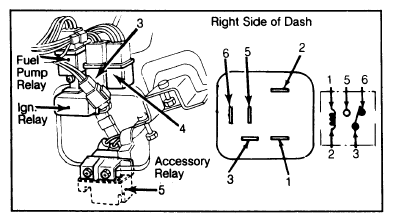

    Fig 1: Fuel Pump Relay Location & Test Connections
    G09316253Courtesy of NISSAN NORTH AMERICA, INC.

    Relay is located under right side of dashboard.
