The Spark Timing Control system is designed to control distributor vacuum advance under varying driving conditions to reduce HC and NOx emissions. This is accomplished by the use of a thermal vacuum valve (TVV).

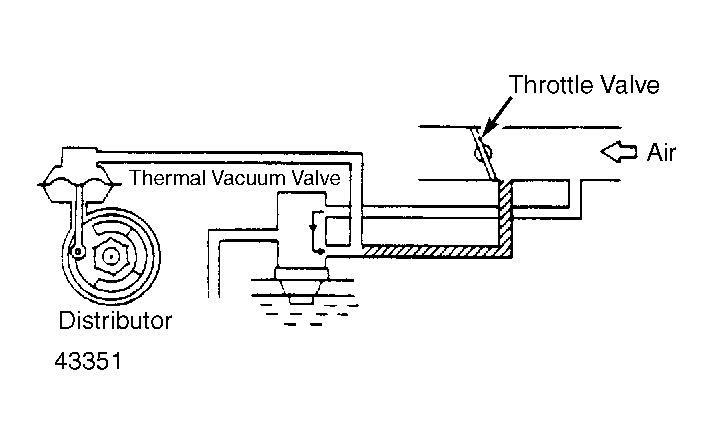

Fig 1: Spark Timing Control System System shown is in warm-up condition.
