Injection Pump Controller System: Controller

  1. Connect jumper wires from positive post of battery to terminal 13 and from negative post of battery to terminal 14. Injection pump controller motor should run. See Figure .

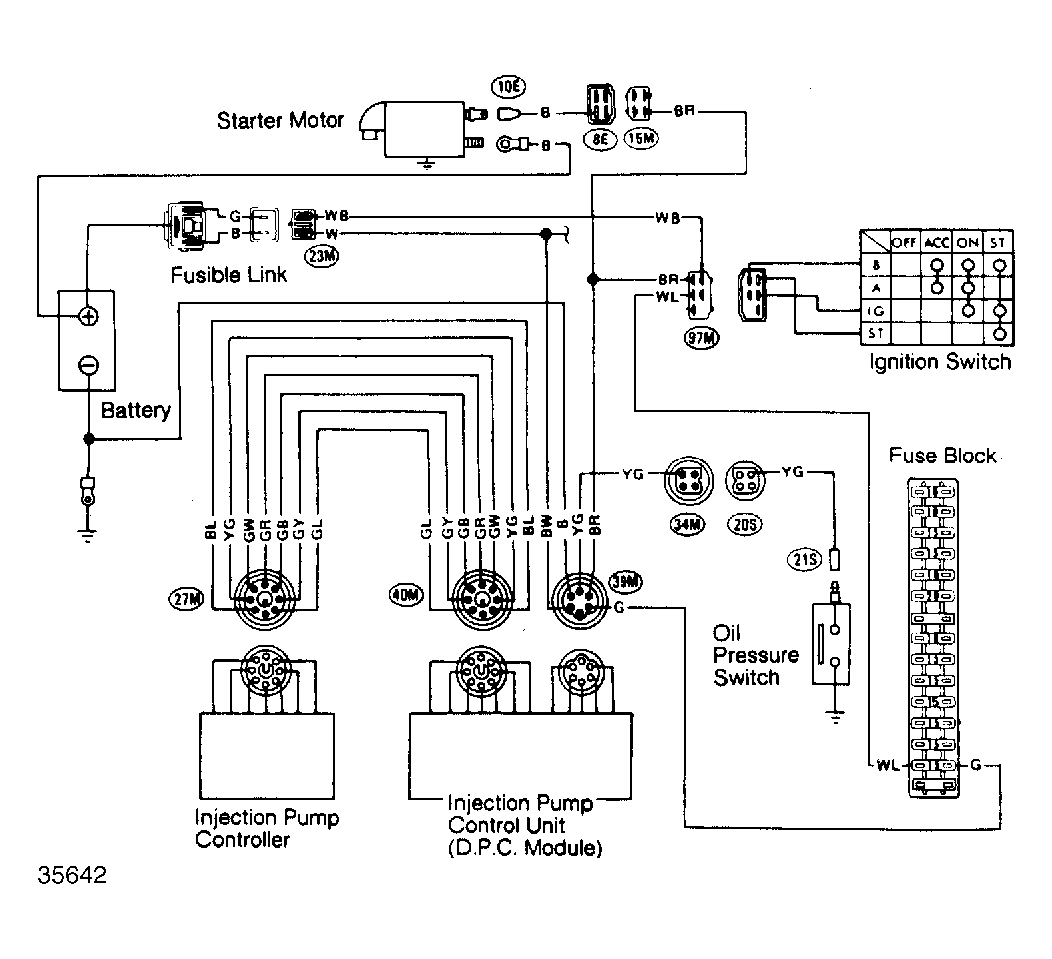

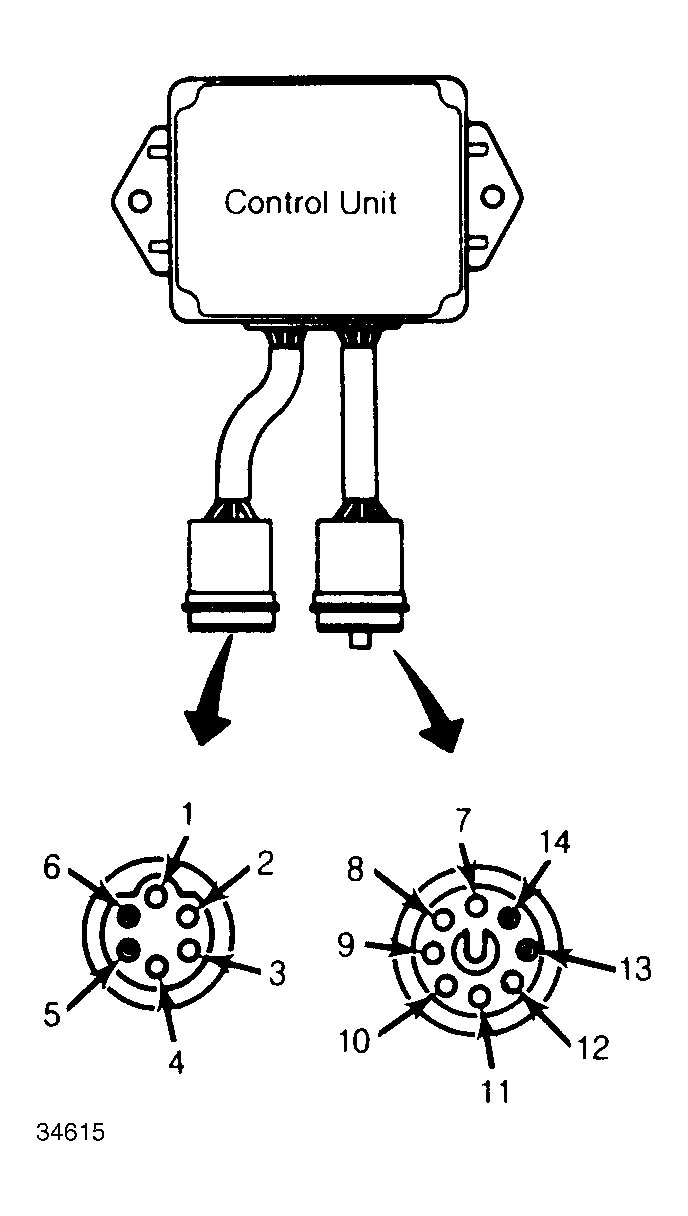

    Fig 1: Testing Injection Pump Control Unit
    G34615
    Fig 2: Controller Terminal Test Points for Step 1
    G34614
  2. Connect additional jumper wire from positive battery post to terminal 8. Connect test wire to terminal 9. Pump control lever should be in the "START" position. See Figure .
  3. Connect test wire to terminal 10. Pump control lever should be in the "STOP" position.
  4. Connect test wire to terminal 11. Pump control lever should be in the "DRIVE" position.
