Injector Cooling Fan Testing: Operation

The injector cooling fan operates to cool down the temperature of fuel inside the injector and the fuel gallery when engine is stopped under high temperature condition.

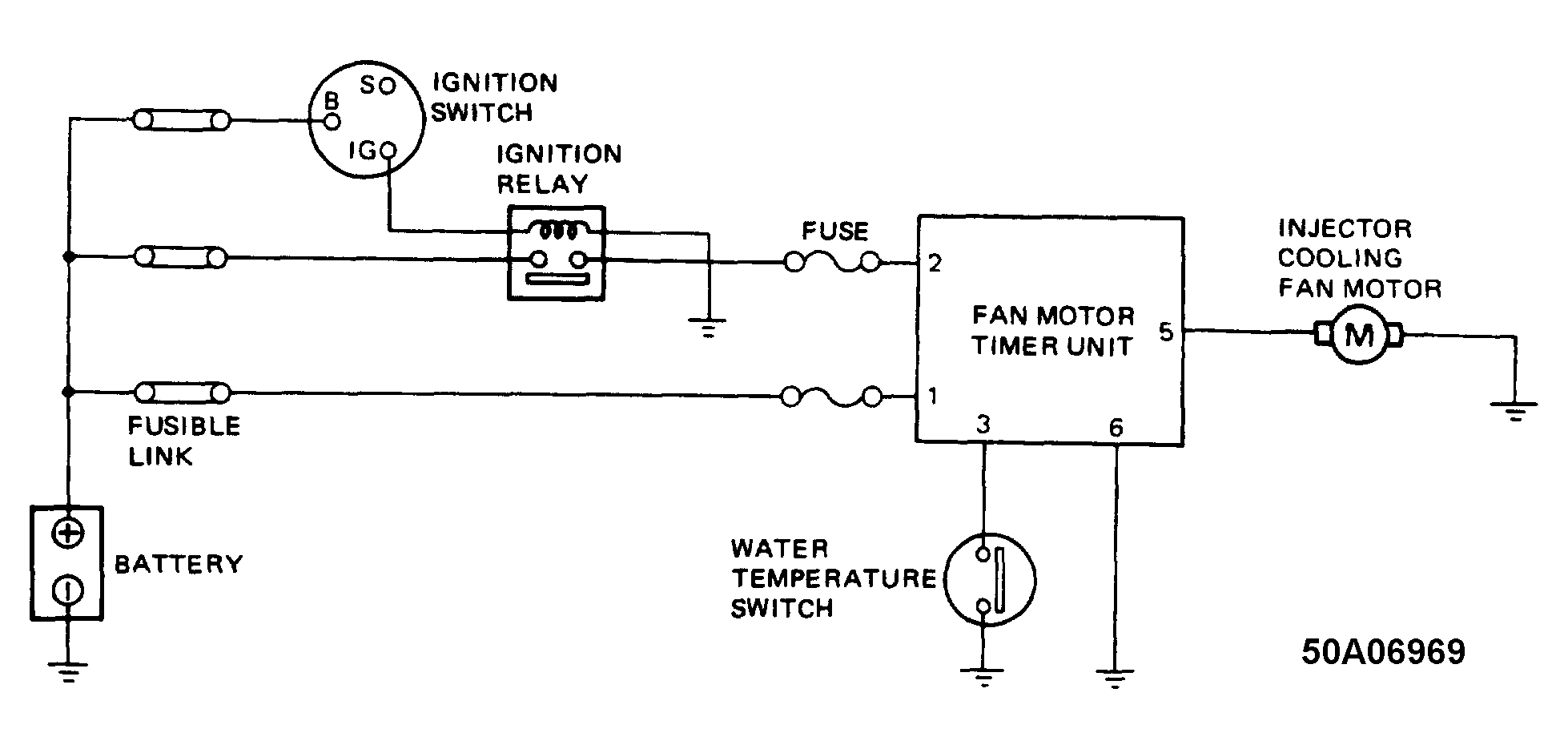

Fig 1: Injector Cooling Fan Schematic
G50A06969

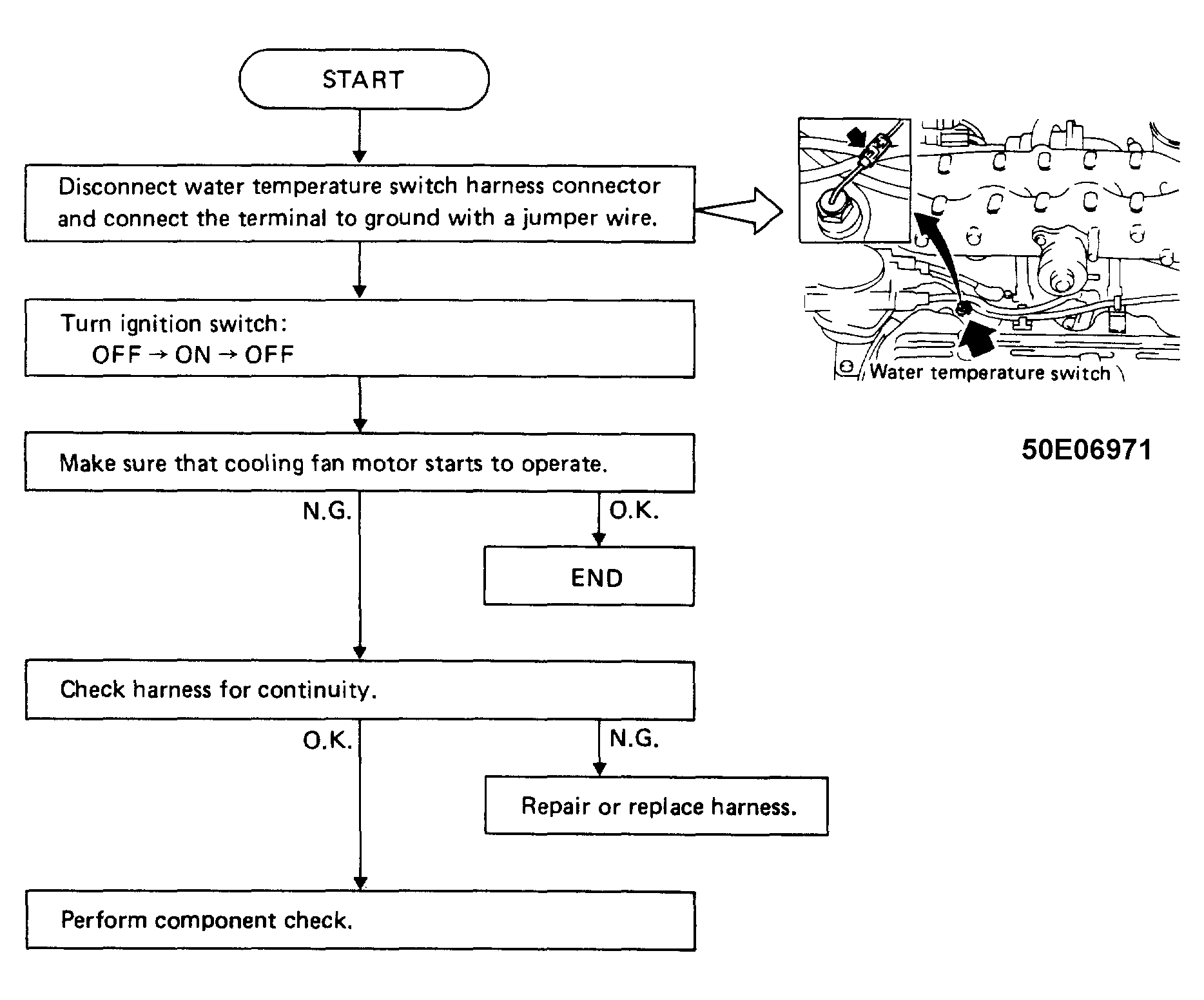

Fig 2: Injector Cooling Fan Flow Chart
G50E06971

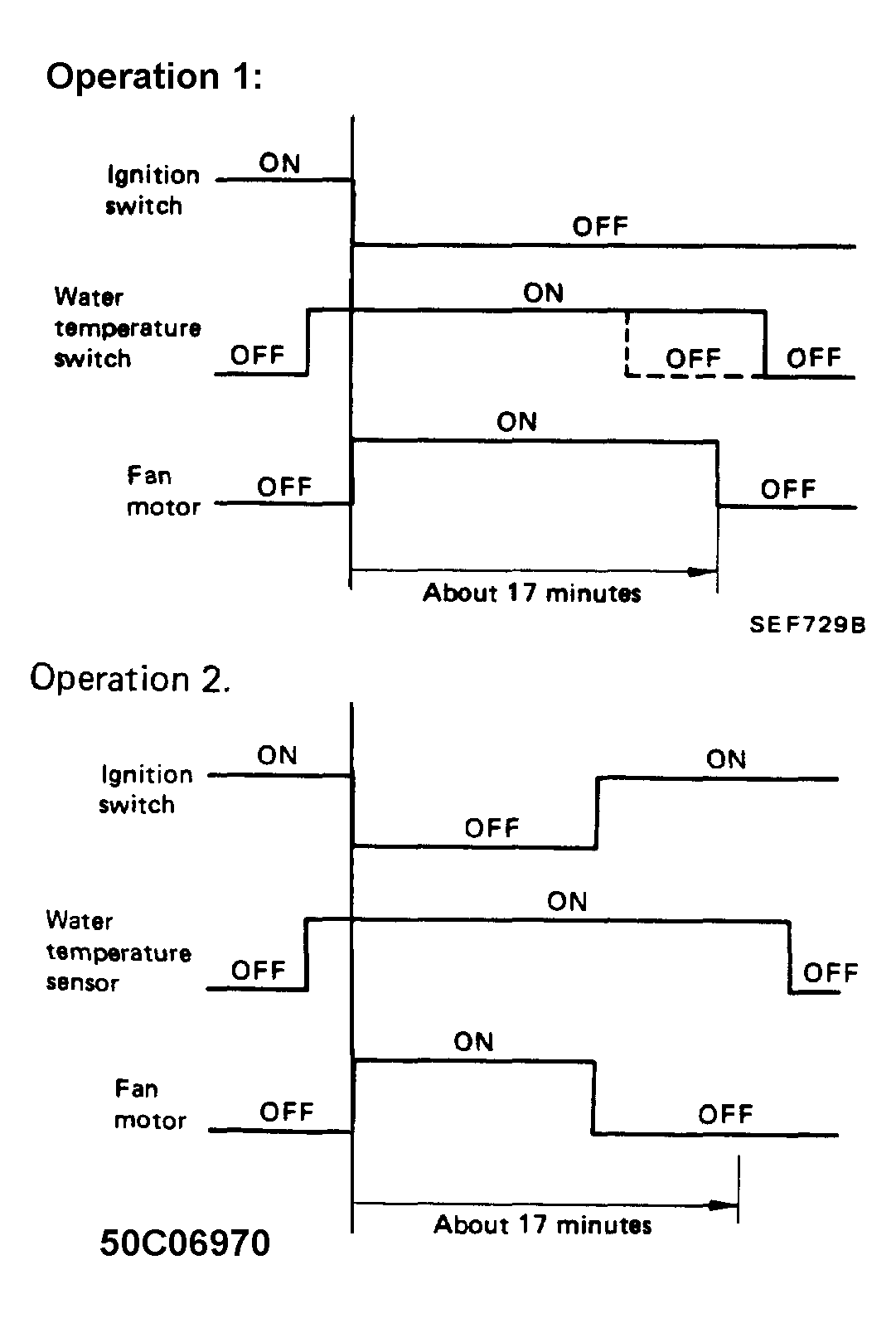

Fig 3: Injector Cooling Fan Operational Chart
G50C06970
