Wiring Diagrams

Fig 1: ECCS Wiring Diagram (Maxima)

G74078

Fig 2: ECCS Wiring Diagram (300ZX & 300ZX Turbo)

G42389

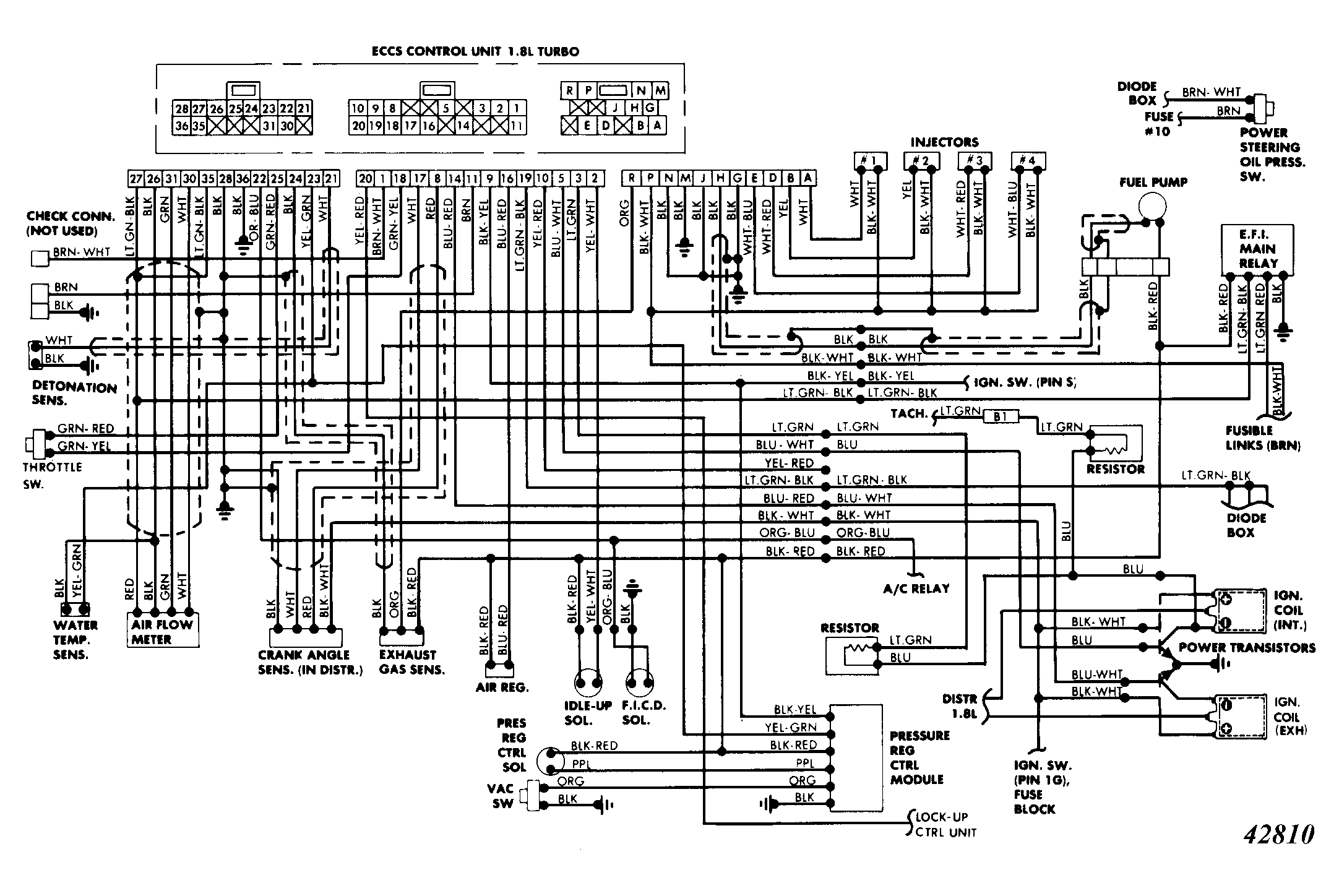

Fig 3: Wiring Diagram (200SX Turbo)

G42810

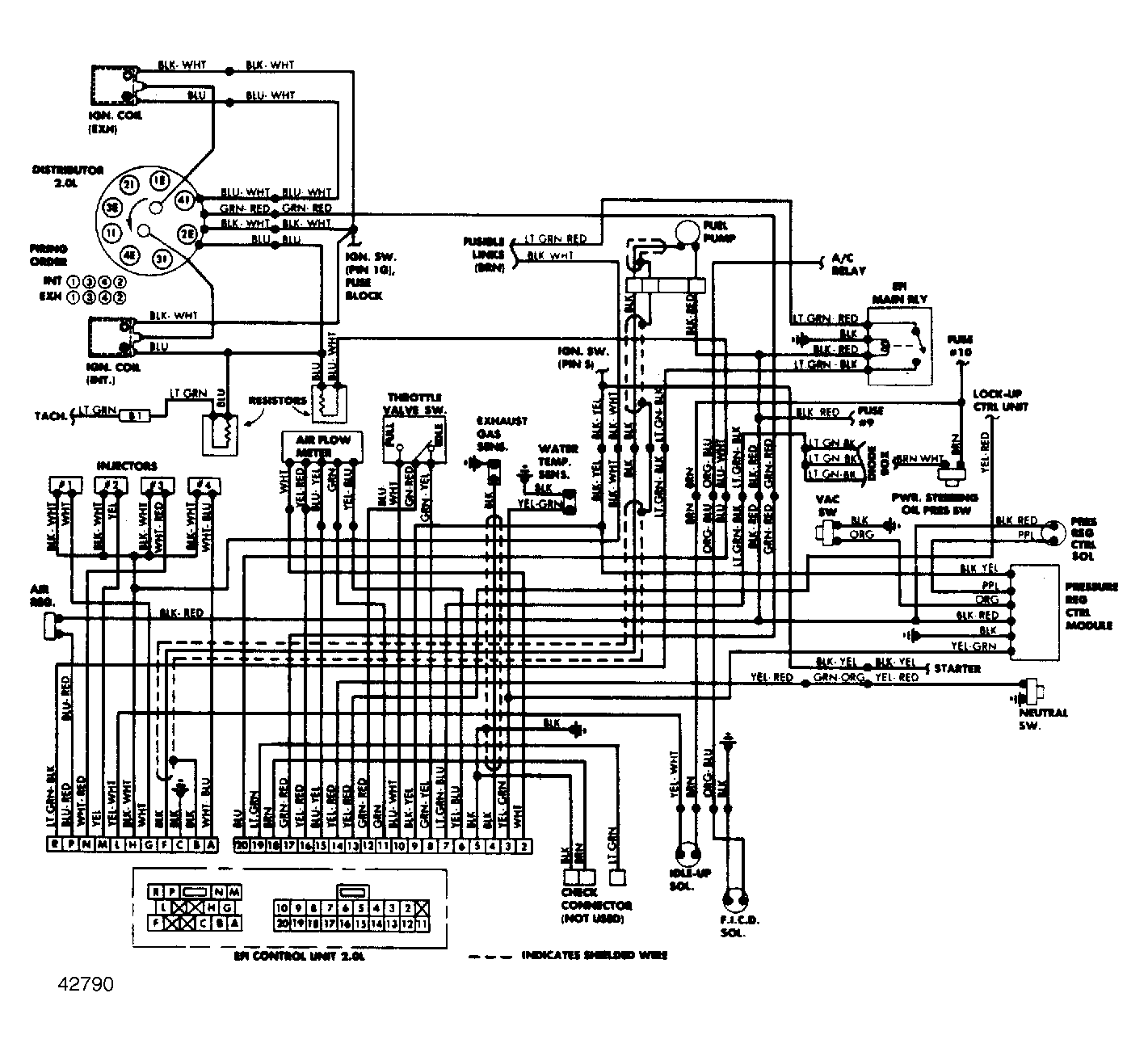

Fig 4: EFI Control System Wiring Diagram (200SX)

G42790

Fig 5: EFI Control System Wiring Diagram (Stanza)

G42788
