Wiring Diagrams

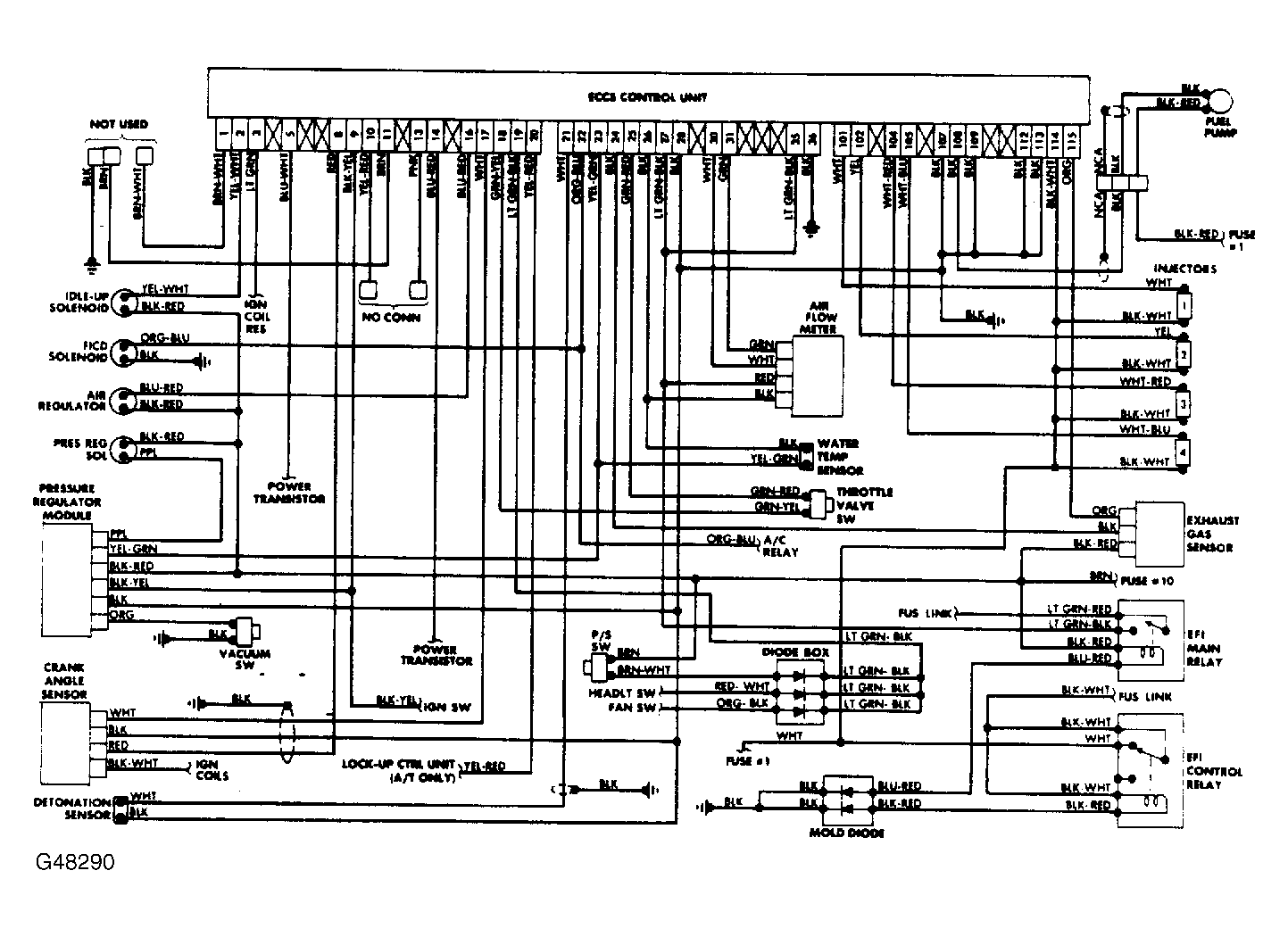

Fig 1: ECCS Wiring Diagram (Maxima)

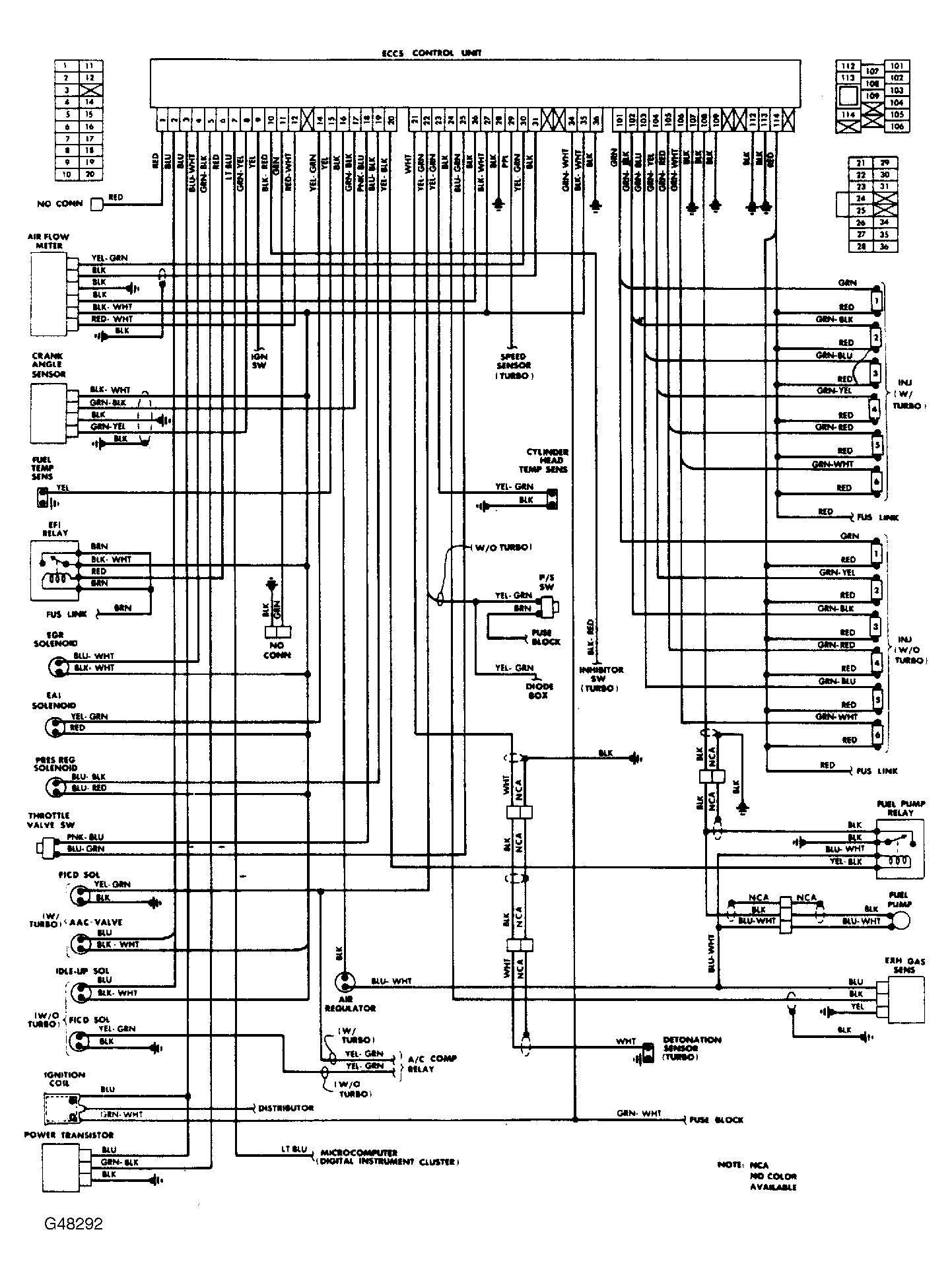

Fig 2: ECCS Wiring Diagram (300ZX & 300ZX Turbo)
