Test G, Code 43 - Injector
Test G, Code 43 - Injector

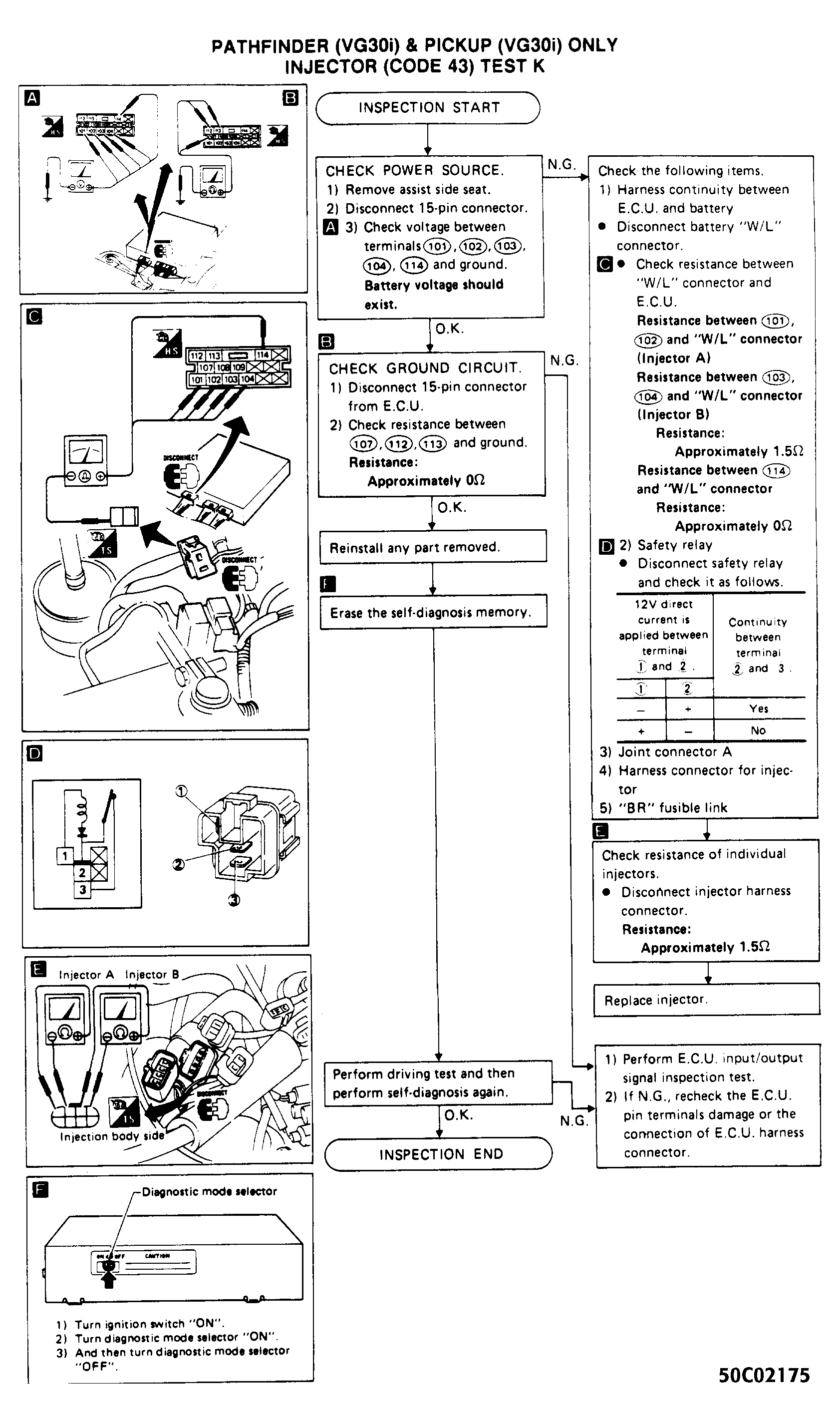

Fig 1: Injector (Code 43) Test G - VG30i

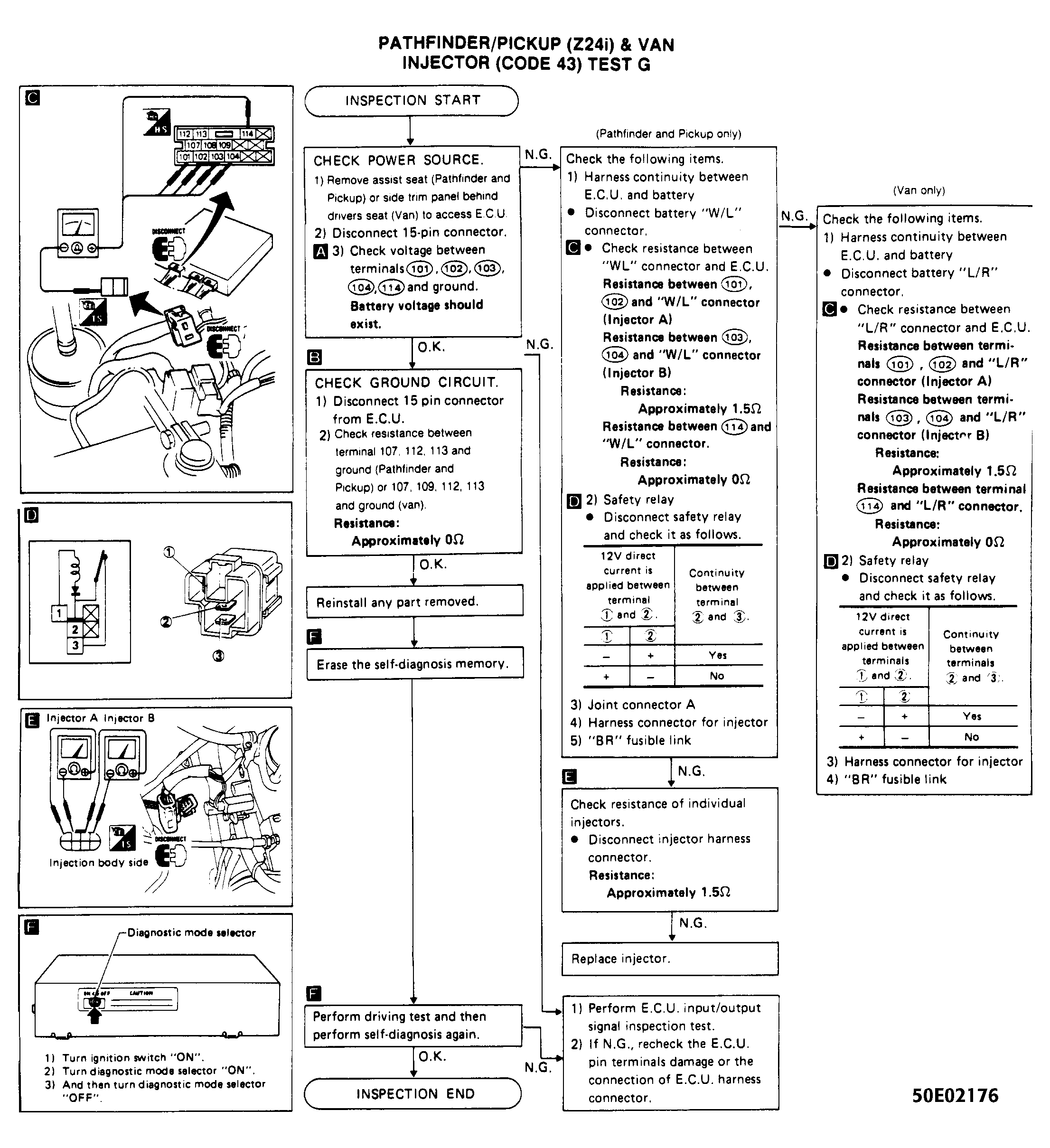

Fig 2: Injector (Code 43) Test G - Z24i
