Control Units

CONTROL UNITS LOCATION

Component	Location

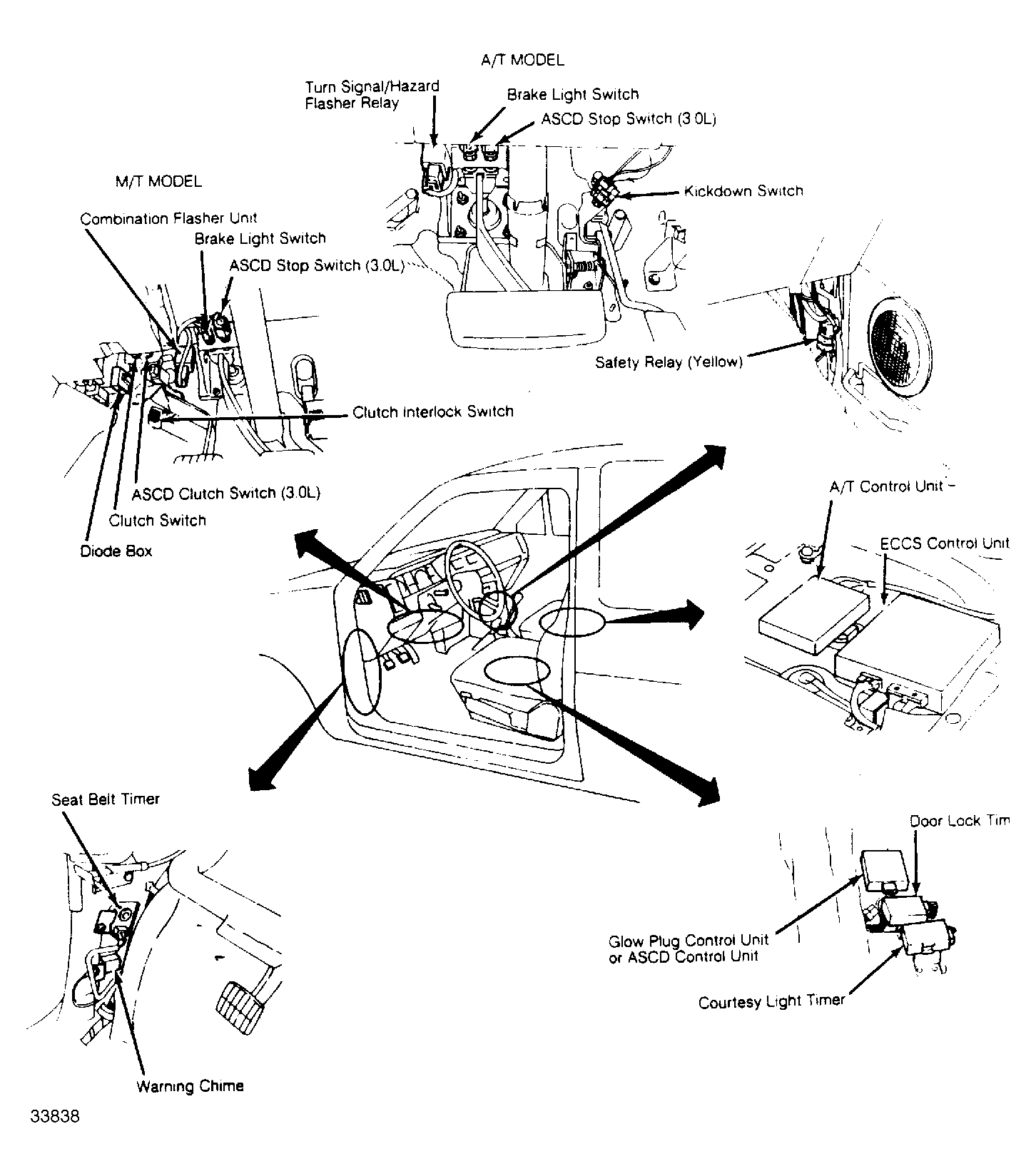

ASCD Control Unit	Underneath driver's seat. See Figure .
Auto. Trans. Control Unit	Underneath passenger's seat. See Figure .

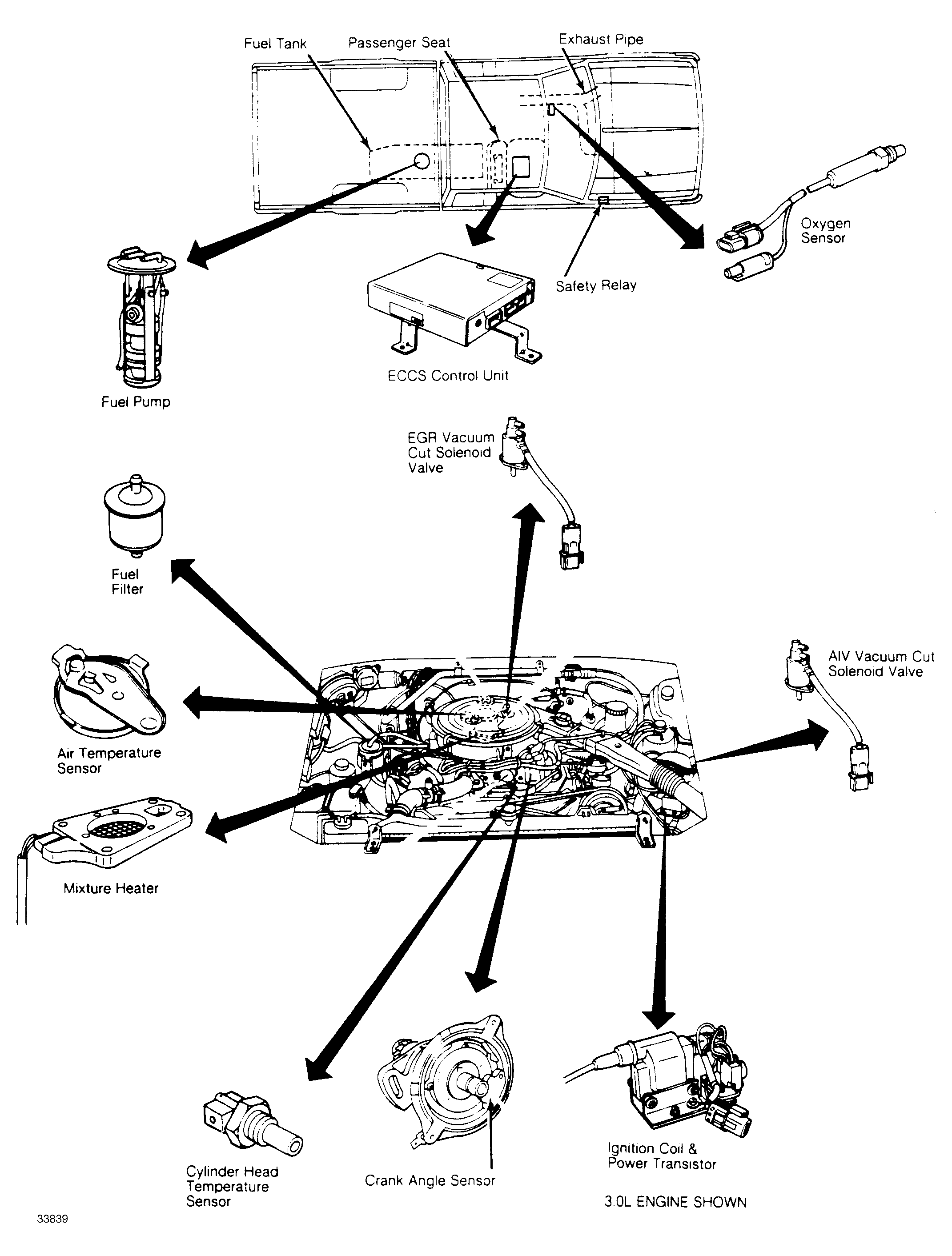

Elect. Concentrated Control System (ECCS) Control Unit	Underneath passenger's seat. See Figure & Figure .
