ECCS Component Locations

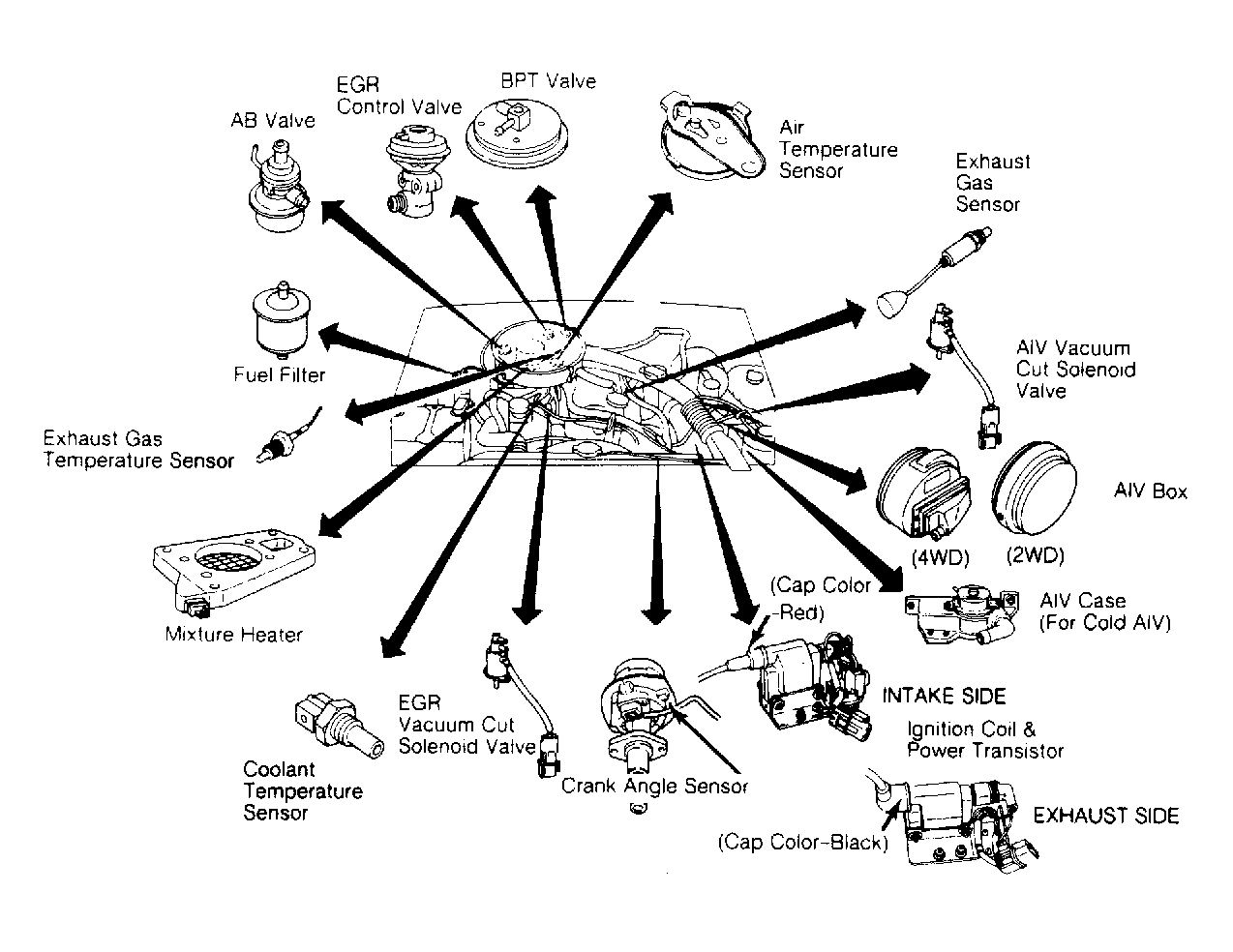

Fig 1: Pathfinder/Pickup (4-Cyl. Z24i) ECCS Component Locations
G94925Courtesy of NISSAN MOTOR CO., U.S.A.

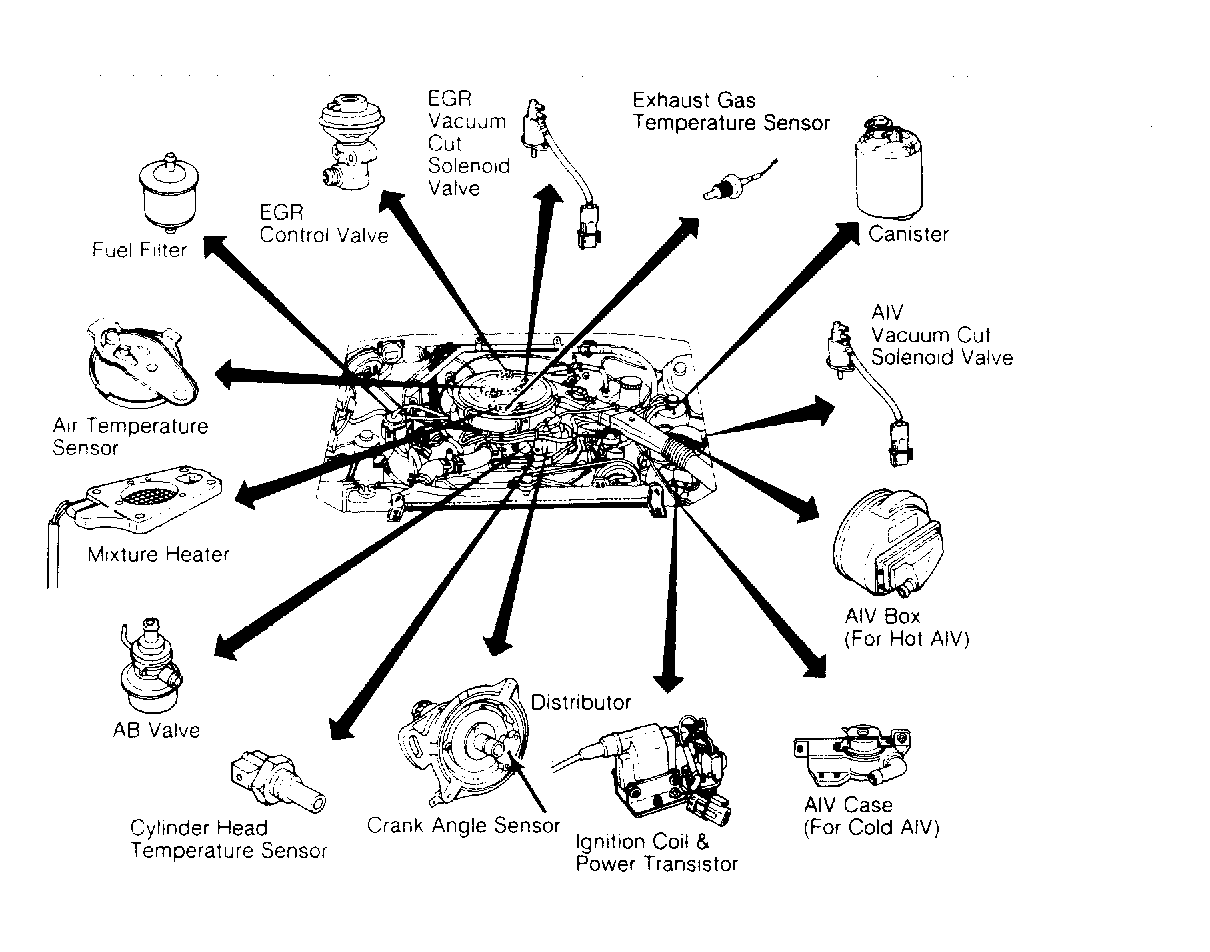

Fig 2: Pathfinder/Pickup (V6 VG30i) ECCS Component Locations
G94926Courtesy of NISSAN MOTOR CO., U.S.A.
