Wiring Diagrams

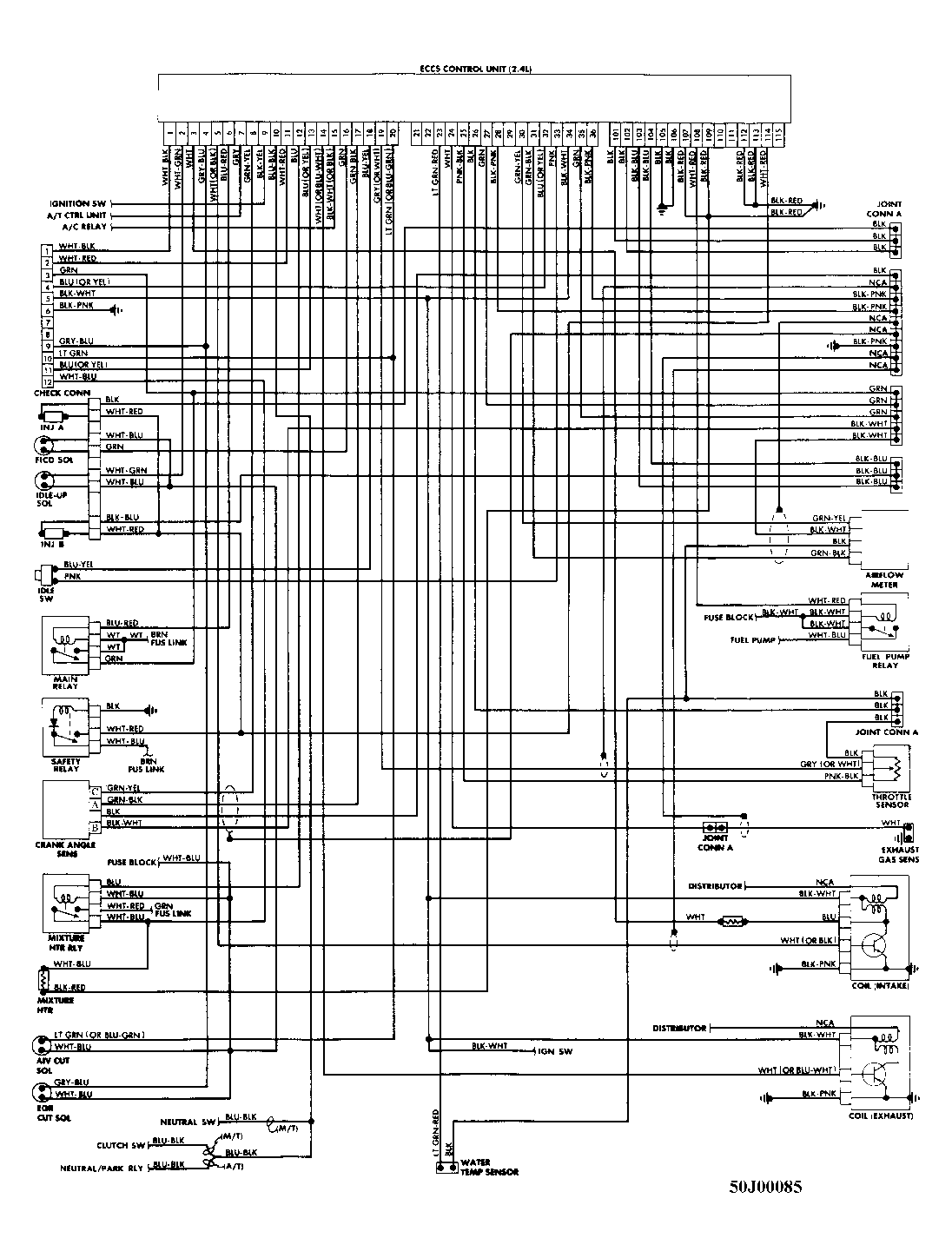

Fig 1: Pathfinder/Pickup (Z24i) ECCS Wiring Diagram
G50J00085

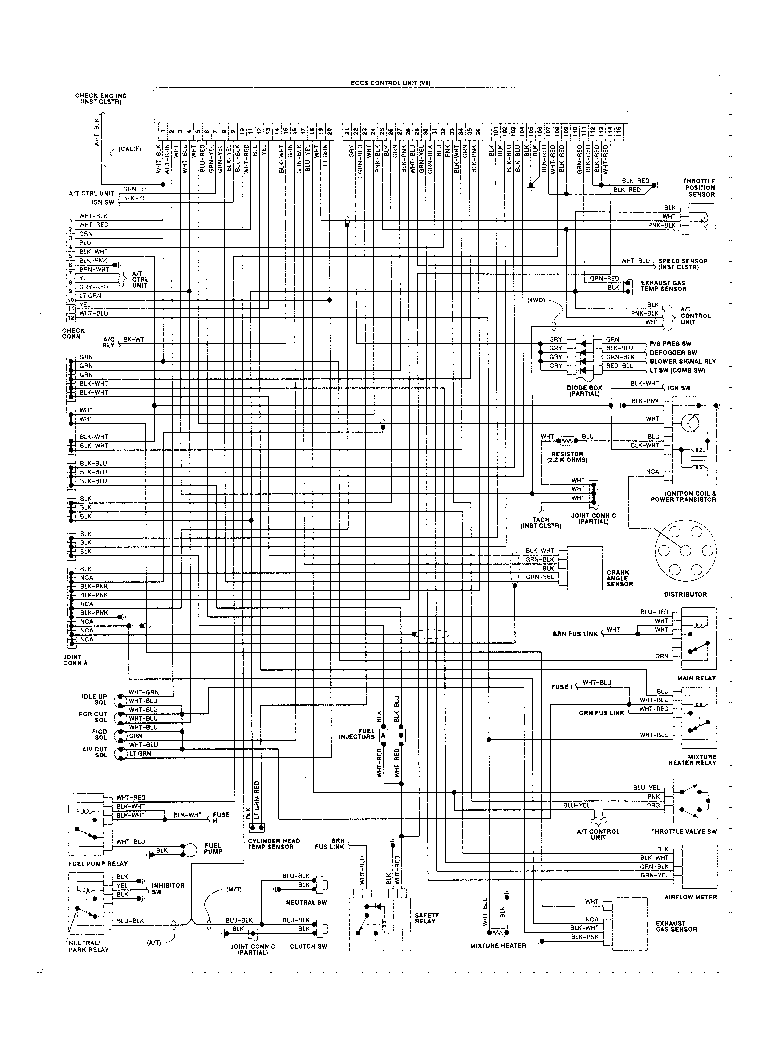

Fig 2: Pathfinder/Pickup (VG30i) ECCS Wiring Diagram
G95042
