Carburetor - HITACHI 2-Bbl: Overhaul: Disassembly
NOTE:
Disassembly and reassembly procedures not available.

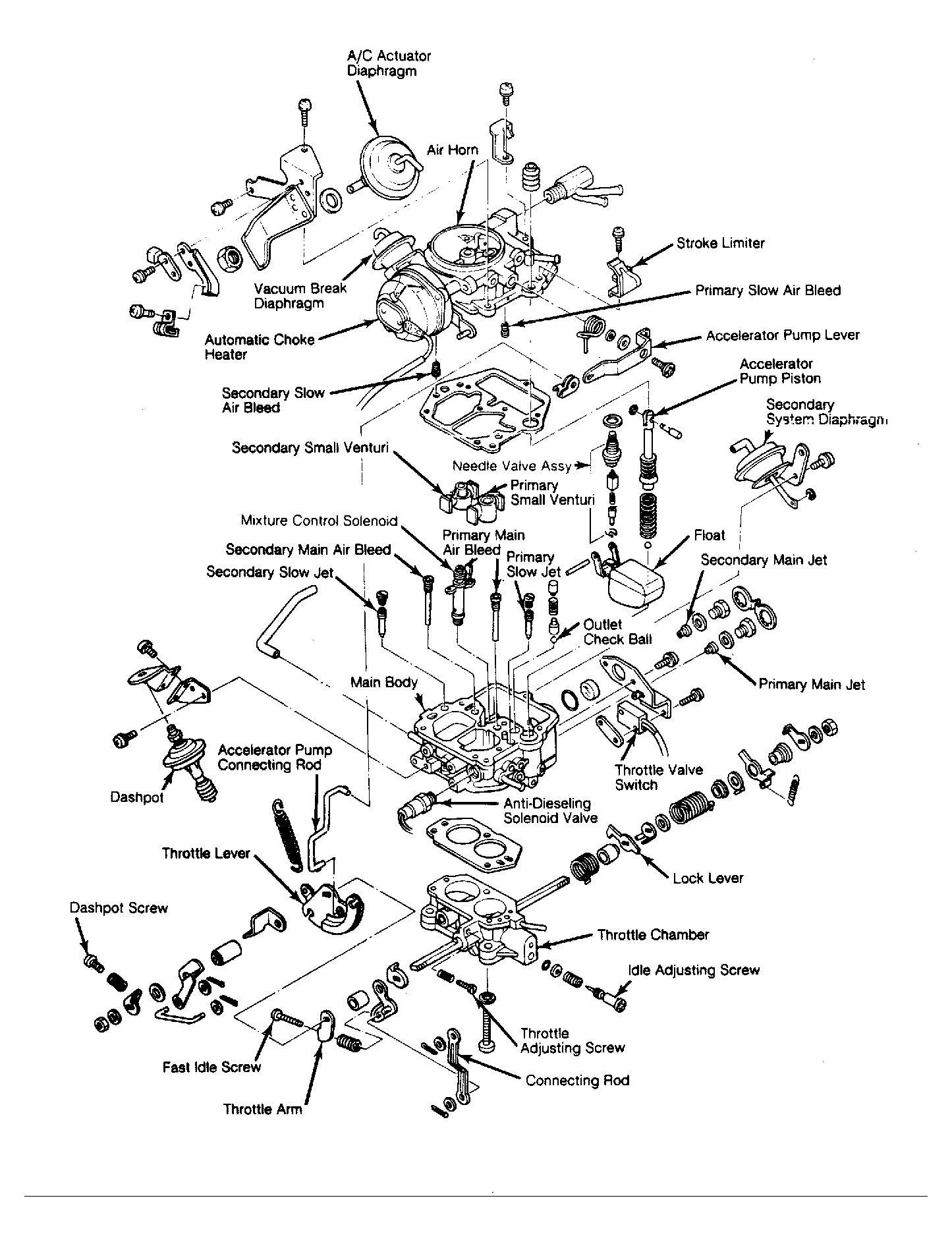

Fig 1: Exploded View of Nissan Sentra Federal Carburetor
Courtesy of NISSAN MOTOR CO., U.S.A.

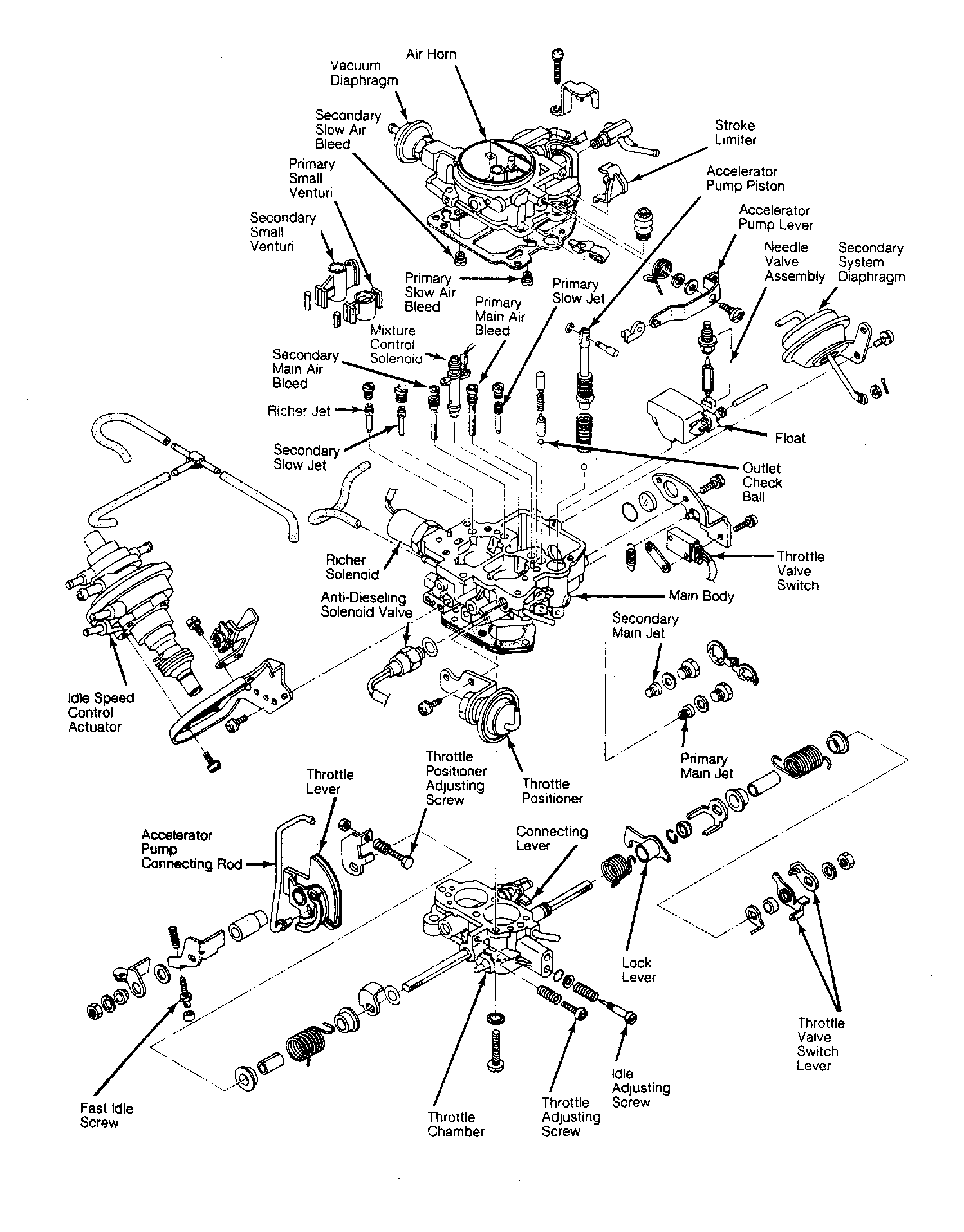

Fig 2: Exploded View of Nissan Sentra California Carburetor
Courtesy of NISSAN MOTOR CO., U.S.A.
