Code 21, Ignition Signal

Fig 1: Test D, Maxima, 200SX-SE & 300ZX

G61672

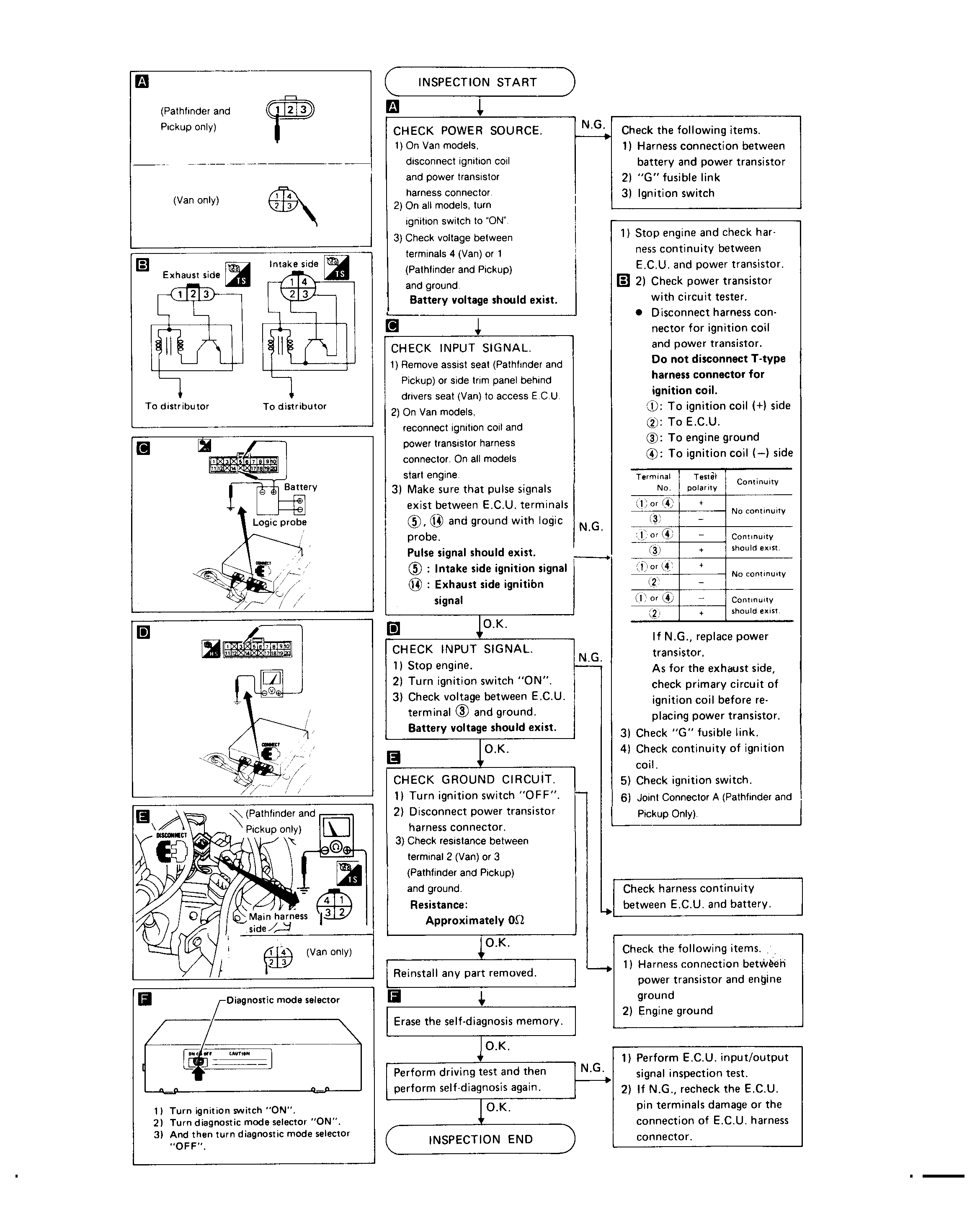

Fig 2: Test E, Van

G61673

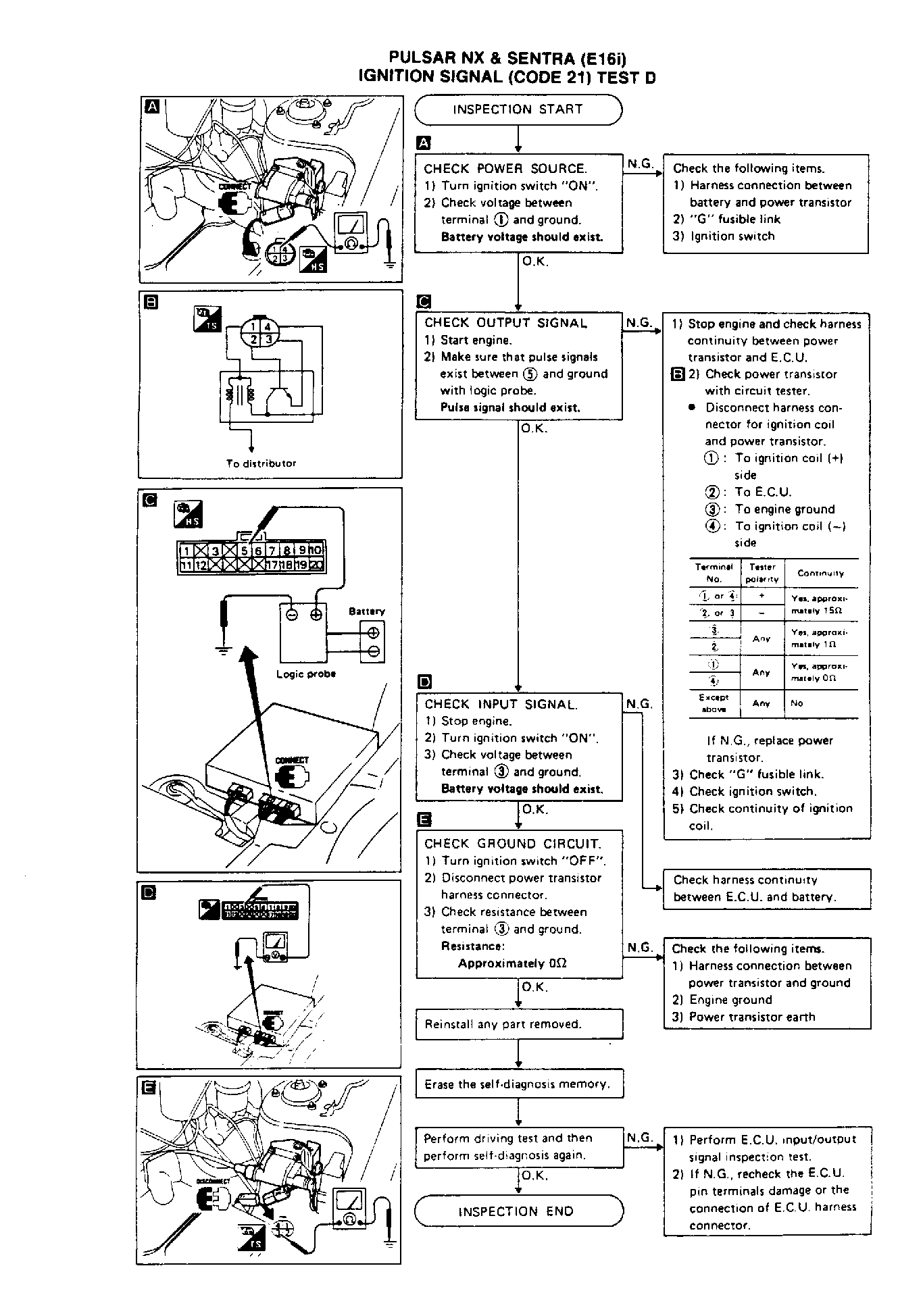

Fig 3: Test D, Pulsar NX & Sentra (E16i)

G61674

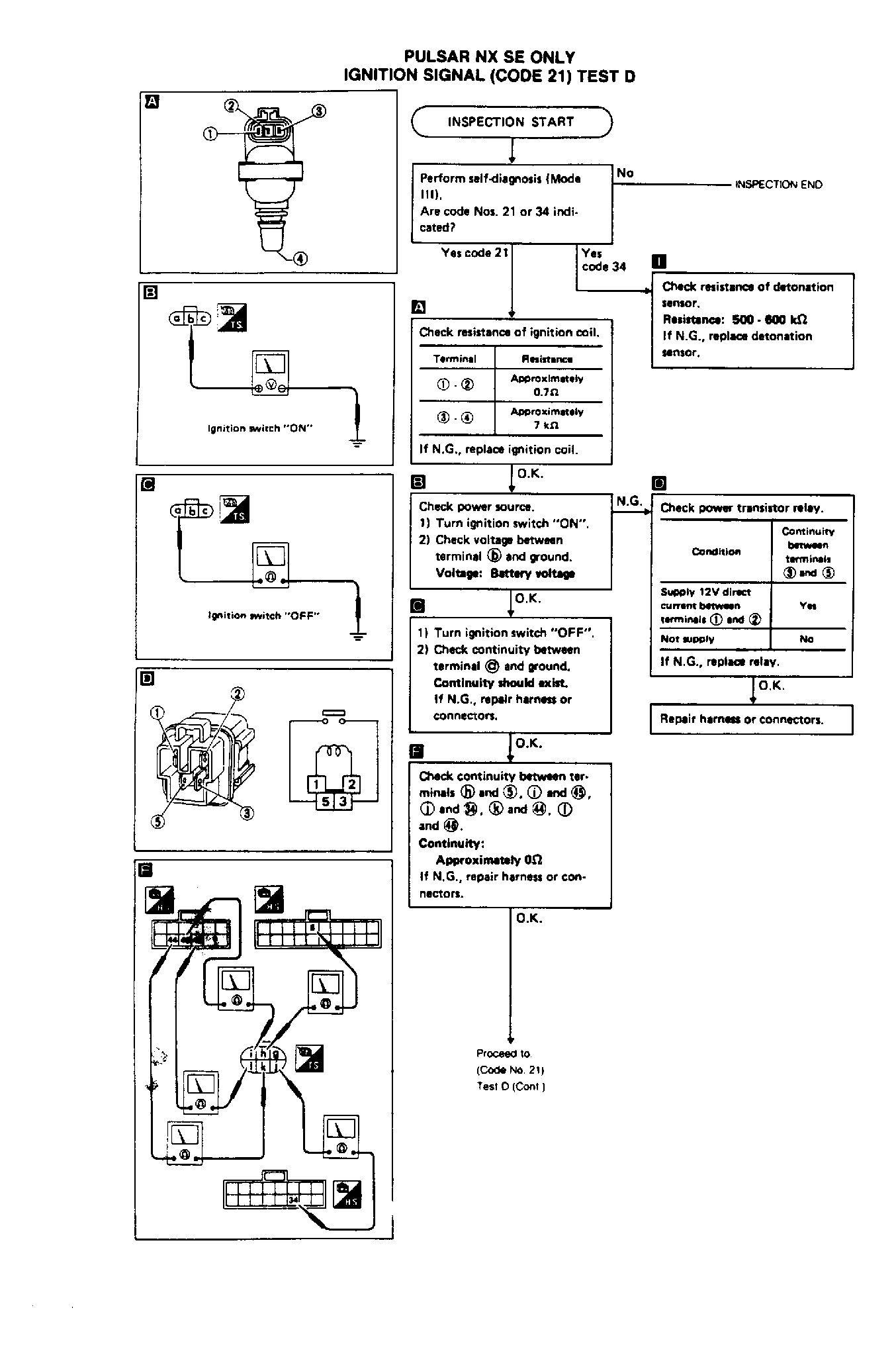

Fig 4: Test D, Pulsar NX SE (1 of 2)

G61675

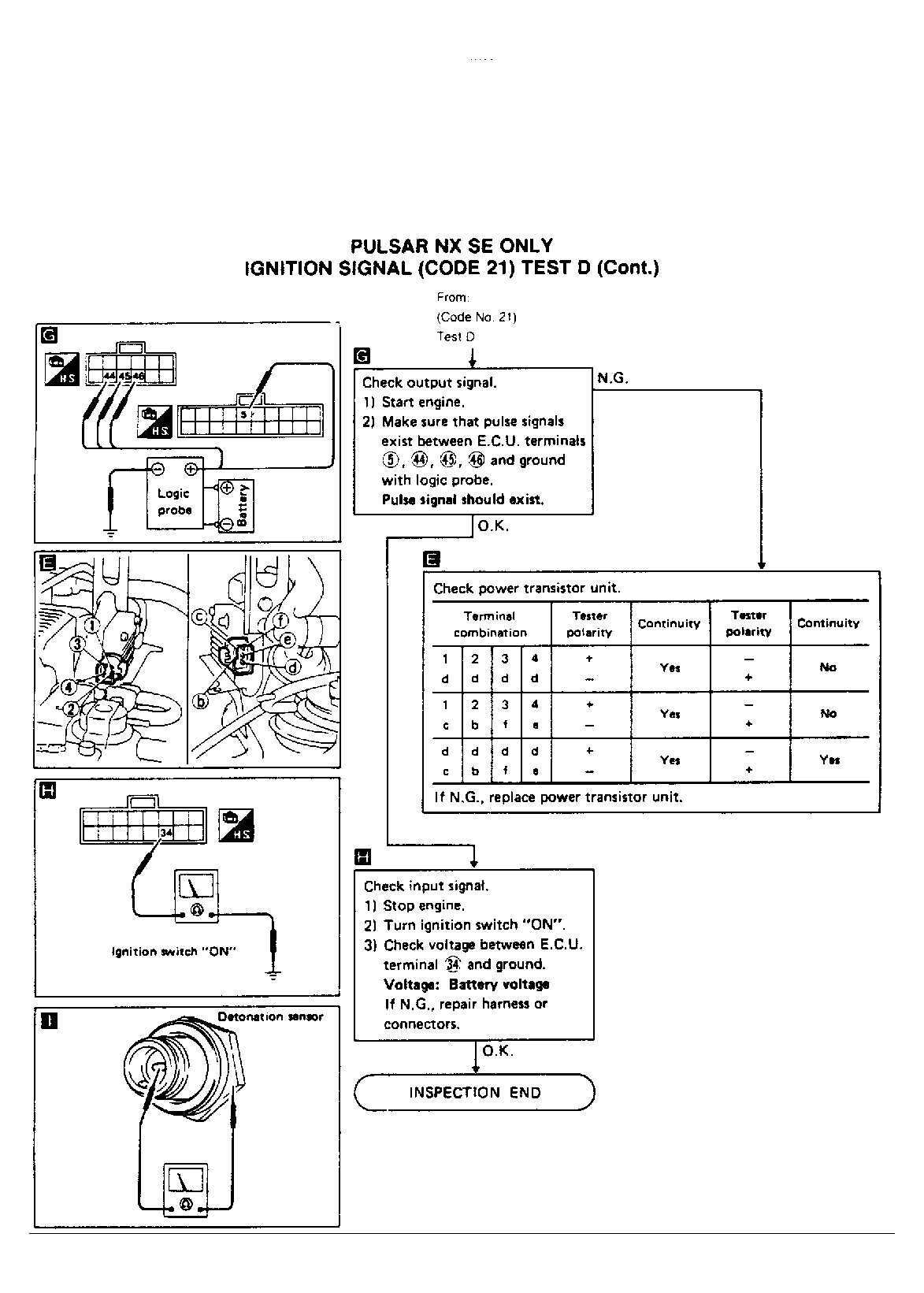

Fig 5: Test D, Pulsar NX SE (2 of 2)

G61676

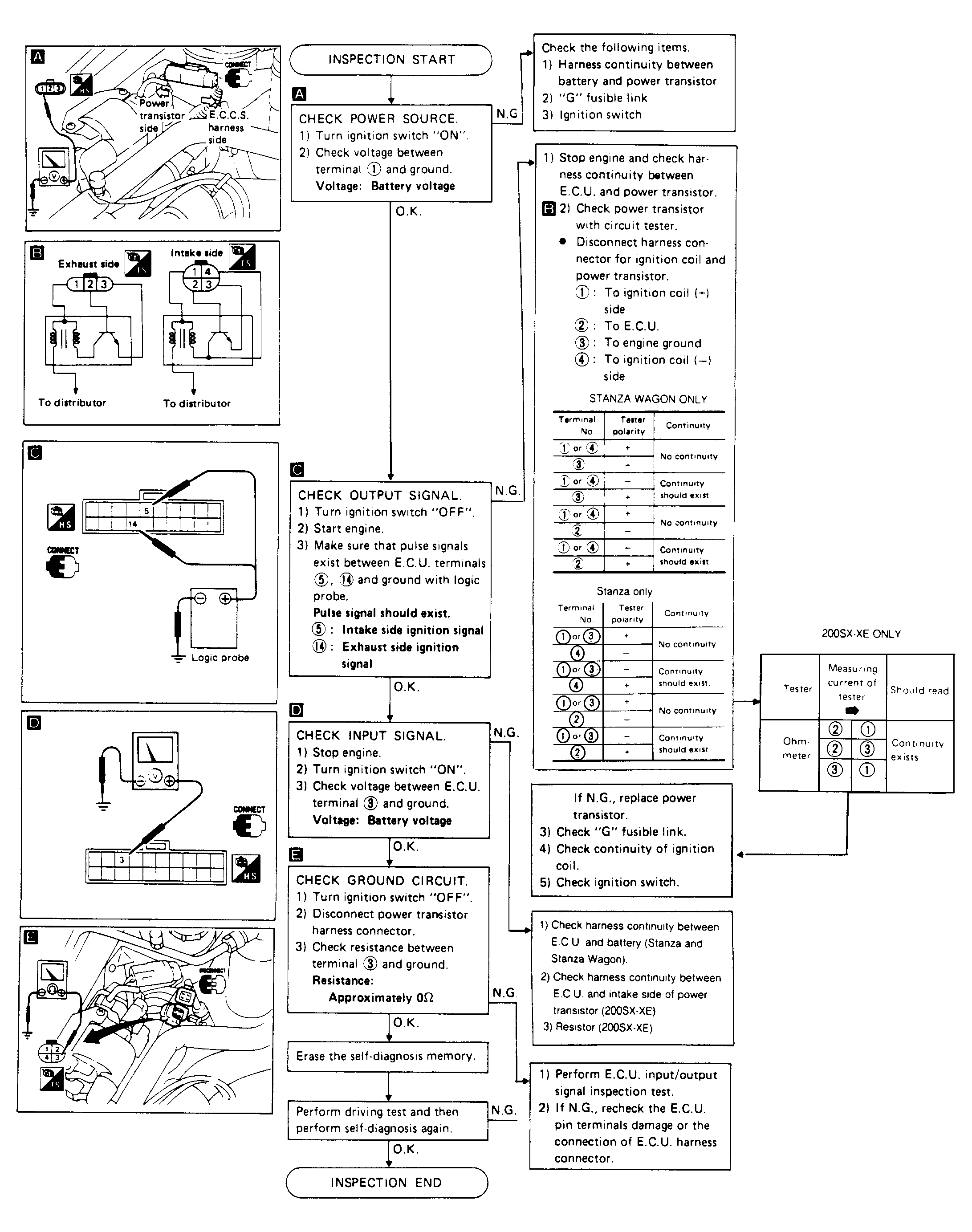

Fig 6: Test D, Stanza, Stanza Wagon & 200SX XE

G200158
