Nissan-Datsun
›
1987
›
Sentra Base
›
Repair and Diagnosis
›
Engine Performance
›
System
›
ECC CEC System
›
Non Self-Diagnostic Component Testing Charts
›
Clutch Switch & Neutral Switch
Clutch Switch & Neutral Switch

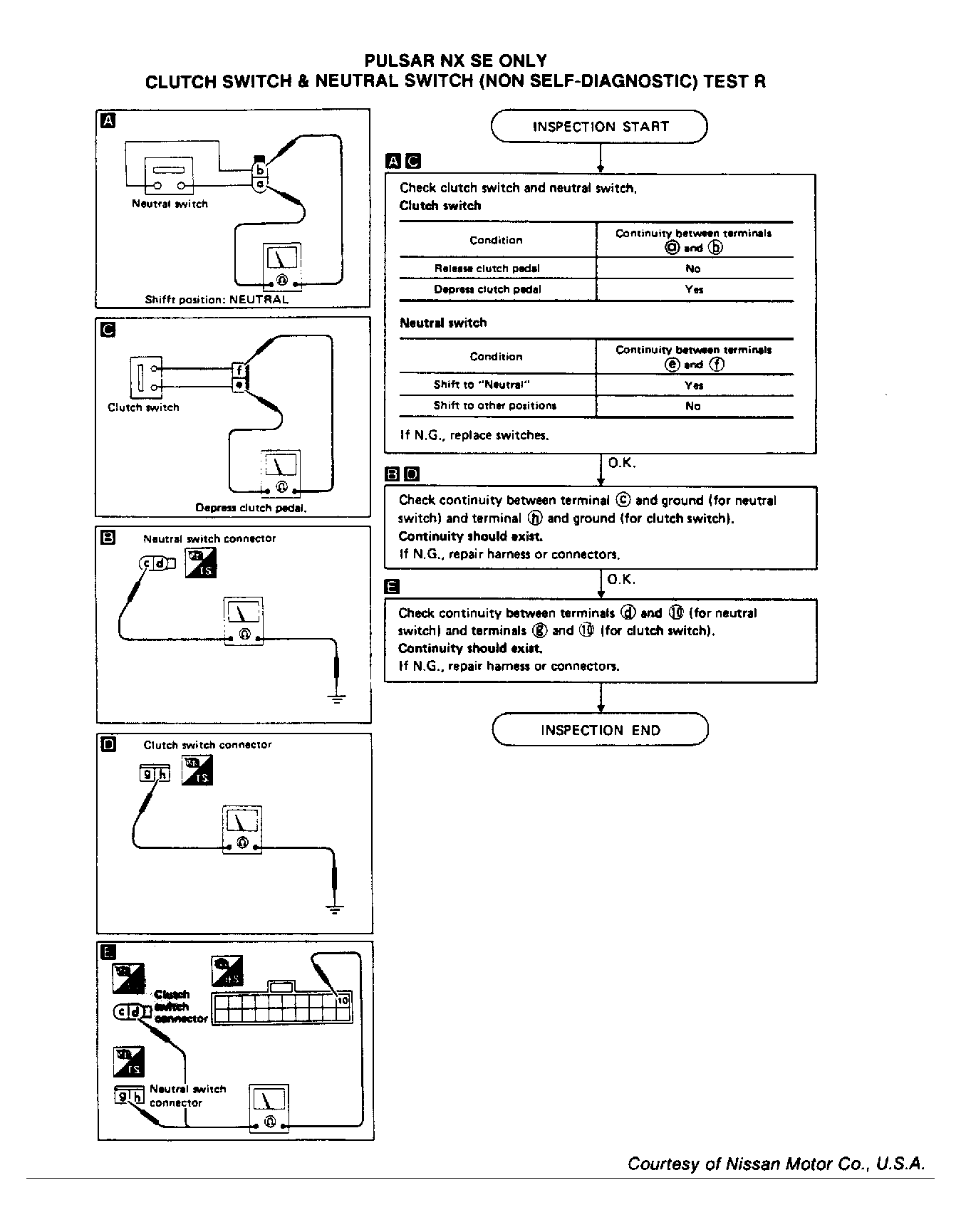

Fig 1: Test R, Pulsar NX SE
