ECC CEC System
›
Non Self-Diagnostic Component Testing Charts
›
FICD Control
FICD Control

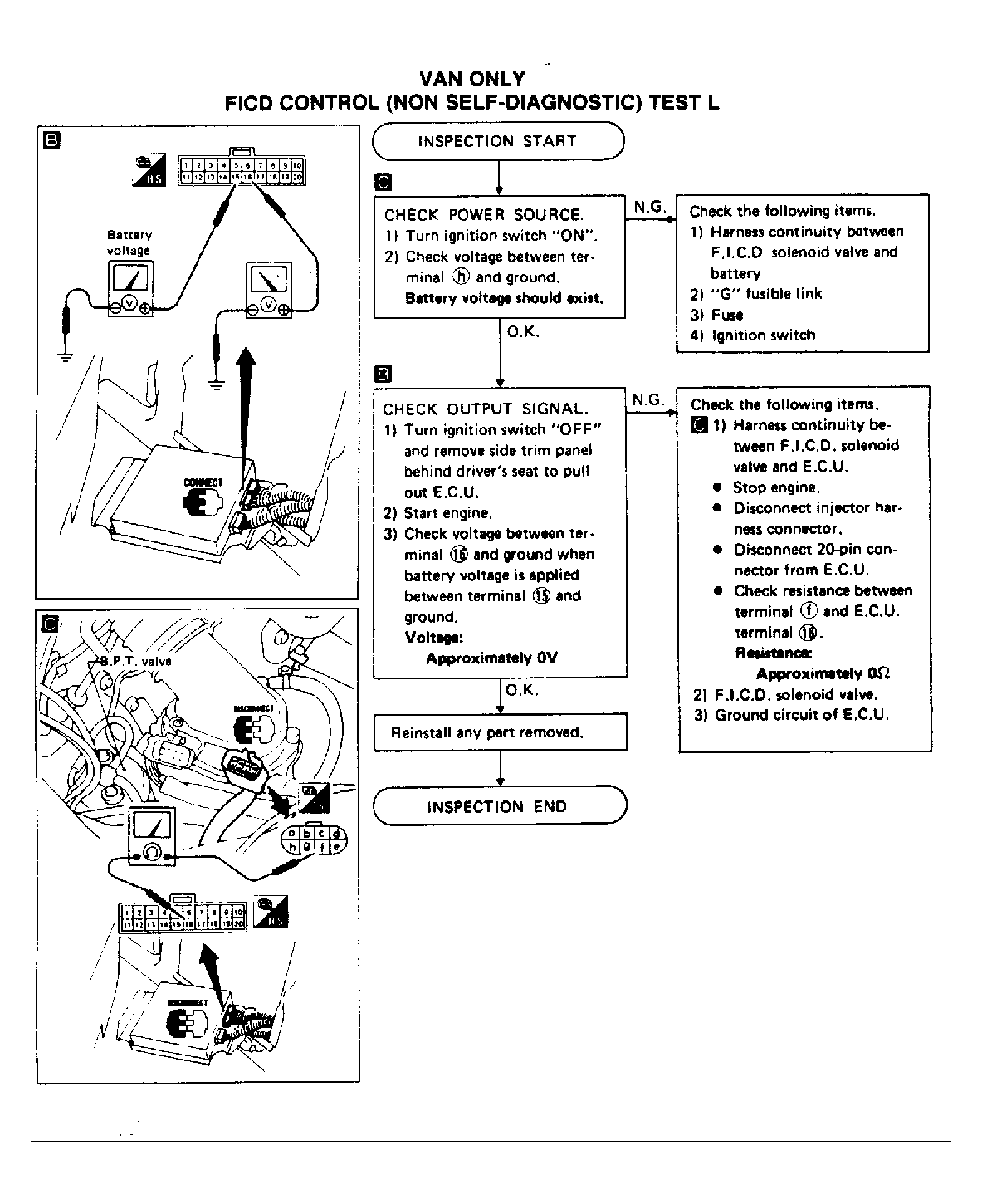

Fig 1: Test L, Van
