Neutral/Clutch Inhibitor Switch

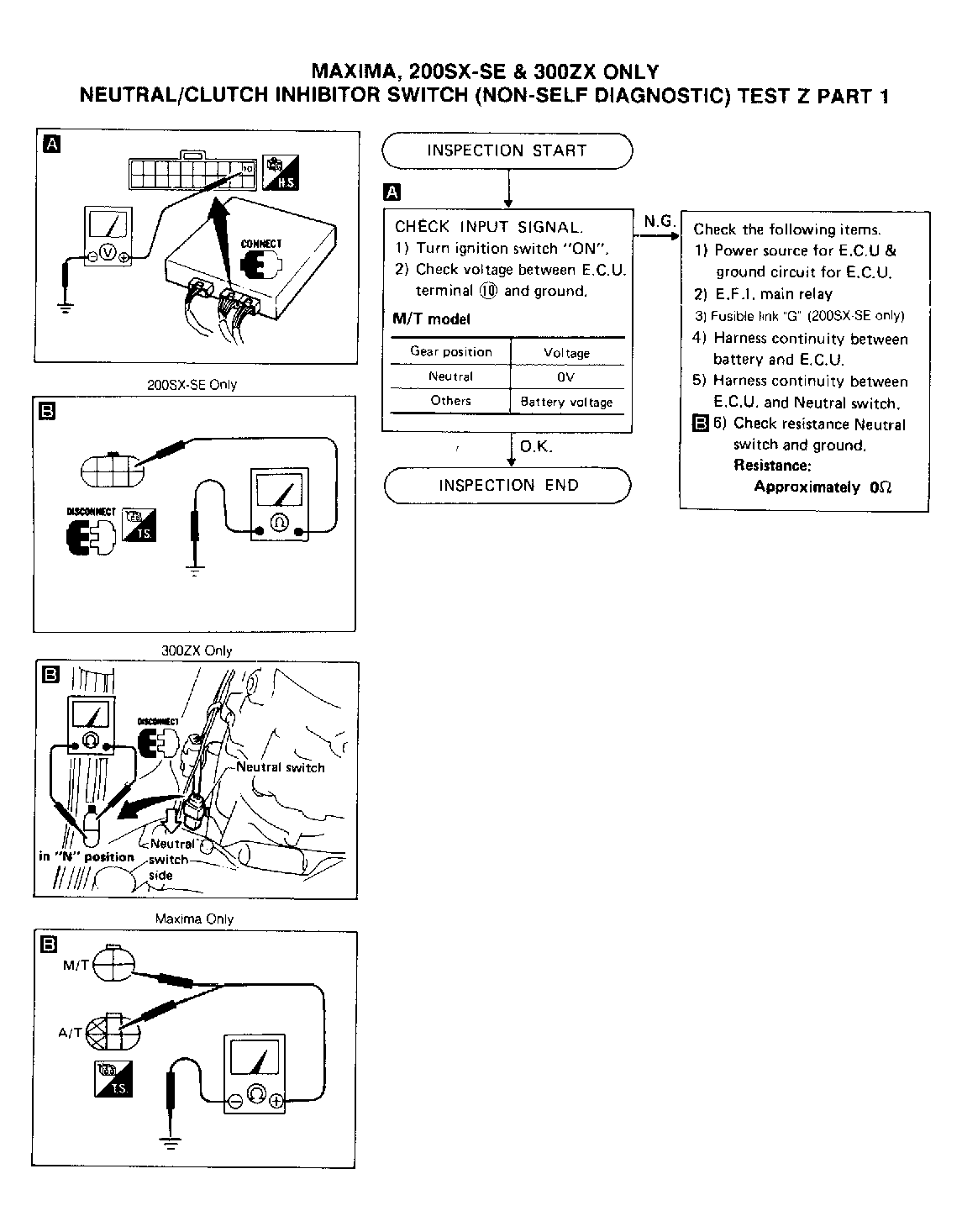

Fig 1: Test Z, Maxima, 200SX-SE & 300ZX

G61775

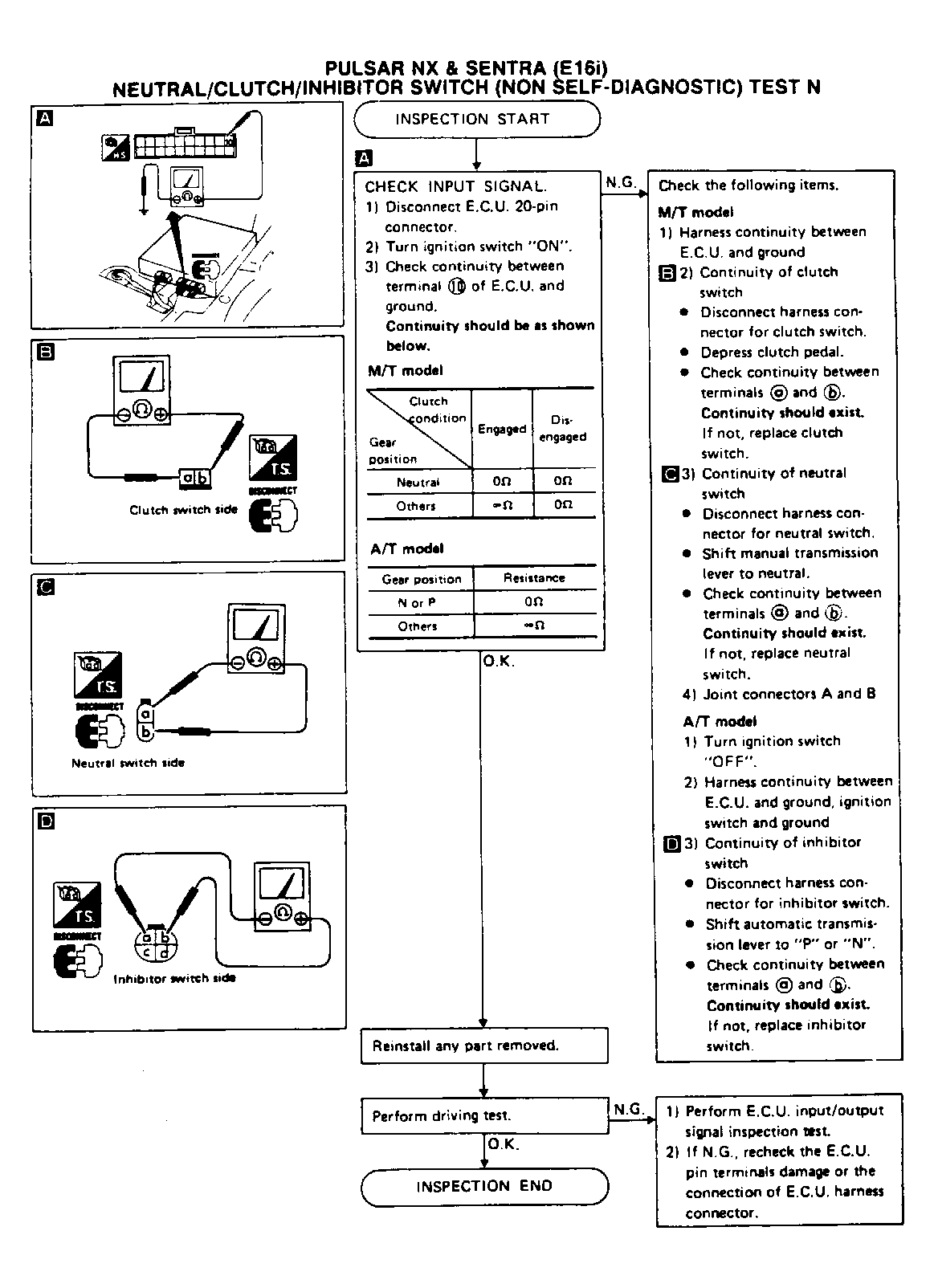

Fig 2: Test N, Pulsar NX & Sentra (E16i)

G61729
