Power Source & Ground Circuit For Ecu

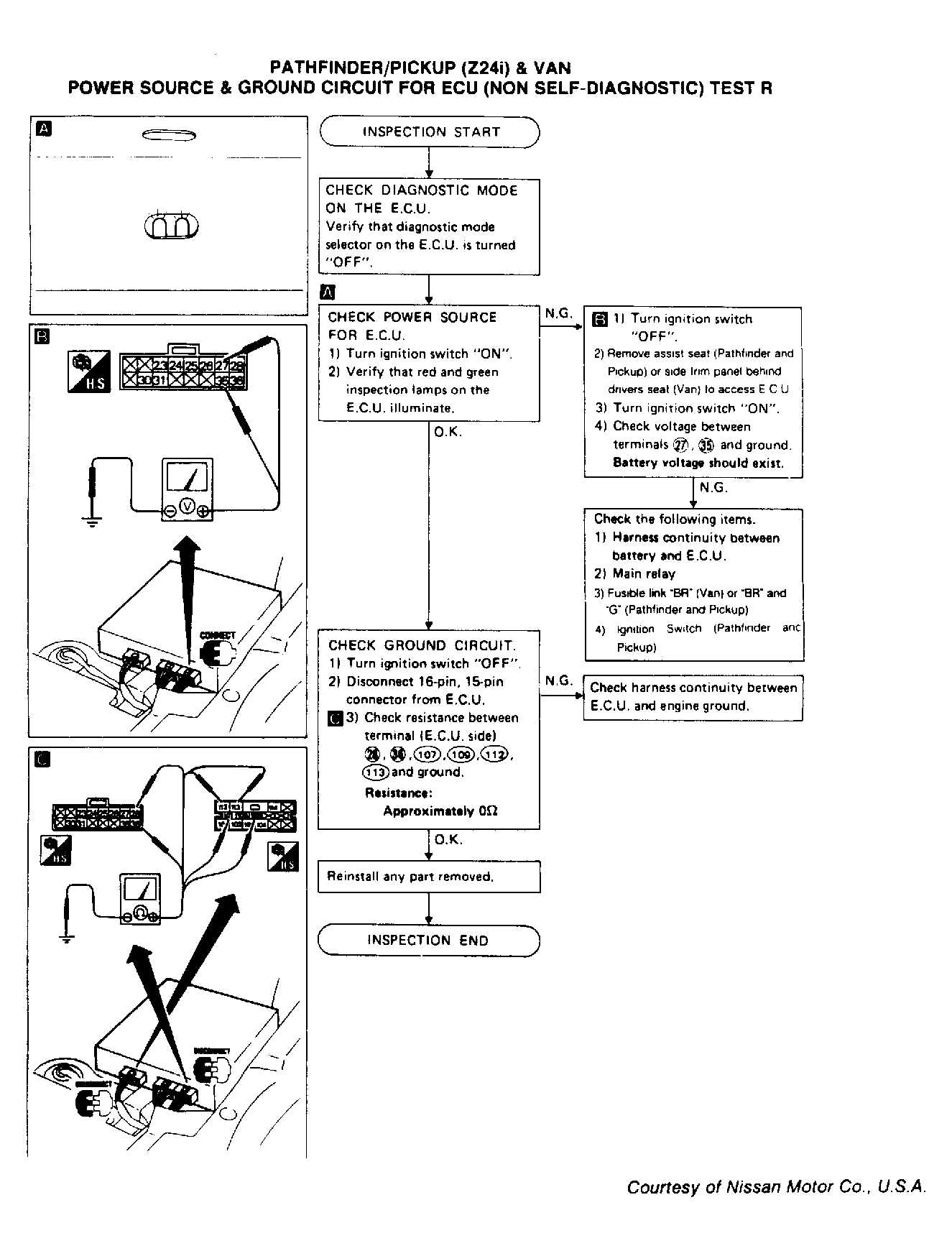

Fig 1: Test R, Van

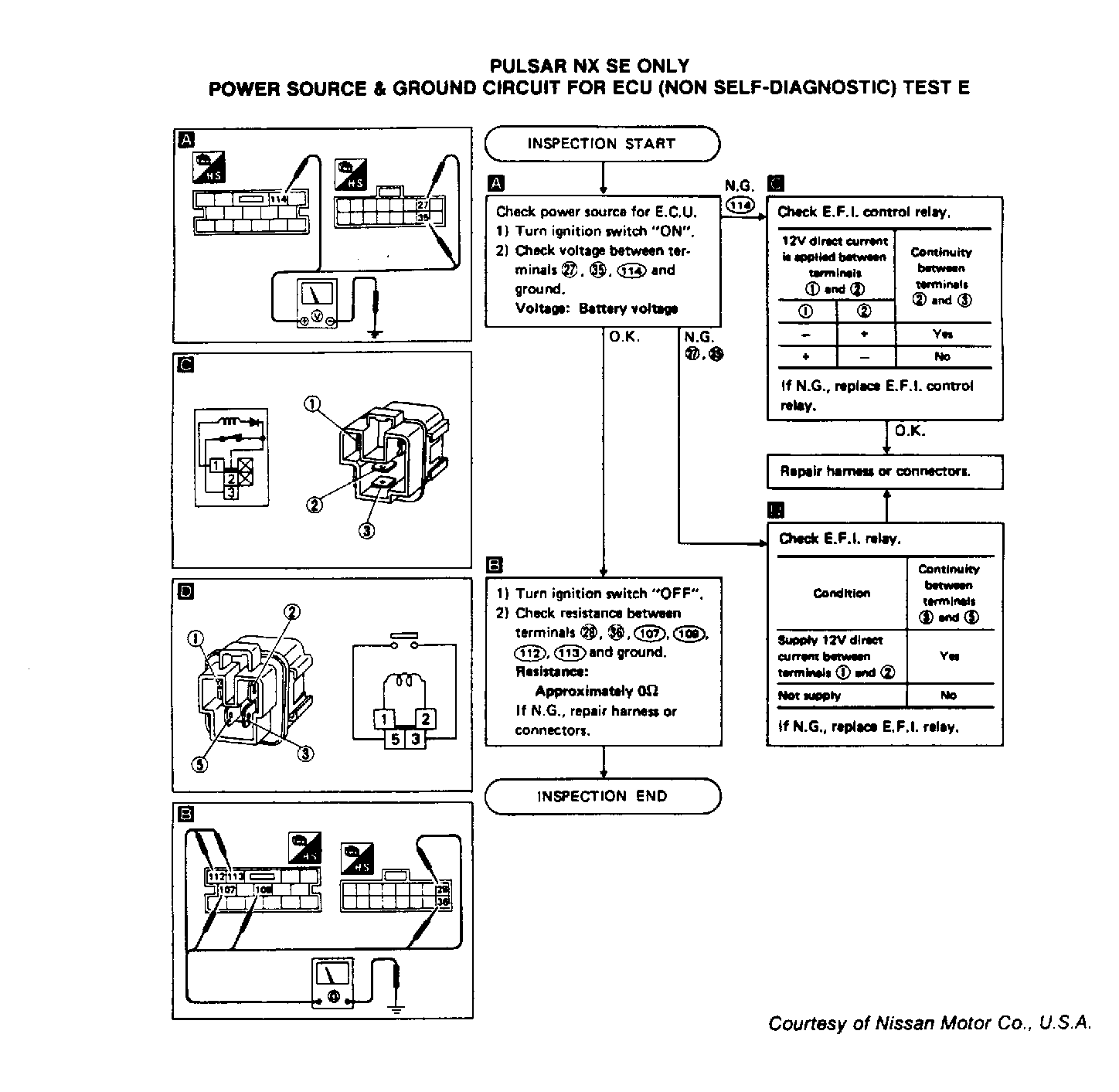

Fig 2: Test E, Pulsar NX SE

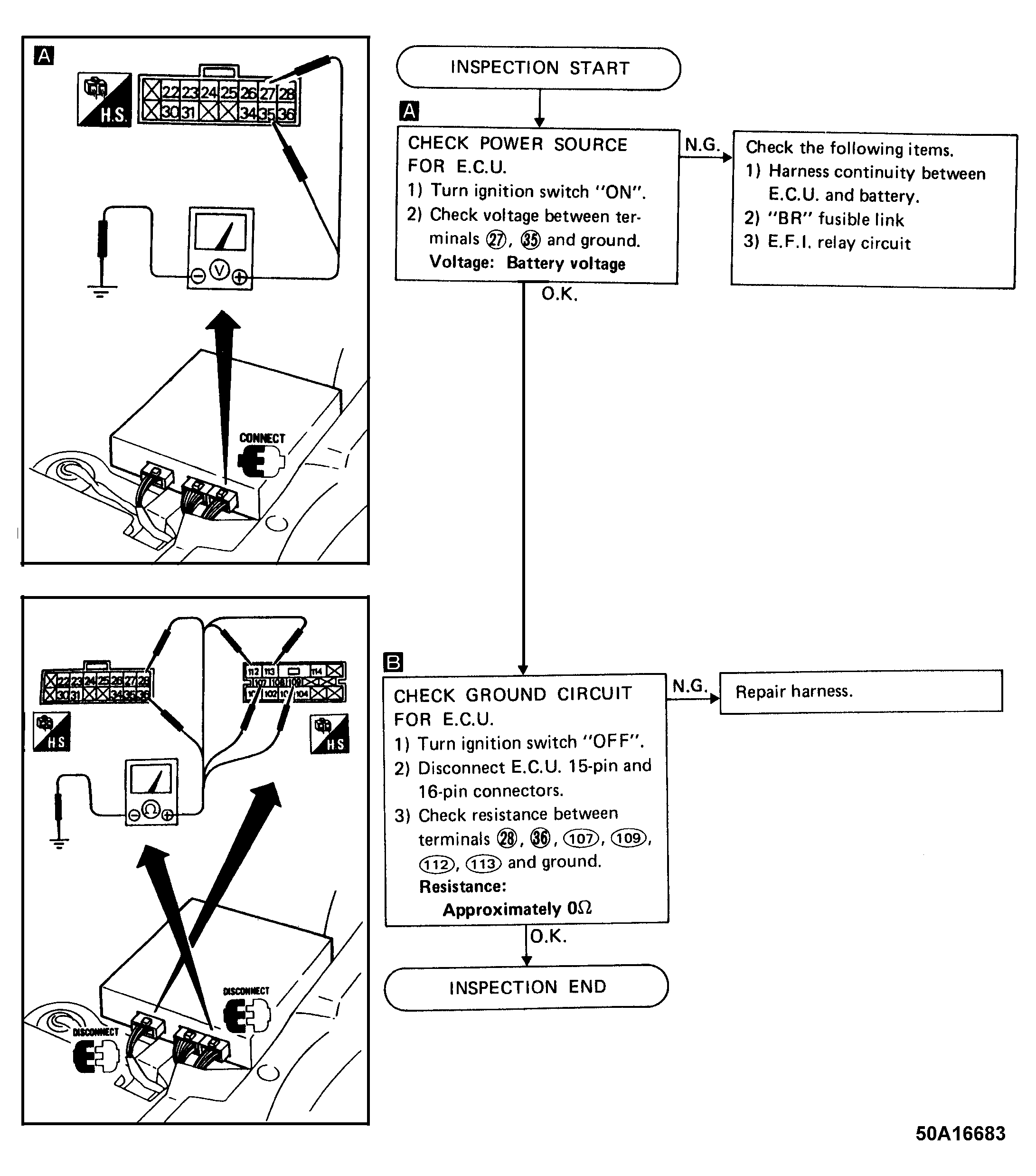

Fig 3: Test U, Pulsar NX & Sentra (E16i)

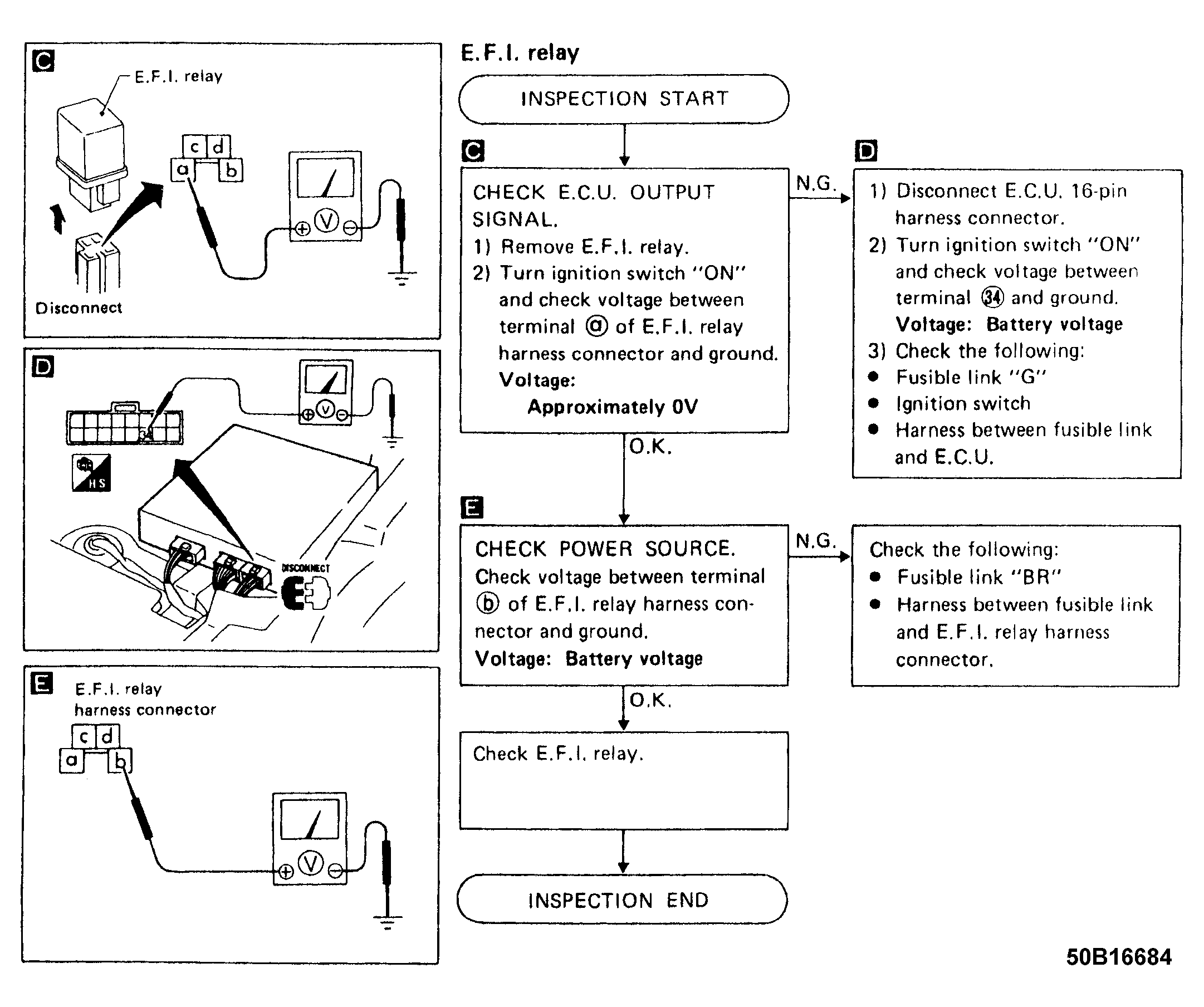

Fig 4: Test U, Pulsar NX & Sentra (E16i) - EFI Relay

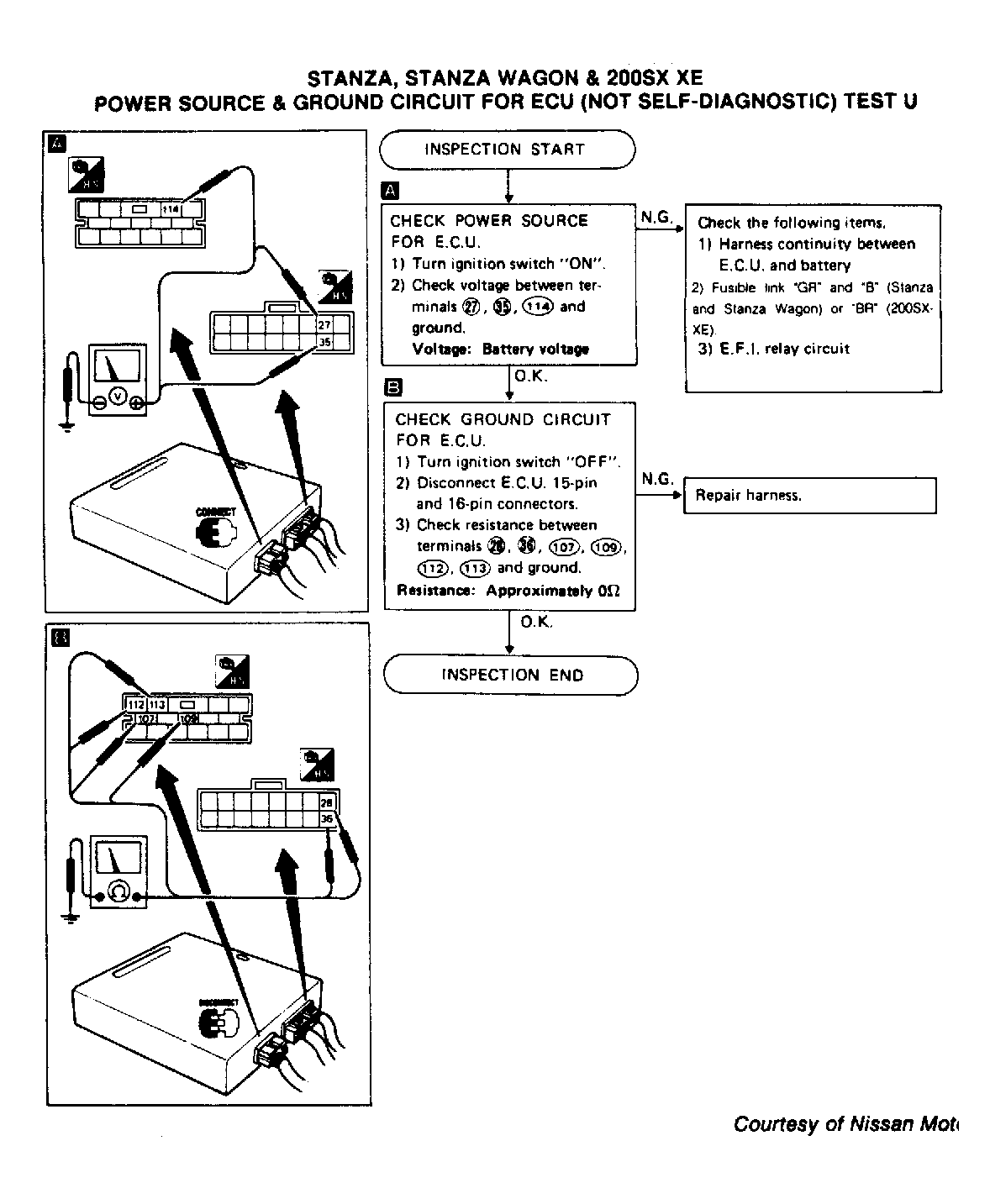

Fig 5: Test U, Stanza, Stanza Wagon & 200SX XE
