Wiring Diagrams

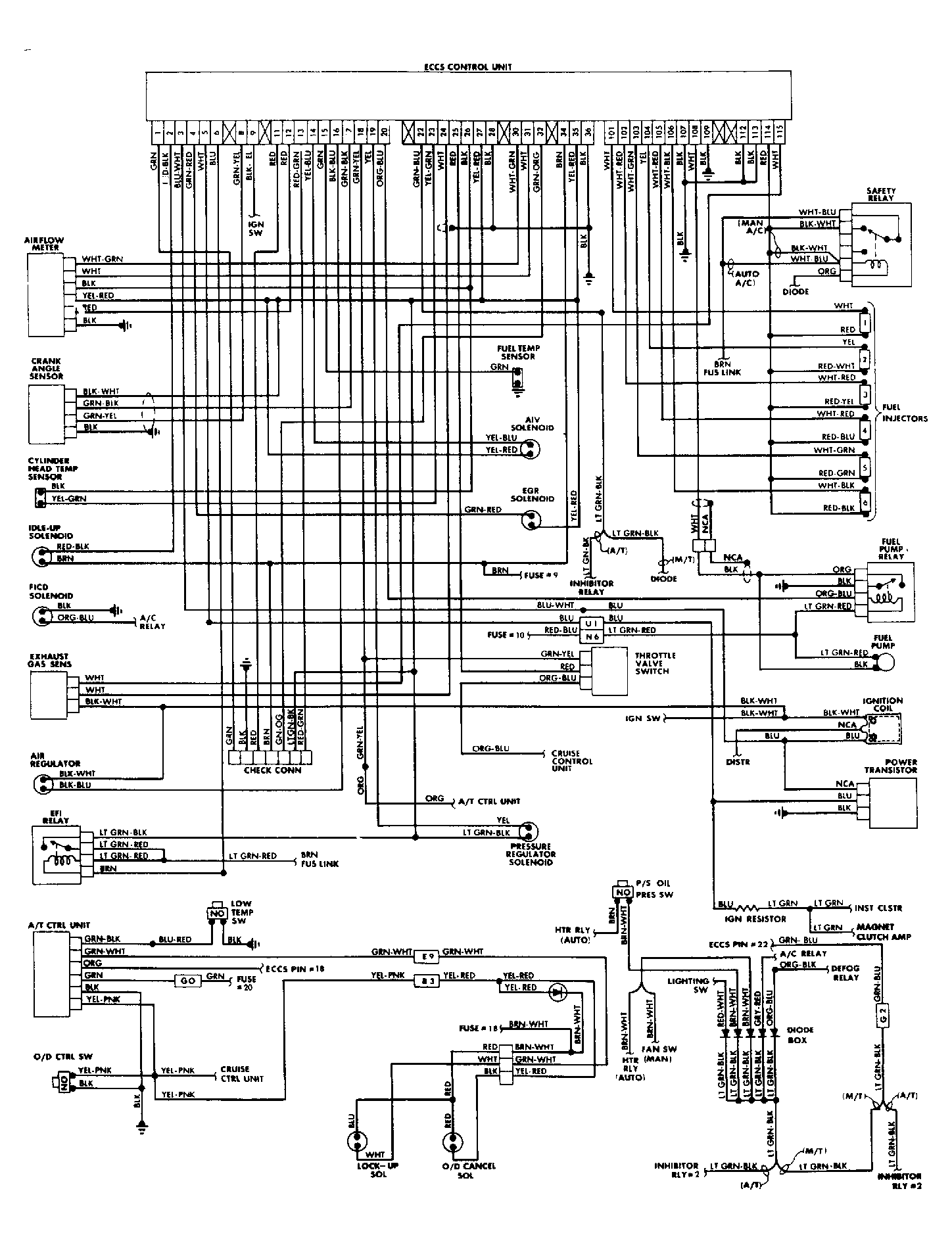

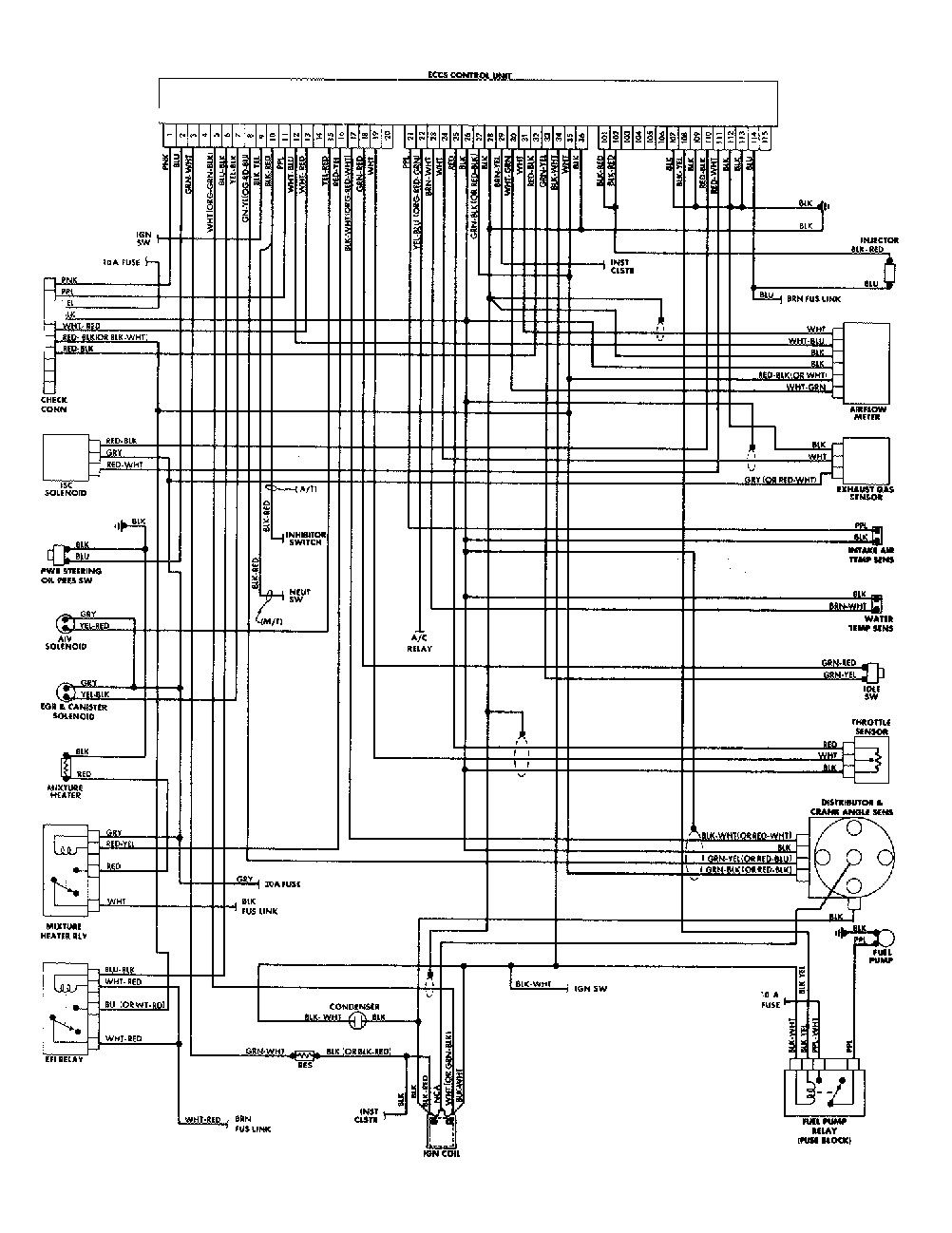

Fig 1: Maxima ECCS Wiring Diagram

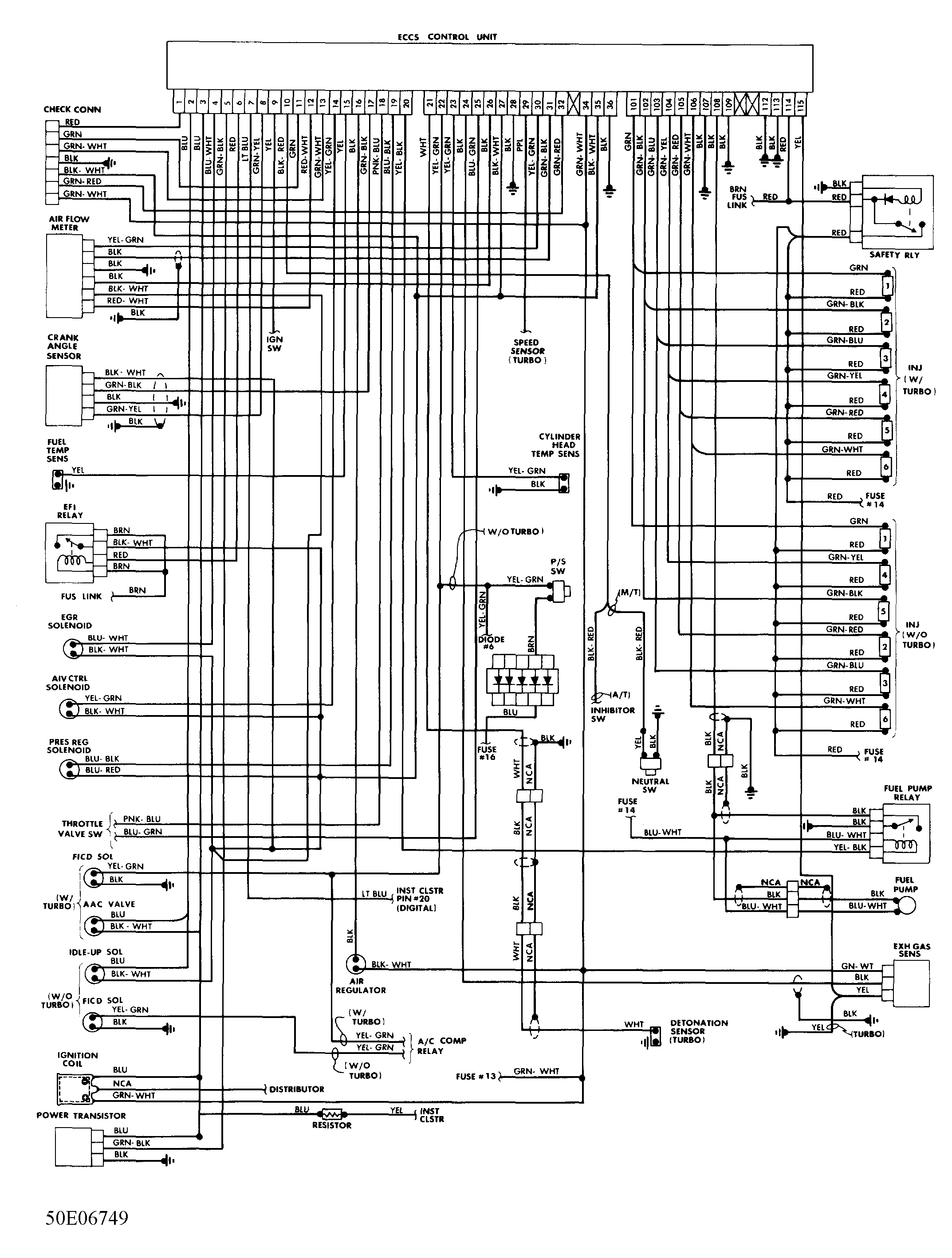

Fig 2: Pulsar NX & Sentra (E16i) ECCS Wiring Diagram

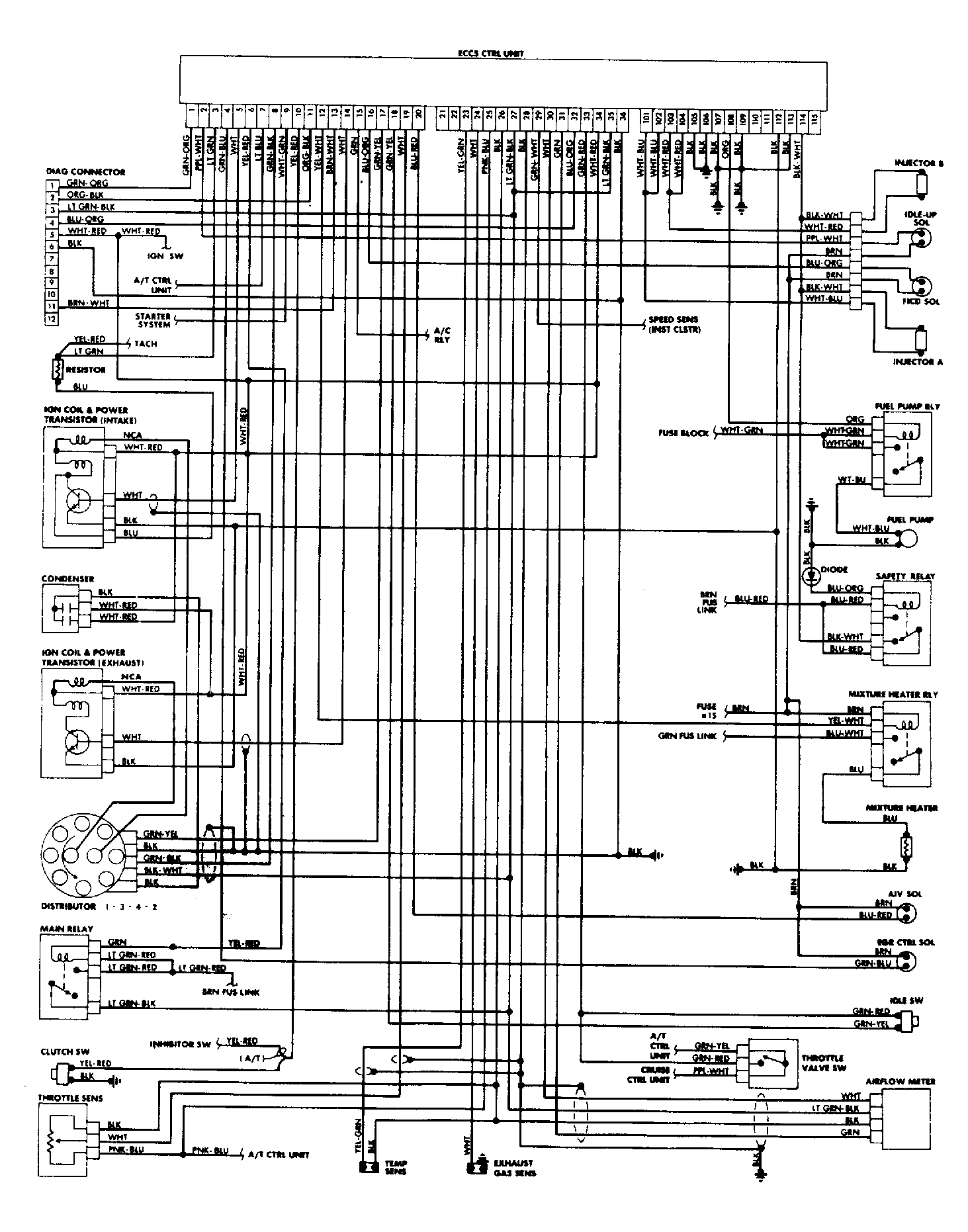

Fig 3: Pulsar NX SE ECCS Wiring Diagram

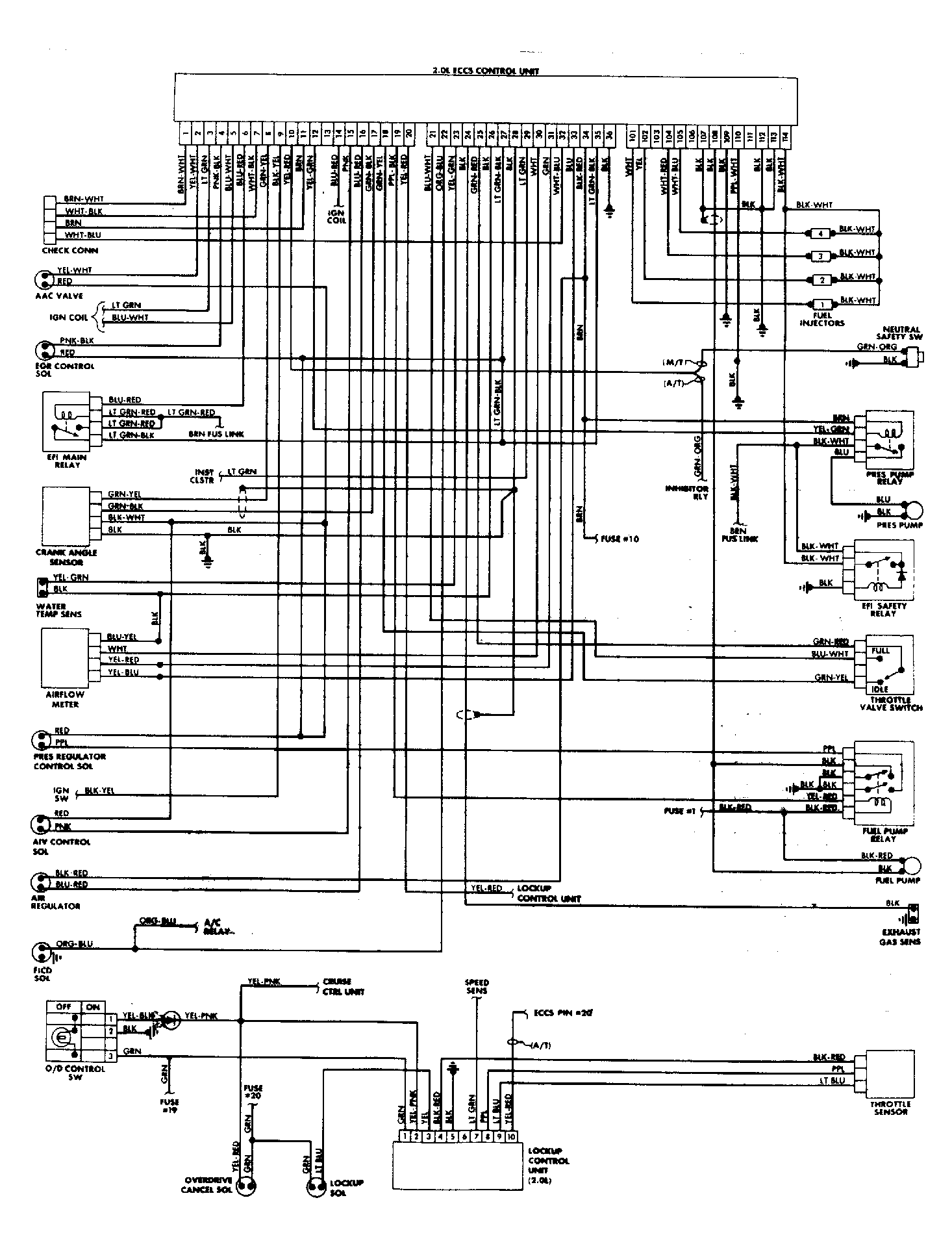

Fig 4: Stanza ECCS Wiring Diagram

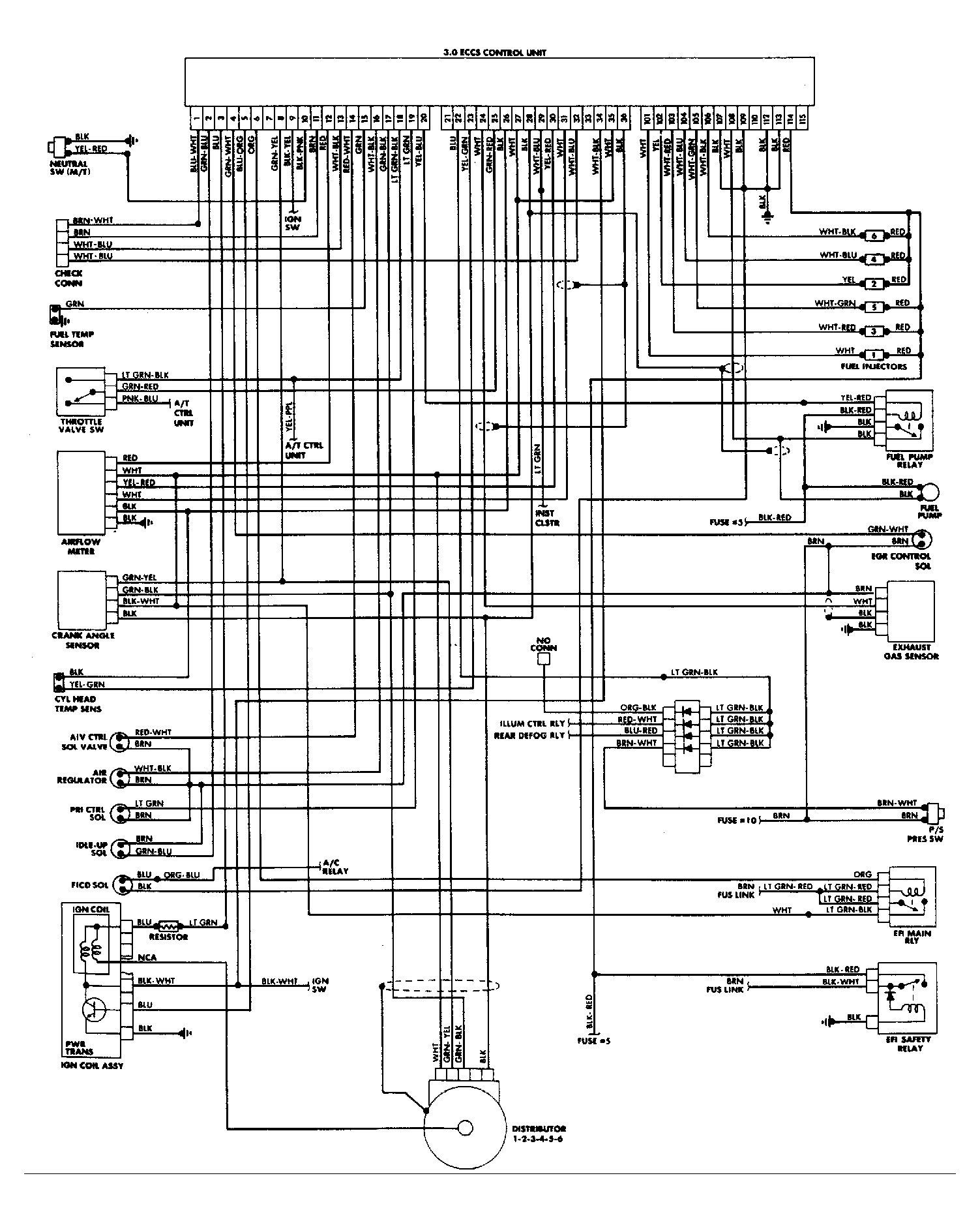

Fig 5: Stanza Wagon ECCS Wiring Diagram

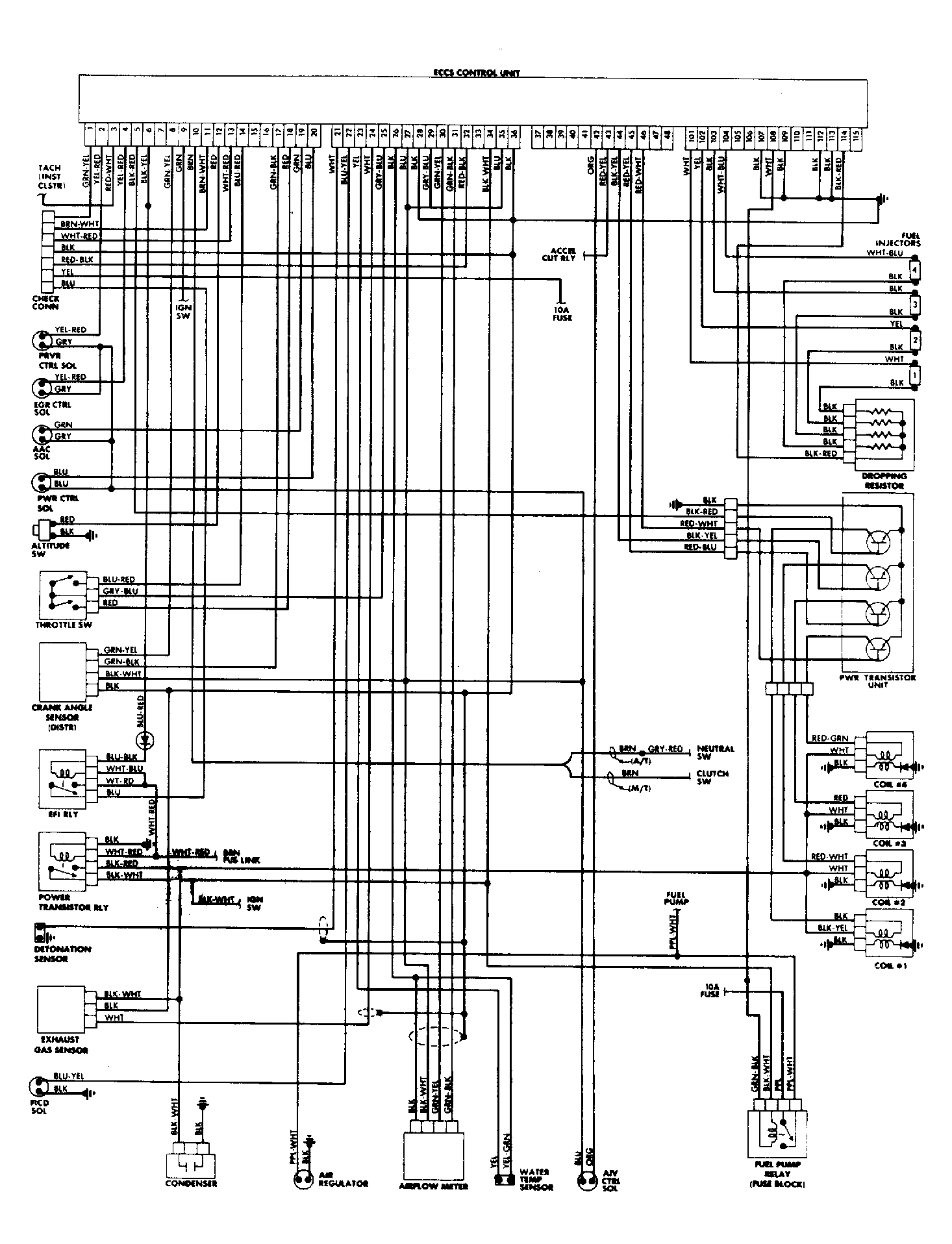

Fig 6: Van ECCS Wiring Diagram

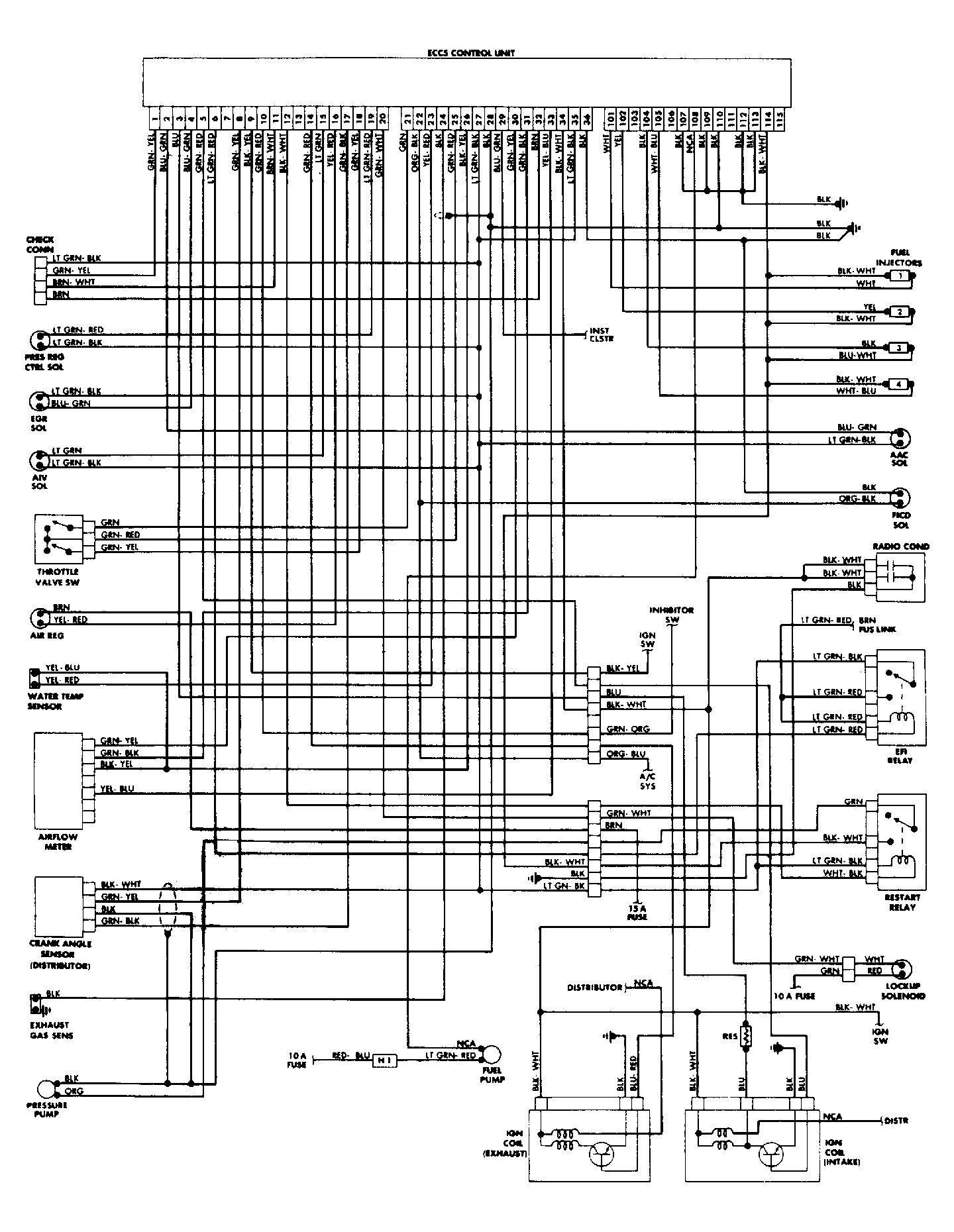

Fig 7: 200SX SE ECCS Wiring Diagram

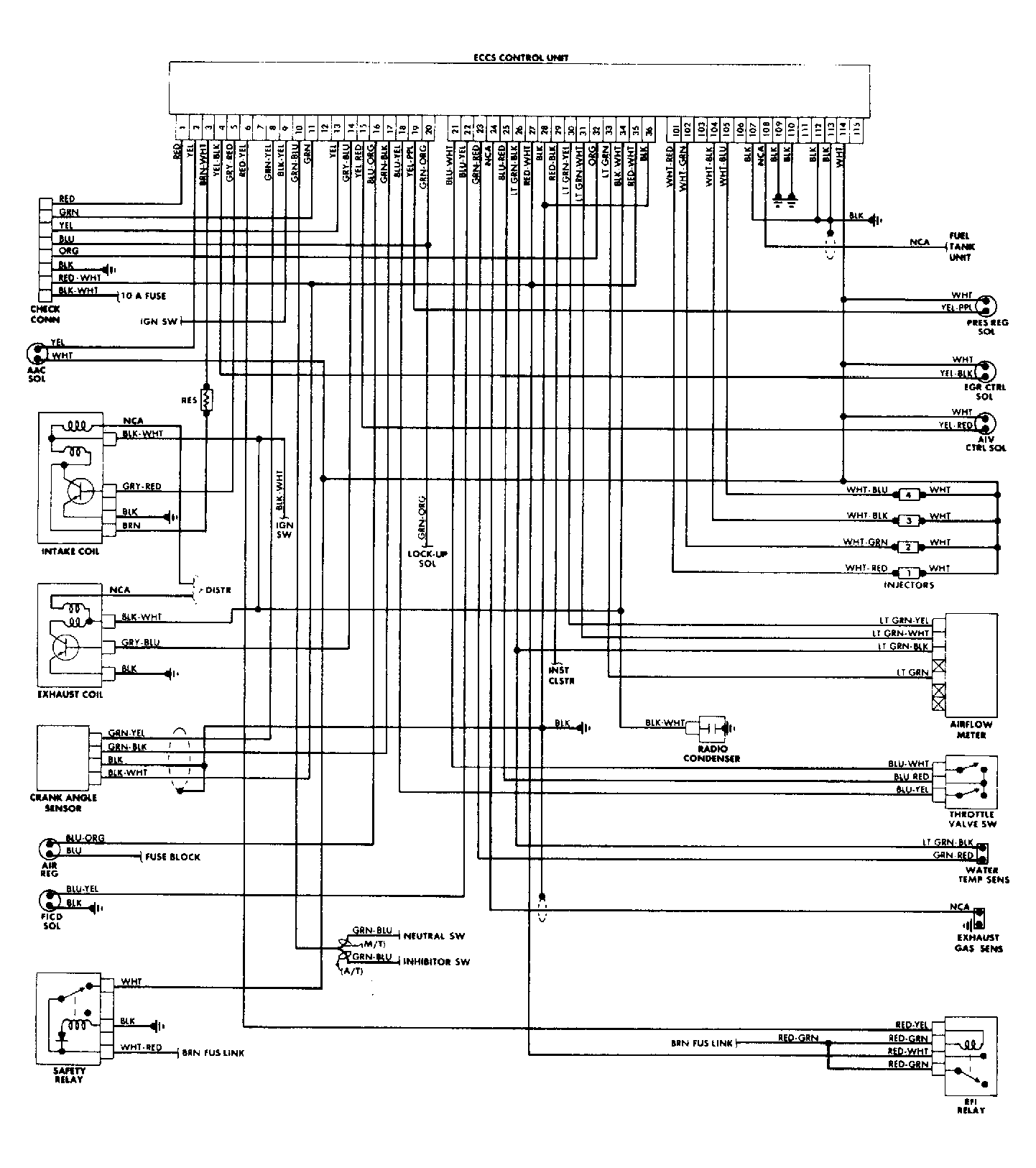

Fig 8: 200SX XE ECCS Wiring Diagram

Fig 9: 300ZX & 300ZX Turbo ECCS Wiring Diagram
