Wiring Diagrams

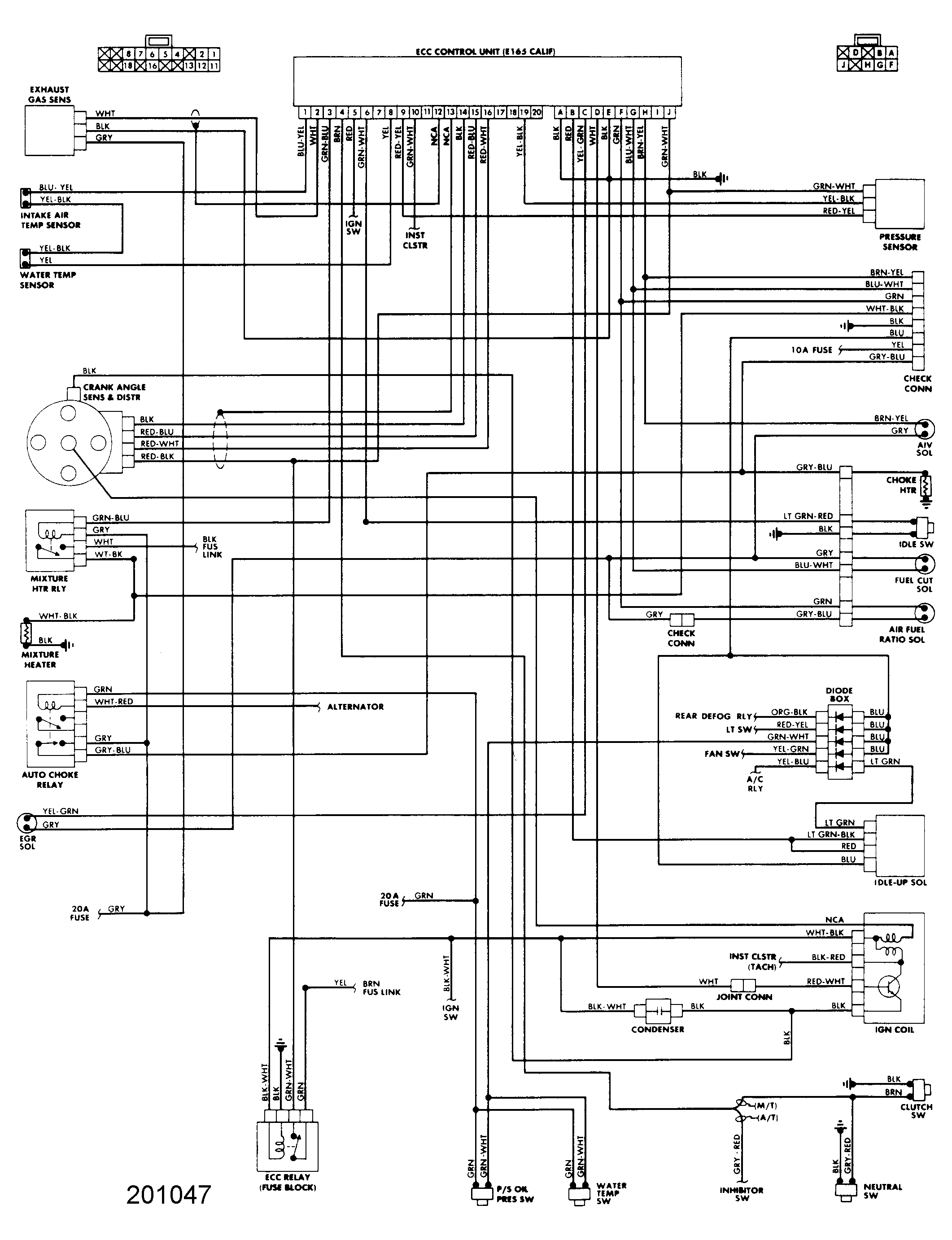

Fig 1: Wiring Diagrams For California Sentra

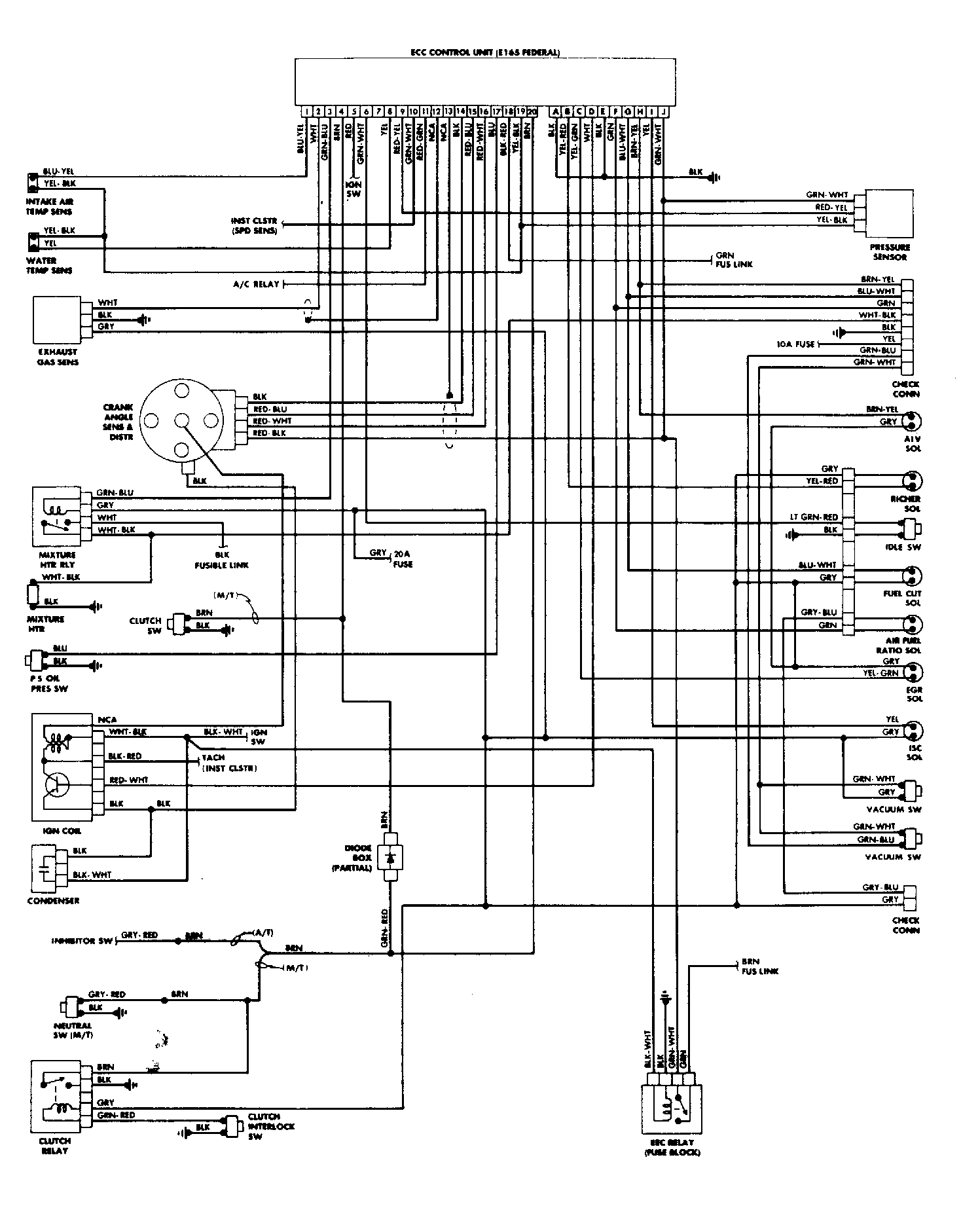

Fig 2: Wiring Diagrams For Federal Sentra
