Radio Identification - Exchange Unit Ordering Info (TS86-059)

Publication date: 1986-04-24
Reference number: TS86-059

RADIO IDENTIFICATION - EXCHANGE UNIT ORDERING INFO

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS86-059, Date of Issue: April 24, 1986

RADIO IDENTIFICATION, 1987 NISSAN SENTRA

Model(s): 1987 Nissan Sentra

Section: Body - Electrical

Classification: BE86-007

Bulletin No.: TS86-059

Date: April 24, 1986

SERVICE PROCEDURE

This bulletin contains radio identification information for the 1987 Nissan Sentra. Use this bulletin to identify the component manufacturer and model number when ordering an exchange unit under the Direct Dealer/Manufacturer Radio Warranty Exchange Program.

SERVICE PROCEDURES

The 1987 Sentra audio components are supplied by two (2) radio manufacturers. When ordering an exchange unit, it is important to properly identify the manufacturer and model number of the incident unit. This will ensure that the exchange unit shipped from the radio manufacturer will be the same brand and model as the incident unit.

Most audio components are marked with a code number that is visible without removing the unit from the vehicles. Locate the code number on the identification table to identify the manufacturer and model number of the incident unit.

NOTE: The first digit of the code number identifies the manufacturer as shown below:

C = Clarion

H = Hitachi

P = Panasonic

NOTE: All radio cores must be returned to the manufacturer immediately after removal from customers vehicle.

RADIO IDENTIFICATION

Component Description

Mfr.

Nissan Part Number

Mfr. Model No.

Installed By

Note

AM/FM (MONO)

Hitachi

B8012-C9910RX

A-1561

Dealer

⁽¹⁾

AM/FM ET (MPX)

Clarion

B8013-C9900RX

RN-9064U

Dealer

⁽²⁾

AM/FM ET COMBO (BASIC TYPE, ET/100

Hitachi

B8026-C9910RX

ET-100

Dealer

⁽³⁾

AM/FM ET COMBO (STANDARD TYPE, ET/200)

Clarion

B8026-C9905RX

PN-9100U

Dealer

⁽⁴⁾

AM/FM ET COMBO (DELUXE TYPE, ET/300)

Clarion

B8026-C9900RX

PN-9101U

Dealer

⁽⁵⁾

AM/FM ET (MPX) WITH CLOCK

Hitachi

28020-61A00RX

KMS-5721D

Factory

⁽⁶⁾

AM/FM ET (MPX) WITH CLOCK

Clarion

28020-61A00CX

RN-9045M

Factor

⁽⁷⁾

BASIC CASSETTE DECK

Hitachi

B8106-C9910RX

CSD-6841

Dealer

⁽⁸⁾

DOLBY CASSETTE DECK

Clarion

B8106-C9900RX

PN-8057

Dealer

⁽⁹⁾

EQUALIZER

Clarion

B8252-C9900RX

EN-615U

Dealer

⁽¹⁰⁾

⁽¹⁾	I.D. Code HA705.See Fig 1

⁽²⁾	I.D. Code C8705. See Fig 2

⁽³⁾	I.D. Code HH715. See Fig 3

⁽⁴⁾	I.D. CODE CK725. See Fig 4

⁽⁵⁾	I.D. Code CK735. See Fig 5

⁽⁶⁾	I.D. Code HC025. Japan built XE with auto trans, SE and GXE models. See Fig 6

⁽⁷⁾	I.D. Code CC025. U.S. built XE with auto trns and GXE models. See Fig 7

⁽⁸⁾	I.D. Code HQ055. See Fig 8

⁽⁹⁾	I.D Code CR015. See Fig 9

⁽¹⁰⁾	I.D. Code CU735. Used with AM/FM AMPLIFIER ET combos ET/200 and ET/300. See Fig 10

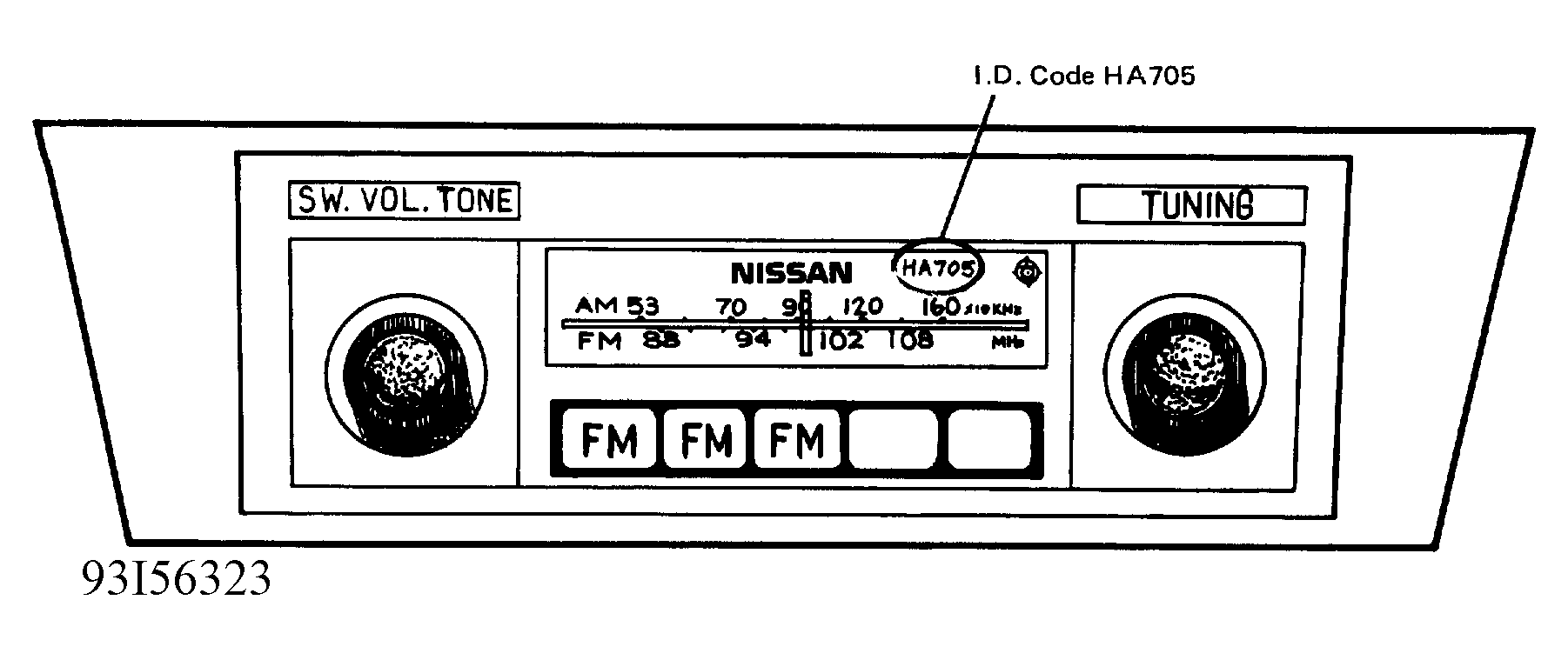

Fig 1: AM/FM (Mono)

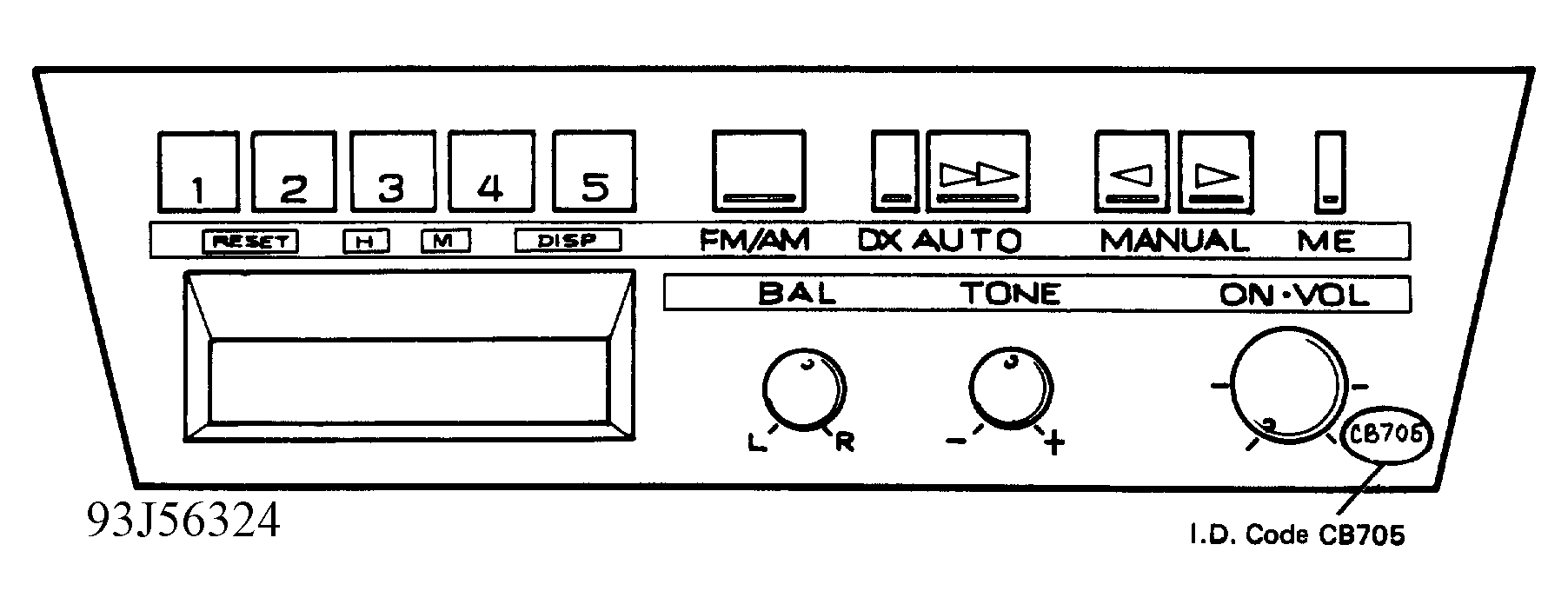

Fig 2: AM/FM ET (MPX)

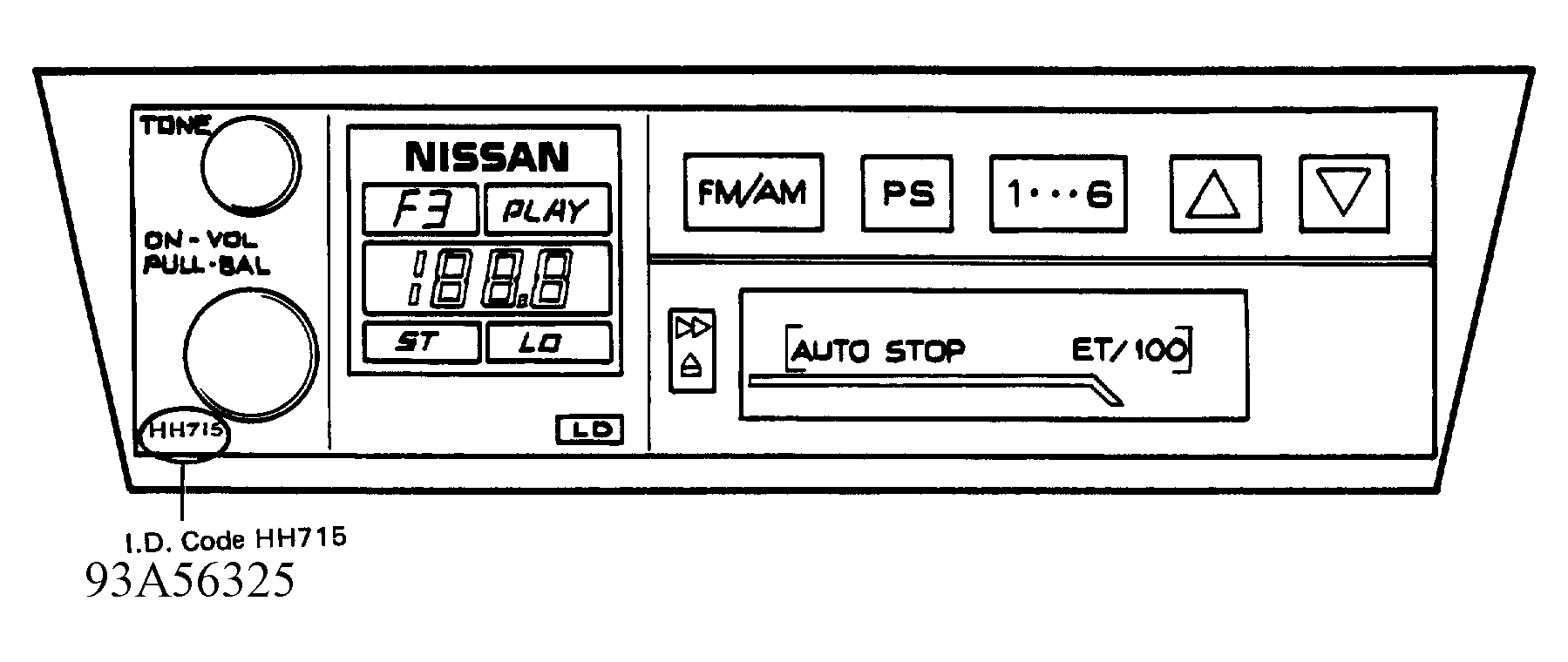

Fig 3: AM/FM ET Combo (Basic Type, ET/100)

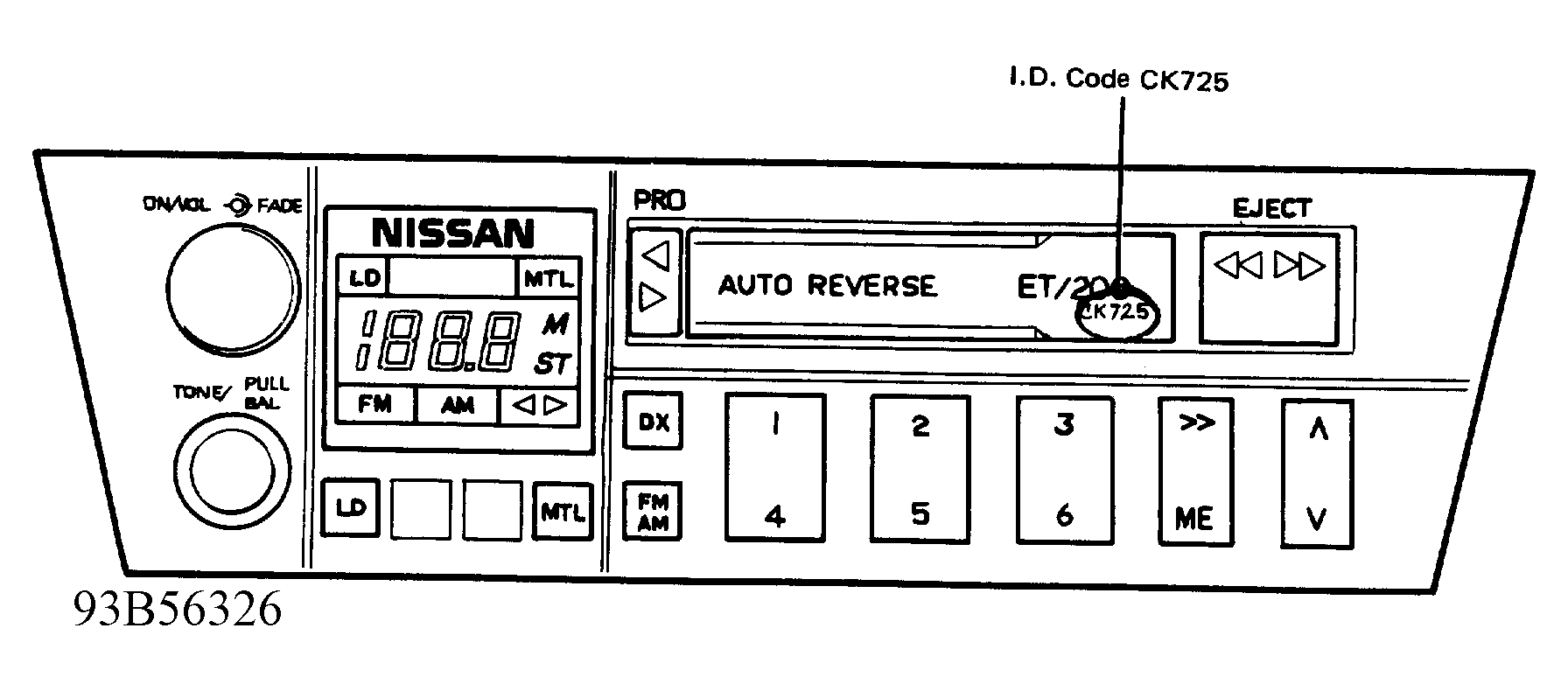

Fig 4: AM/FM ET Combo (Standard Type, ET/200)

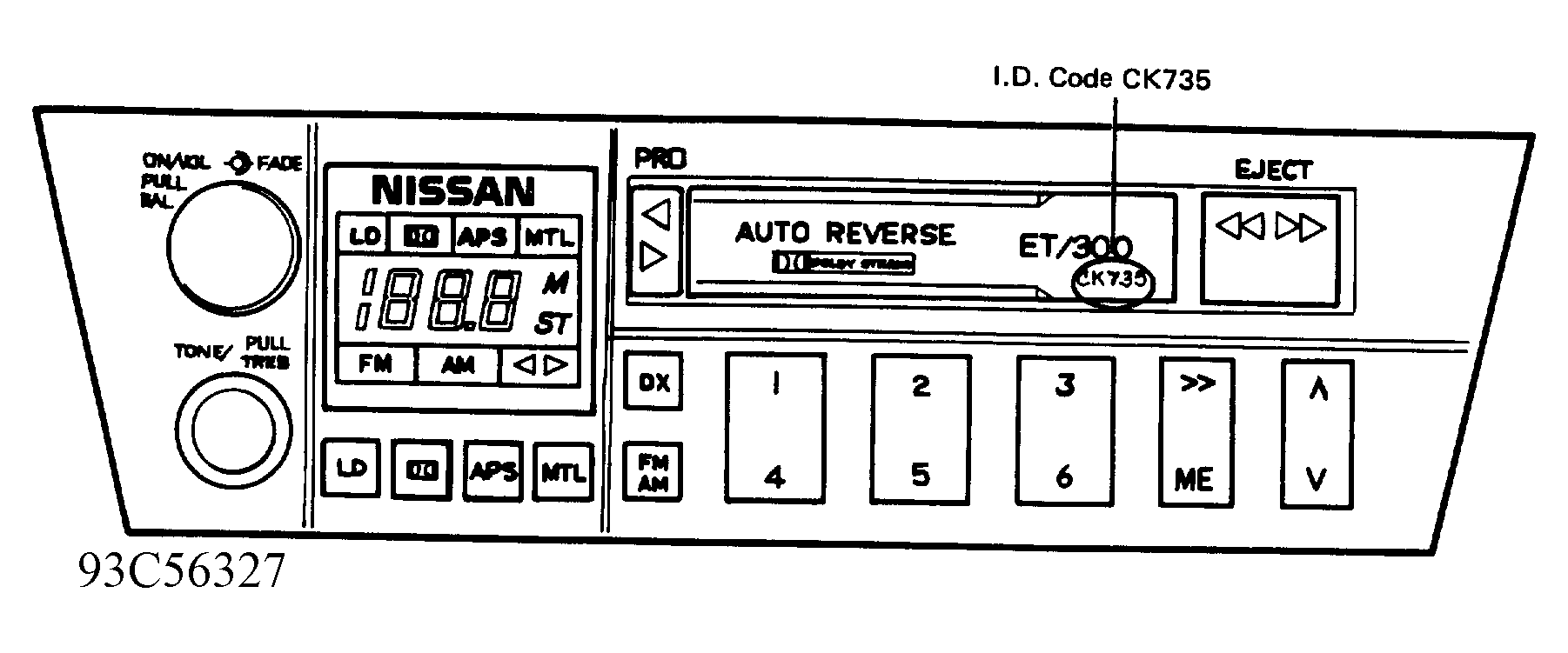

Fig 5: AM/FM ET Combo (Deluxe Type, ET/300)

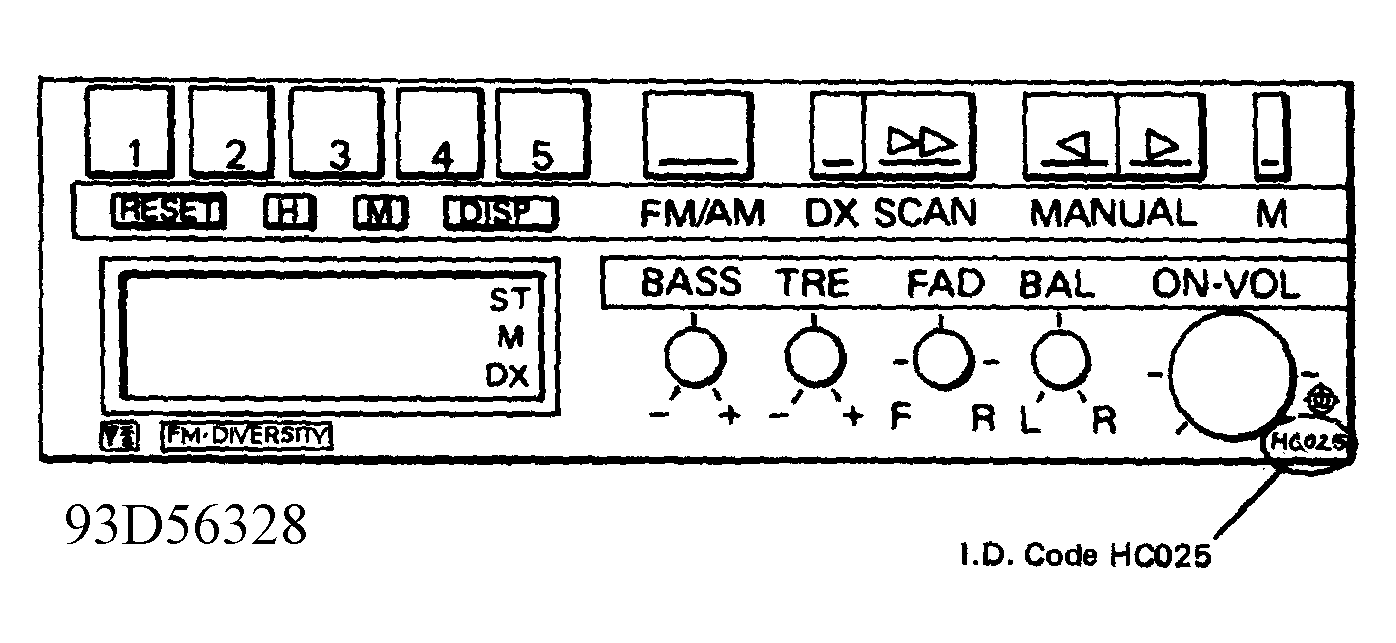

Fig 6: AM/FM ET (MPX) with Clock

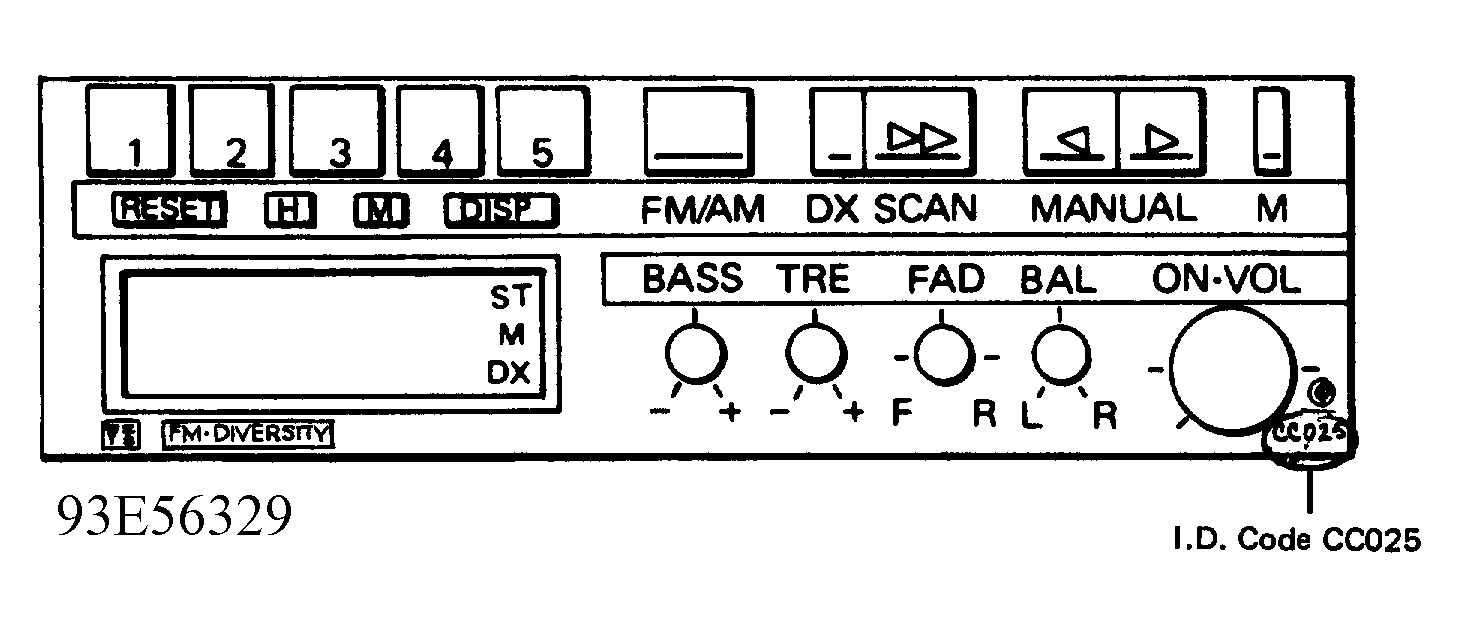

Fig 7: AM/FM ET (MPX) with Clock

Fig 8: Basic Cassette Deck

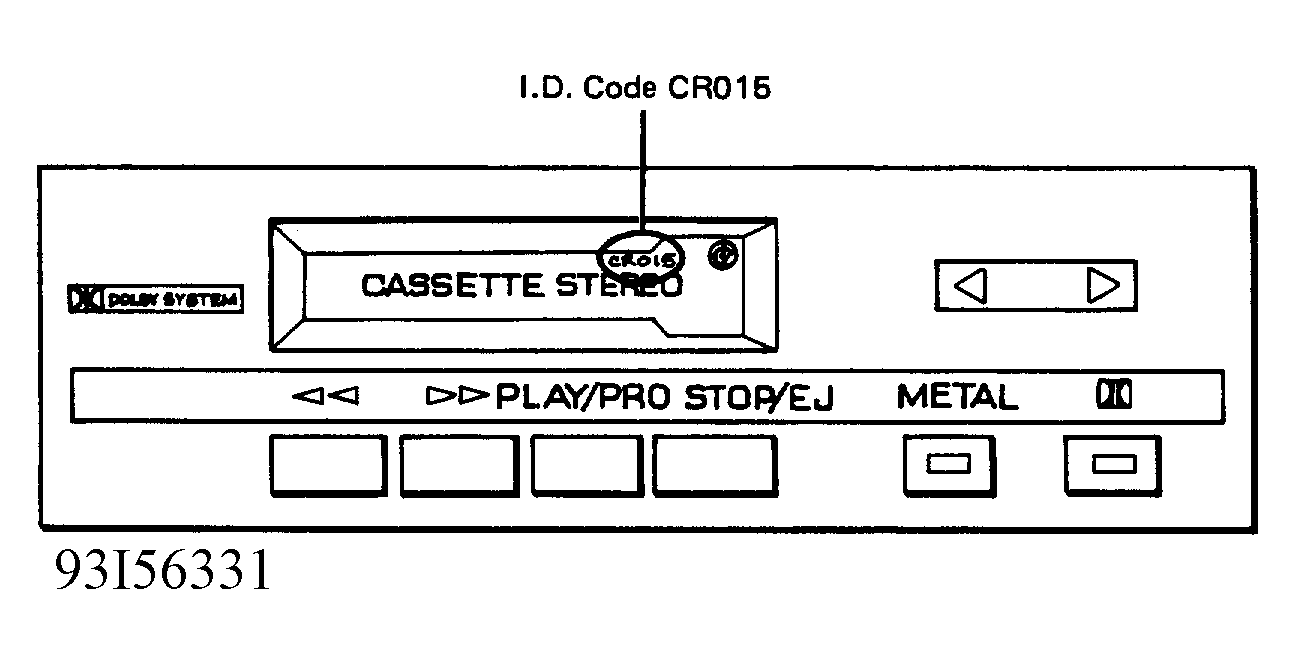

Fig 9: Dolby Cassette Deck

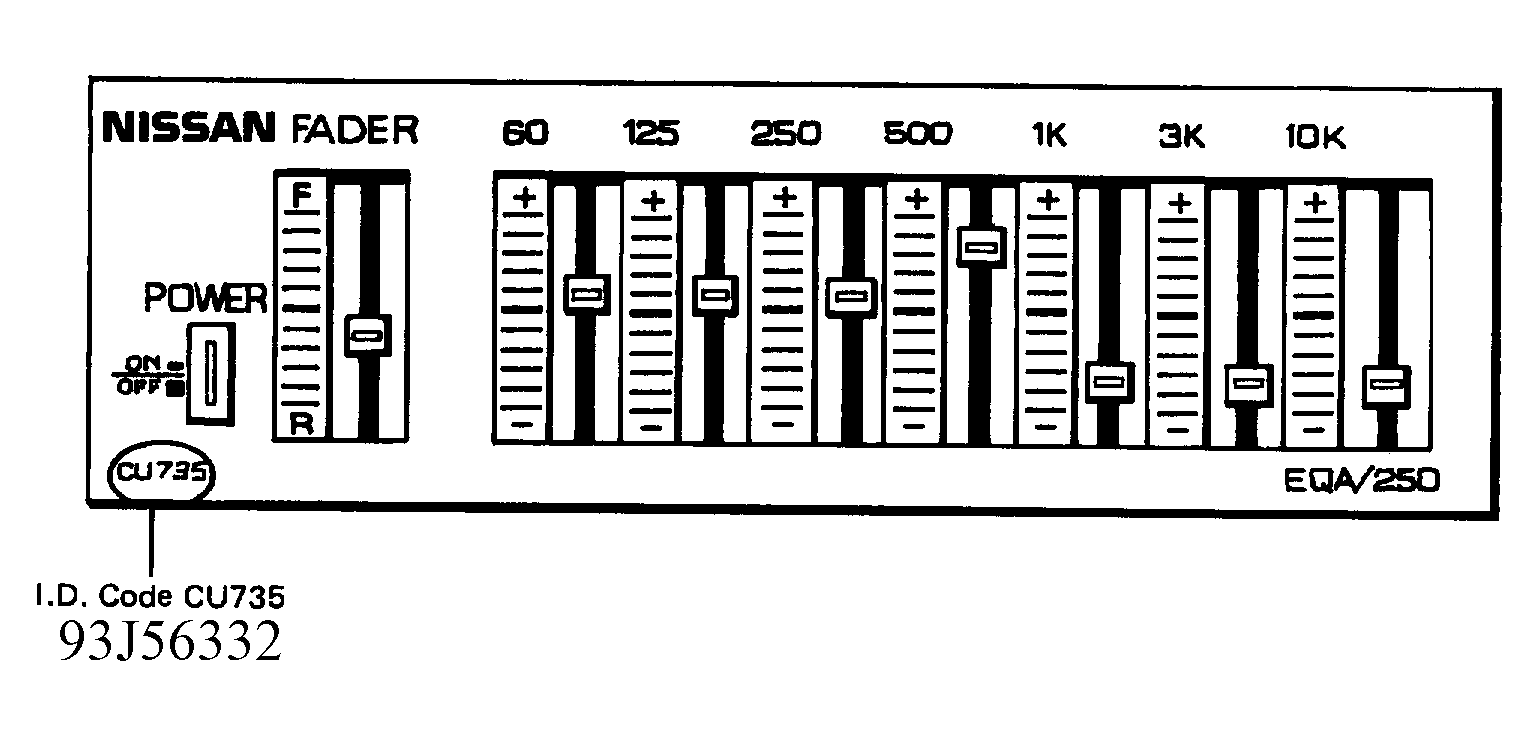

Fig 10: Equalizer/Amplifier
