Exhaust Gas Sensor

Fig 1: Test P, Maxima, 200SX-SE, 300ZX, 200SX-SE & 300ZX

G61734

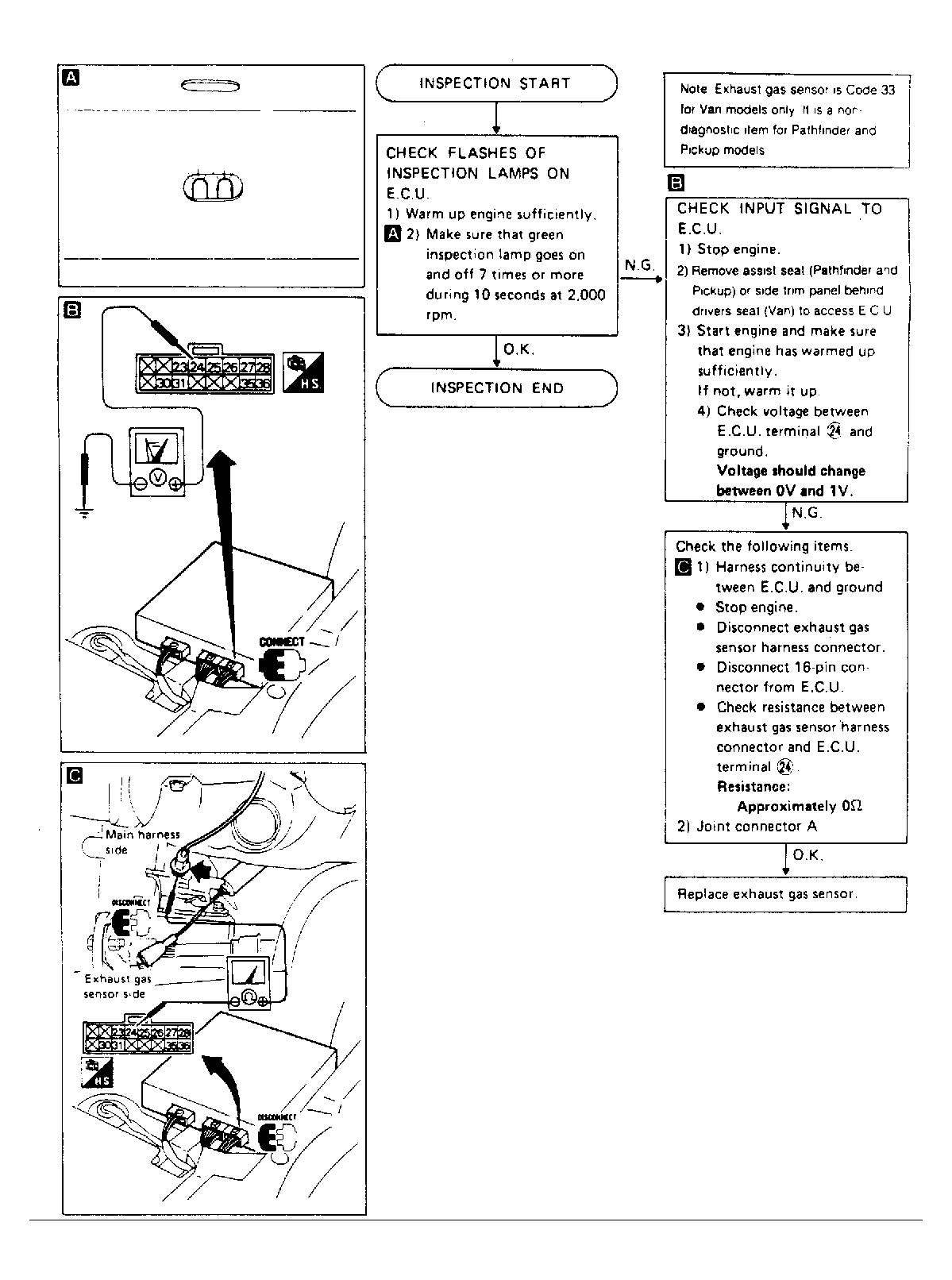

Fig 2: Test X, Van

G61773

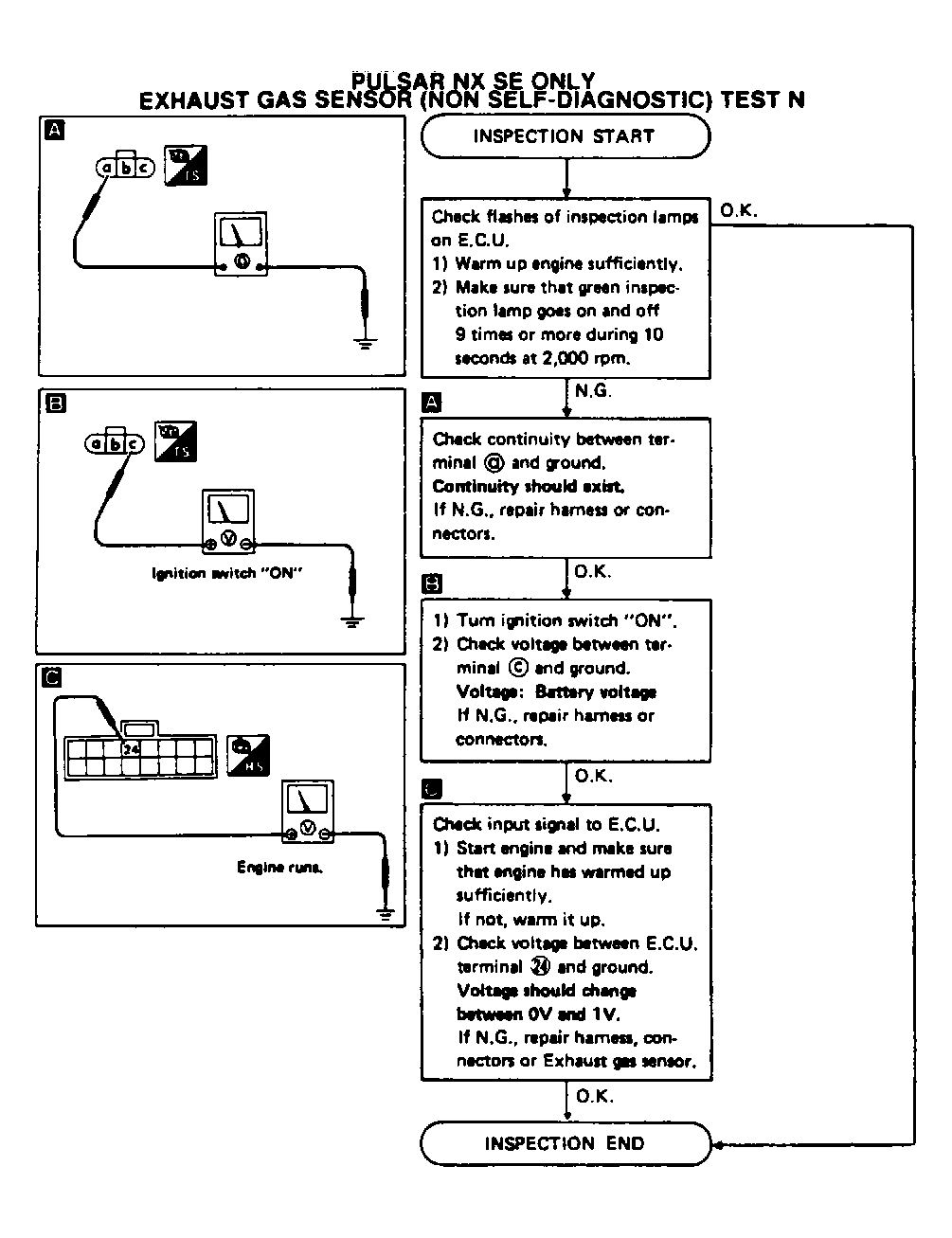

Fig 3: Test N, Pulsar NX SE

G61727

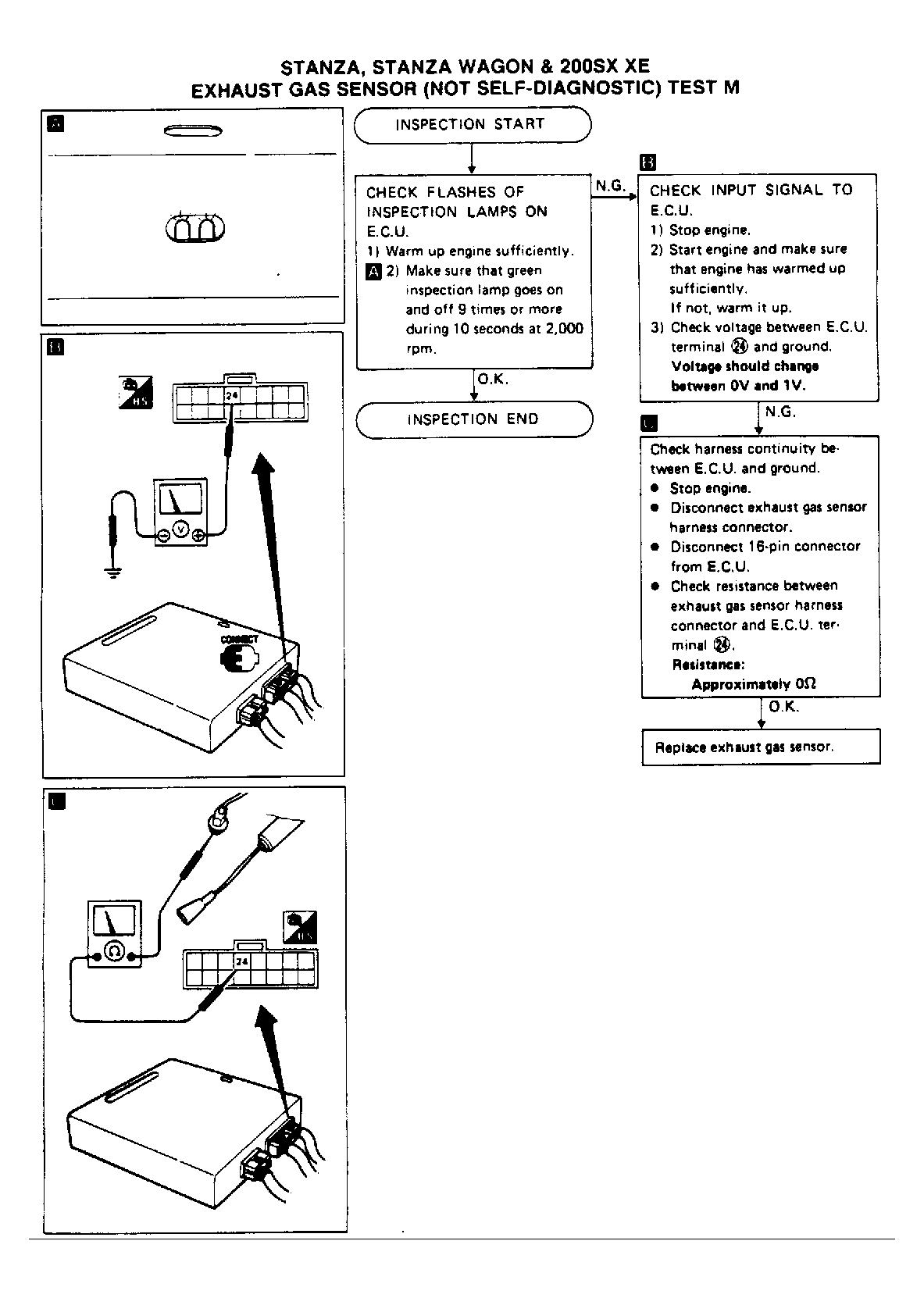

Fig 4: Test M, Stanza, Stanza Wagon & 200SX XE

G61723

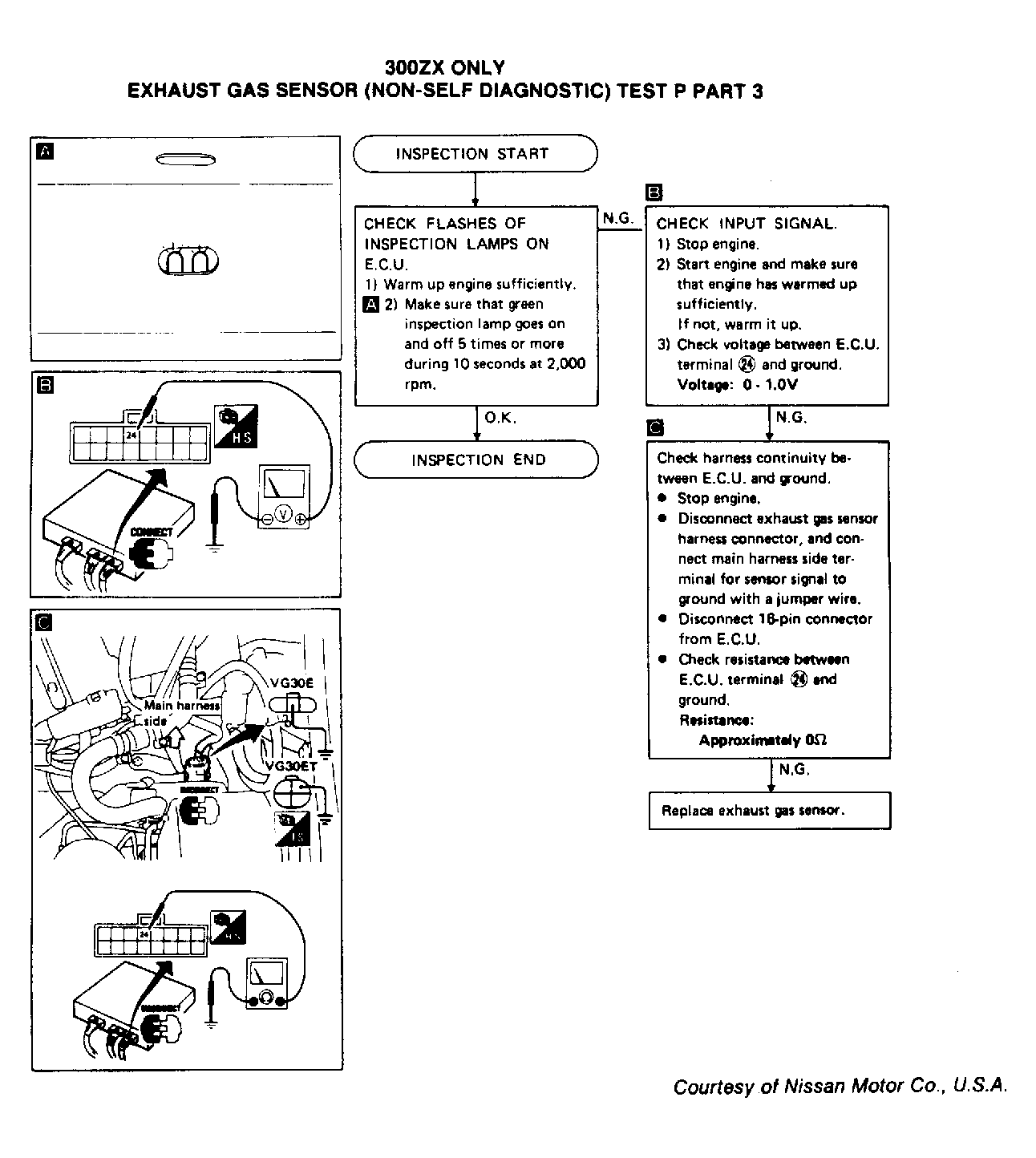

Fig 5: Test P, 300ZX

G61735
