Repair and Diagnosis
›
Engine Performance
›
System
›
ECC CEC System
›
Non Self-Diagnostic Component Testing Charts
›
Fuel Pump
Fuel Pump

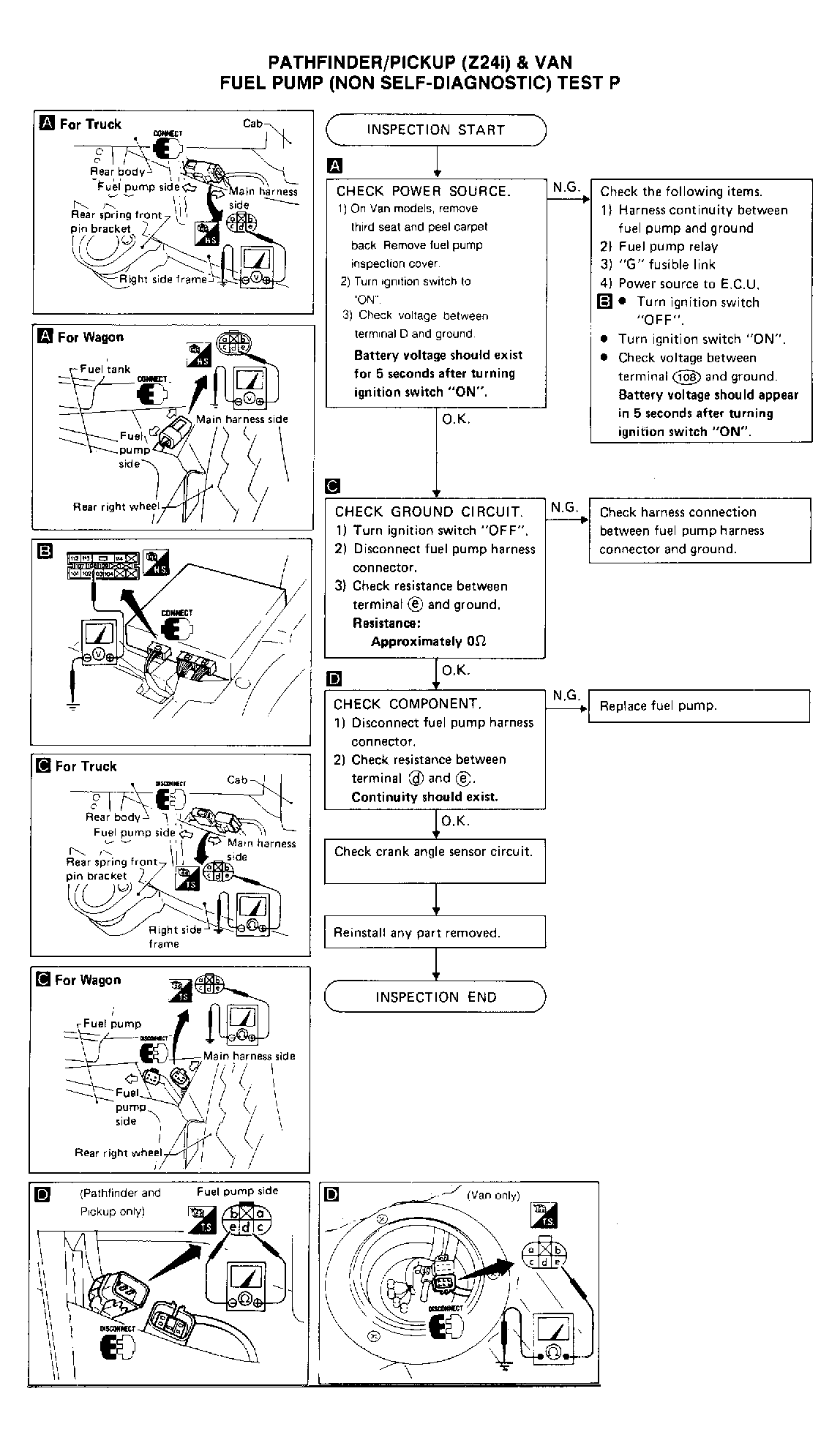

Fig 1: Test P, Van

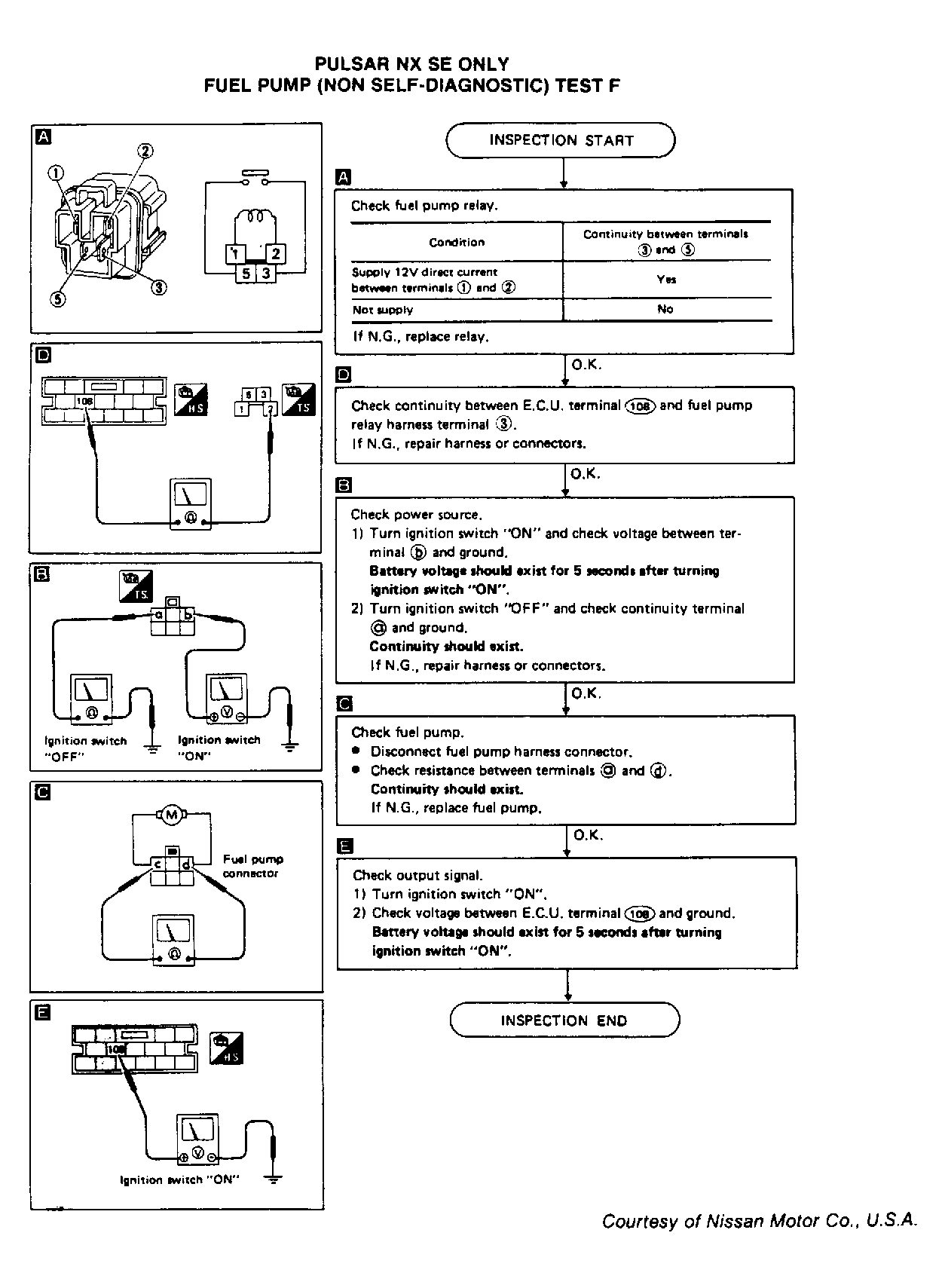

Fig 2: Test F, Pulsar NX SE

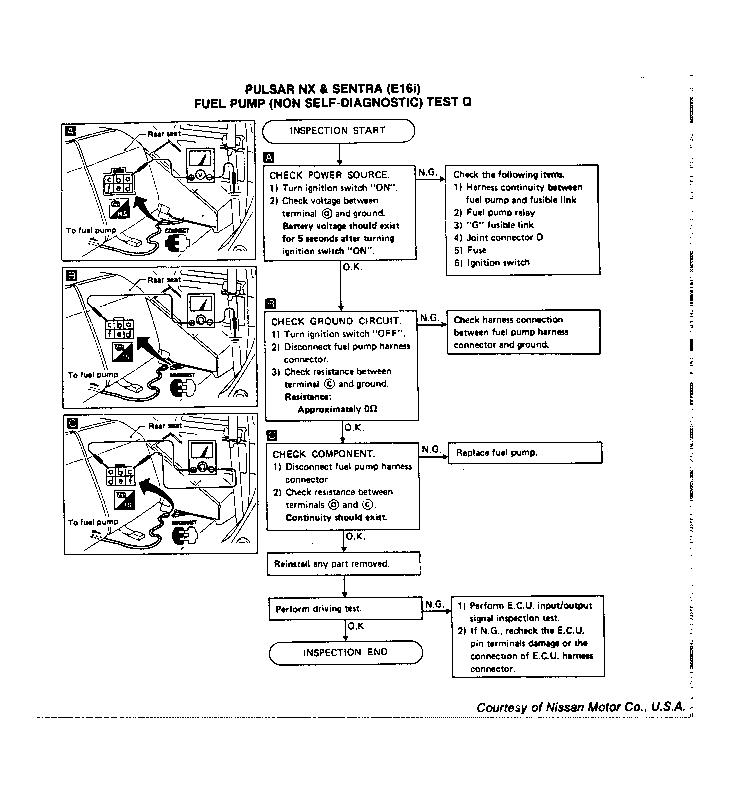

Fig 3: Test Q, Pulsar NX & Sentra (E16i)
