DRIVEABILITY/System Inspection Charts

Fig 1: Driveability Inspection Tables (1 of 2)

G94939

Fig 2: Driveability Inspection Tables (2 of 2)

G94940

Fig 3: Systems Inspection Tables & Test Letter Reference Charts

G94941

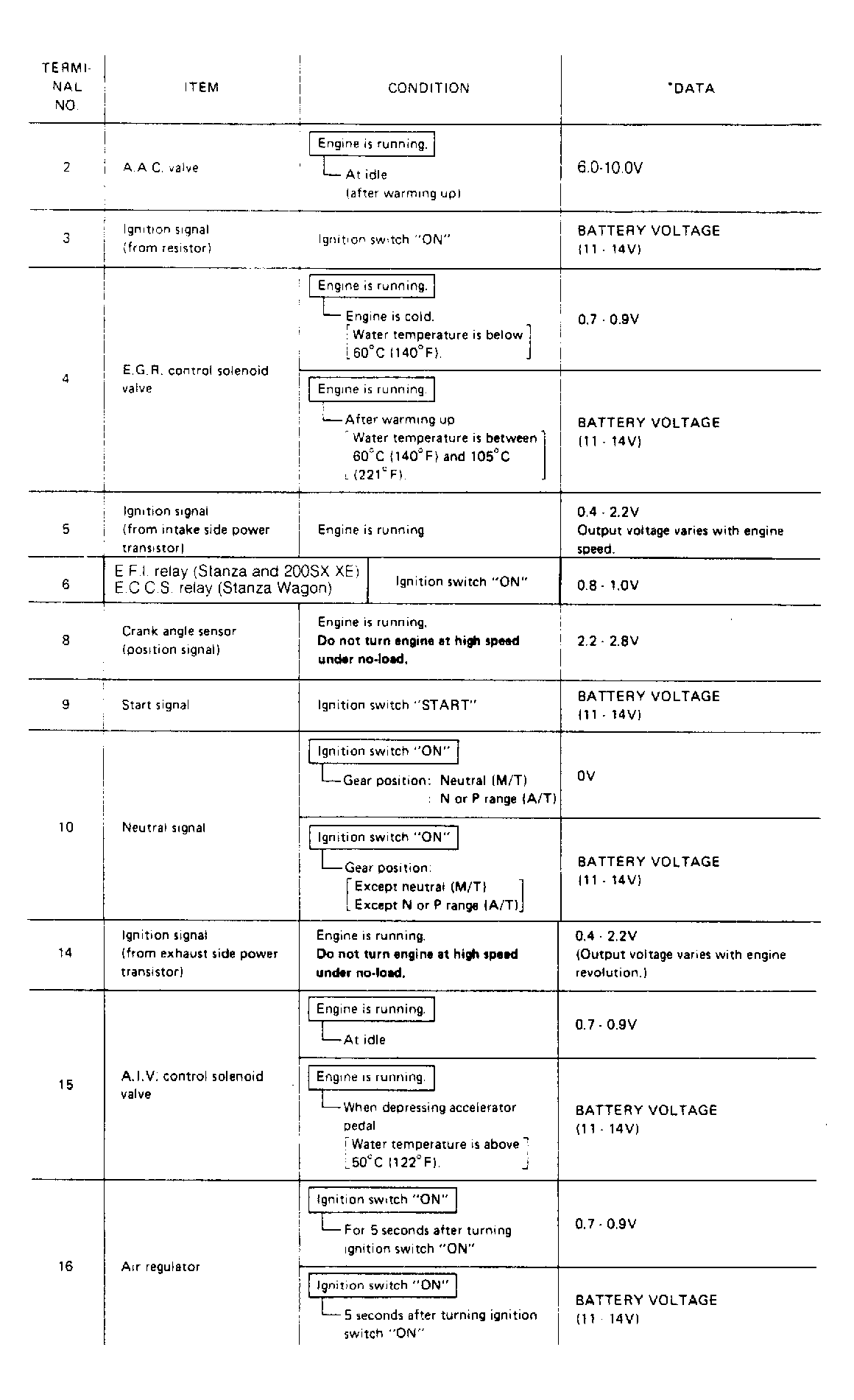

Fig 4: ECU Input/Output Voltage Signal Insp. Table (1 of 4)

G94950

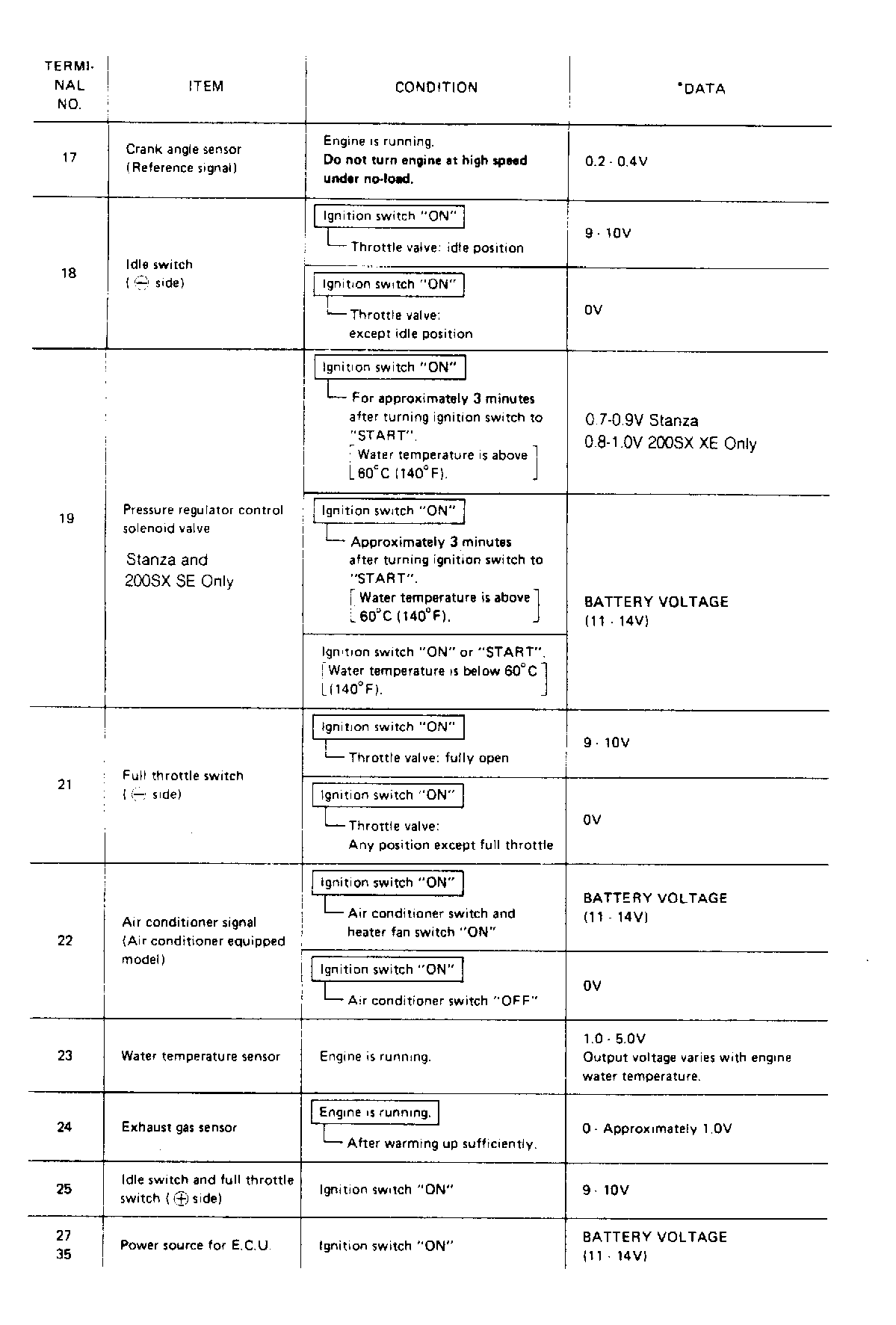

Fig 5: ECU Input/Output Voltage Signal Insp. Table (2 of 4)

G94951

Fig 6: ECU Input/Output Voltage Signal Insp. Table (3 of 4)

G94952

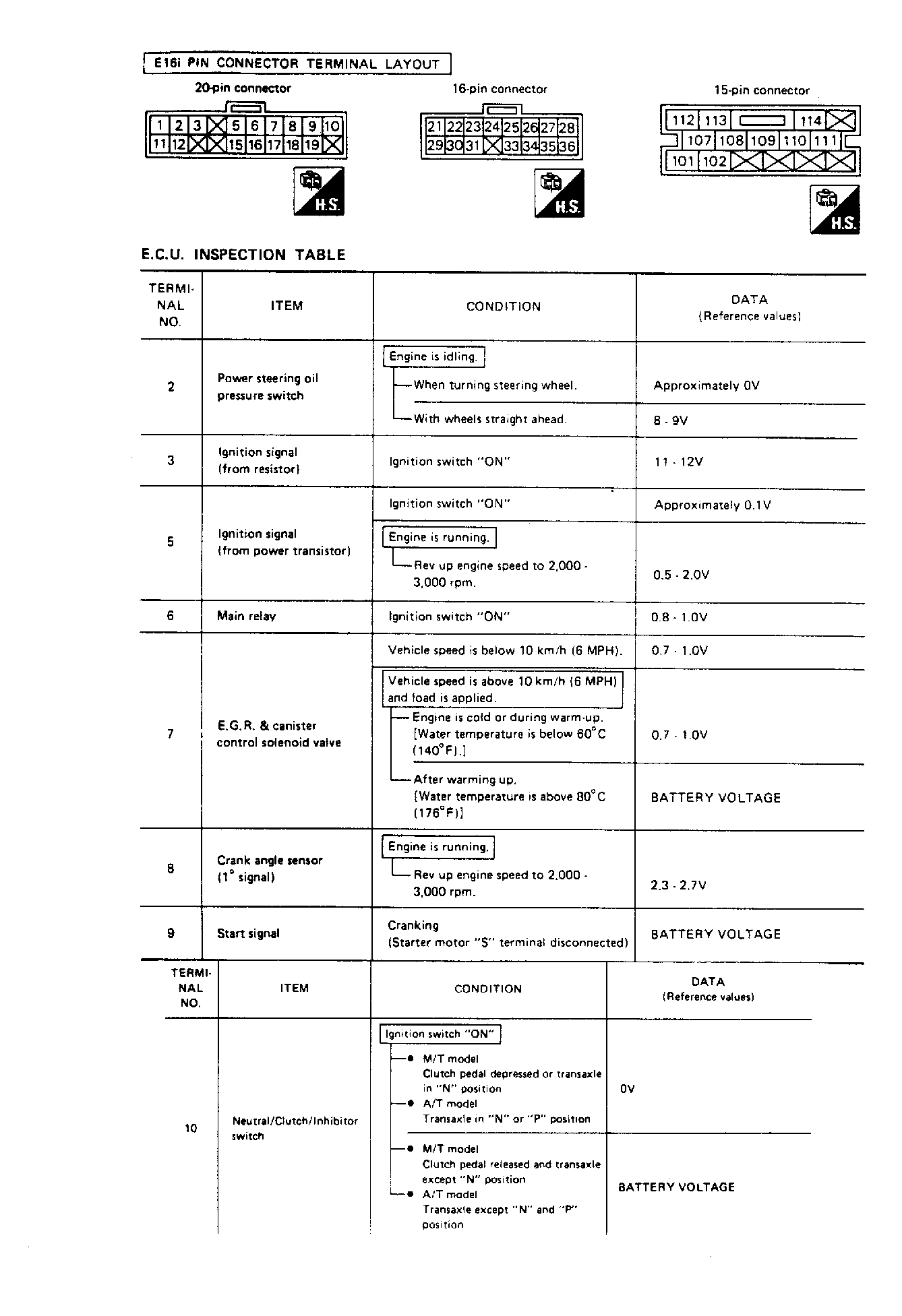

Fig 7: ECU Input/Output Voltage Signal Insp. Table (4 of 4)

G94953

Fig 8: Crank Angle Sensor (Code 11) Test A

G94960

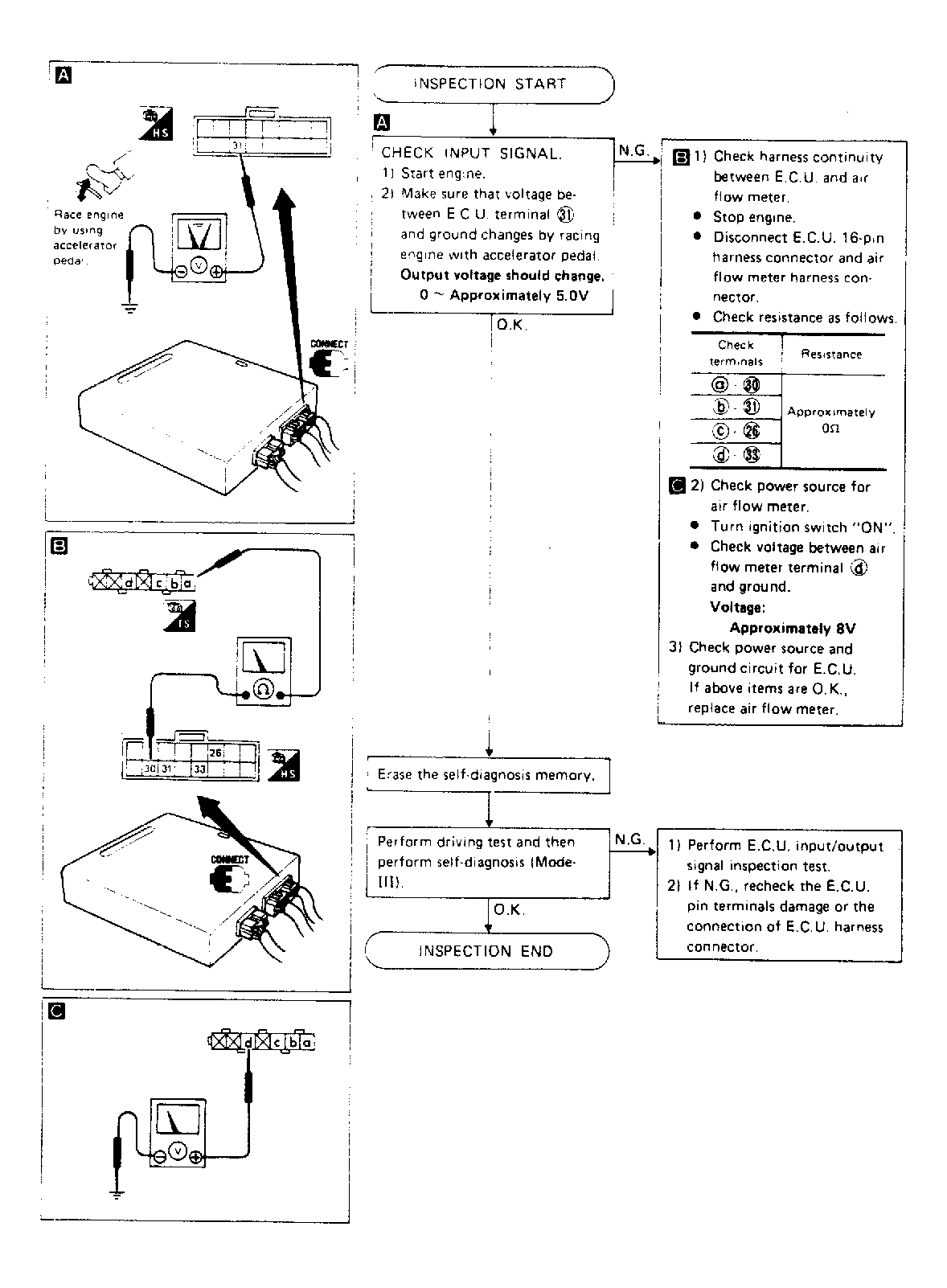

Fig 9: Mass Airflow Meter (Code 12) Test B

G94962

Fig 10: Cylinder Head Temperature Sensor (Code 13) Test C

G94966

Fig 11: Vehicle Speed Sensor (Code 14) Test D

G94968

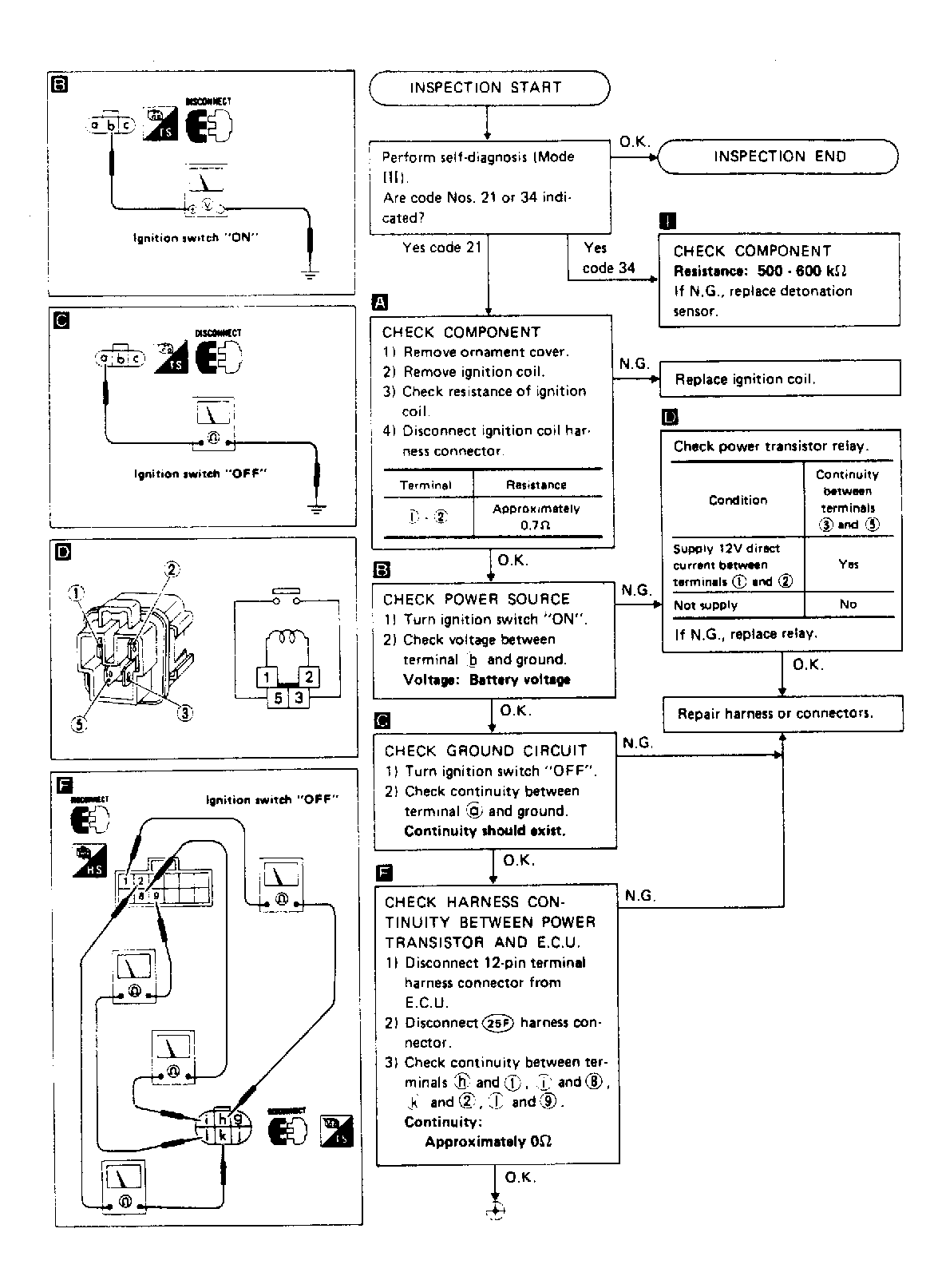

Fig 12: Ignition Signal & Detonation Sensor (Codes 21 & 34) Test E (1 of 2)

G94970

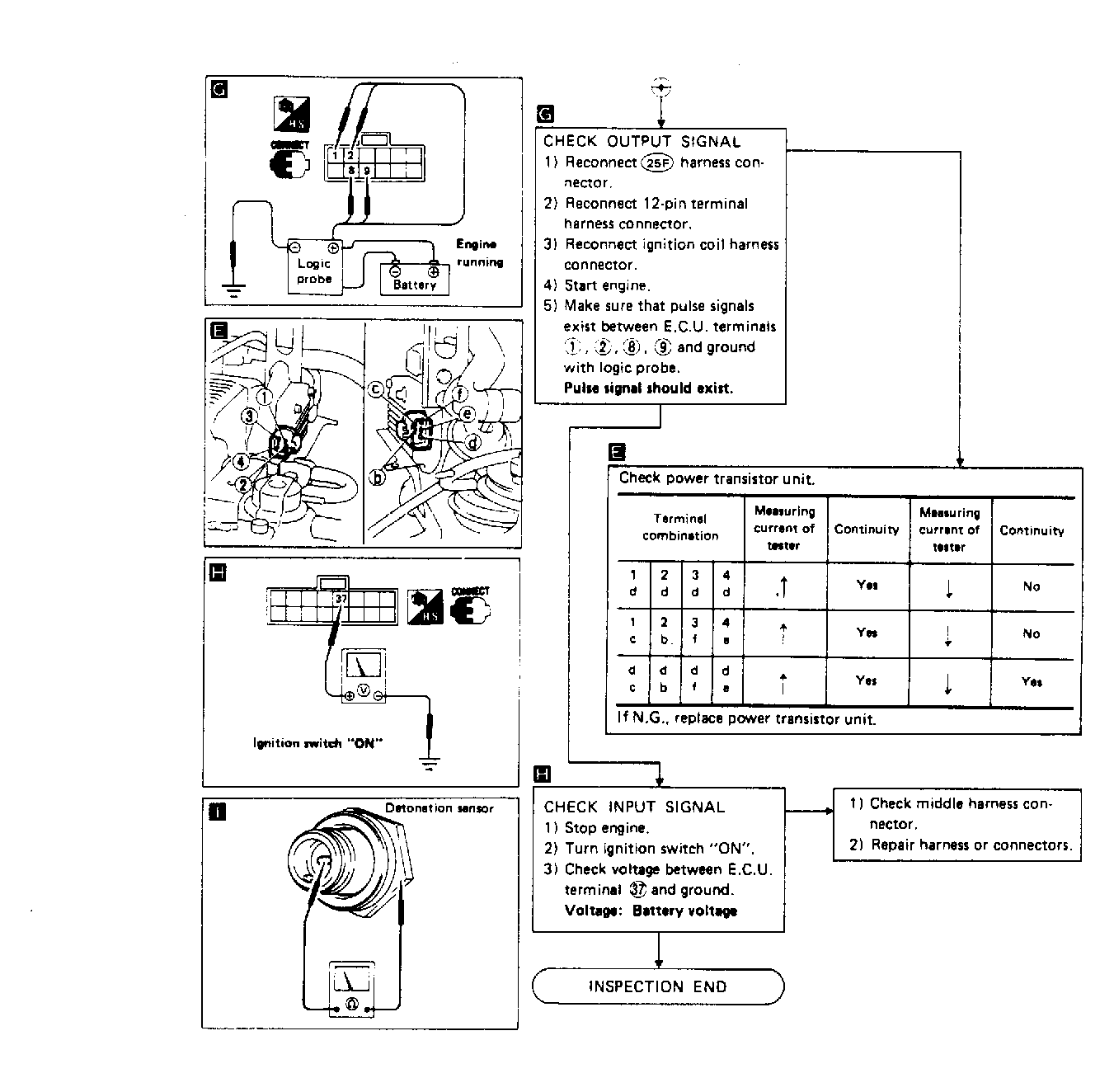

Fig 13: Ignition Signal & Detonation Sensor (Codes 21 & 34) Test E (2 of 2)

G94971

Fig 14: Ignition Signal (Code 21) Test E

G94973

Fig 15: Fuel Pump (Code 22) Test F

G94974

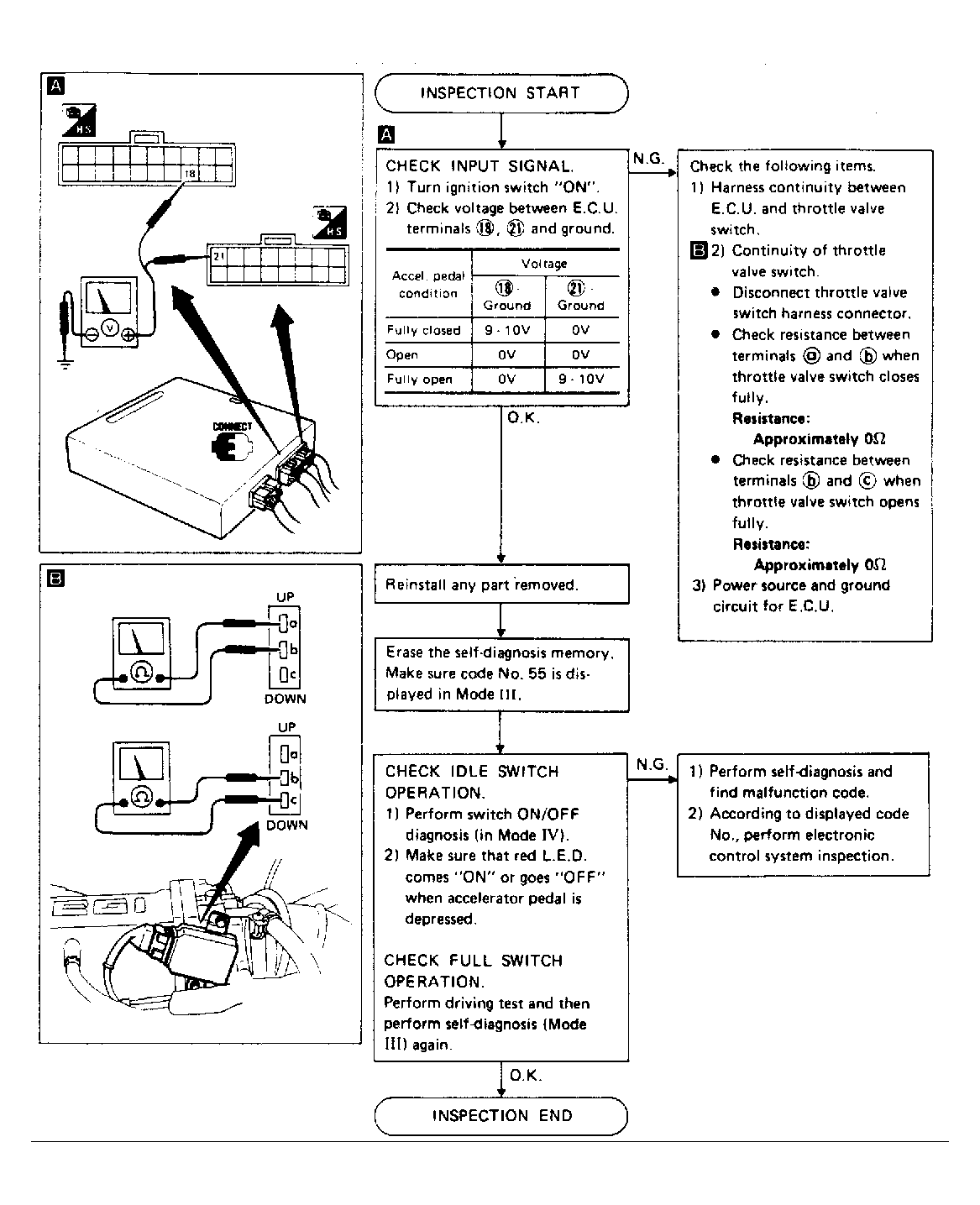

Fig 16: Idle Switch (Codes 23 & 24) Test G

G94977

Fig 17: Engine Control Unit Check (ECU) (Code 31) Test H

G94981

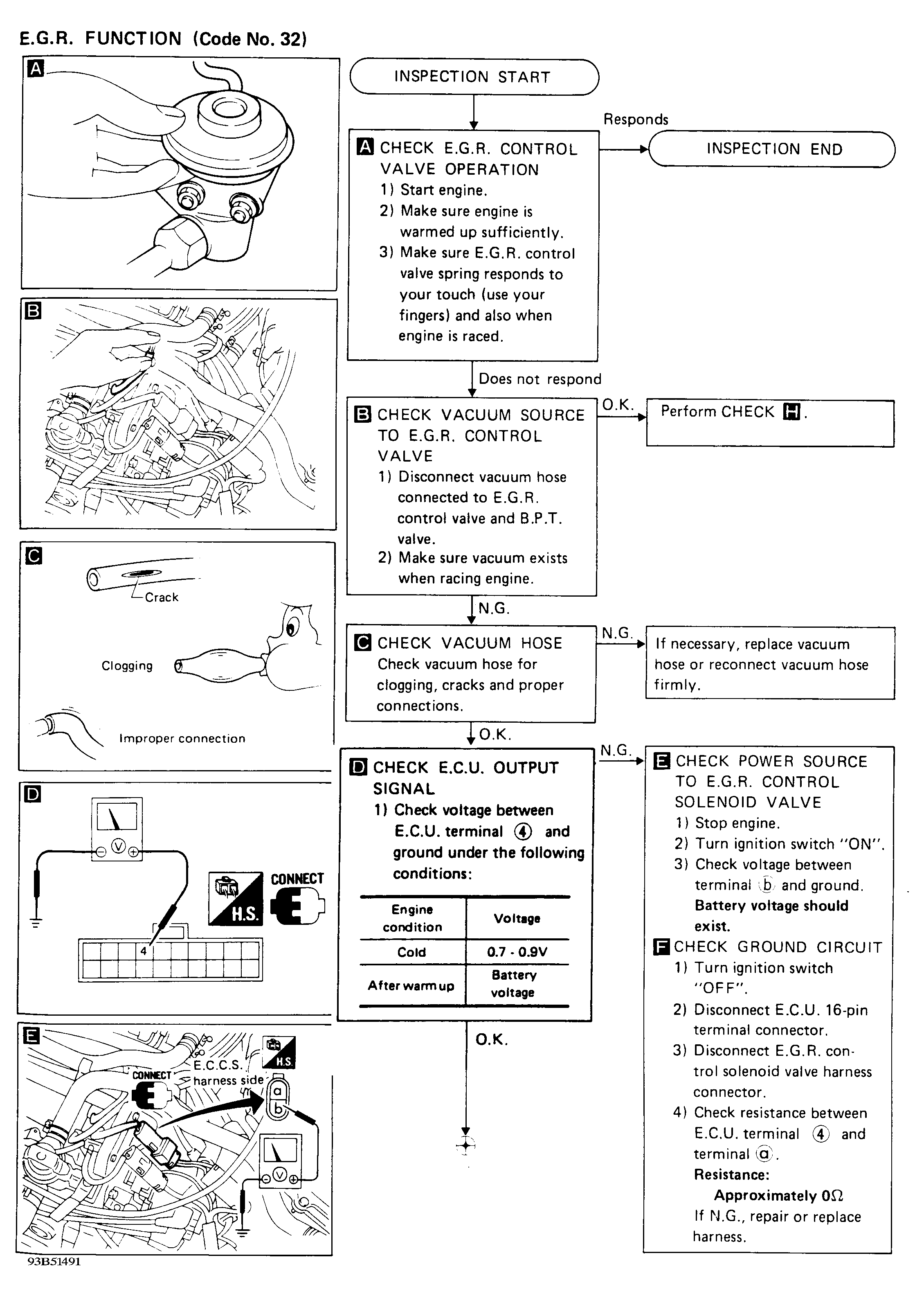

Fig 18: Stanza EGR Function (CALIF) (Code 32) Test J (1 of 3) (Revised per TS89-112)

G93B51491

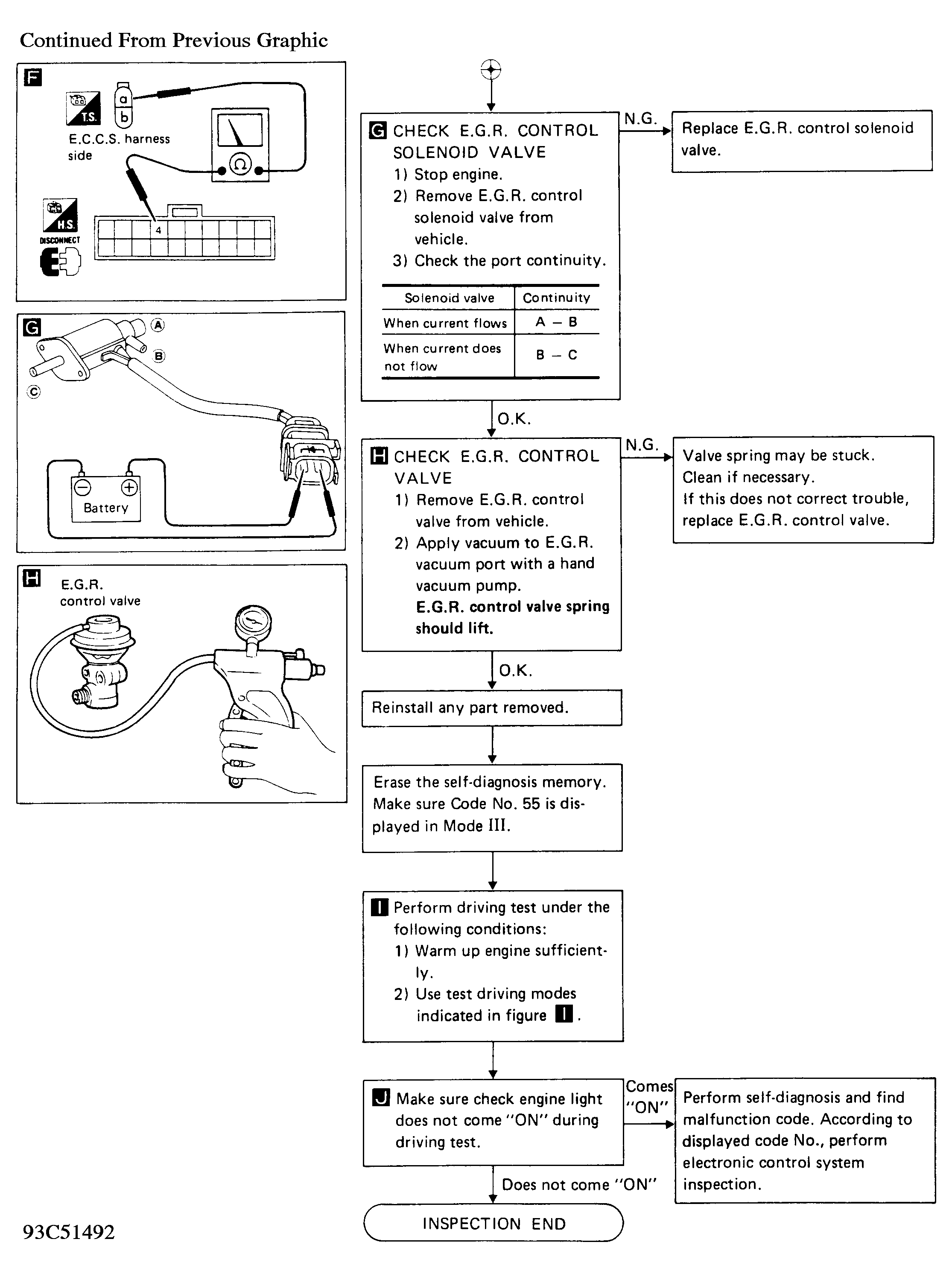

Fig 19: Stanza EGR Function (CALIF) (Code 32) Test J (2 of 3)

G93C51492

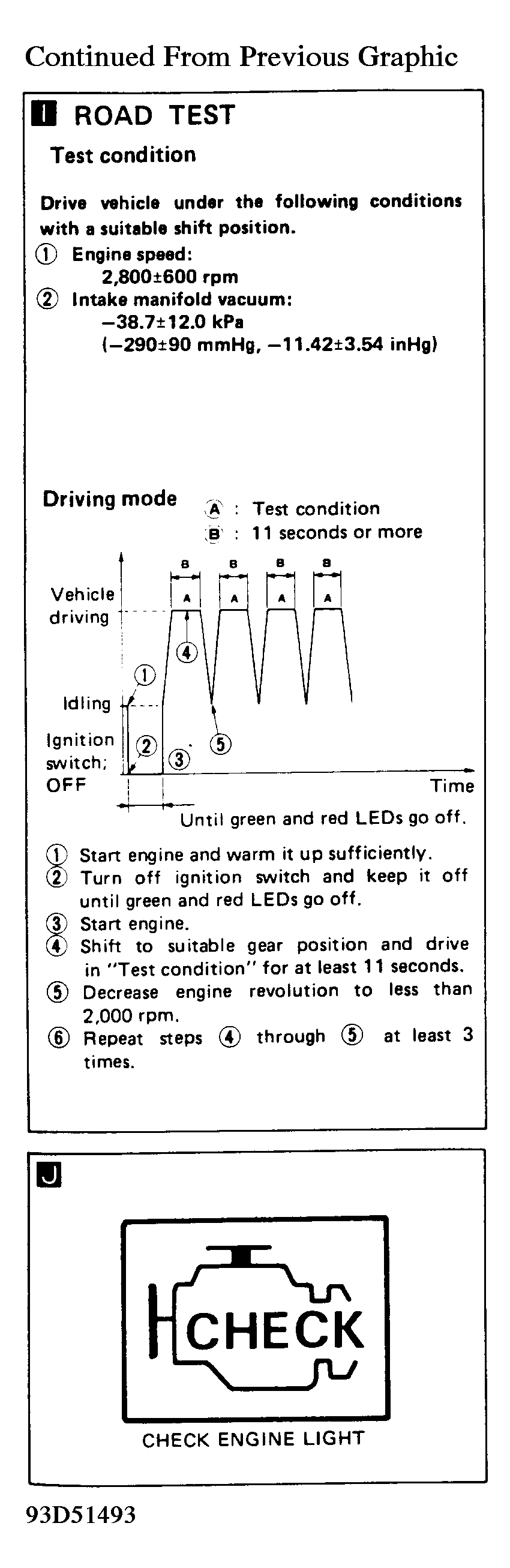

Fig 20: Stanza EGR Function (CALIF) (Code 32) Test J (3 of 3)

G93D51493

Fig 21: Exhaust Gas Sensor (Code 33) Test K

G94985

Fig 22: Stanza Exhaust Gas Temperature Sensor (Code 35) Test L

G94988

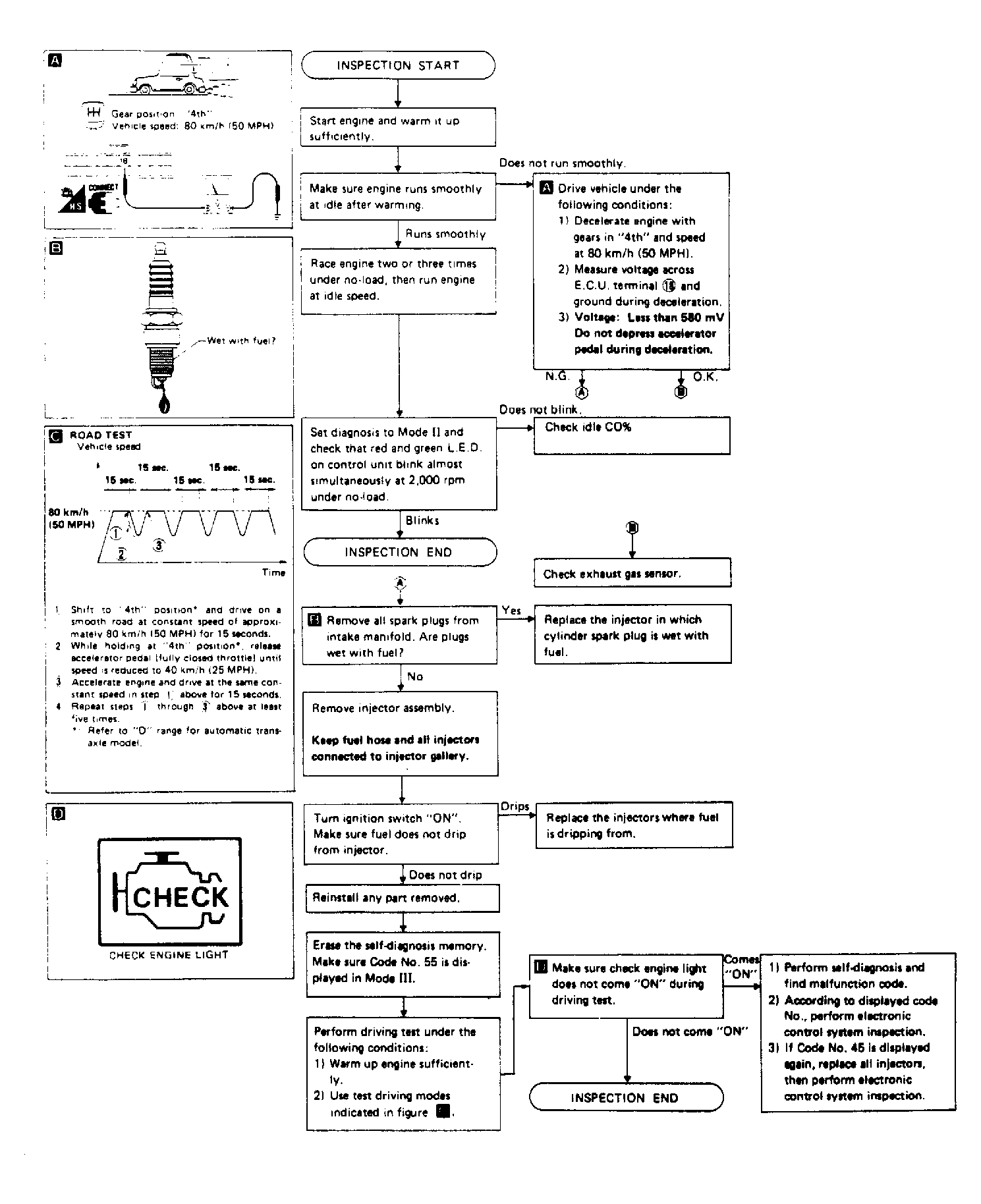

Fig 23: Stanza Injector Leak Check (Code 45) Test P

G94994

Fig 24: Injector Malfunction (Non Self-Diagnostic Item) Test Q

G94998

Fig 25: Start Signal (Switch On/Off Diagnosis) Test R

G95000

Fig 26: Air Regulator (Non Self-Diagnostic Item) Test S

G95003

Fig 27: Auxiliary Air Control Valve (Non Self-Diagnostic Item) Test T

G95005

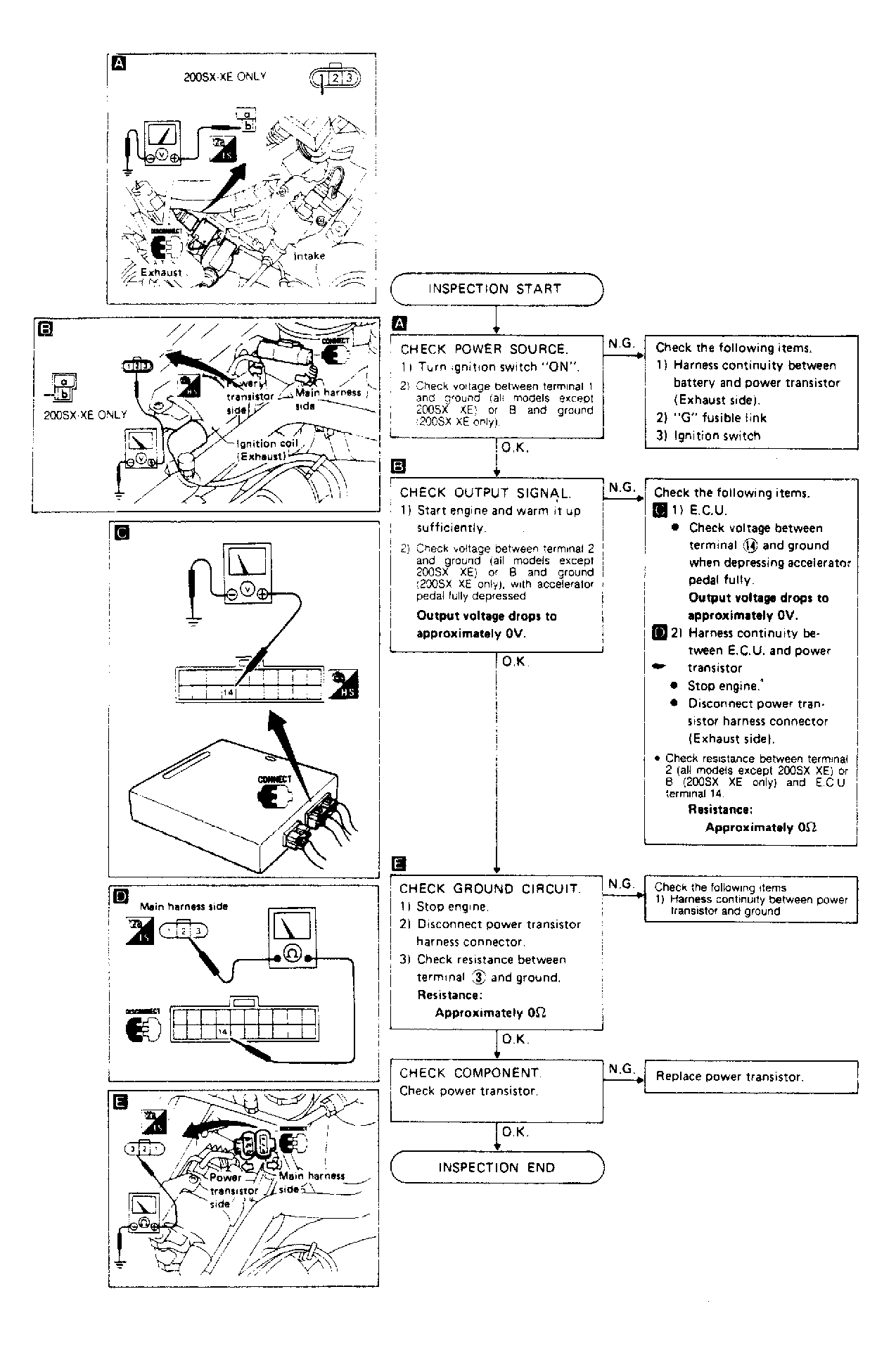

Fig 28: Spark Plug Switching Control (Non Self-Diagnostic Item) Test U

G95007

Fig 29: Power Source & Ground Circuit for ECU (Non Self-Diagnostic Item) Test V

G95008

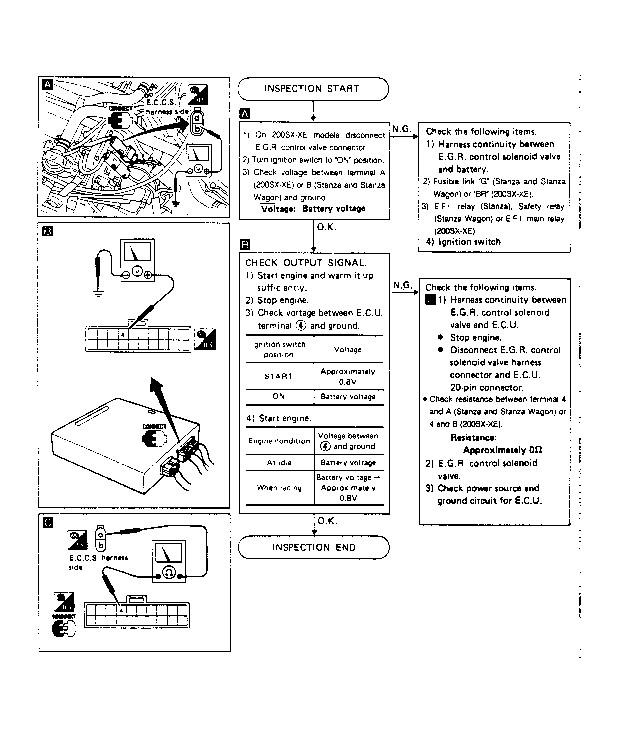

Fig 30: EGR Control (Non Self-Diagnostic Item) Test W

G95012

Fig 31: Air Injection Valve (Non Self-Diagnostic Item) Test Y

G95015

Fig 32: Clutch/Neutral/Inhibitor Switches Test Z

G95020

Fig 33: EFI Main Relay/ECCS Relay/Main Relay Test BB

G95025

Fig 34: Pressure Regulator Control Solenoid (Non Self-Diagnostic Item) Test CC

G95026
