Brake Fluid Level Light Test

Remove cap and brake level switch from brake fluid reservoir. Clean any foreign material from terminal connector. Using an ohmmeter, measure brake level switch resistance. With float of brake fluid switch raised, resistance should be infinite. With float of brake fluid switch in lowered position, resistance should be zero.

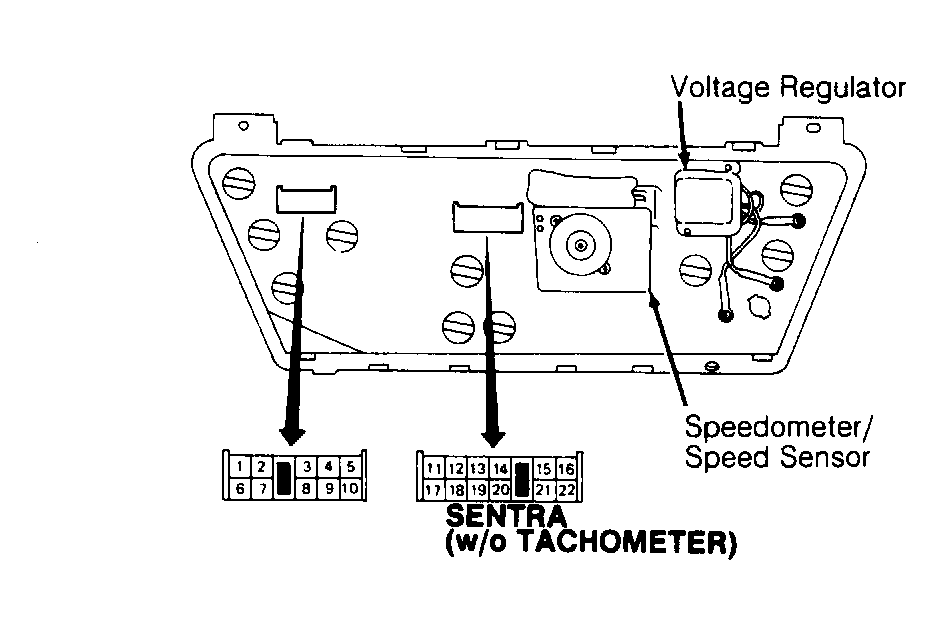

Fig 1: Rear of Combination Meter (Sentra Without Tach)

Courtesy of NISSAN MOTOR CO., U.S.A.

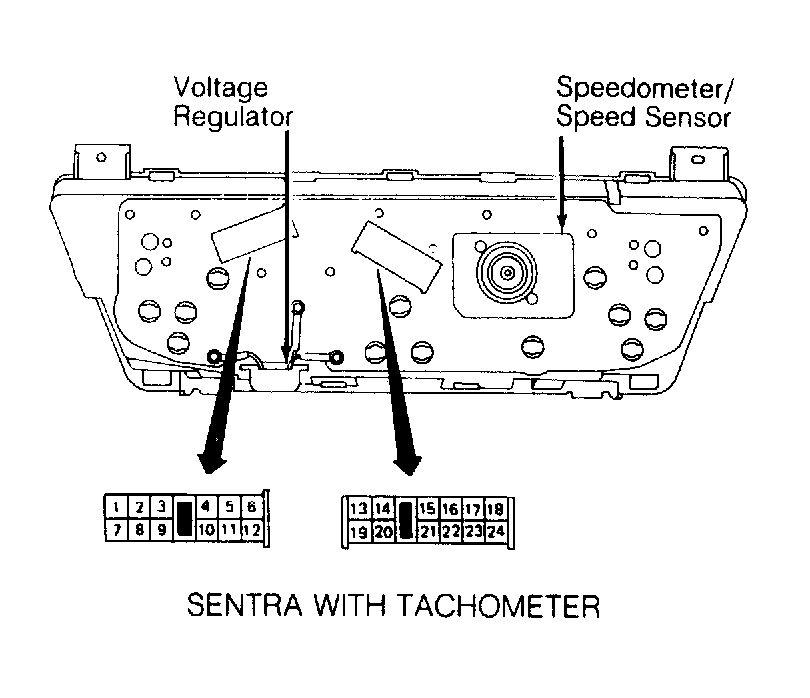

Fig 2: Rear of Combination Meter (Sentra W/Tach)

Courtesy of NISSAN MOTOR CO., U.S.A.

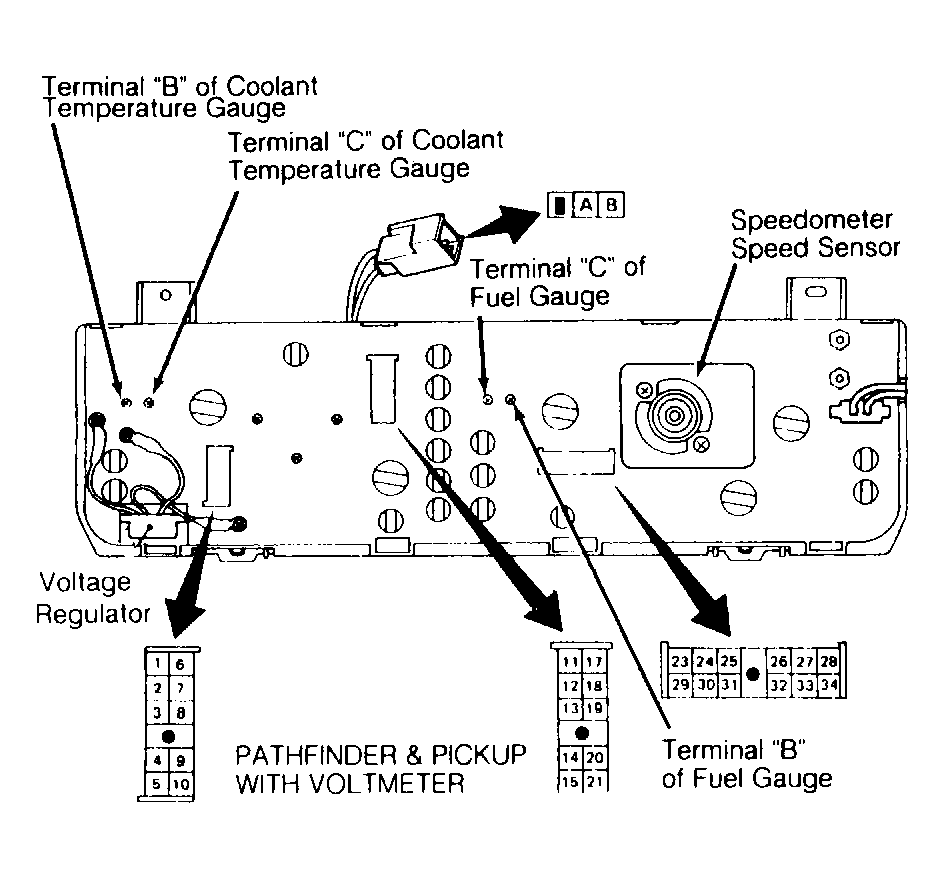

Fig 3: Rear of Combination Meter (Pathfinder, Pickup With Voltmeter)

Courtesy of NISSAN MOTOR CO., U.S.A.

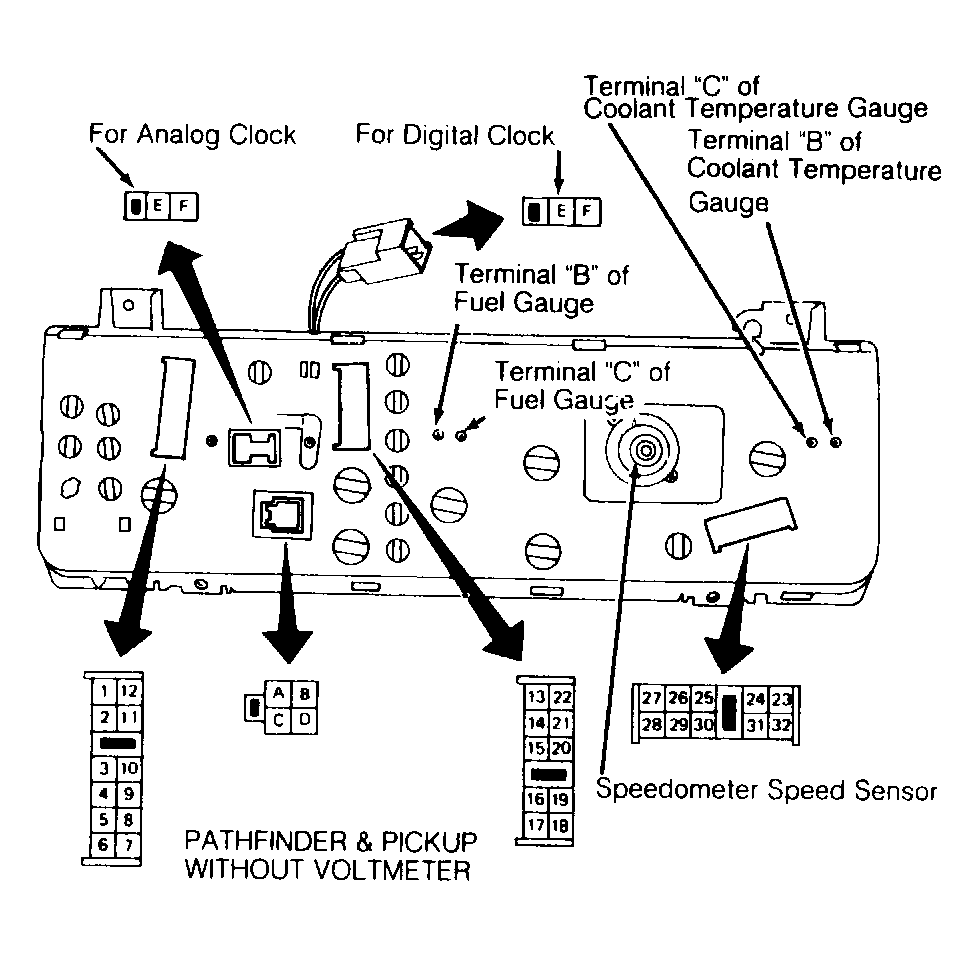

Fig 4: Rear of Combination Meter (Pathfinder, Pickup Without Voltmeter)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Rear of Combination Meter (Pulsar NX)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Rear of Combination Meter (Stanza)

Courtesy of NISSAN MOTOR CO., U.S.A.
