All Others

Remove combination meter. Insert a small screwdriver into hole in rear portion of speed sensor. See Figure thru Figure. Using an ohmmeter, check continuity between terminals while slowly rotating sensor with screwdriver. See SPEED SENSOR CONTINUITY CHECK  table for terminal locations. While turning sensor, needle on ohmmeter should deflect twice per revolution on all models.

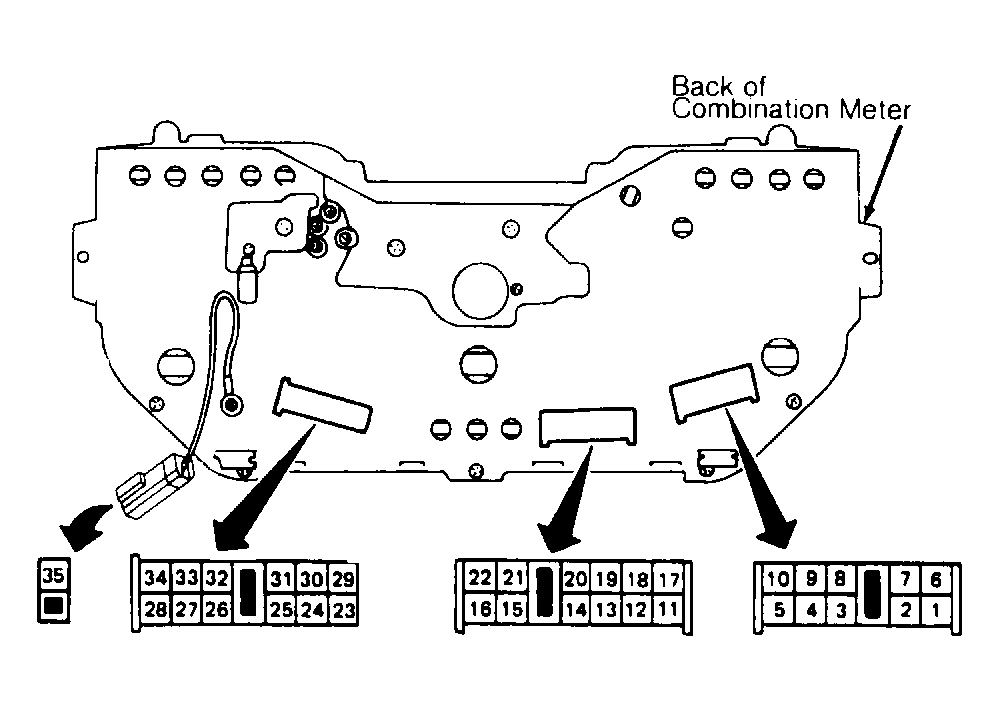

Fig 1: Rear of Combination Meter (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

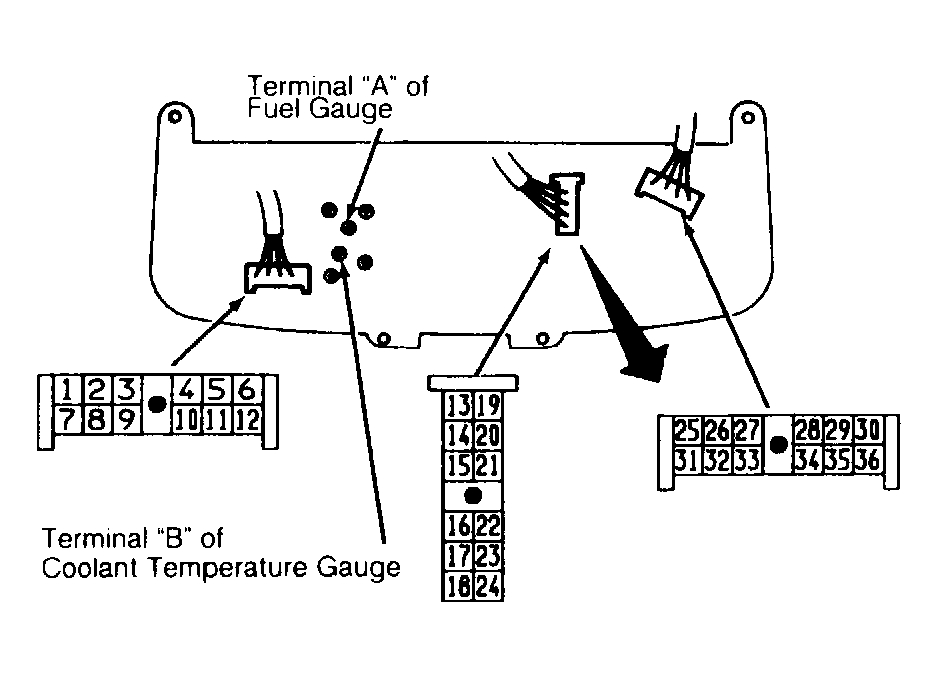

Fig 2: Rear of Combination Meter (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.

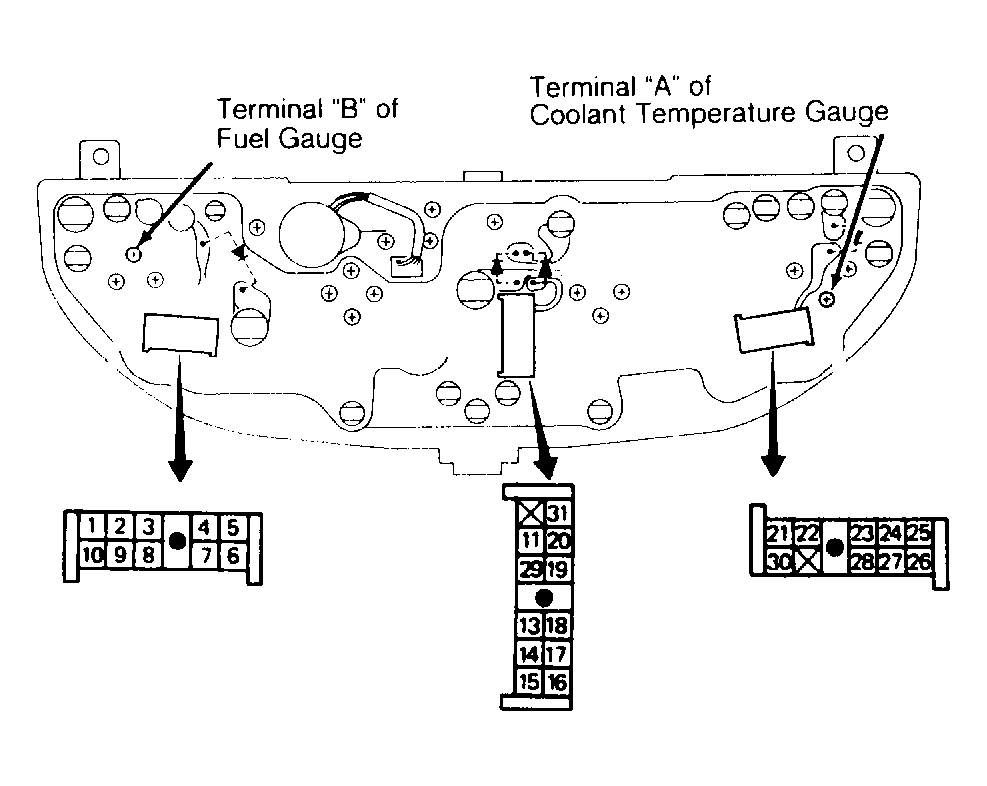

Fig 3: Rear of Combination Meter (300ZX)

Courtesy of NISSAN MOTOR CO., U.S.A.
