All Other Models

Warm engine to normal operating temperature. Turn off all accessories. Place transmission in Neutral (man. trans.) or in Drive (auto. trans.). On models with power steering, keep wheels in straight ahead position. Adjust idle speed.
On Sentra and Pulsar NX XE, turn engine off and disconnect throttle sensor harness connector if timing needs to be adjusted. On all models, connect timing light. Loosen distributor hold-down bolt and turn distributor until specified ignition timing is obtained. Retighten distributor hold-down bolt and recheck timing. See 4-CYLINDER IGNITION TIMING table. See Fig 1 .

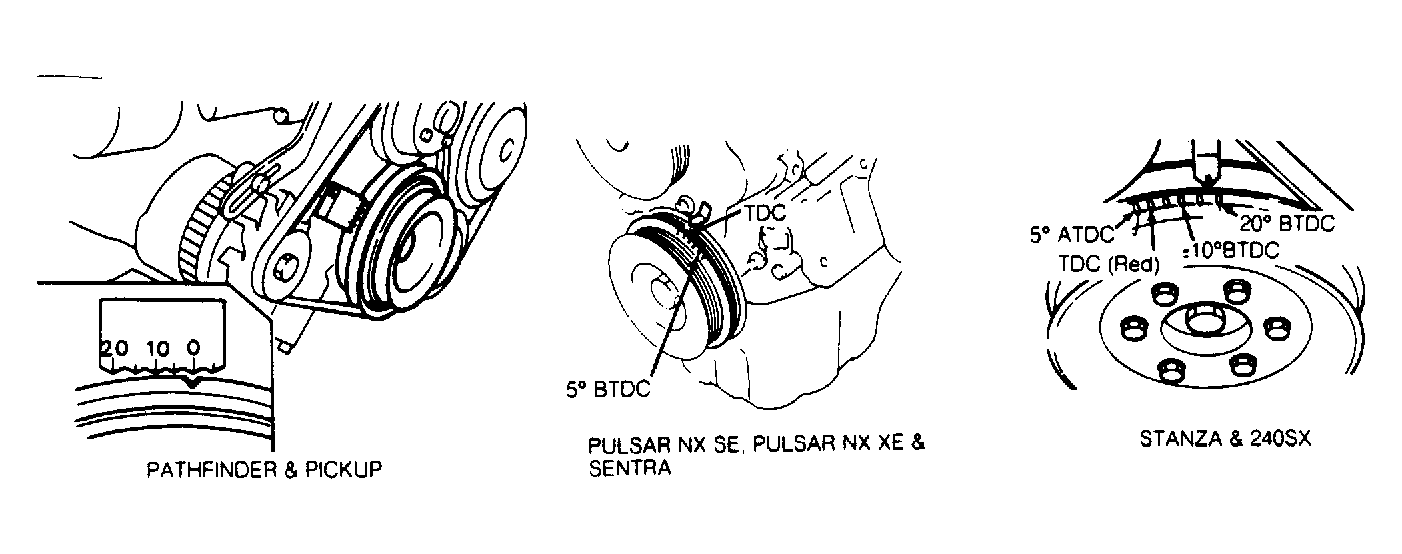

Fig 1: 4-Cylinder Ignition Timing Mark Location

Courtesy of NISSAN MOTOR CO., U.S.A.

4-CYLINDER IGNITION TIMING (Degrees BTDC @ RPM)

Application

Manual Transmission

Automatic Transmission

Pathfinder & Pickup

8-12@750-850

⁽¹⁾ 8-12@650-750

Pulsar NX SE

⁽²⁾ 15@750-850

⁽¹⁾⁽²⁾ 7@650-750

Pulsar NX XE

⁽²⁾⁽³⁾ 7@700-900

⁽¹⁾⁽³⁾ 7@650-850

Sentra

⁽²⁾⁽³⁾ 7@700-900

⁽¹⁾⁽²⁾⁽³⁾ 7@600-800

Stanza

13-17@700-800

⁽¹⁾ 13-17@650-800

240SX

13-17@700-800

⁽⁴⁾ 13-17@700-800

⁽¹⁾	Autonatic transmission in Drive.

⁽²⁾	Feedback controlled RPM.

⁽³⁾	Adjust timing with throttle sensor harness disconnected.

⁽⁴⁾	Automatic transmission in Neutral.
