Sentra Base
›
Repair and Diagnosis
›
Engine Performance
›
Pin Voltage Charts
›
Pin Voltages
Pin Voltages

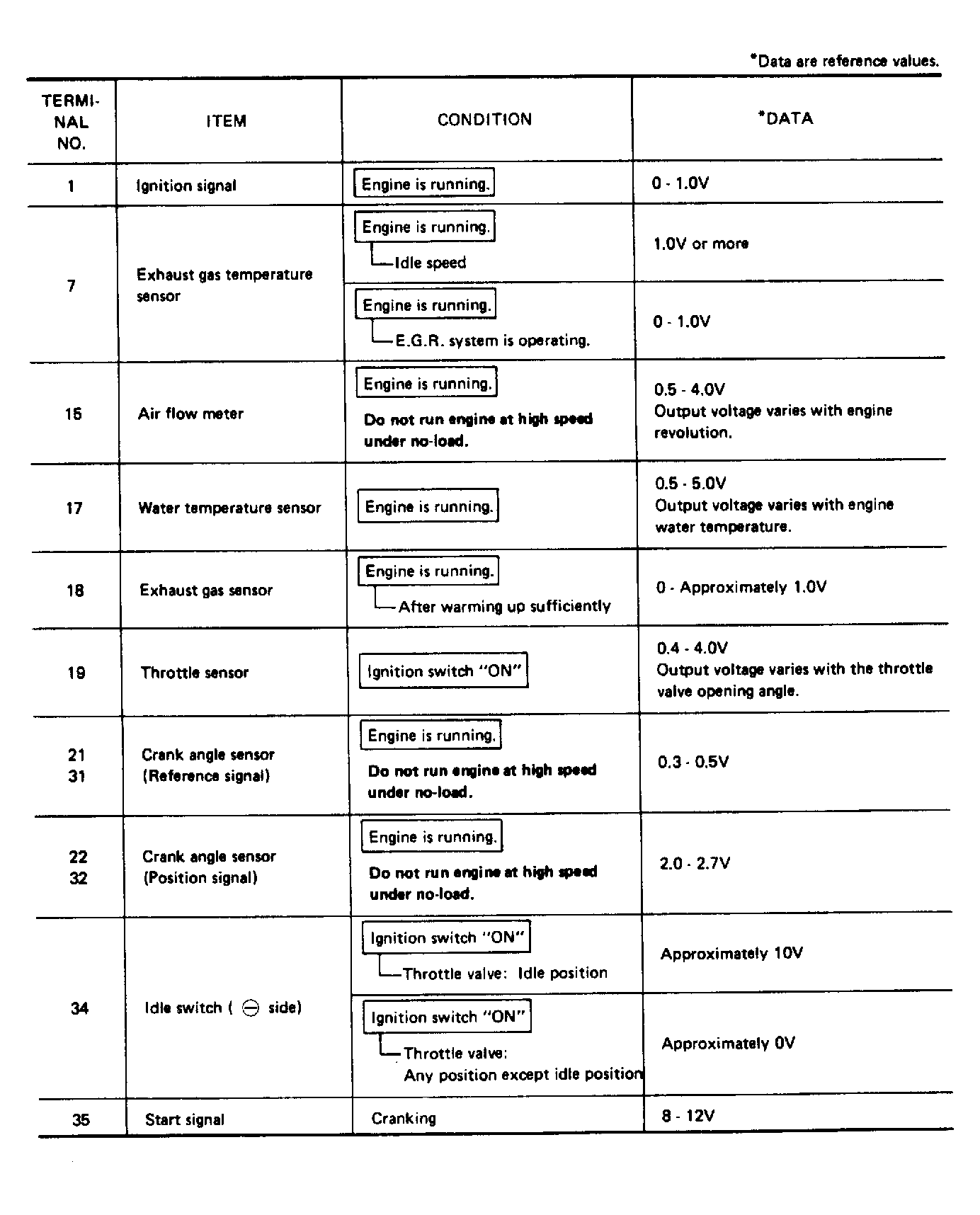

Fig 1: Sentra ECU Pin Voltage Charts
Courtesy of NISSAN MOTOR CO., U.S.A.

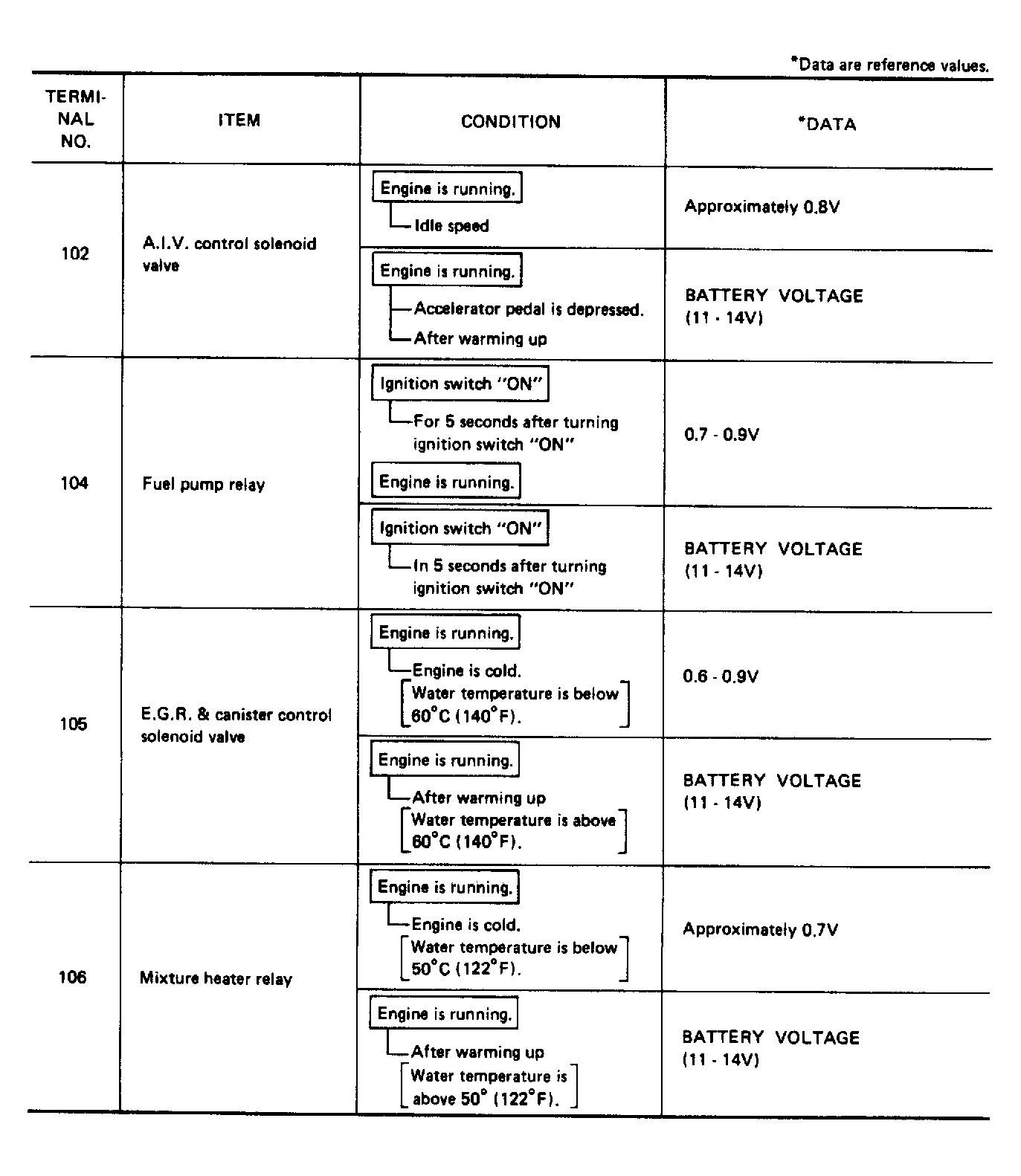

Fig 2: Sentra ECU Pin Voltage Charts (Cont.)
Courtesy of NISSAN MOTOR CO., U.S.A.

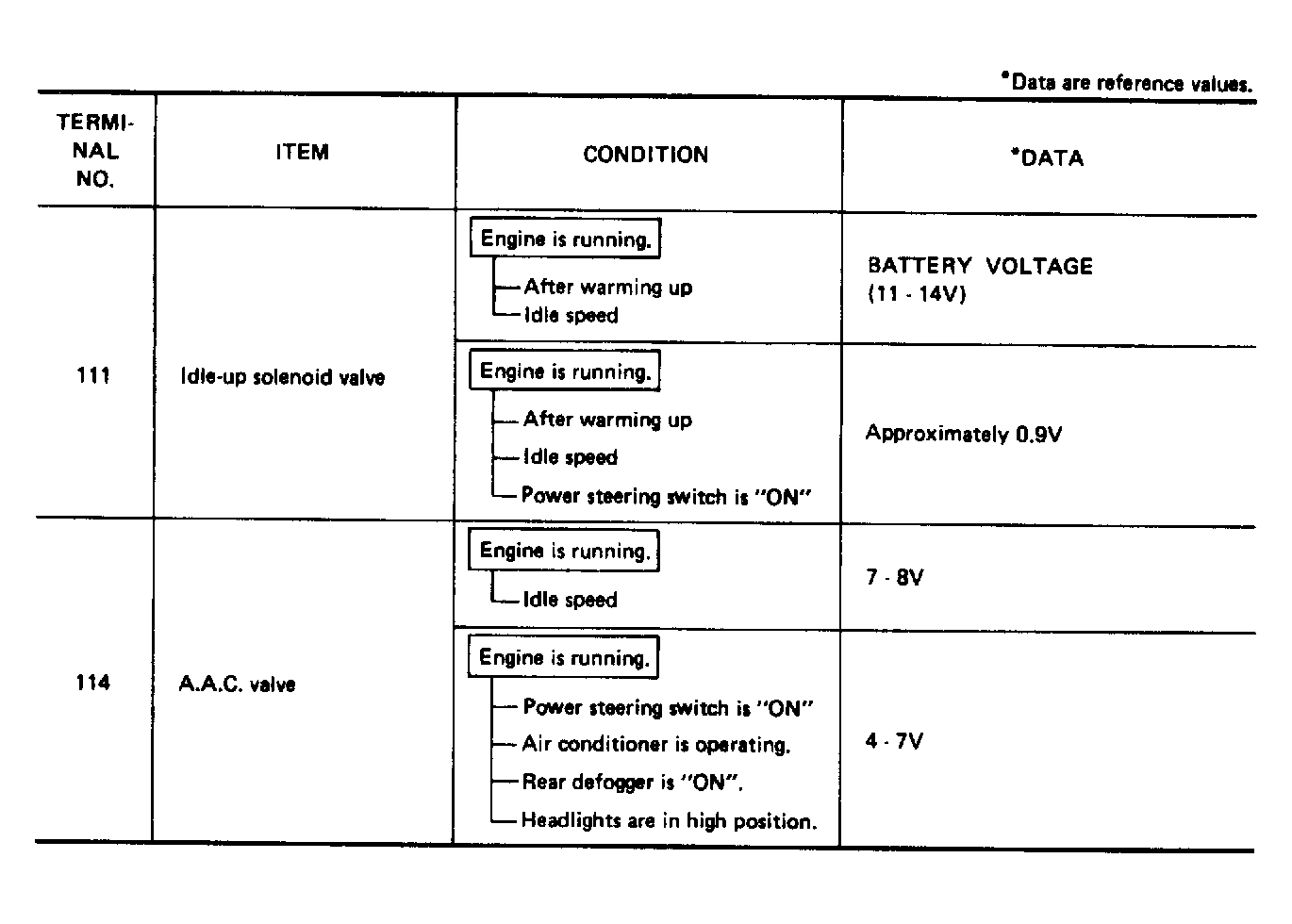

Fig 3: Sentra ECU Pin Voltage Charts (Cont.)
Courtesy of NISSAN MOTOR CO., U.S.A.

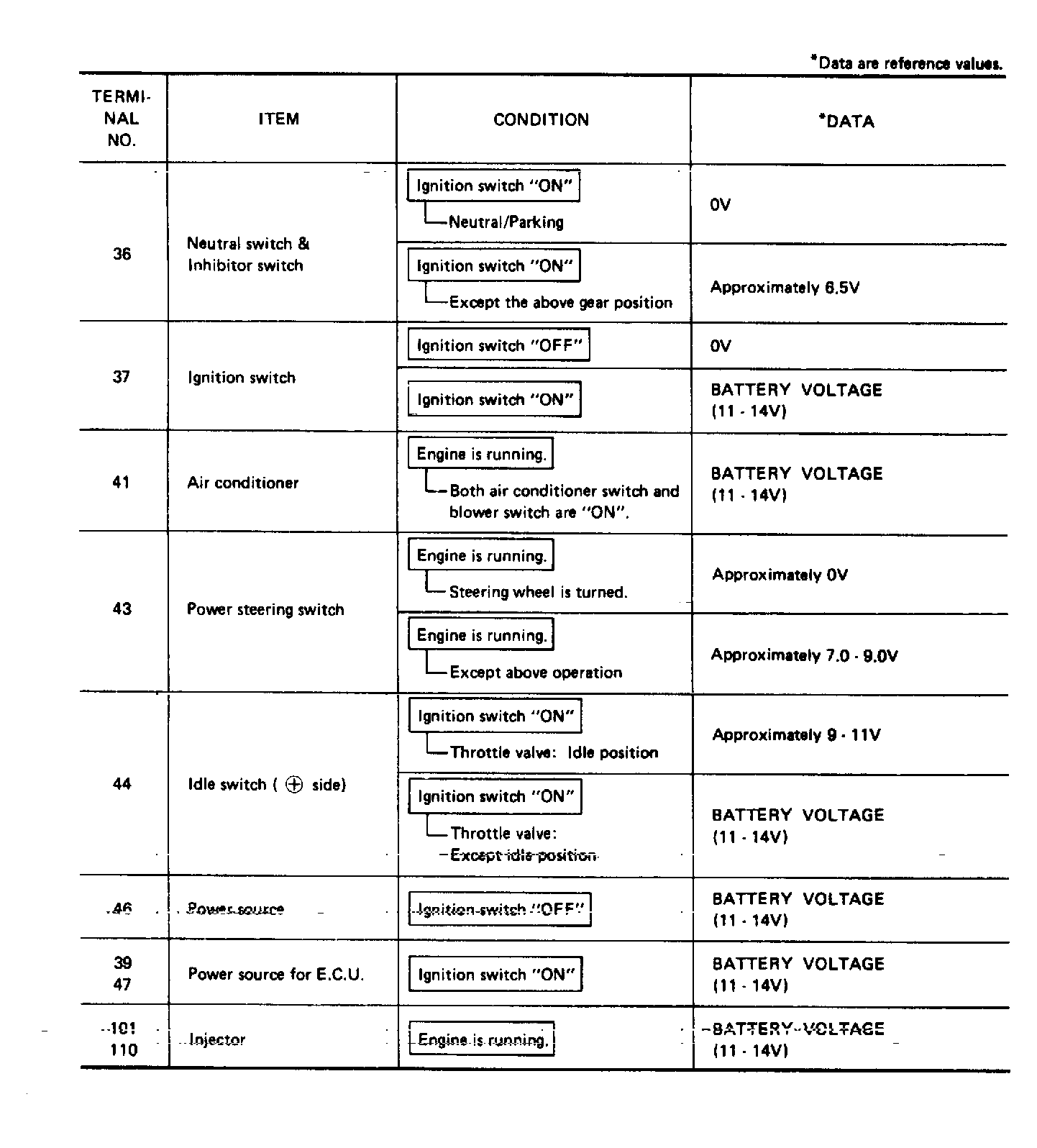

Fig 4: Pulsar NX XE & Sentra ECU Pin Voltage Charts (Cont.)
Courtesy of NISSAN MOTOR CO., U.S.A.
