Check Charts

WARNING: This page is about a different car, the 1989 Nissan Stanza. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Component Test Chart Symbol Identification

G121219

Courtesy of NISSAN MOTOR CO., U.S.A.

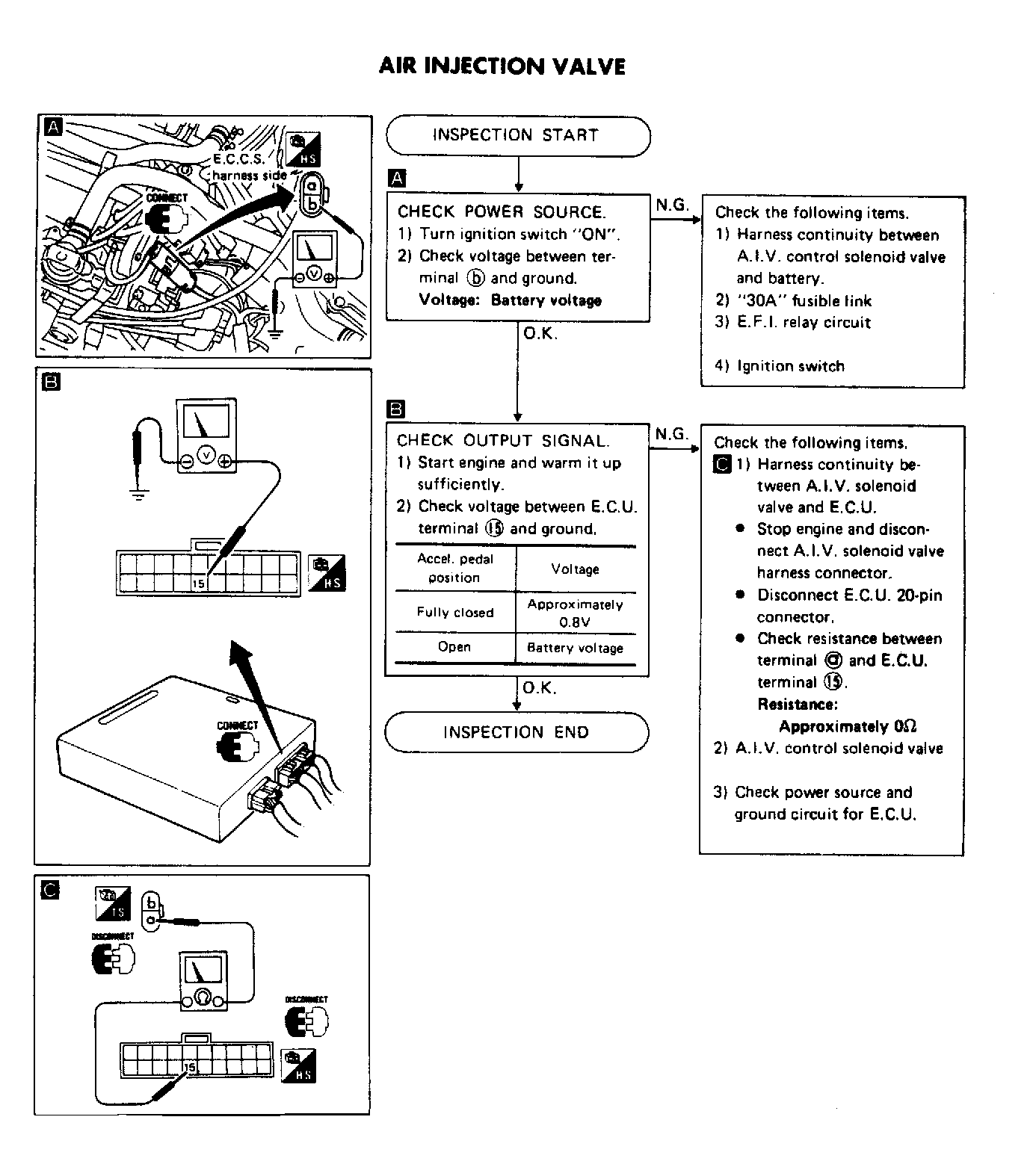

Fig 2: Stanza Air Injection Valve Check Chart

G121306

Courtesy of NISSAN MOTOR CO., U.S.A.

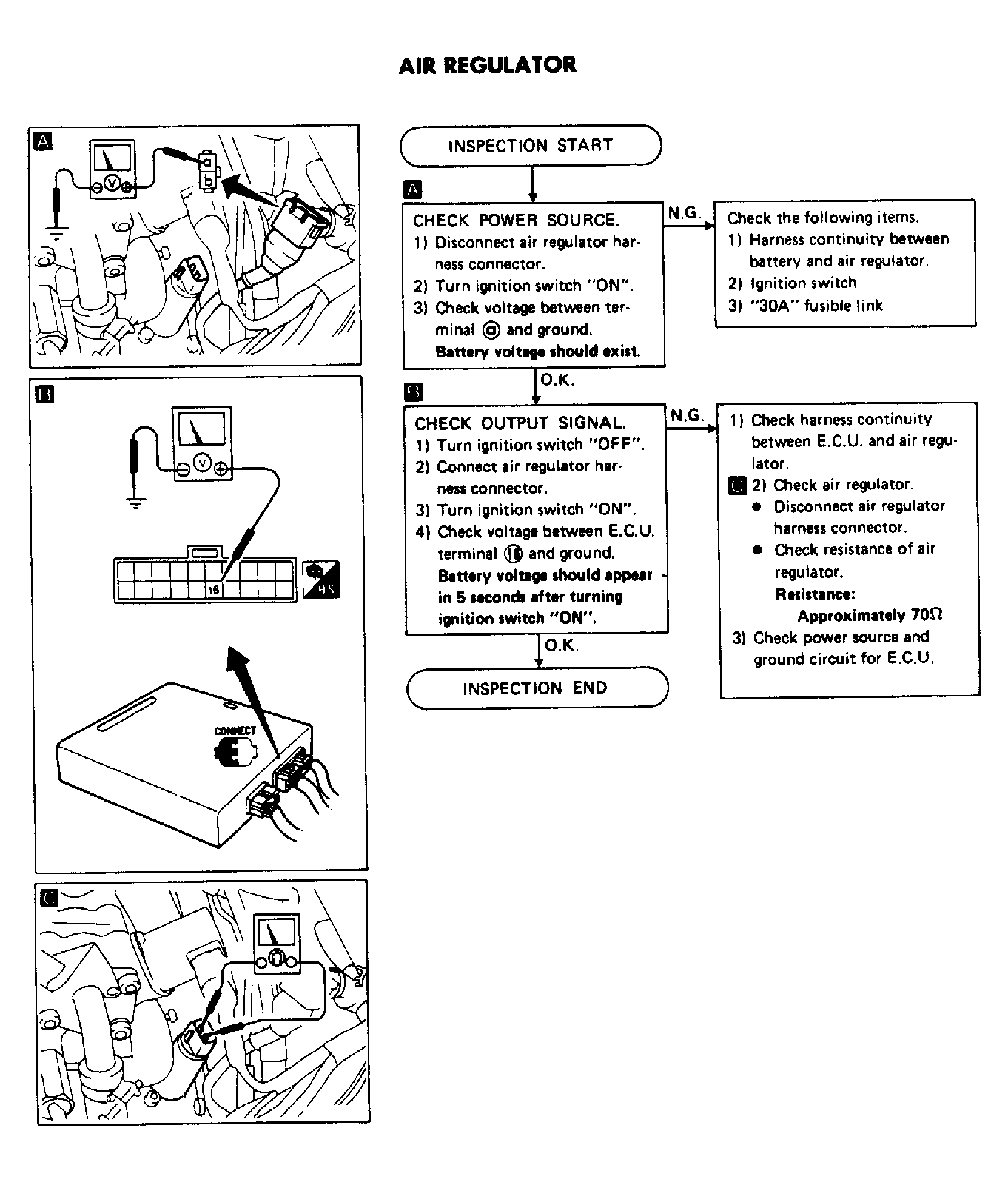

Fig 3: Stanza Air Regulator Check Chart

G121310

Courtesy of NISSAN MOTOR CO., U.S.A.

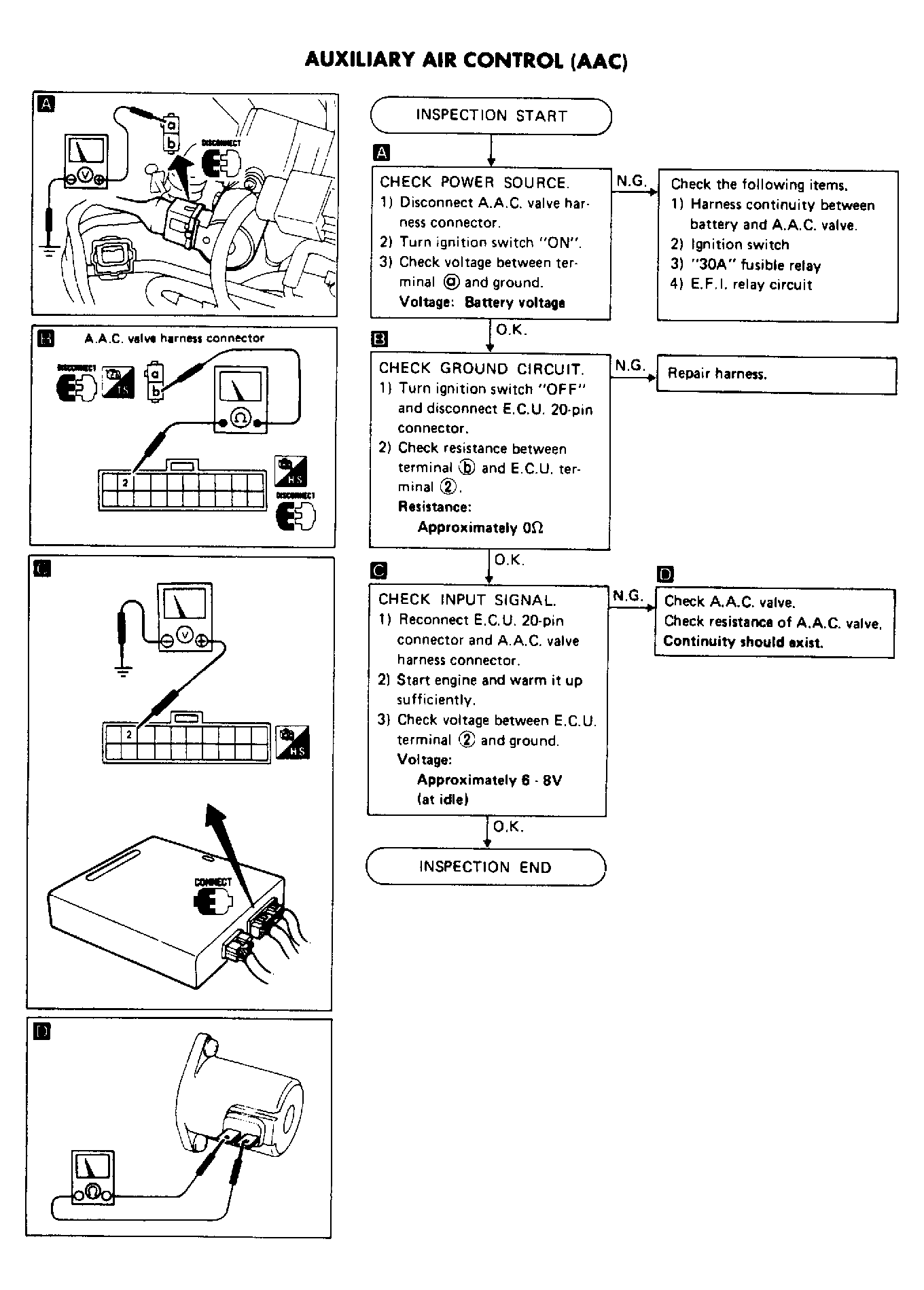

Fig 4: Stanza Auxiliary Air Control (AAC) Check Chart

G121317

Courtesy of NISSAN MOTOR CO., U.S.A.

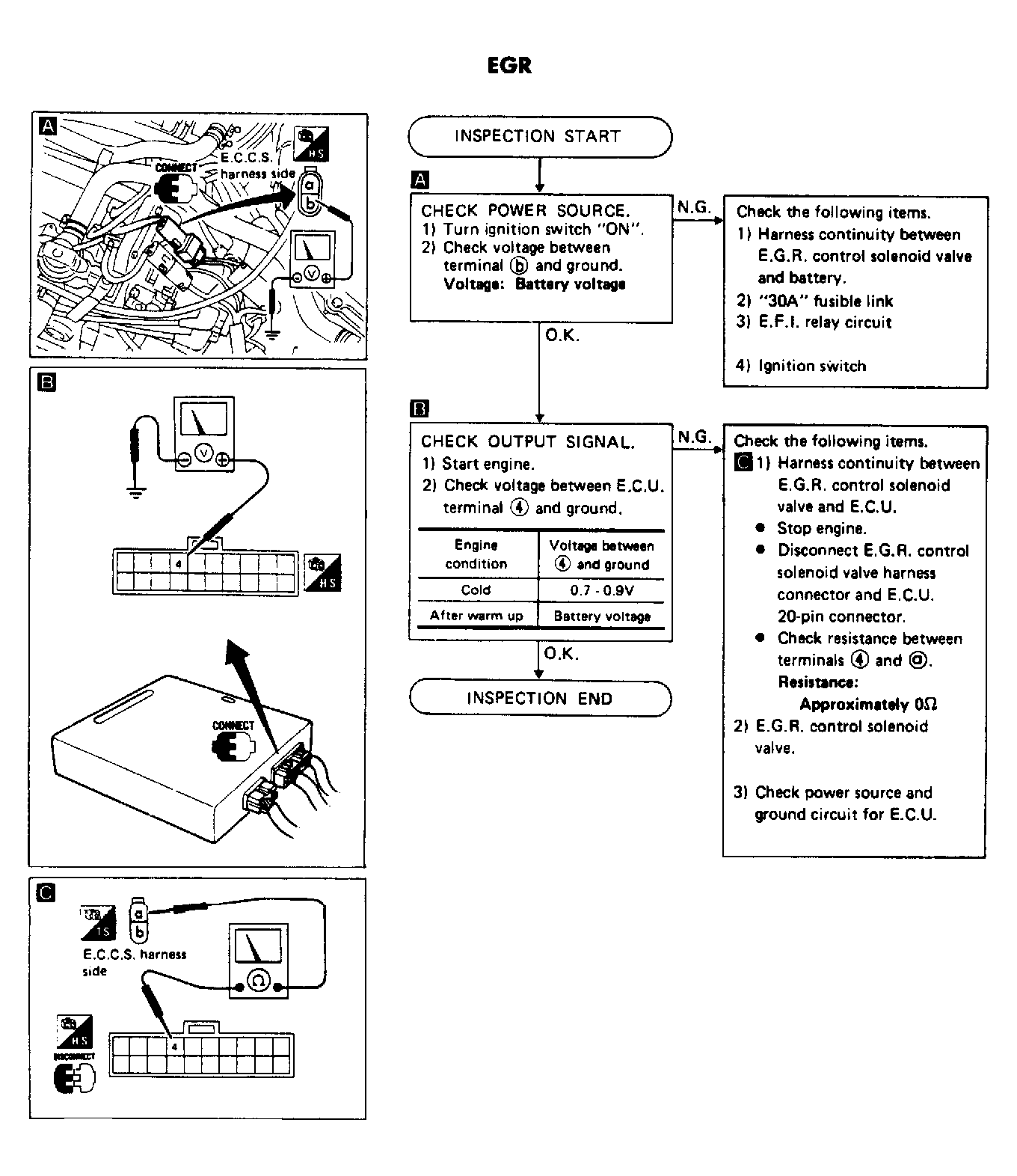

Fig 5: Stanza EGR Check Chart

G121321

Courtesy of NISSAN MOTOR CO., U.S.A.

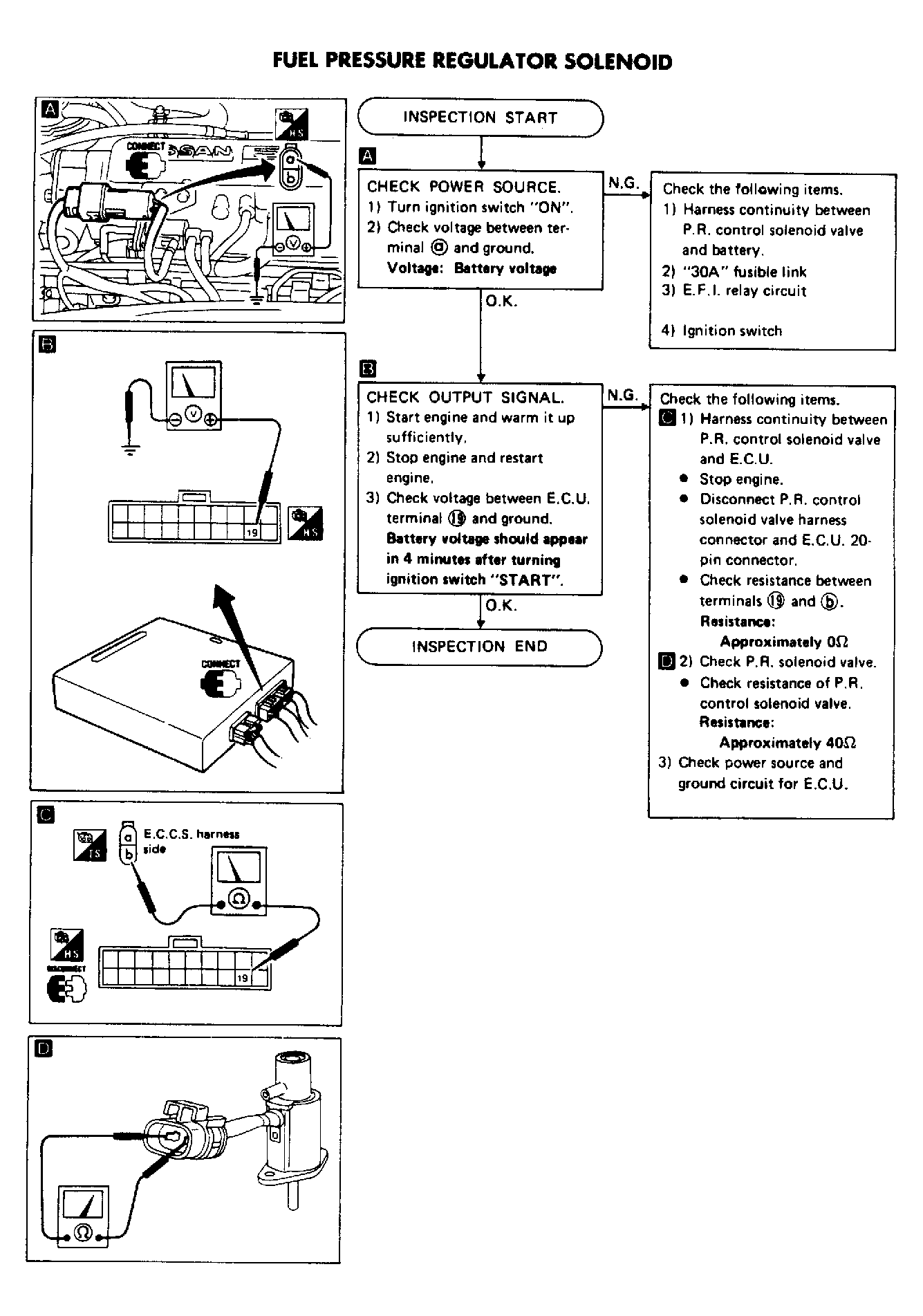

Fig 6: Stanza Fuel Pressure Regulator Solenoid Check Chart

G121325

Courtesy of NISSAN MOTOR CO., U.S.A.

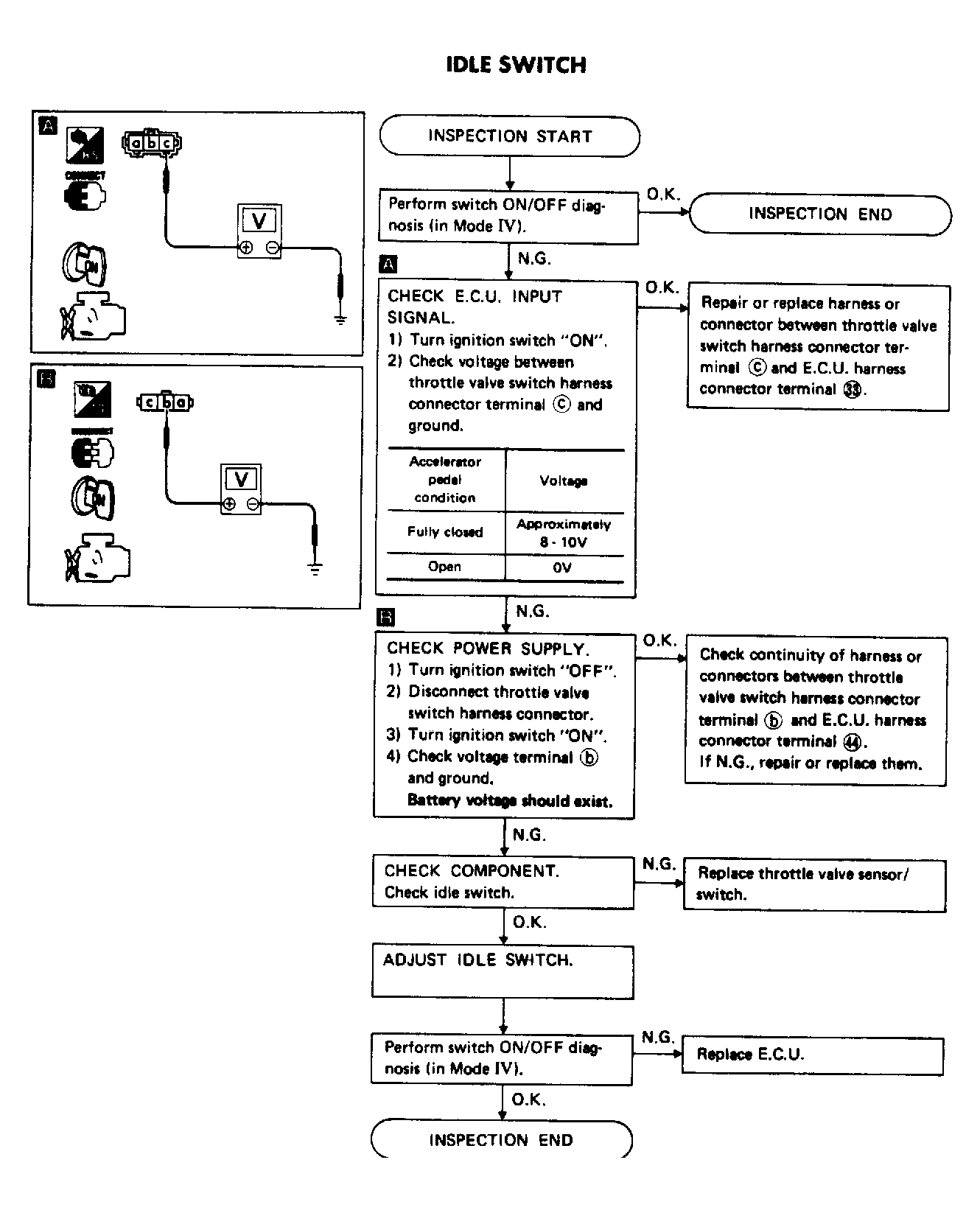

Fig 7: Stanza Idle Switch Check Chart

G121335

Courtesy of NISSAN MOTOR CO., U.S.A.

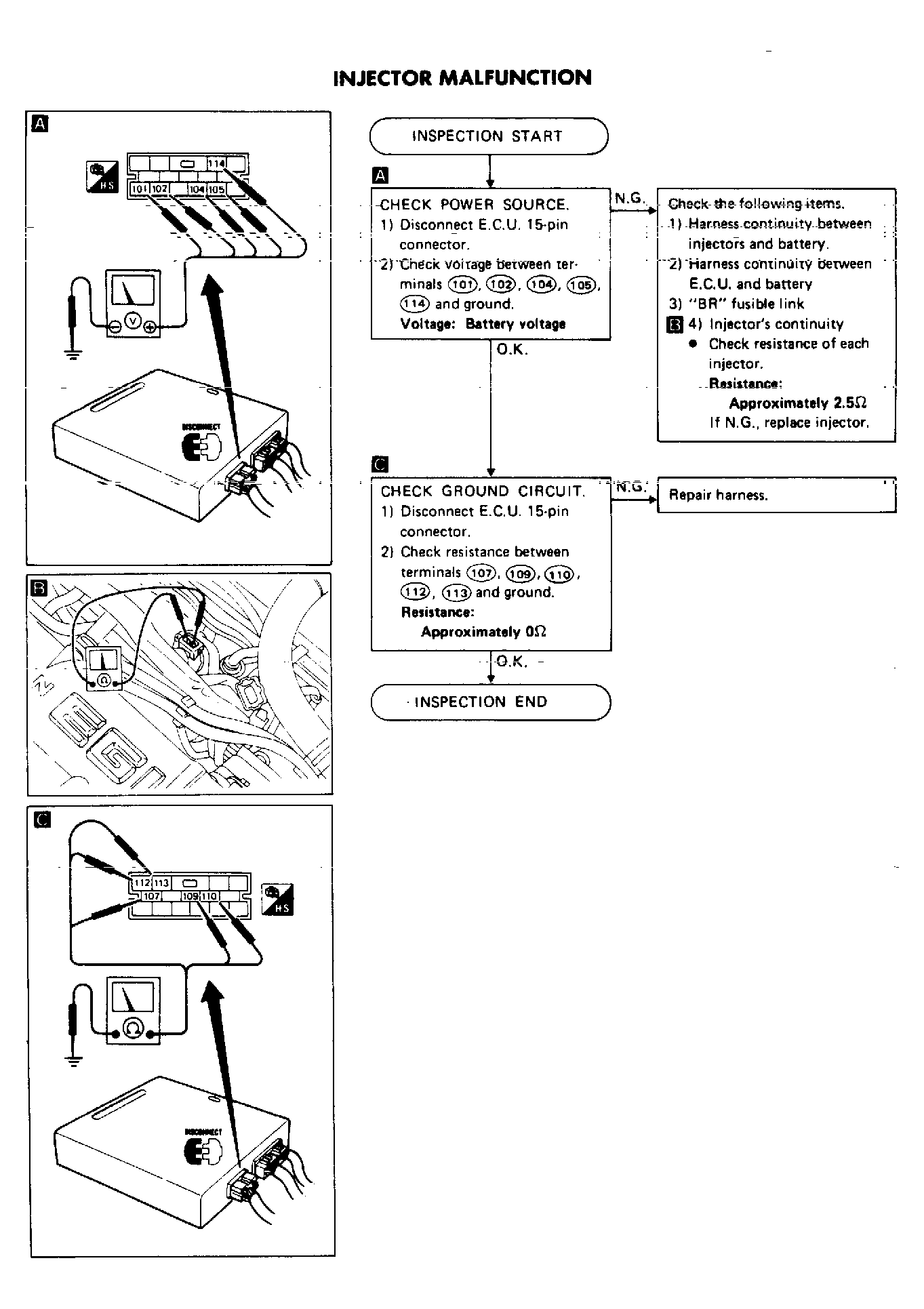

Fig 8: Stanza Injector Malfunction Check Chart

G121344

Courtesy of NISSAN MOTOR CO., U.S.A.

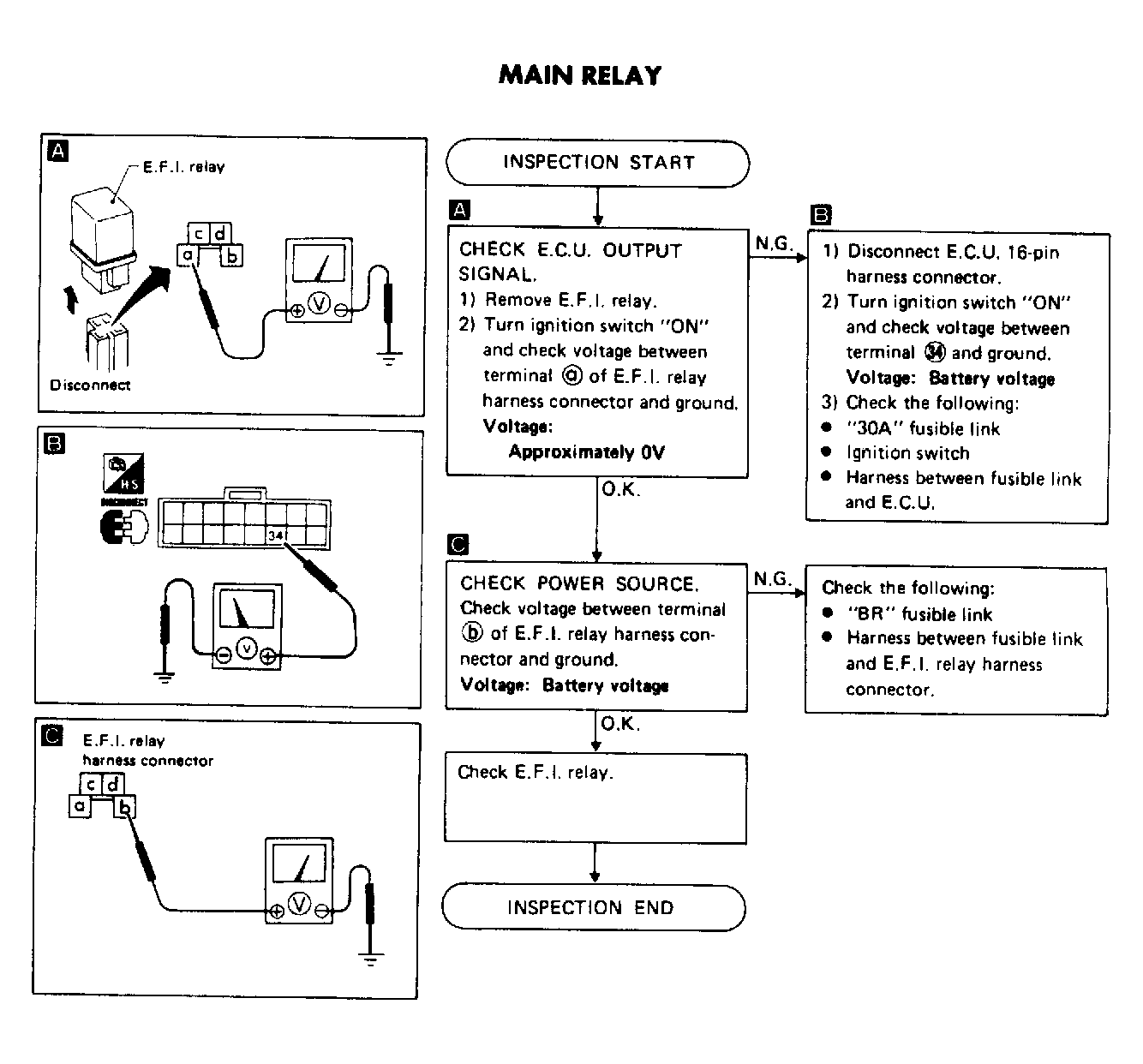

Fig 9: Stanza Main Relay Check Chart

G121349

Courtesy of NISSAN MOTOR CO., U.S.A.

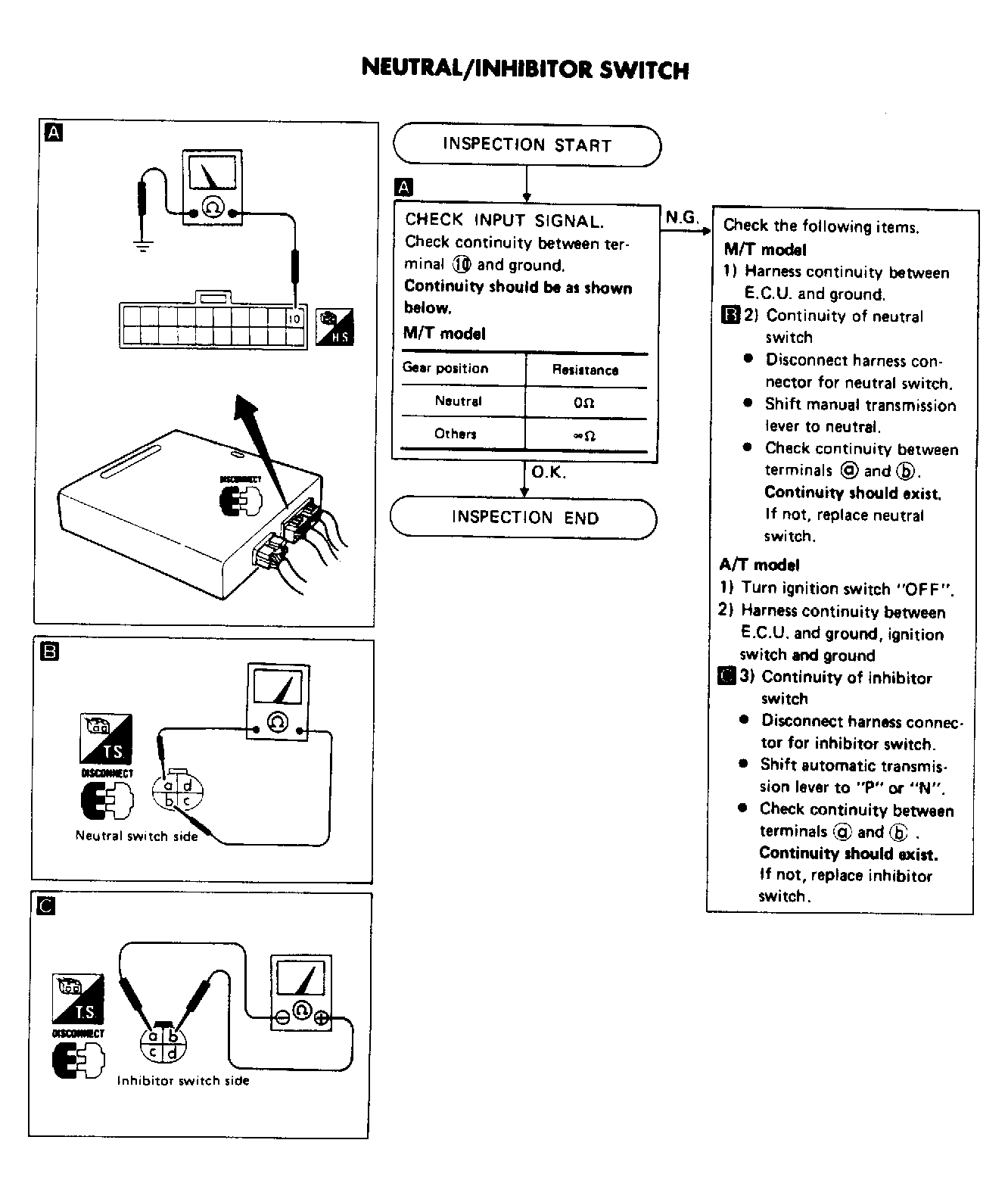

Fig 10: Stanza Neutral Switch Check Chart

G121351

Courtesy of NISSAN MOTOR CO., U.S.A.

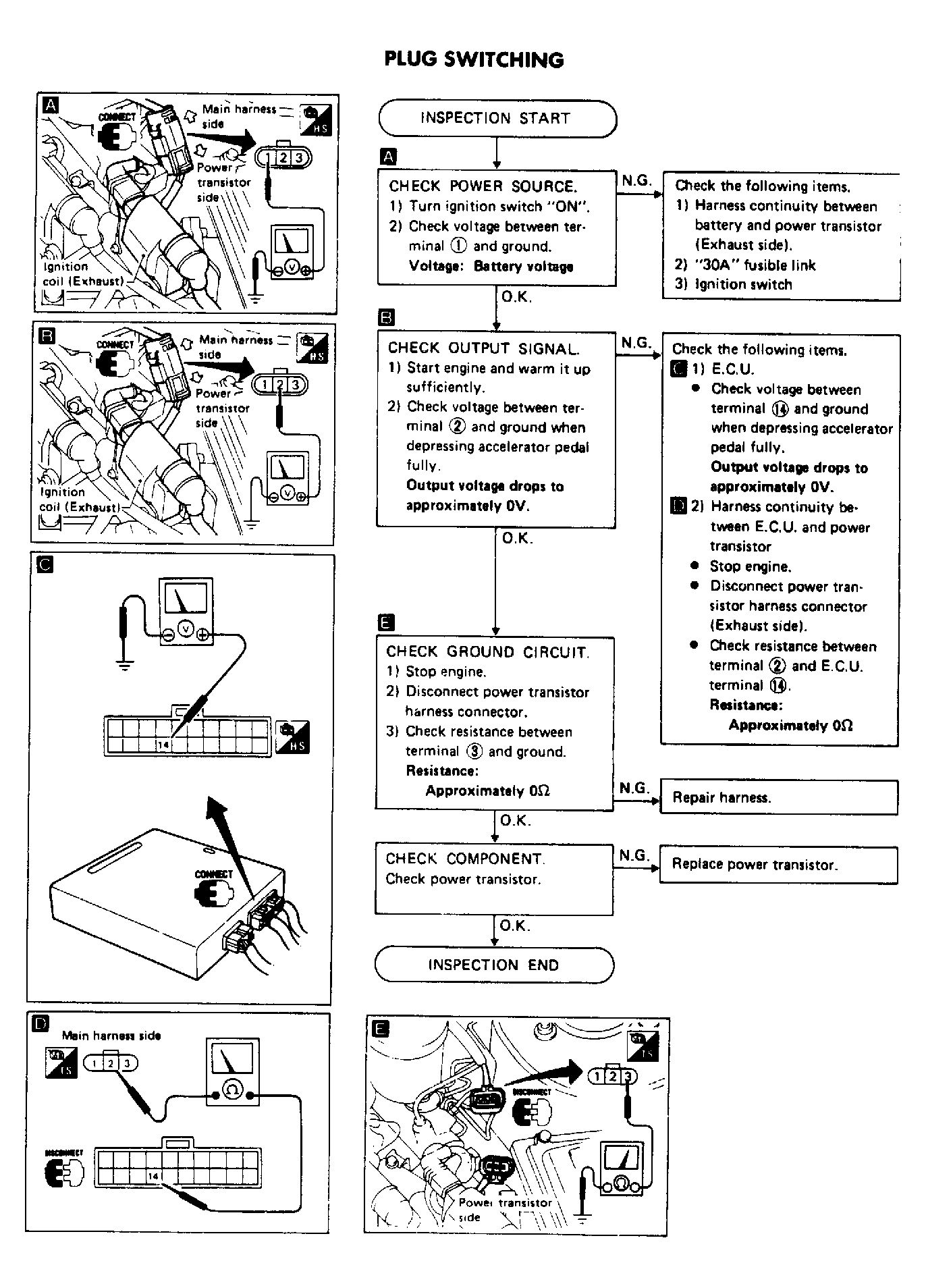

Fig 11: Stanza Plug Switching Check Chart

G121357

Courtesy of NISSAN MOTOR CO., U.S.A.

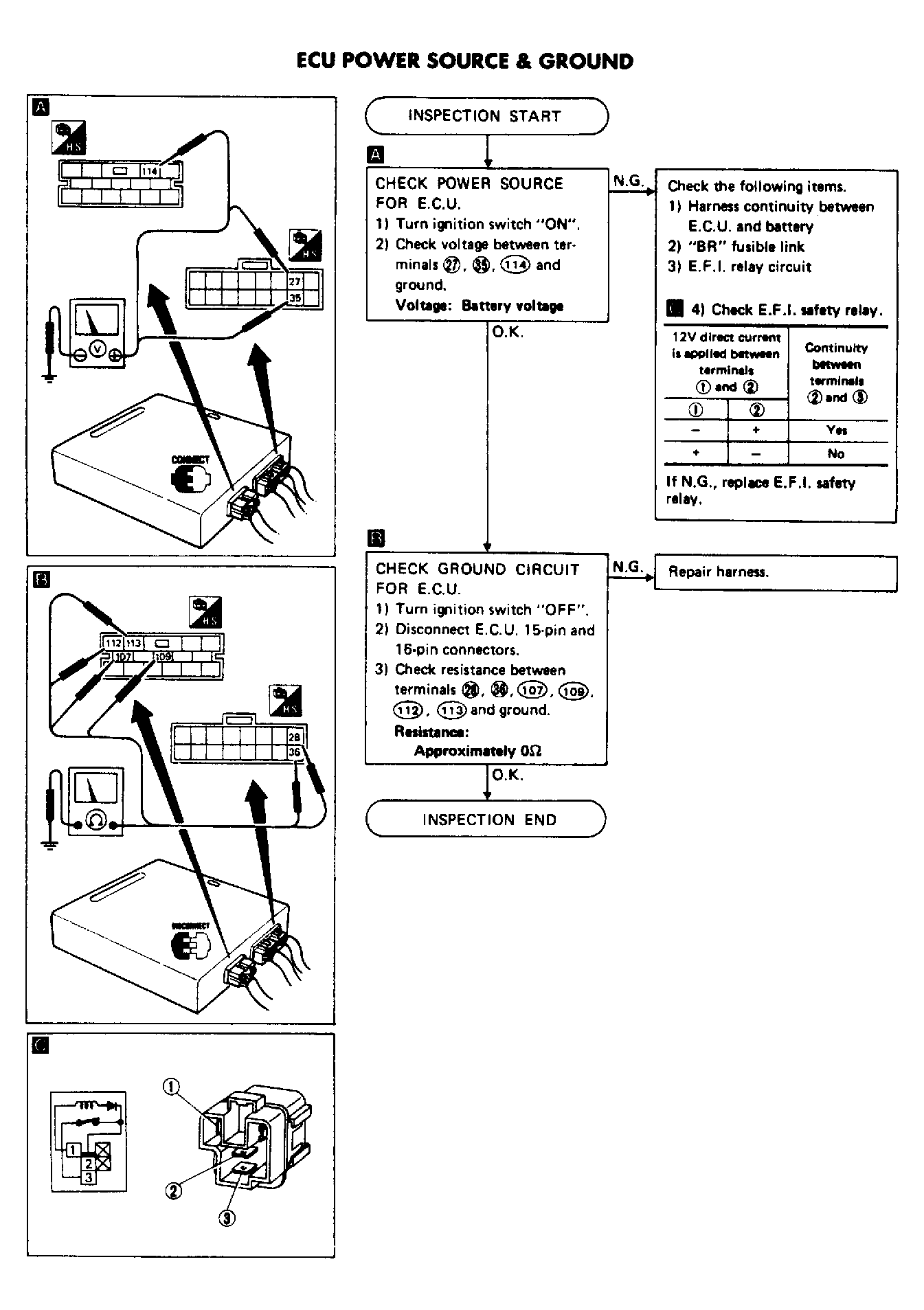

Fig 12: Stanza ECU Power Source & Ground Check Chart

G121360

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Stanza Start Signal Check Chart

G121369

Courtesy of NISSAN MOTOR CO., U.S.A.
