Code 32 EGR Sensor

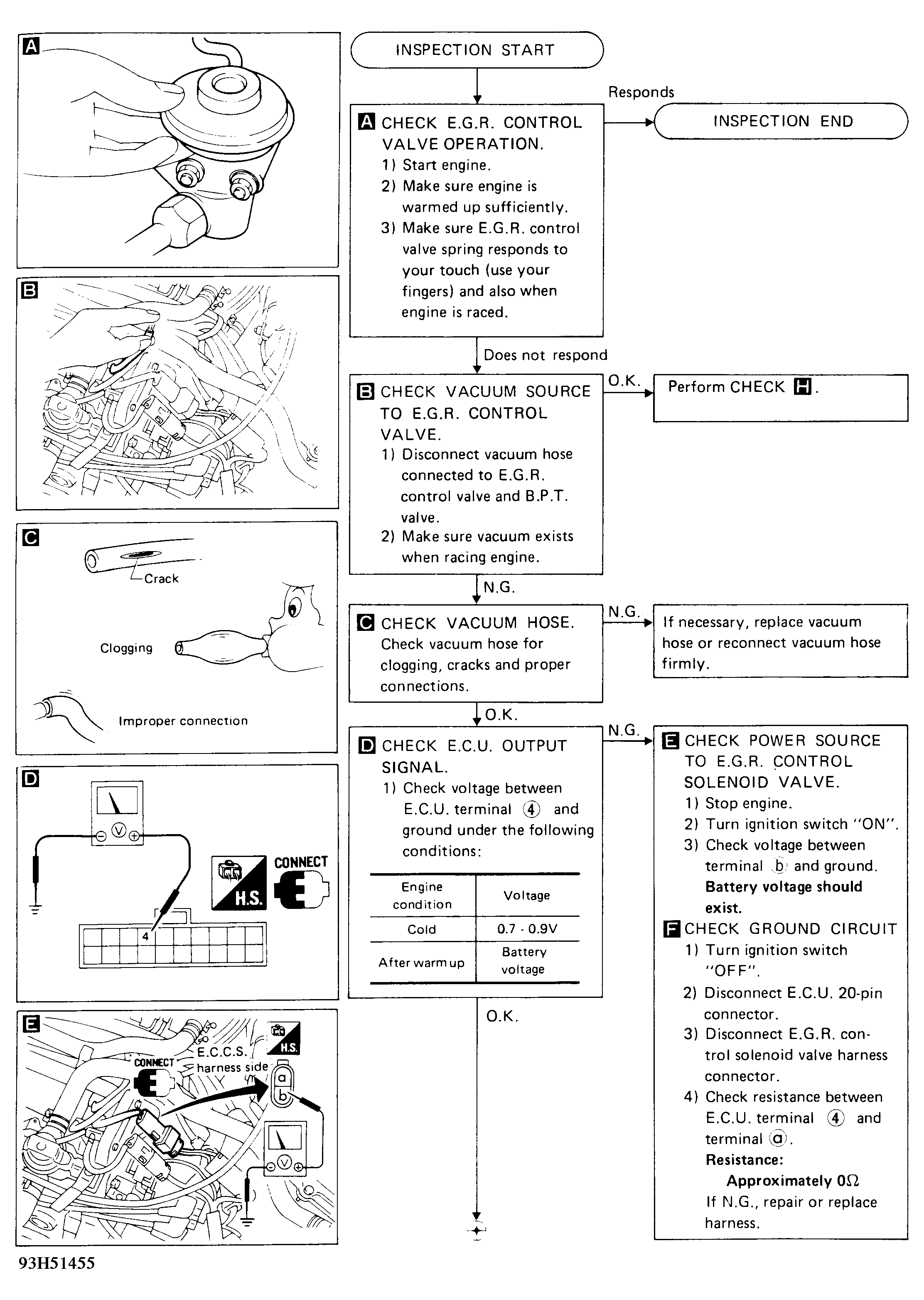

Fig 1: Code 32, Stanza (California Model) (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

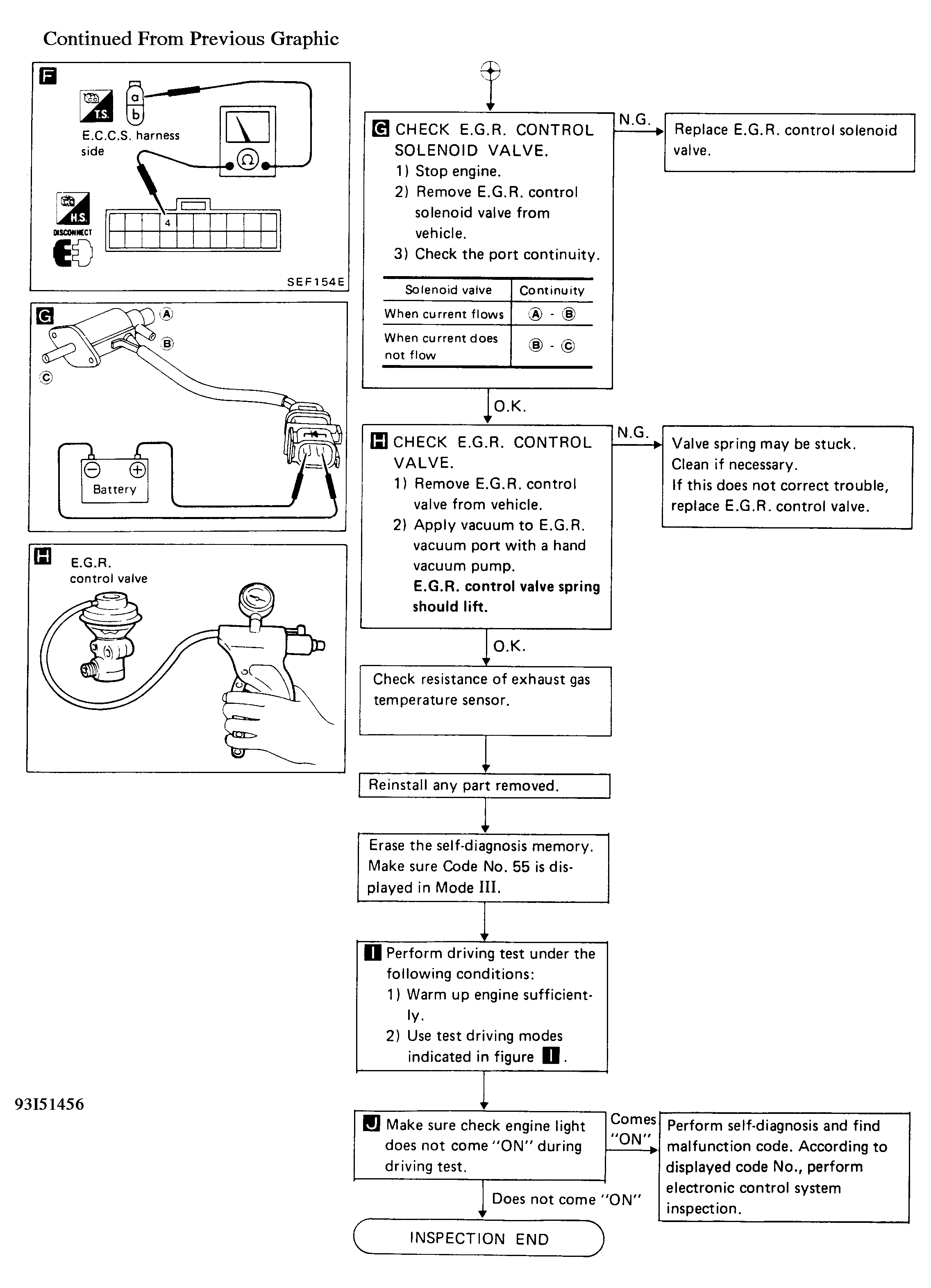

Fig 2: Code 32, Stanza (California Model) (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

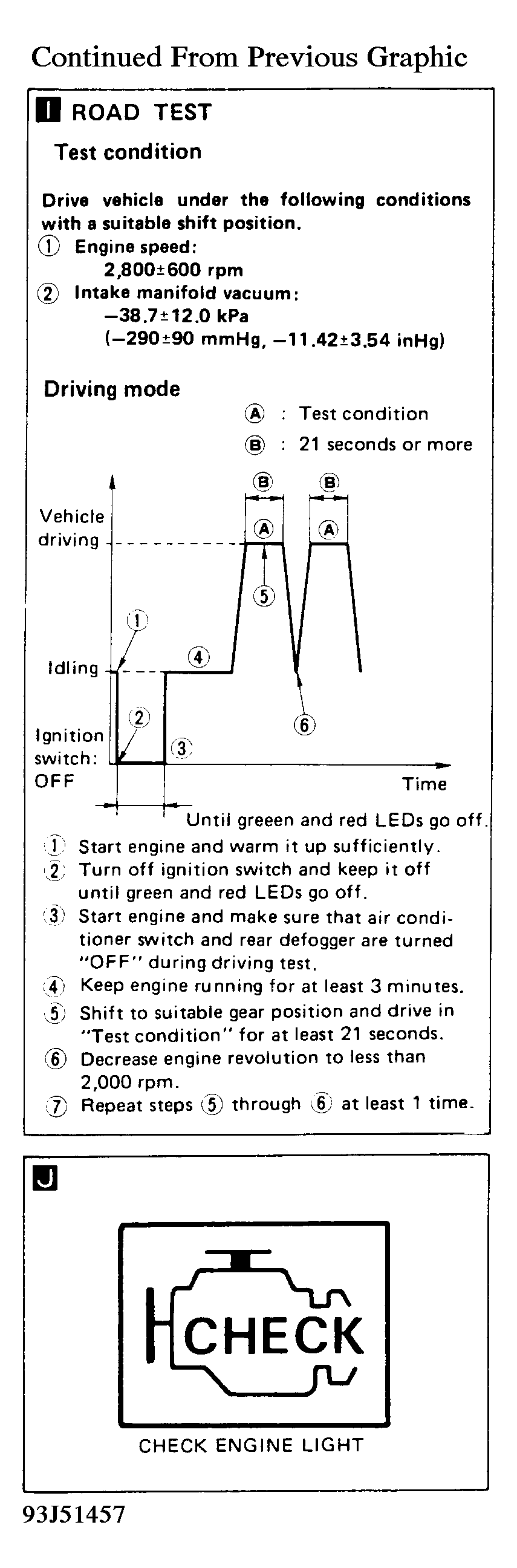

Fig 3: Code 32, Stanza (California Model) (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
