Air Injection Valve Chart
Air Injection Valve Chart

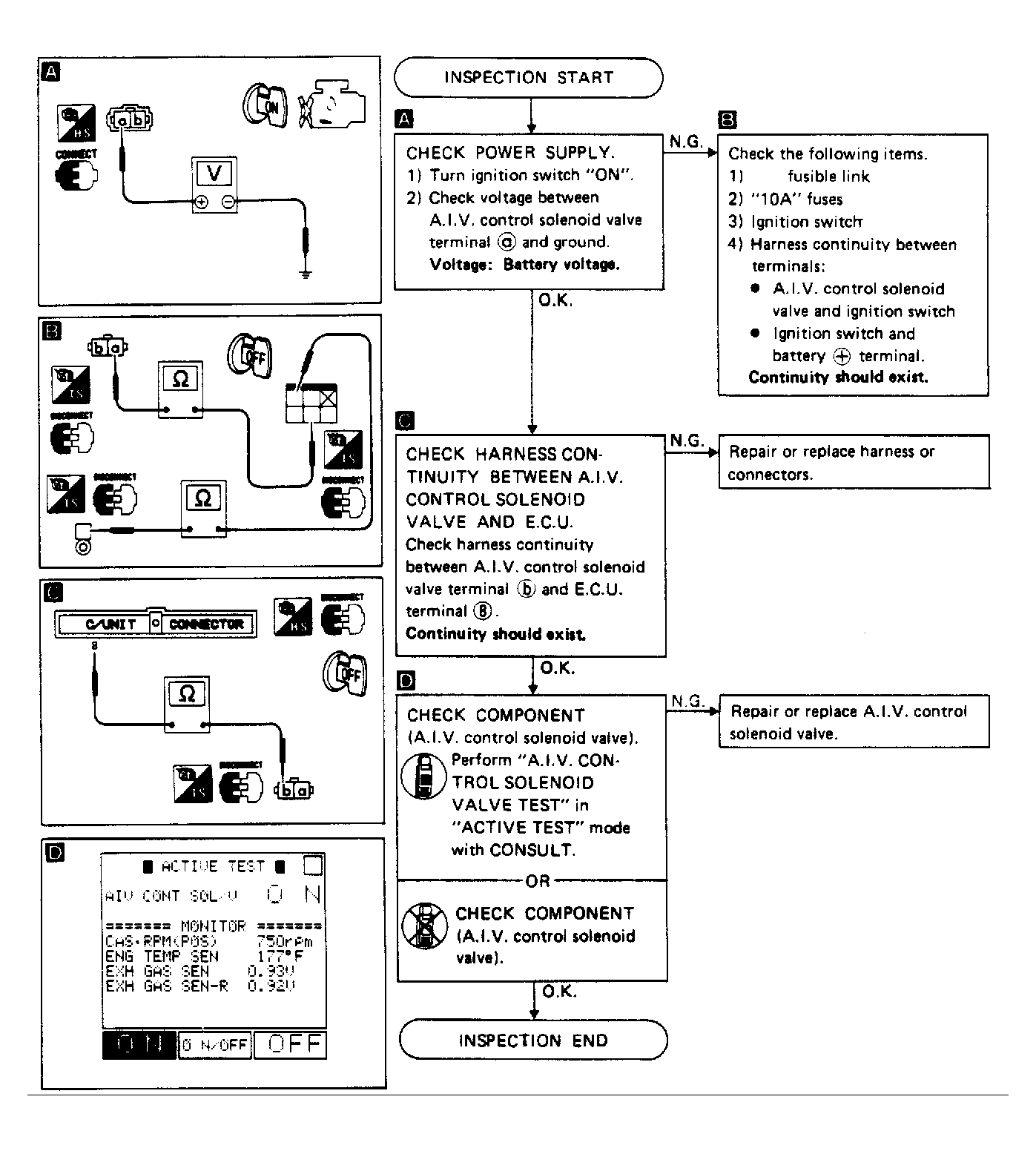

Fig 1: Air Injection Valve (AIV) Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
