Code 13: Engine Coolant Temperature Sensor

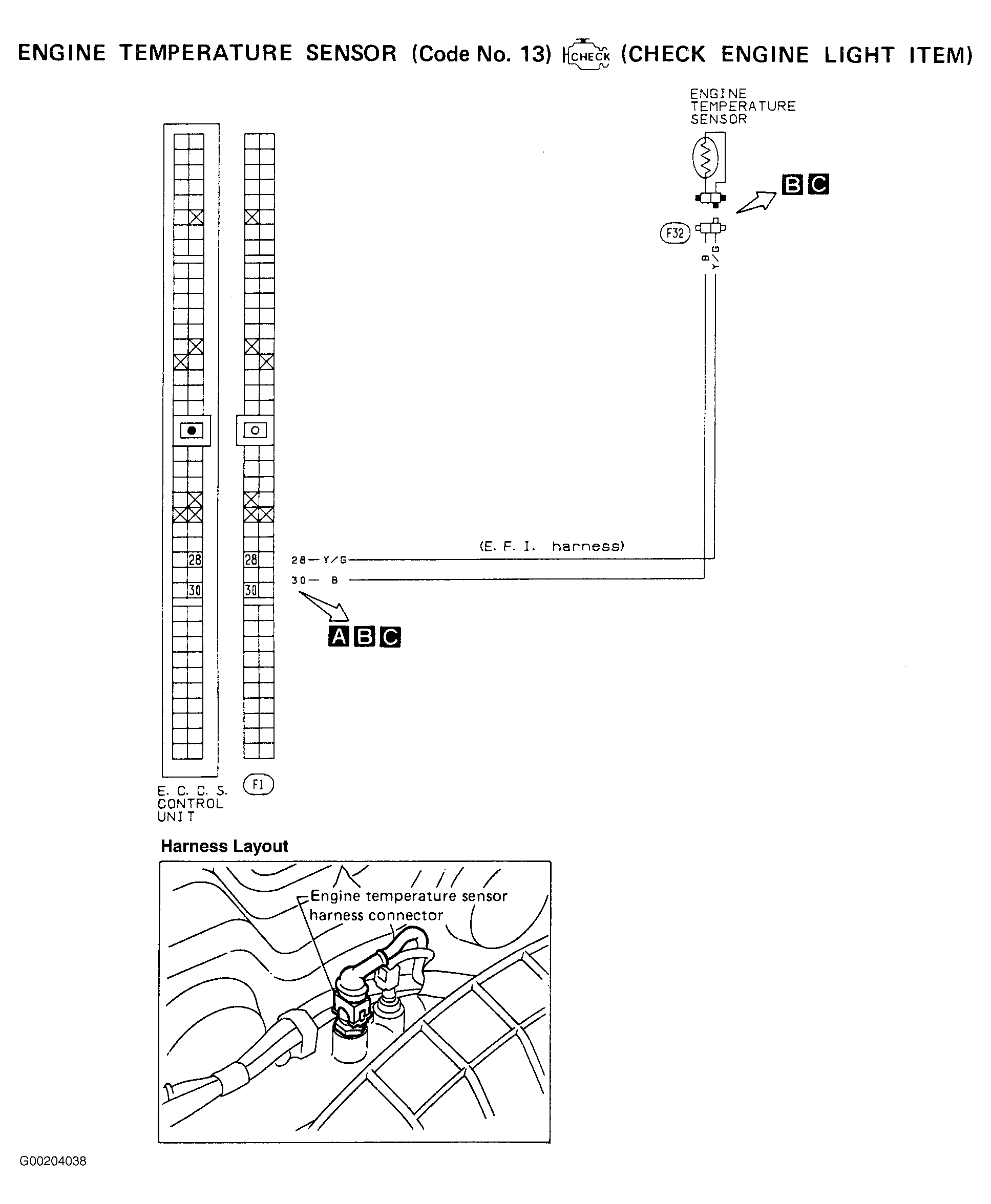

Fig 1: Code 13: Engine Coolant Temp Sensor Test (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 13: Engine Coolant Temp Sensor Test (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
