Engine Controls - Pin Voltage Charts
›
Pin Voltage Charts
Pin Voltage Charts

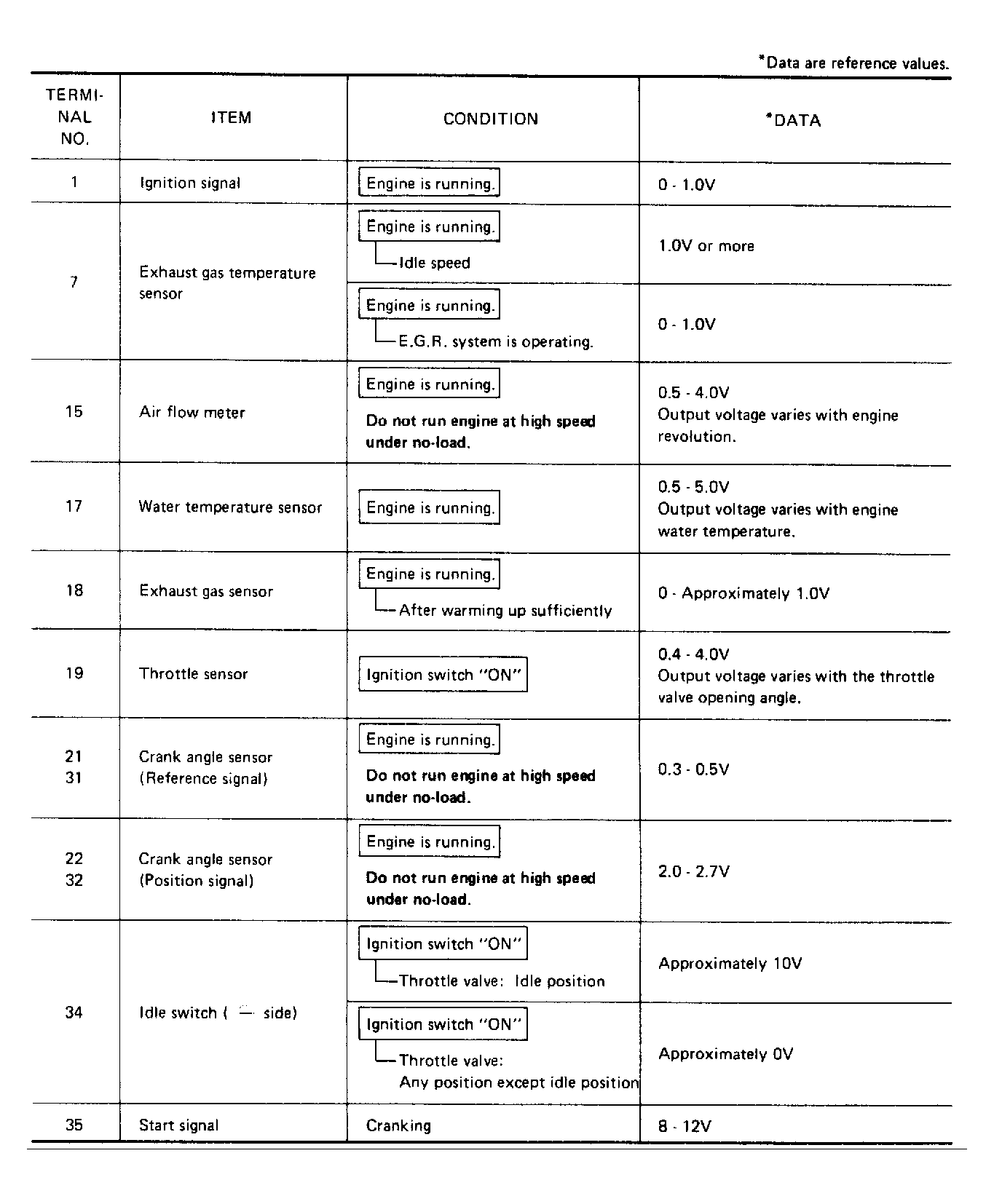

Fig 1: ECU Terminal 1-35 Pin Voltage Charts
Courtesy of NISSAN MOTOR CO., U.S.A.

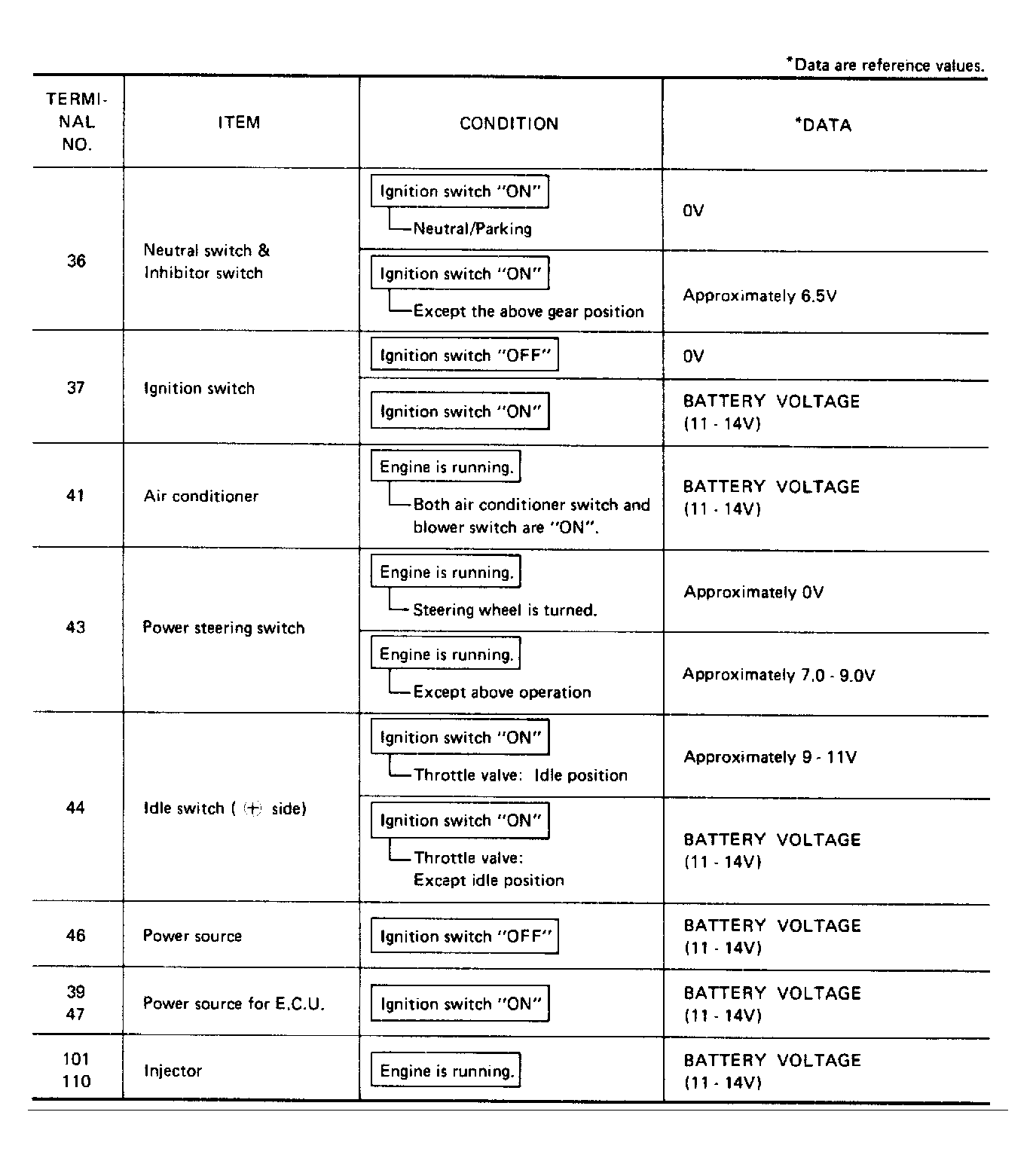

Fig 2: ECU Terminal 36-110 Pin Voltage Charts
Courtesy of NISSAN MOTOR CO., U.S.A.

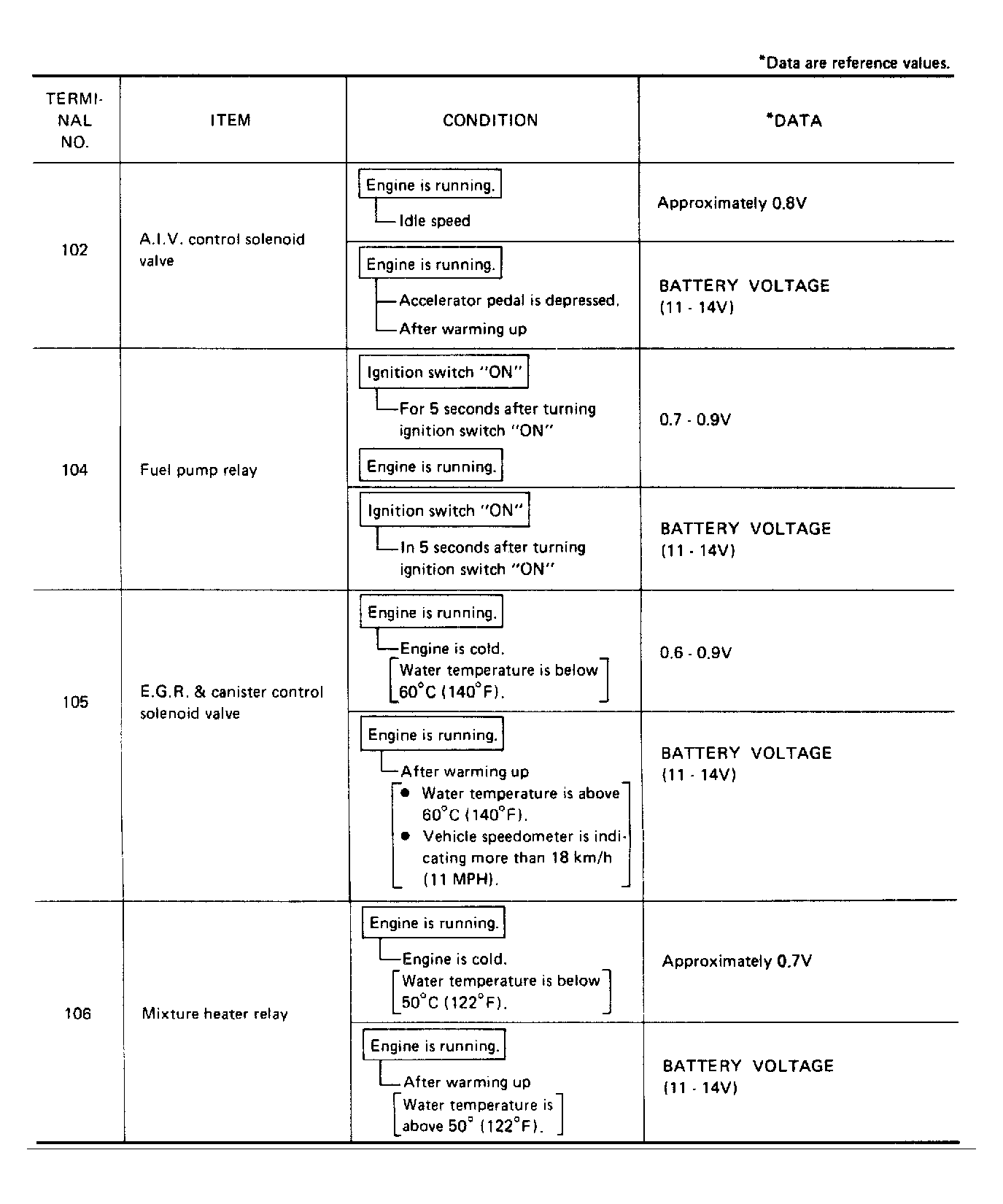

Fig 3: ECU Terminal 102-106 Pin Voltage Charts
Courtesy of NISSAN MOTOR CO., U.S.A.

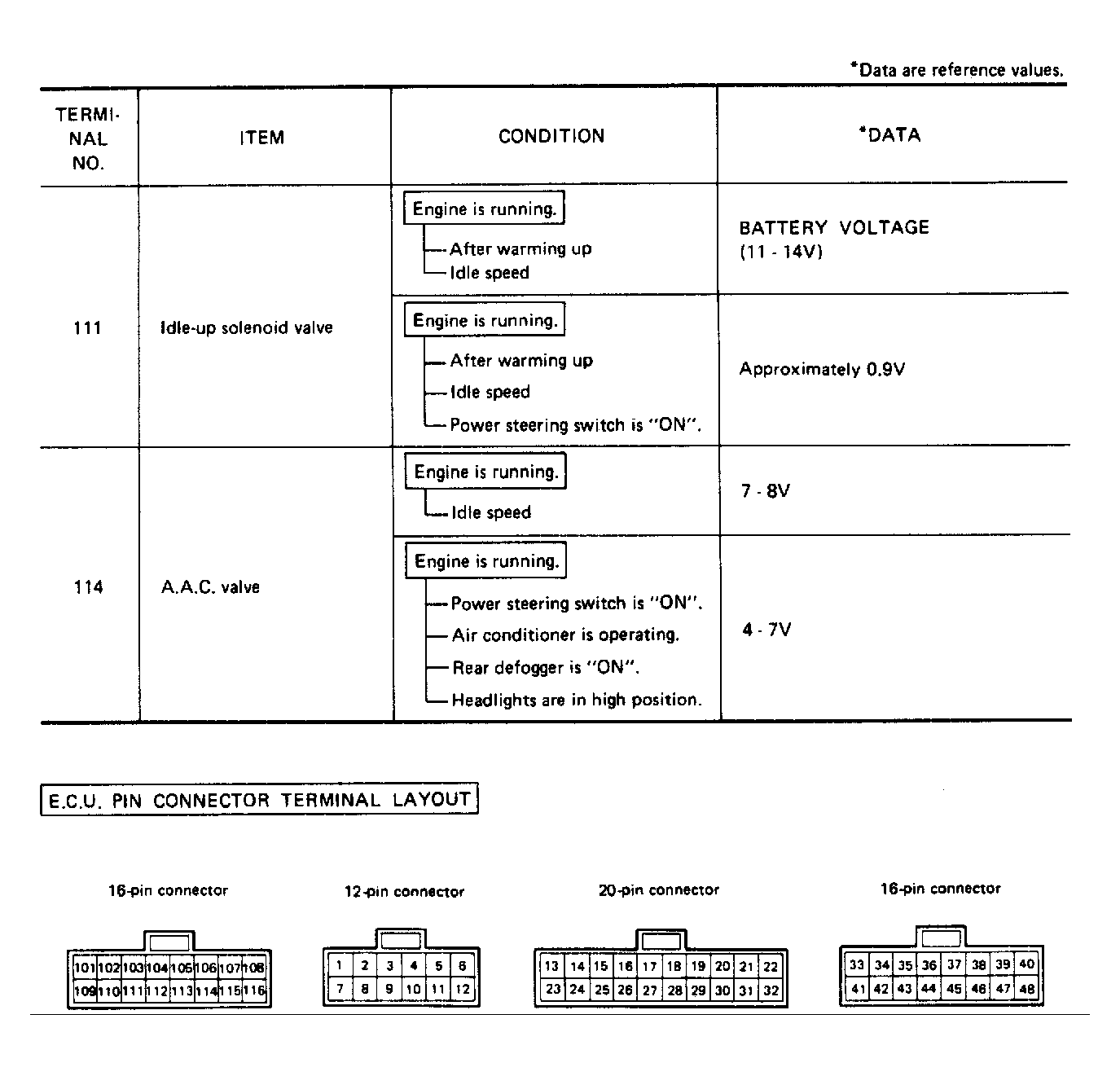

Fig 4: ECU Terminal 111 & 114 Pin Voltage Charts & Pin ID.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
