Idle-Up Control Chart

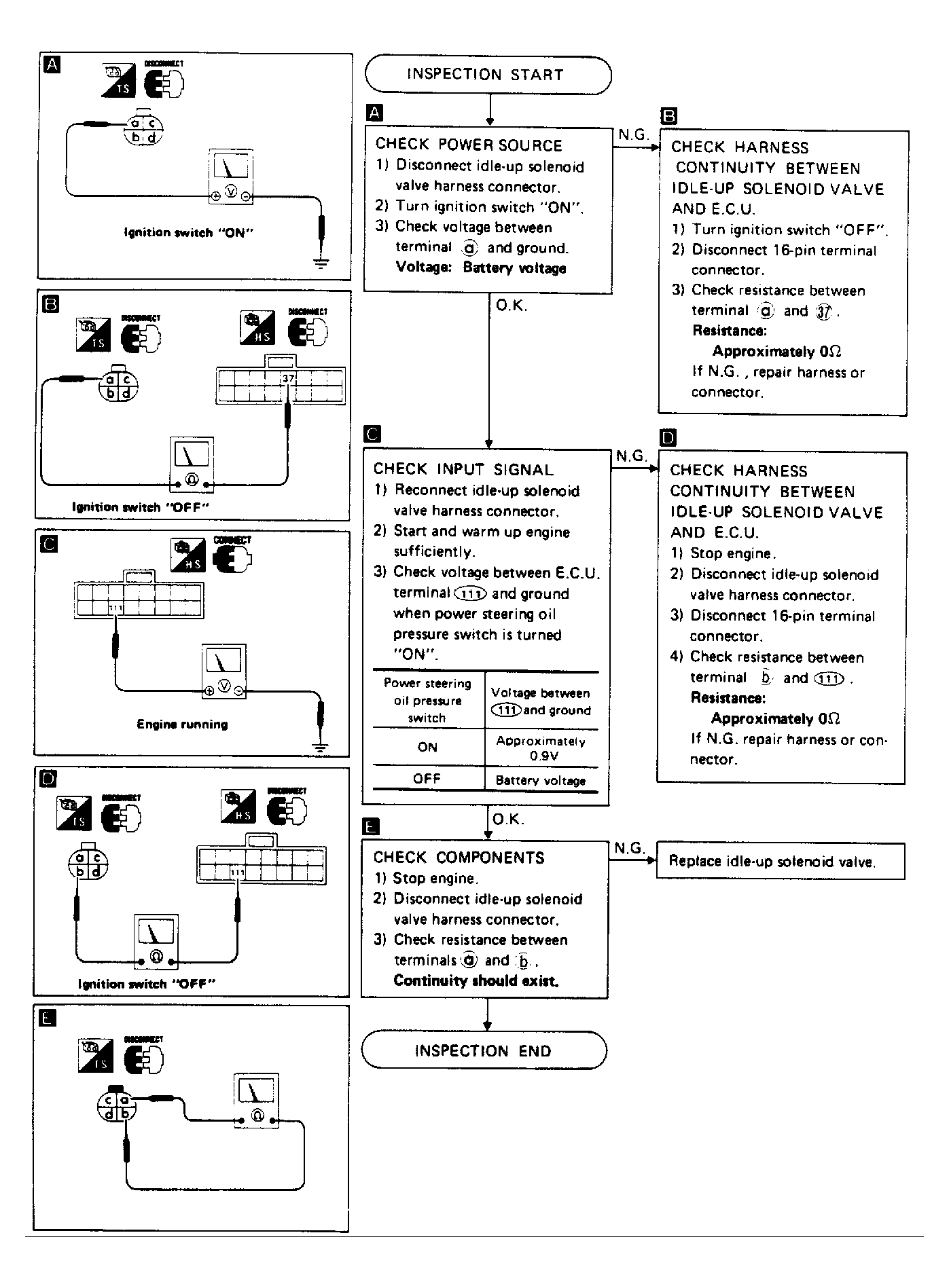

Fig 1: Pulsar NX & Sentra Idle-Up Control Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
