Engine Controls - System/Component Tests
›
Diagnostic Charts
›
Neutral/Inhibitor Switch Chart
Neutral/Inhibitor Switch Chart

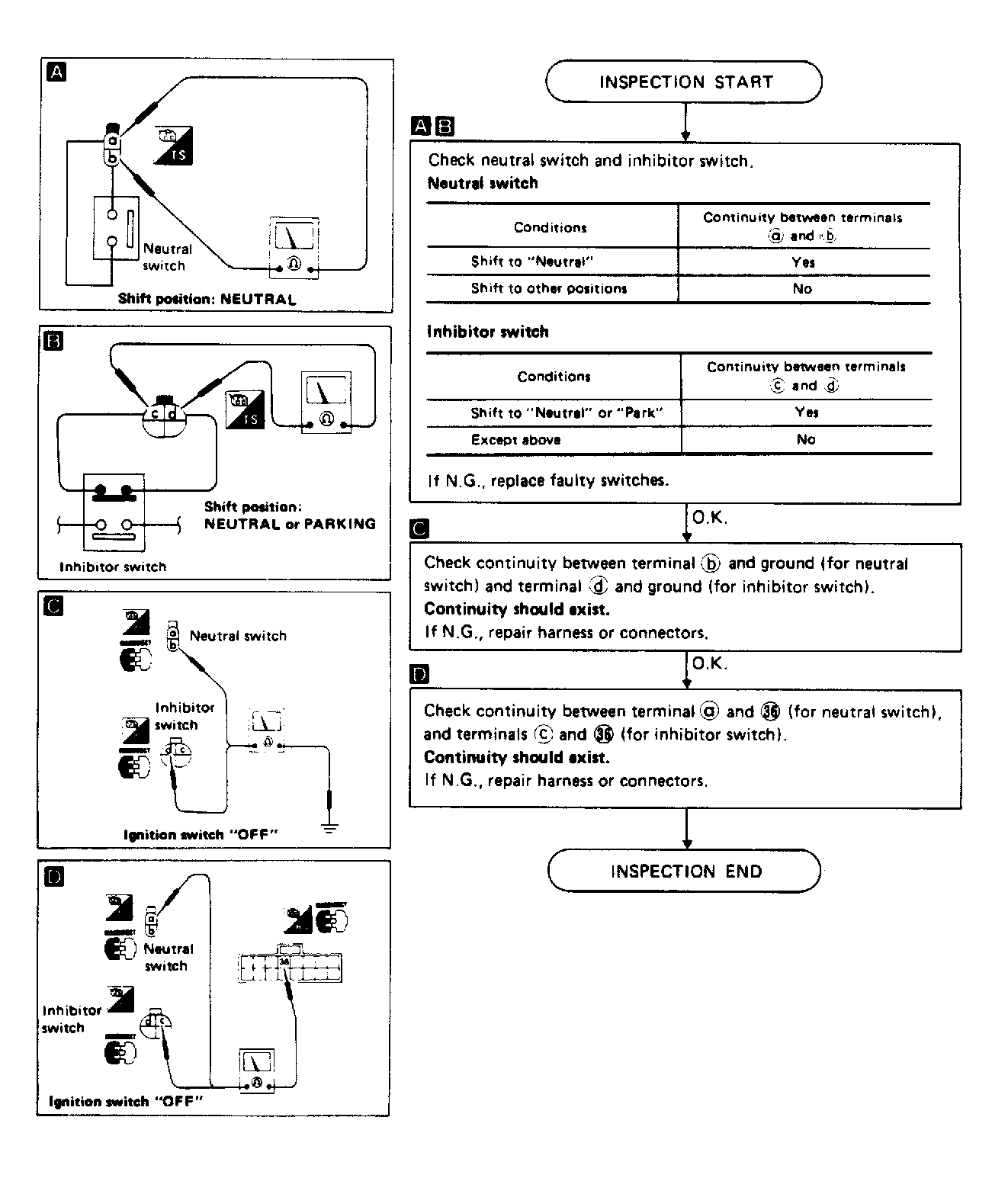

Fig 1: Neutral/Inhibitor Switch Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
