Neutral Switch & A/T Control Chart

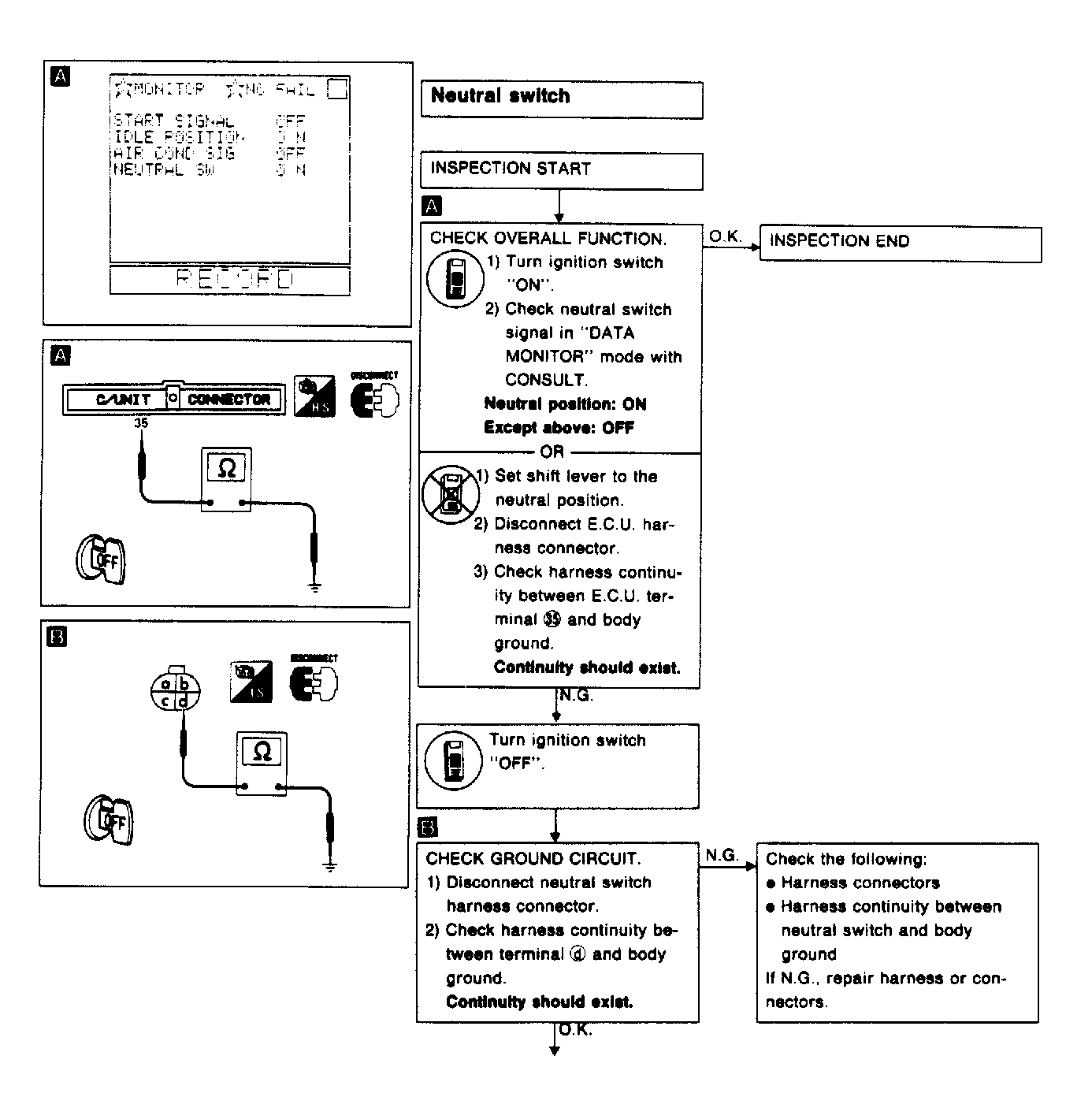

Fig 1: Neutral Switch & A/T Control Diagnostic Chart (1 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

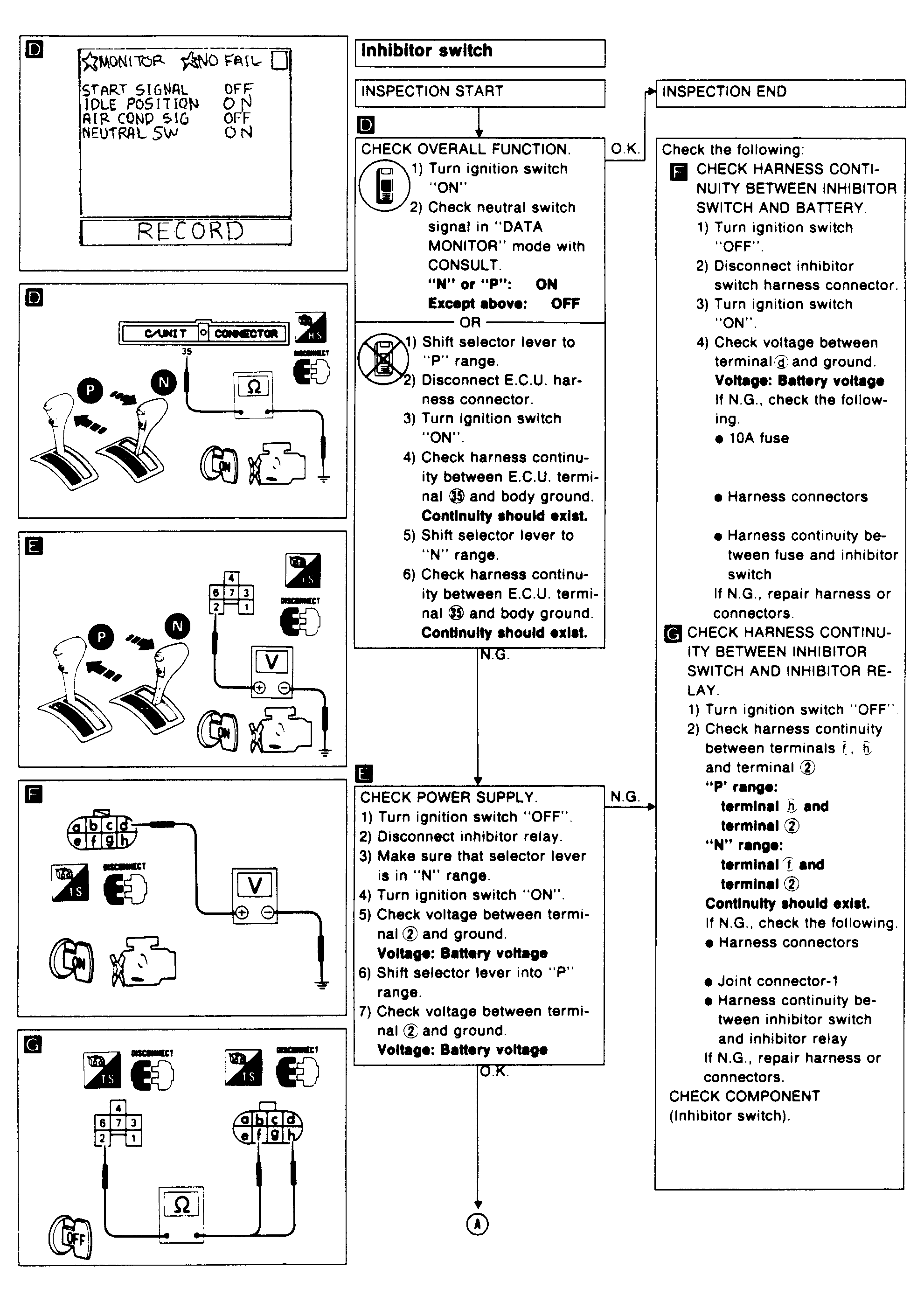

Fig 2: Neutral Switch & A/T Control Diagnostic Chart (2 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Neutral Switch & A/T Control Diagnostic Chart (3 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

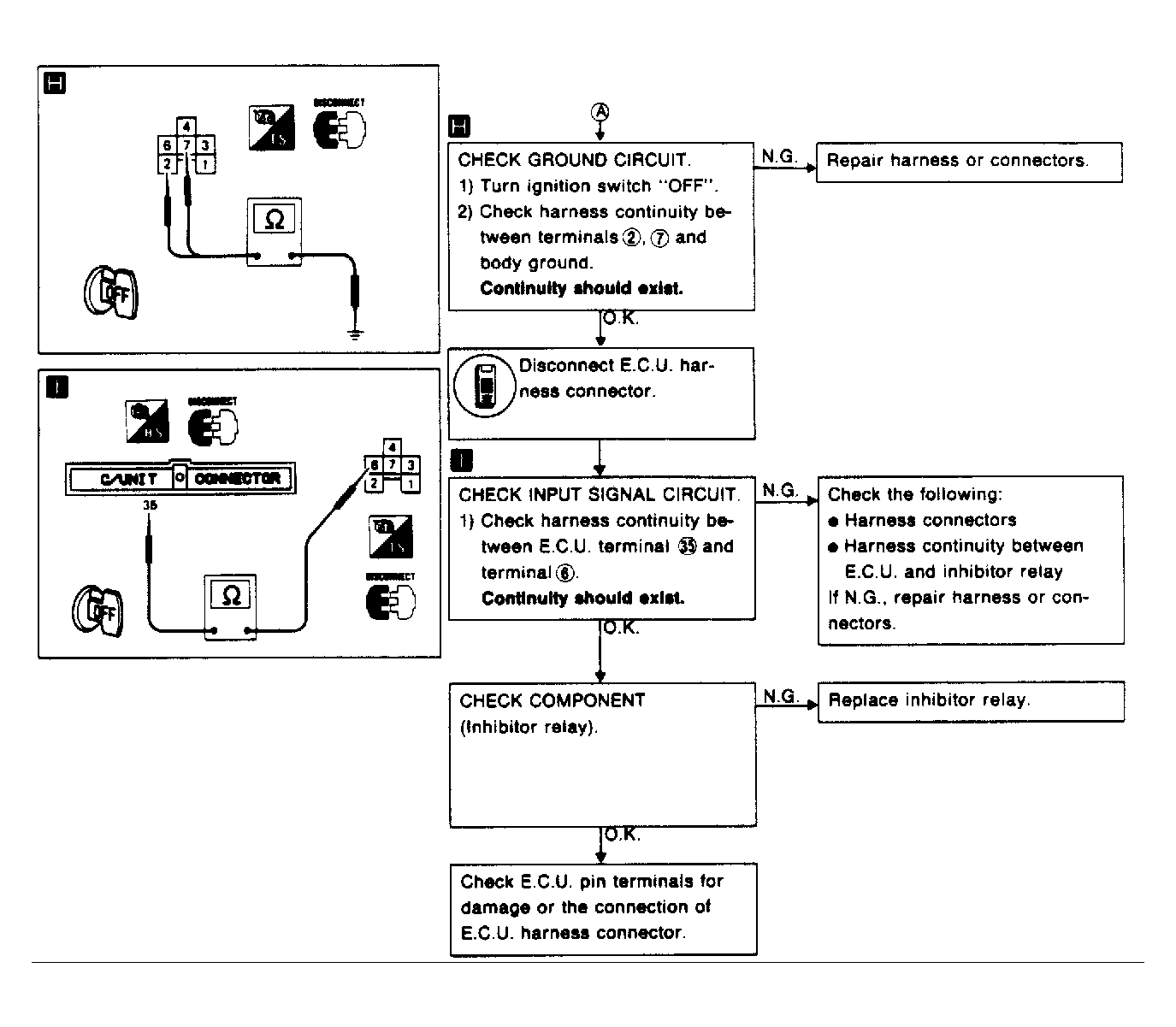

Fig 4: Neutral Switch & A/T Control Diagnostic Chart (4 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
