Throttle Valve Switch Chart
Throttle Valve Switch Chart

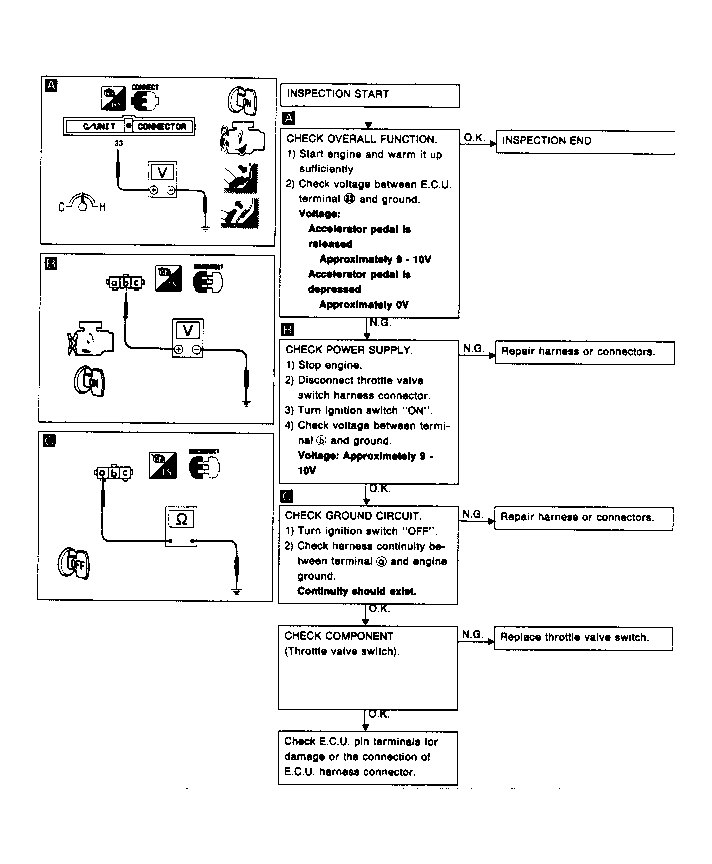

Fig 1: Throttle Valve Switch Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
