Mixture Heater Chart
Mixture Heater Chart

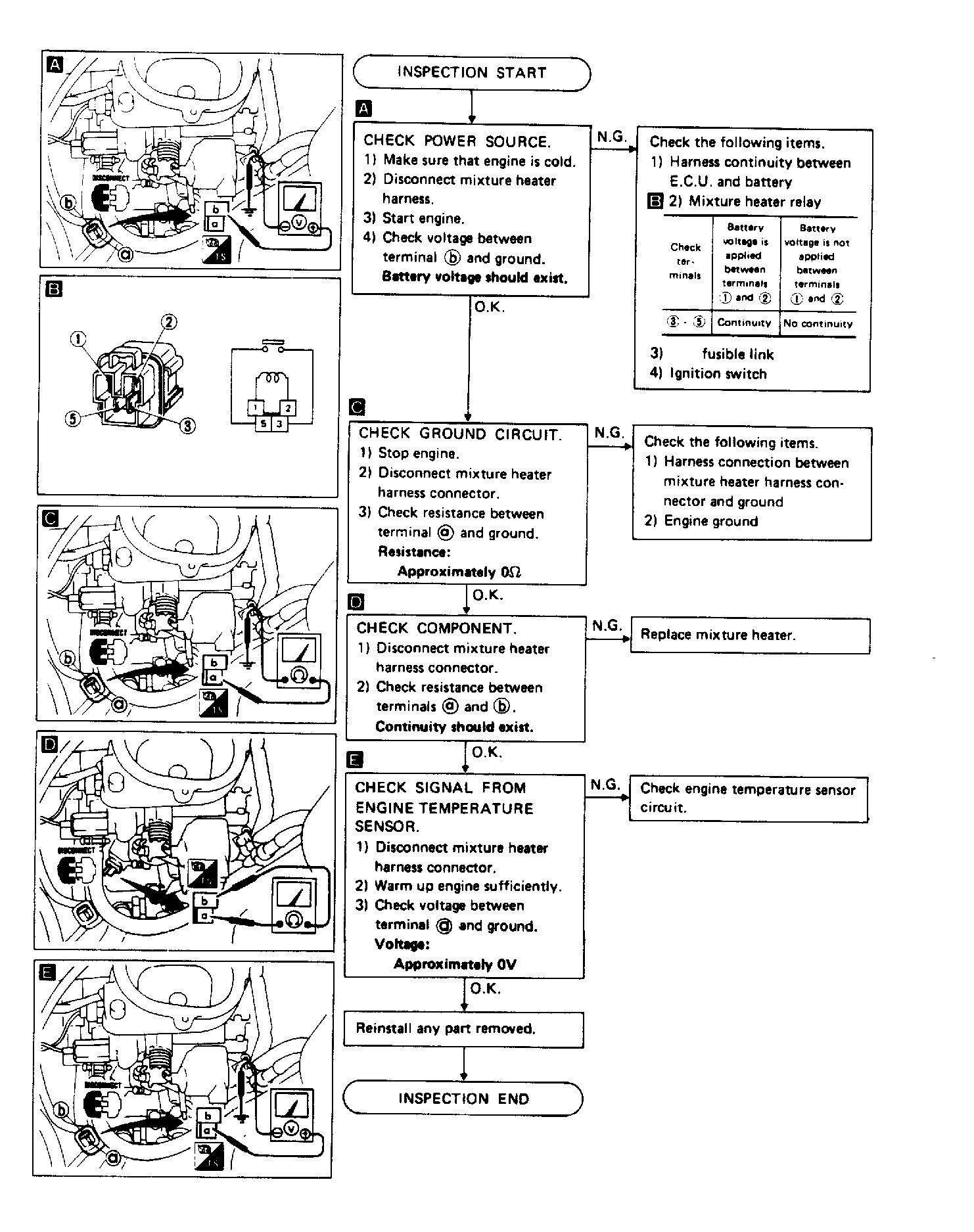

Fig 1: Mixture Heater Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
