Engine Controls - System/Component Tests
›
Diagnostic Charts
›
Spark Plug Switching Chart
Spark Plug Switching Chart

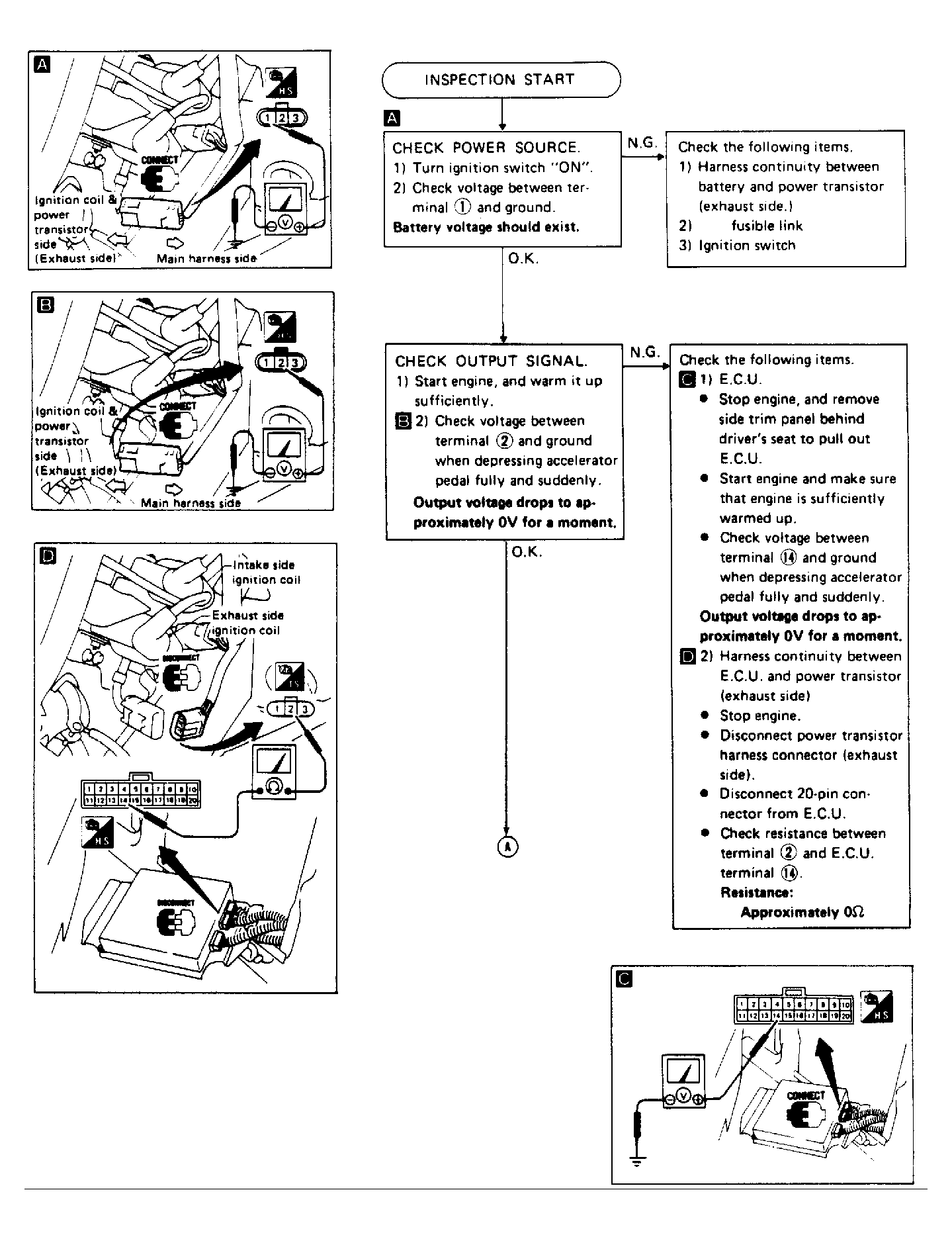

Fig 1: Spark Plug Switching Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

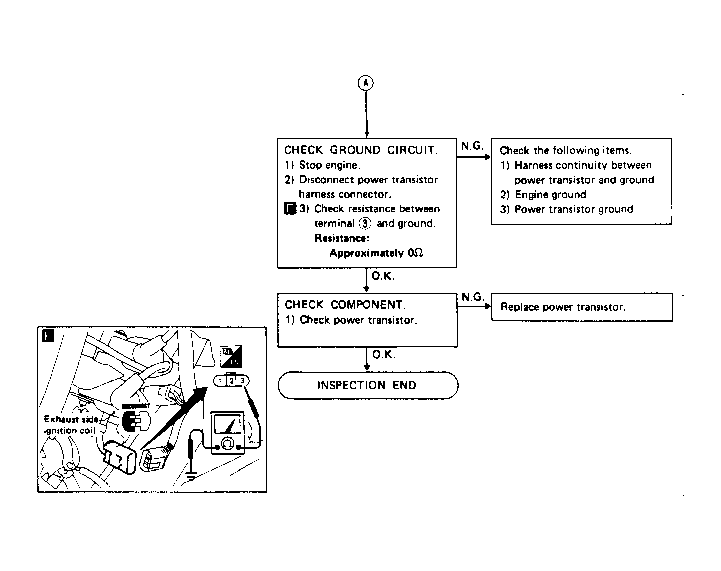

Fig 2: Spark Plug Switching Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
