Starter Switch Chart
Starter Switch Chart

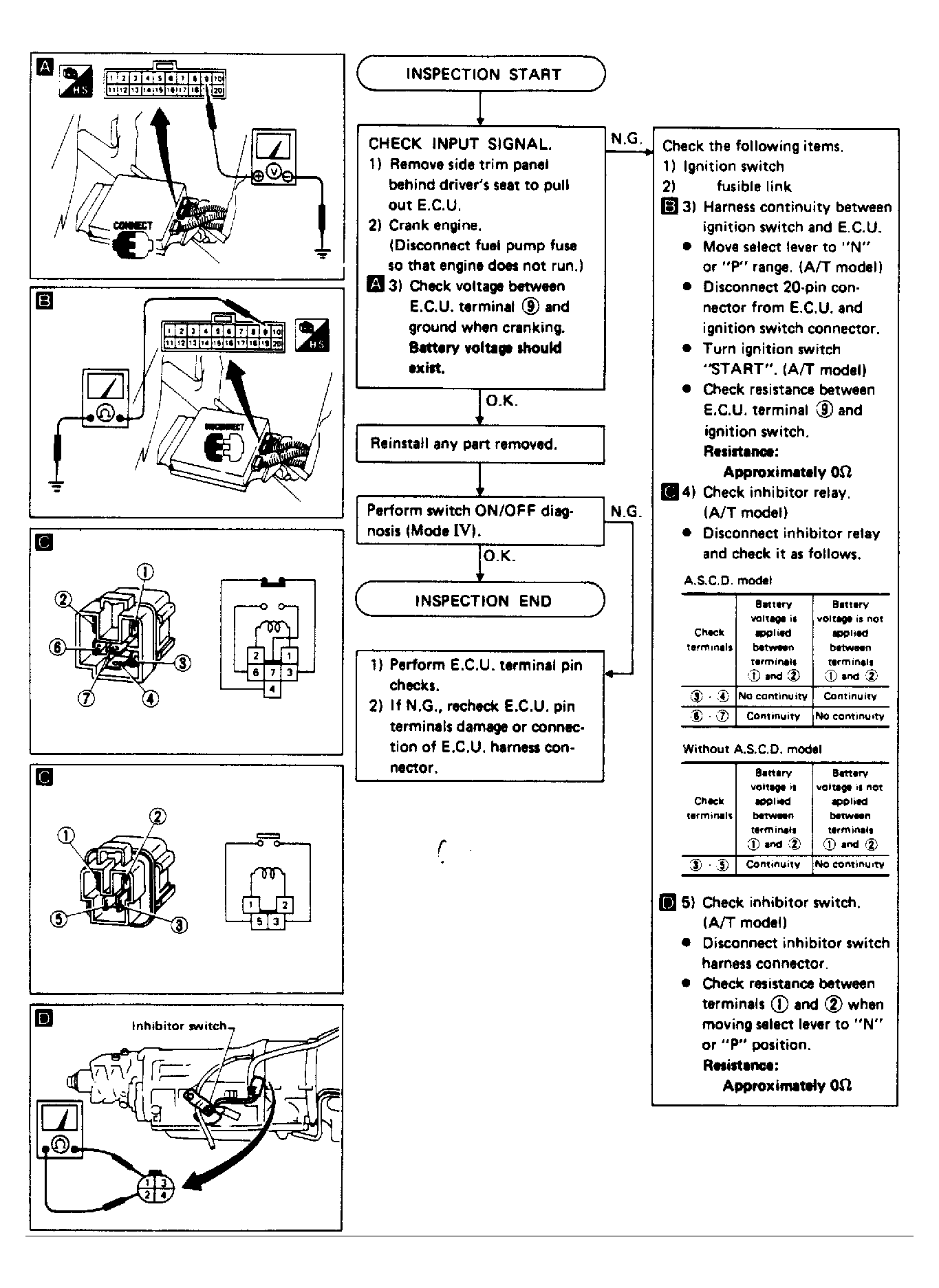

Fig 1: Starter Switch Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
