Code 43: Throttle Position Sensor

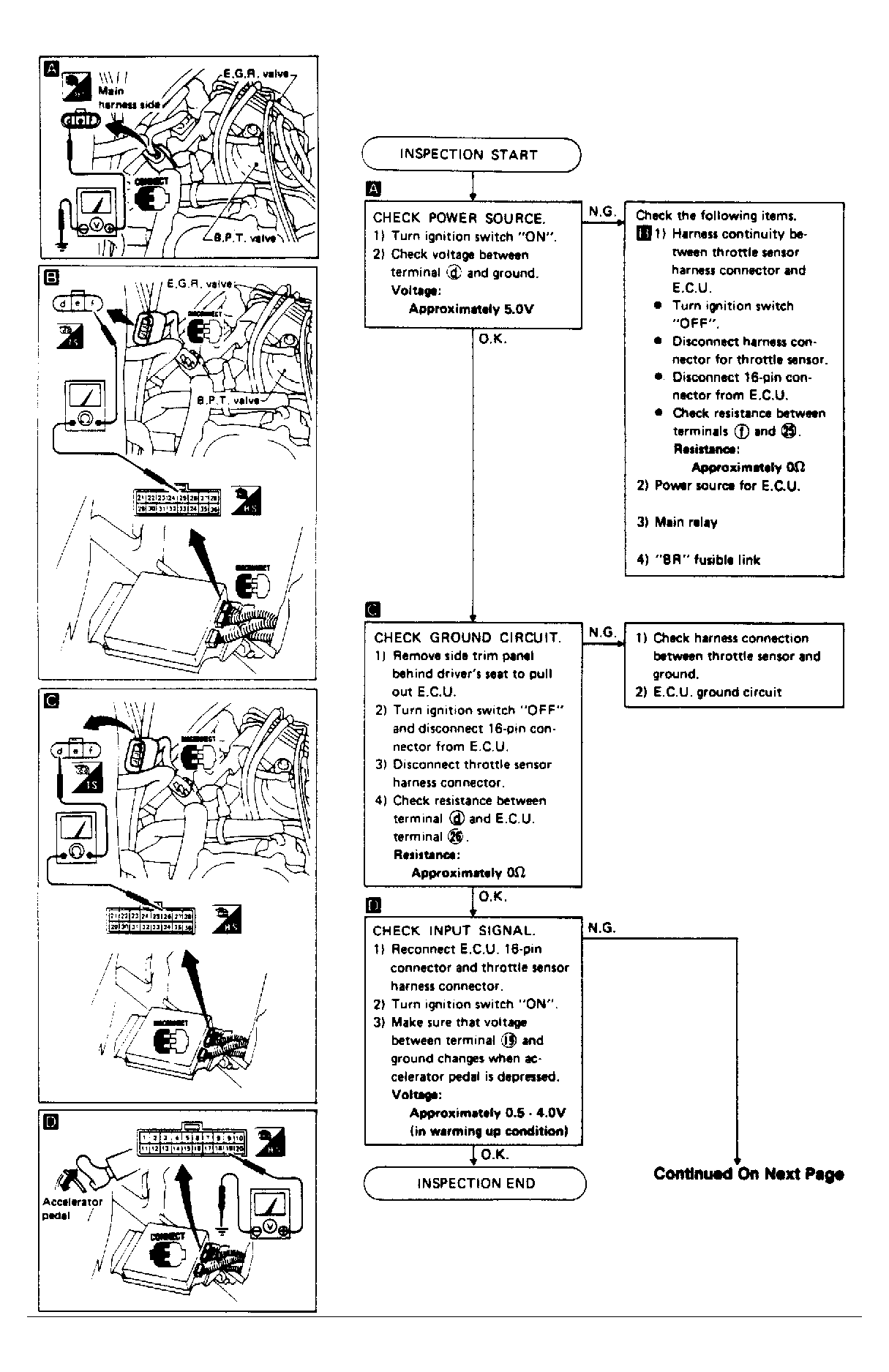

Fig 1: Code 43: Throttle Position Sensor Test (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

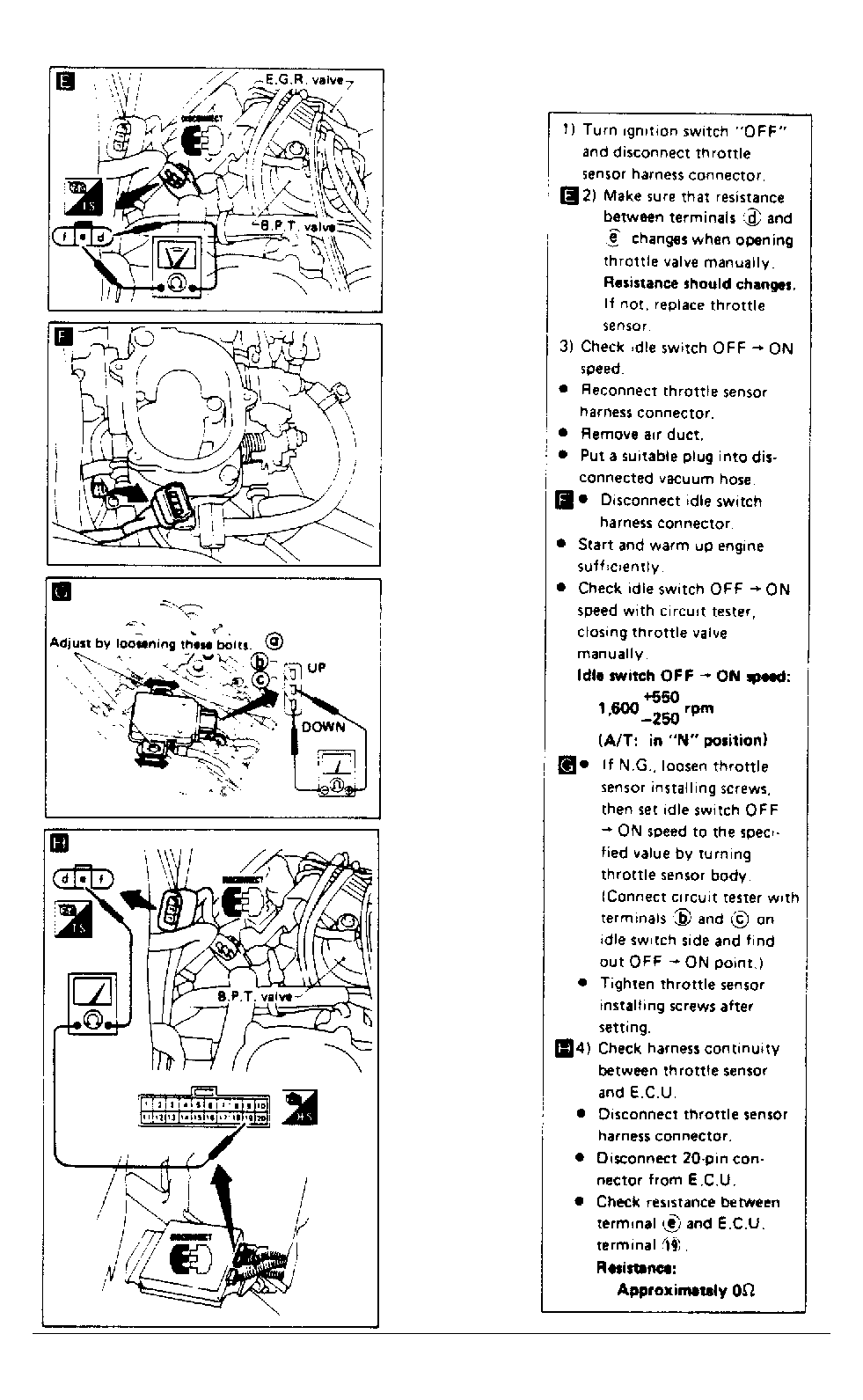

Fig 2: Code 43: Throttle Position Sensor Test (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
