Code 51: Injector Circuit
Code 51: Injector Circuit

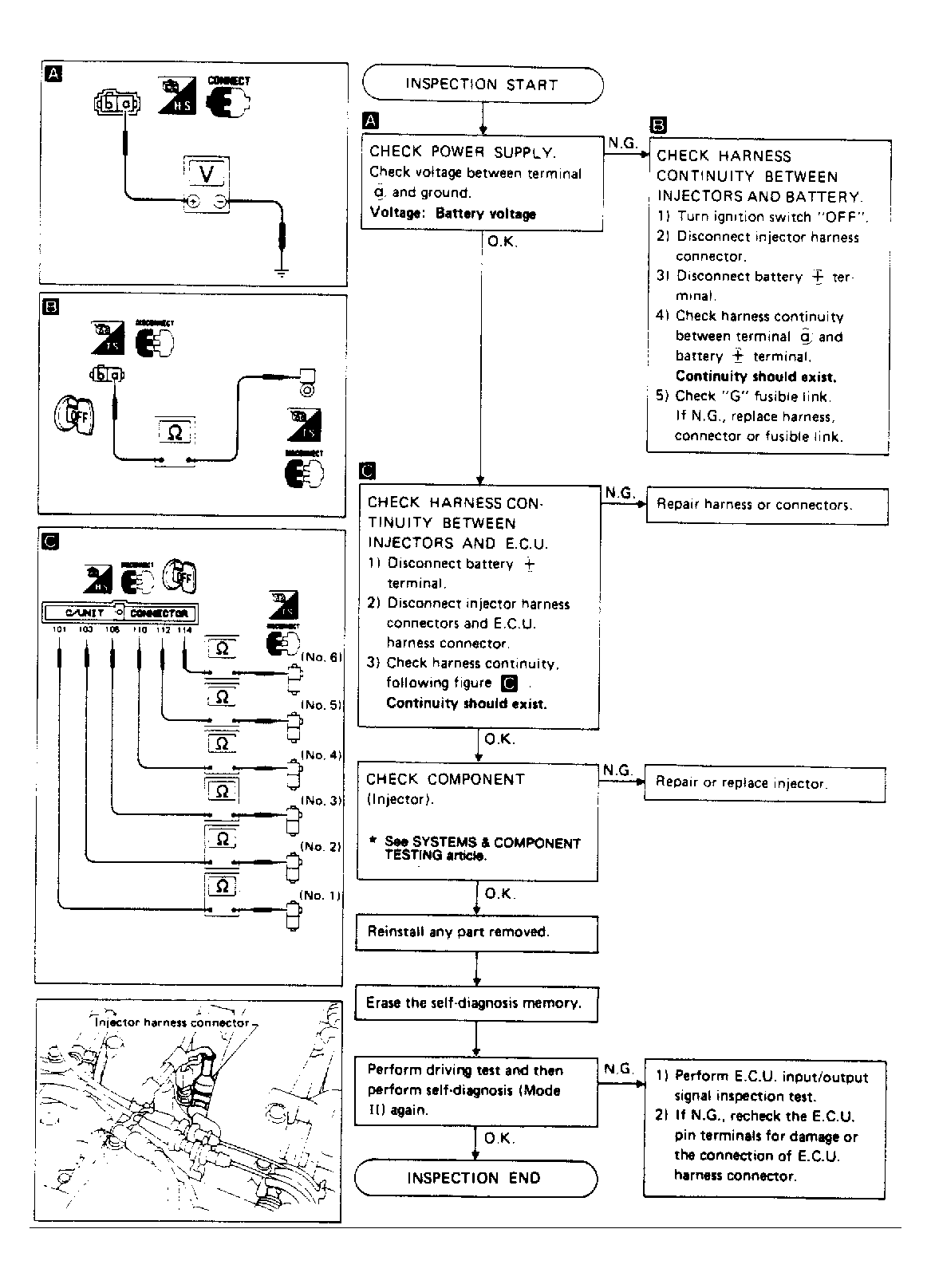

Fig 1: Code 51: Injection Circuit Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
