Nissan-Datsun
›
1991
›
240SX LE, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - System/Component Tests
›
Diagnostic Charts
›
Fuel Pump Chart
Fuel Pump Chart

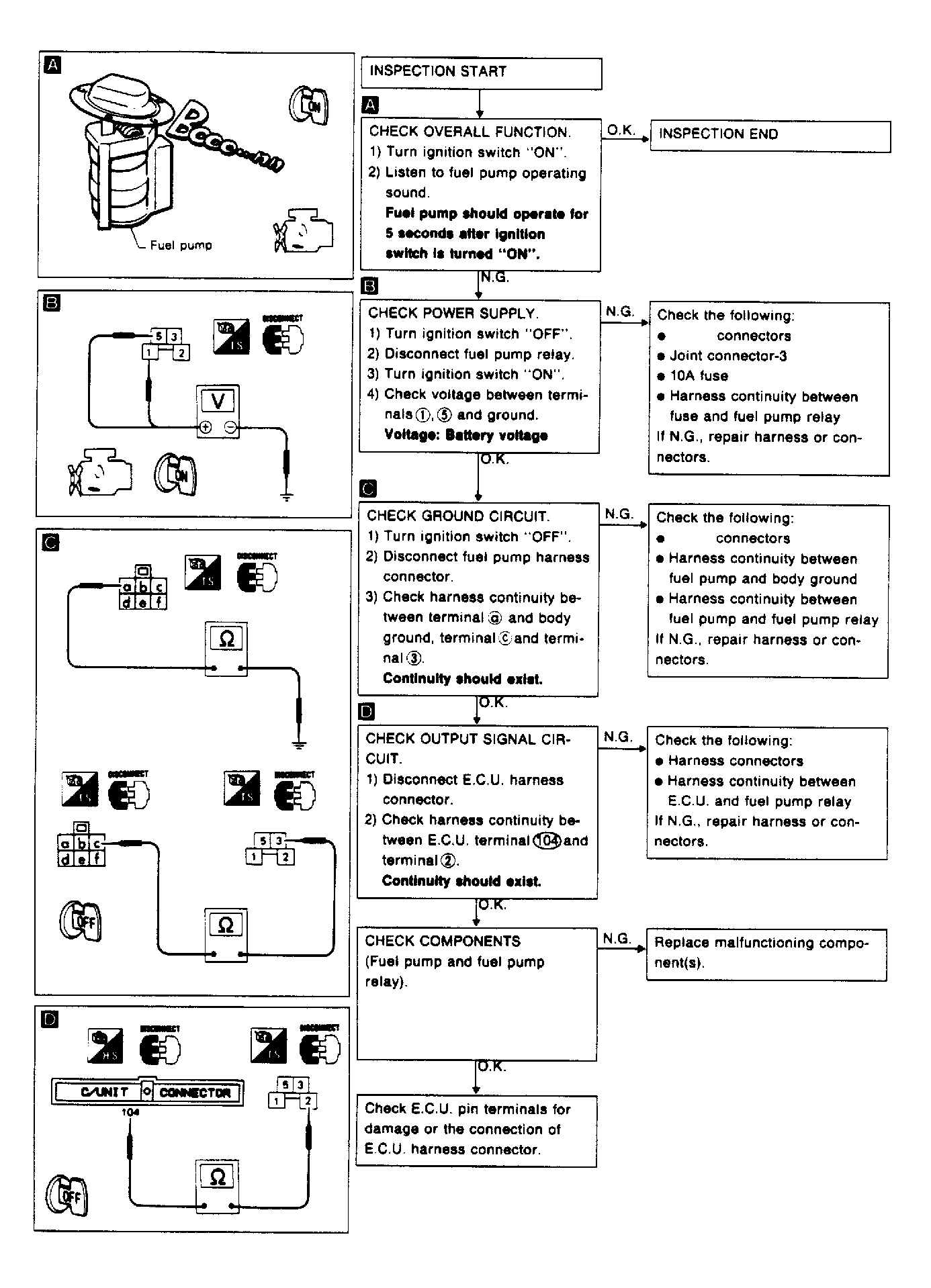

Fig 1: Fuel Pump Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
