Swirl Control Valve Chart
Swirl Control Valve Chart

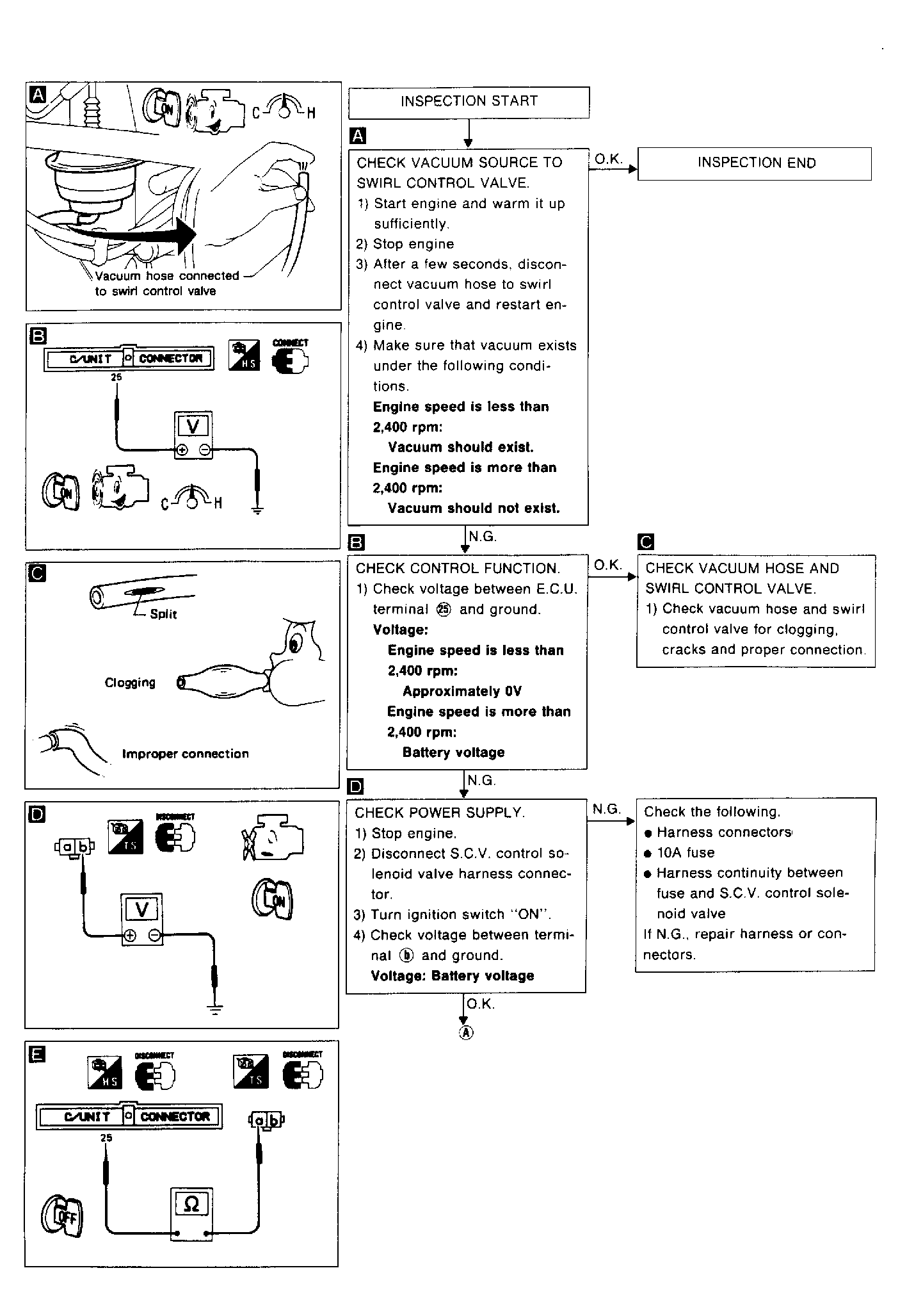

Fig 1: Swirl Control Valve Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

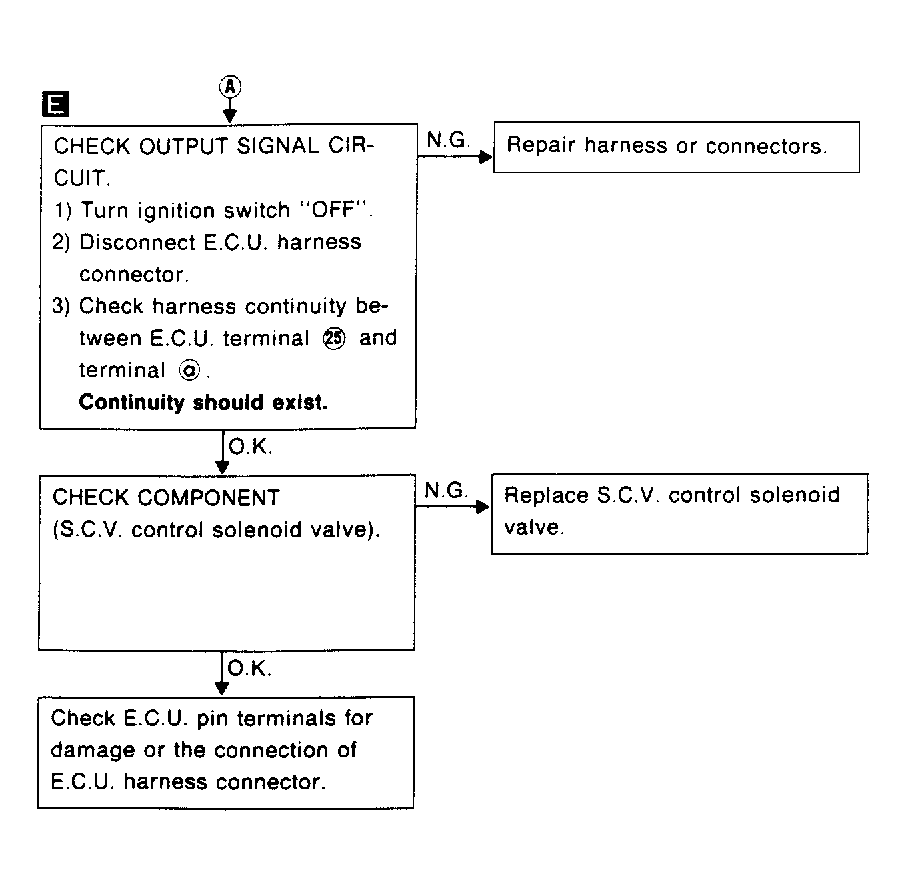

Fig 2: Swirl Control Valve Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
